EC-1078

< FUNCTION DIAGNOSIS >

[K9K]

EGR SYSTEM

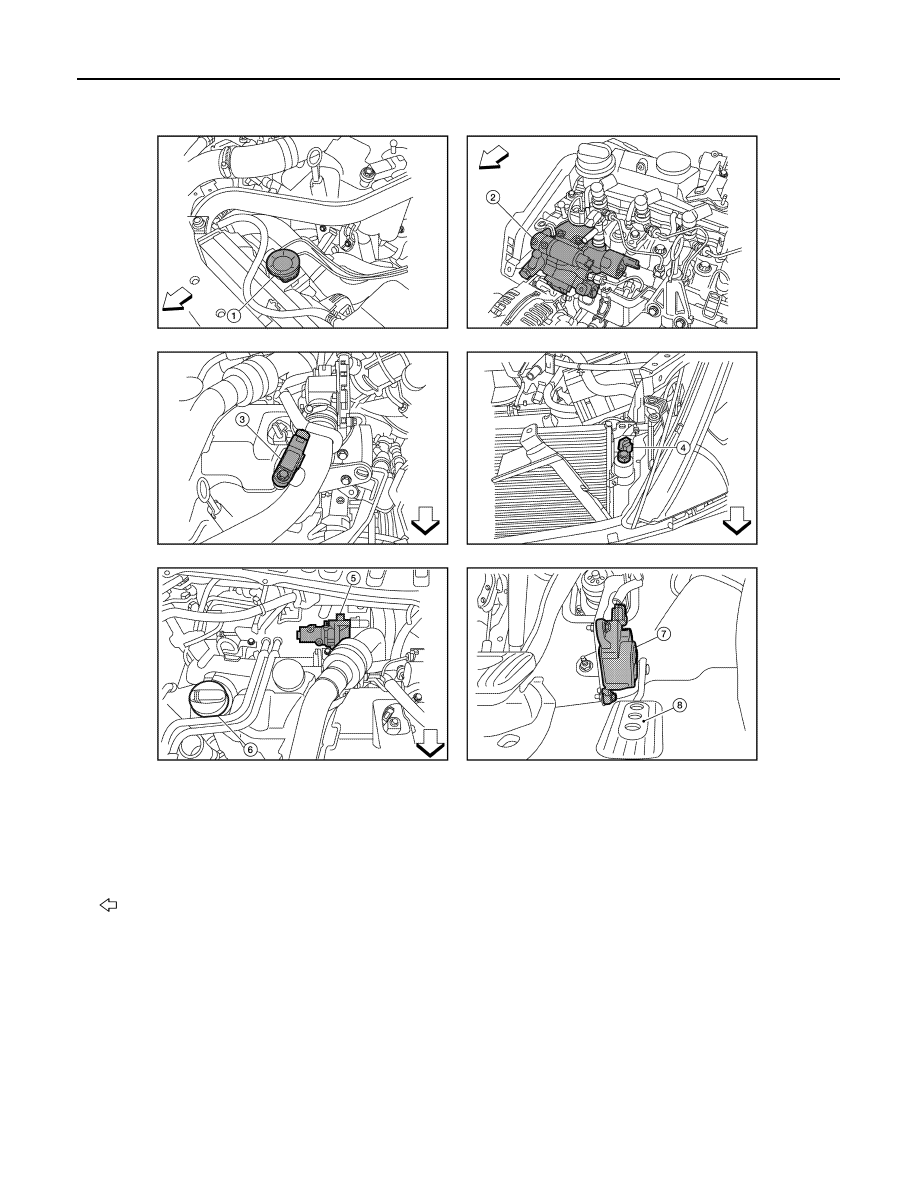

1.

Turbocharger boost control solenoid
valve

2.

Fuel pump

3.

Turbocharger boost sensor

4.

Refrigerant pressure sensor

5.

EGR volume control valve

6.

Engine oil filler cap

7.

Accelerator pedal position sensor

8.

Accelerator pedal

: Vehicle front

ALBIA0301ZZ

EGR SYSTEM

EC-1079

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

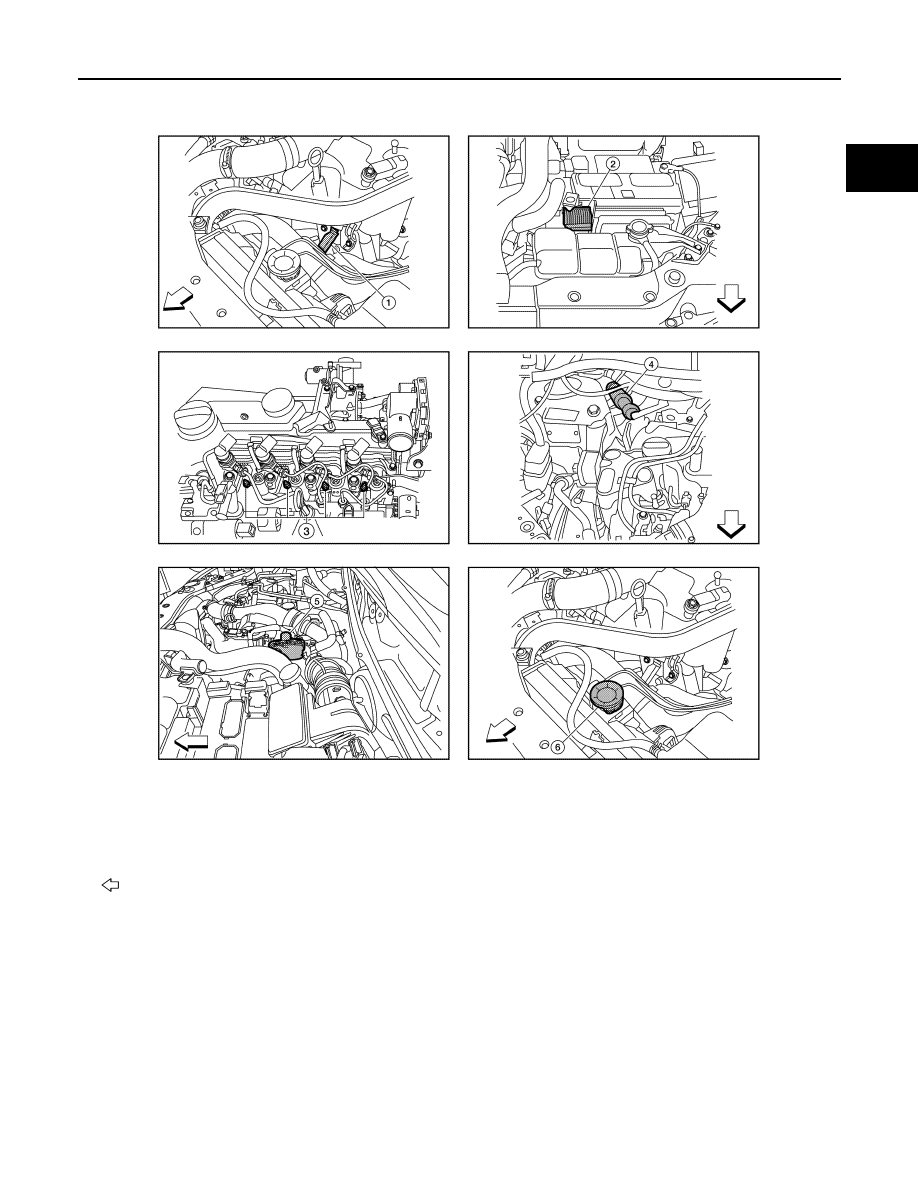

1.

Fuel rail pressure sensor

2.

Glow relay

3.

Glow plug

4.

Priming pump

5.

Electronic throttle control actuator

6.

Turbocharger boost control solenoid
valve

: Vehicle front

ALBIA0303ZZ

EC-1080

< FUNCTION DIAGNOSIS >

[K9K]

EGR SYSTEM

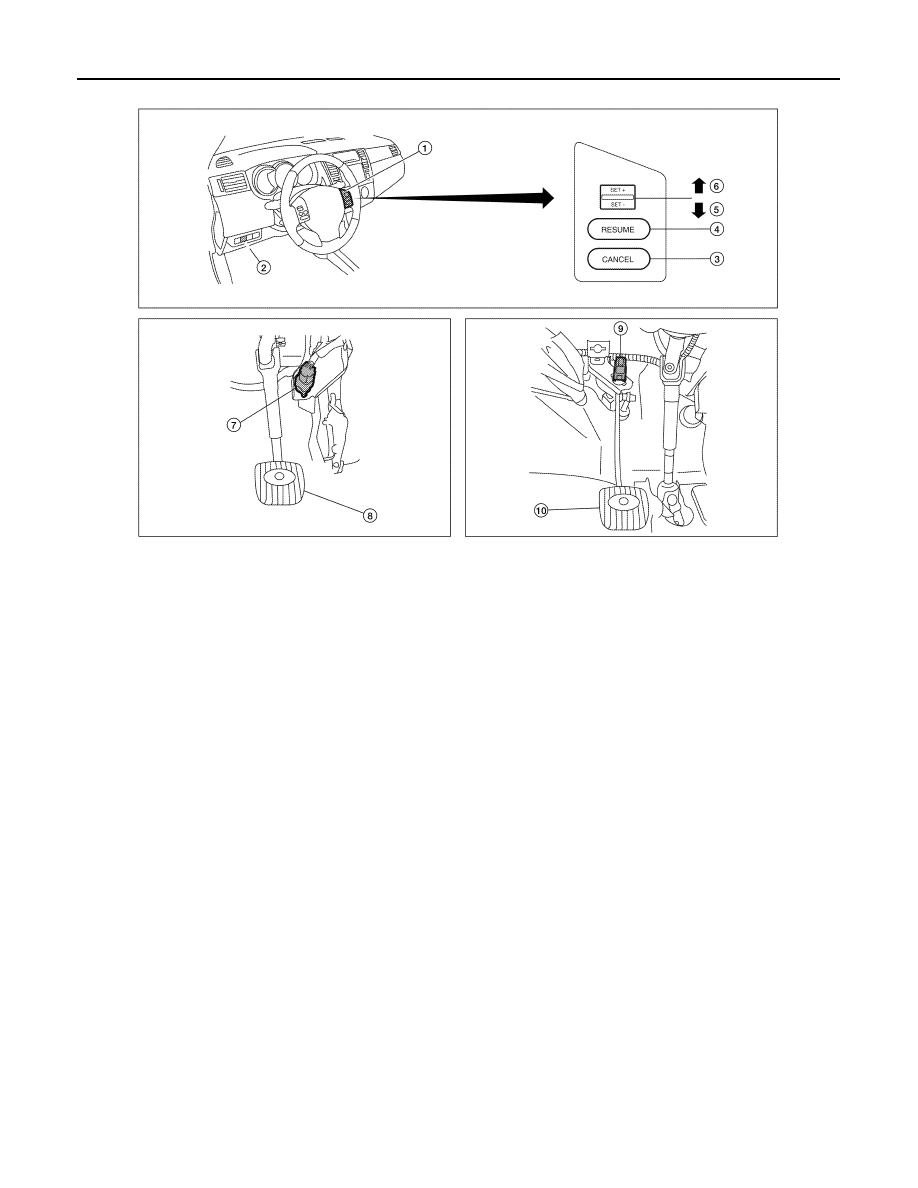

1.

ASCD steering switch

2.

ASCD switch

3.

CANCEL switch

4.

RESUME switch

5.

SET - switch

6.

SET + switch

7.

Stop lamp switch

8.

Brake pedal

9.

ASCD clutch switch

10. Clutch pedal

AWBIA0056ZZ

IDLE SPEED CONTROL

EC-1081

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

IDLE SPEED CONTROL

System Diagram

INFOID:0000000001162537

System Description

INFOID:0000000001162538

The ECM is responsible for regulating the idle speed as a function of the idle speed setpoint which it calcu-
lates.
• The idle speed setpoint is dependent on:
- Engine coolant temperature
- Emission control program
- Air conditioning requirement
- Gear engaged
- Electrical load
- Battery voltage

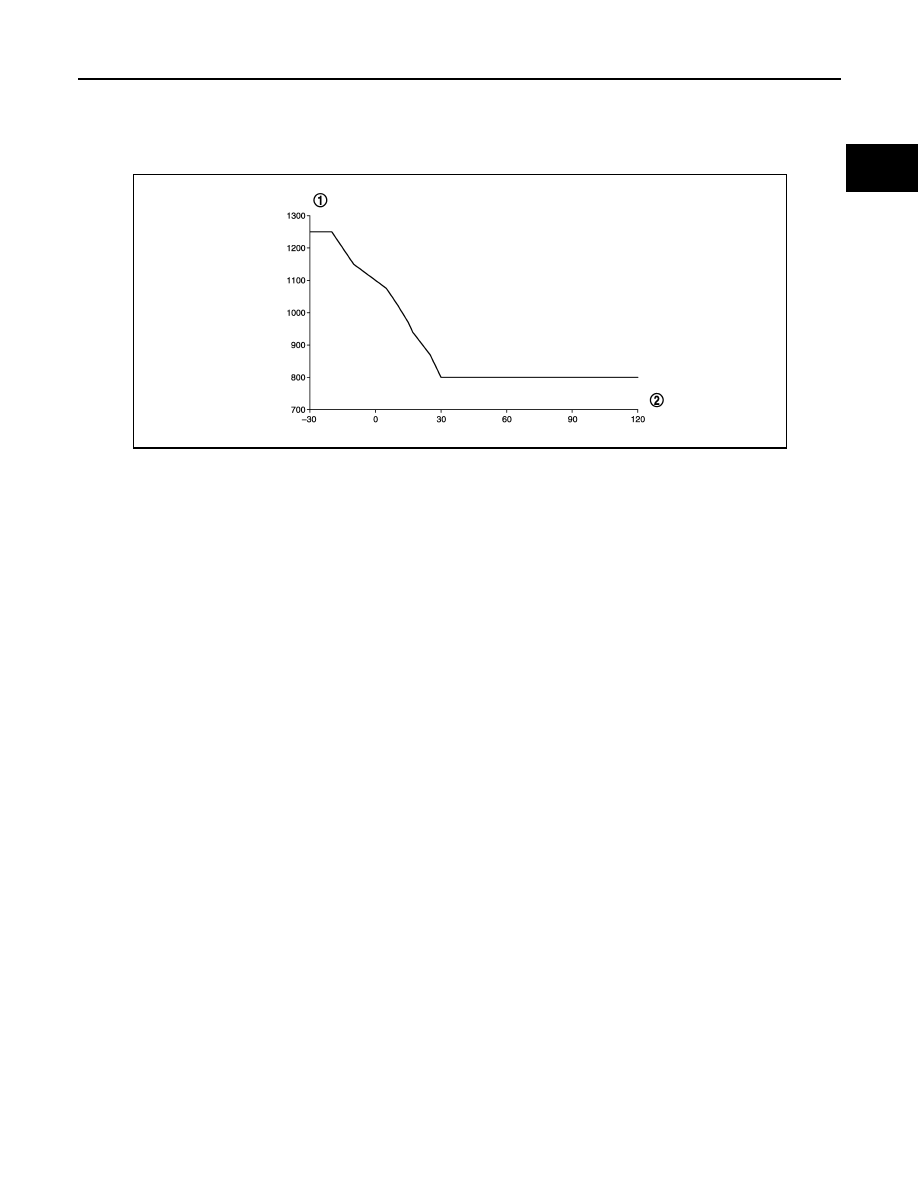

1.

Engine speed in rpm

2.

Engine coolant temperature

°

C

JMBIA0434ZZ
