EC-746

< FUNCTION DIAGNOSIS >

[MR18DE]

EVAPORATIVE EMISSION SYSTEM

NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

System Description

INFOID:0000000001161745

INPUT/OUTPUT SIGNAL CHART

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.

*2: This signal is sent to the ECM through CAN communication line.

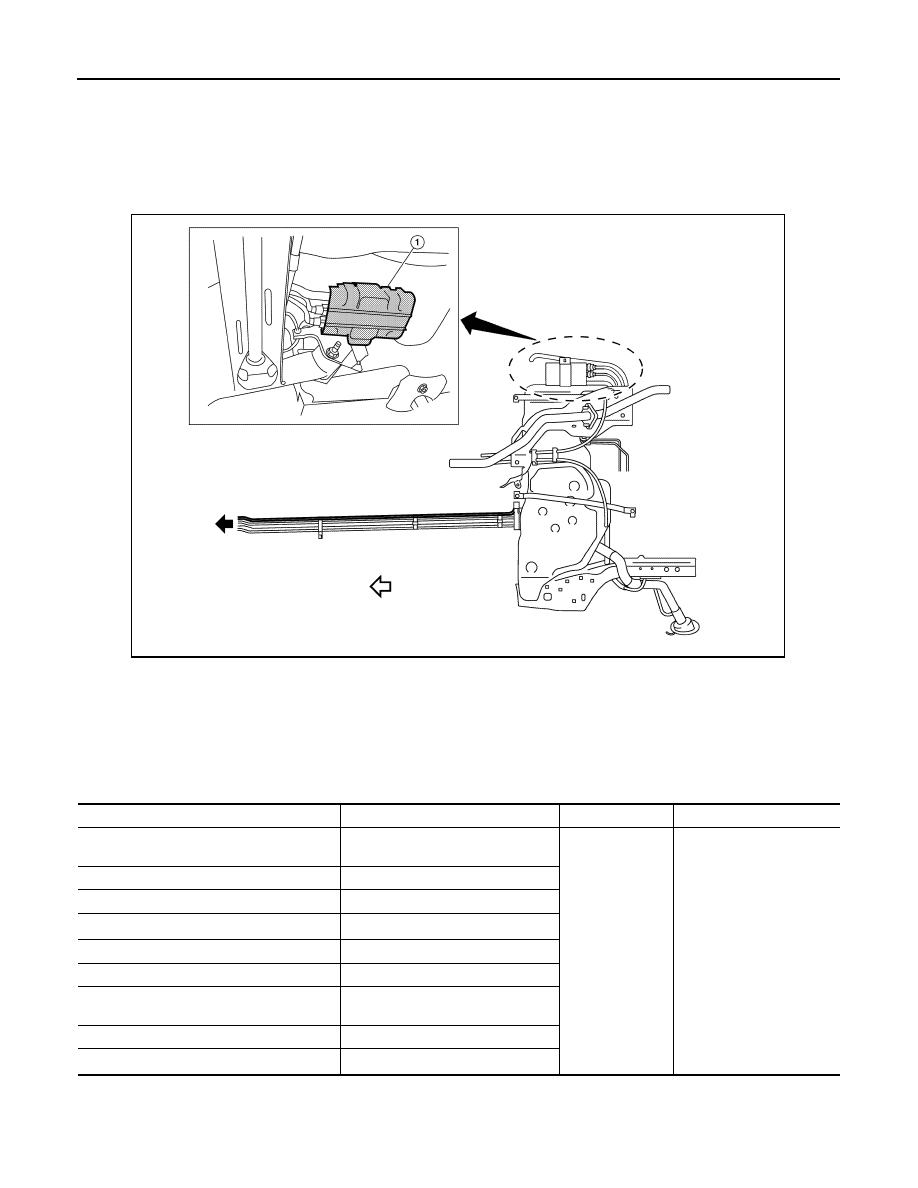

SYSTEM DESCRIPTION

1.

EVAP canister purge volume control
solenoid valve

2.

EVAP purge resonator

3.

EVAP canister



1.

EVAP canister

3.



ALBIA0274ZZ

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

EVAP canister
purge flow control

EVAP canister purge vol-
ume control solenoid valve

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

1

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Heated oxygen sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel tank temperature sensor

Fuel temperature in fuel tank

Combination meter*

2

Vehicle speed

EVAPORATIVE EMISSION SYSTEM

EC-747

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating.

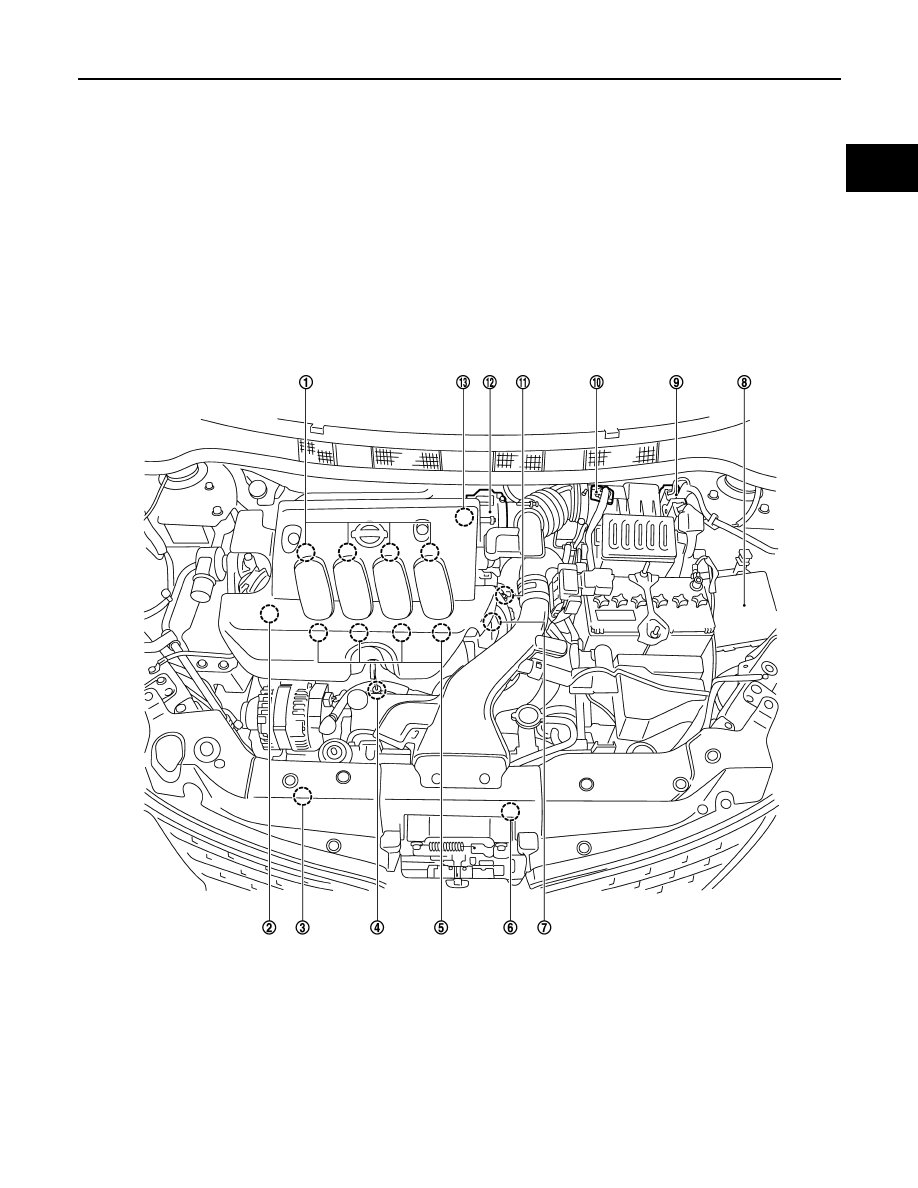

Component Parts Location

INFOID:0000000001603915

1.

Ignition coil (with power transistor)
and spark plug

2.

Intake valve timing control solenoid
valve

3.

Refrigerant pressure sensor

4.

Knock sensor

5.

Fuel injector

6.

Cooling fan motor

7.

Camshaft position sensor (PHASE)

8.

IPDM E/R

9.

ECM

PBIB3261E

EC-748

< FUNCTION DIAGNOSIS >

[MR18DE]

EVAPORATIVE EMISSION SYSTEM

10. Mass air flow sensor (with intake

temperature sensor)

11.

Engine coolant temperature sensor

12. Electric throttle control actuator

(with built in throttle position sensor
and throttle control motor)

13. EVAP canister purge volume control

solenoid valve

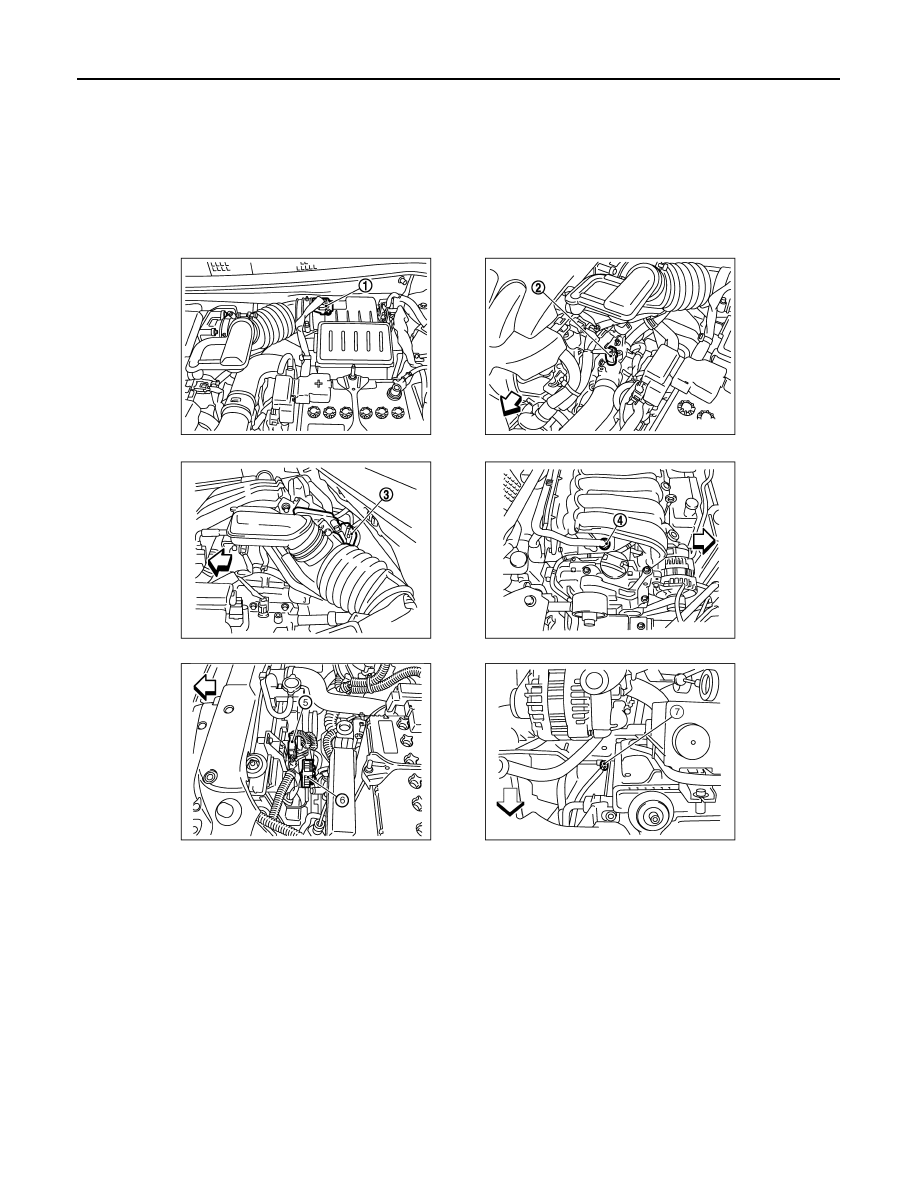

1.

Mass air flow sensor
(with intake air temperature sensor)

2.

Engine coolant temperature sensor

3.

Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)

4.

PCV valve

5.

Cooling fan motor

6.

Resistor

7.

Refrigerant pressure sensor

BBIA0724E

EVAPORATIVE EMISSION SYSTEM

EC-749

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

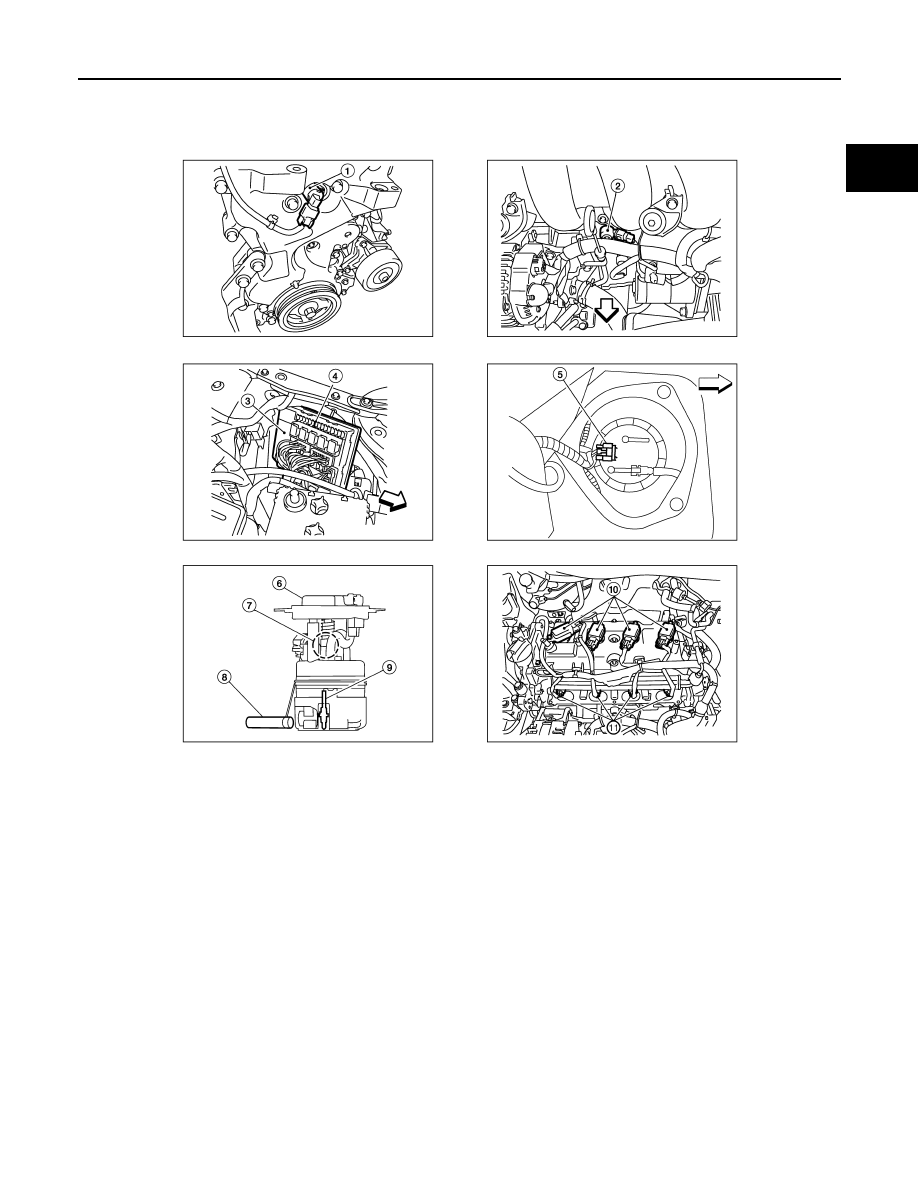

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

3.

IPDM E/R

4.

Fuel pump fuse

5.

Fuel level sensor unit and fuel pump
harness connector
(view with inspection hole cover re-
moved)

6.

Fuel level sensor unit and fuel pump

7.

Fuel pressure regulator

8.

Fuel level sensor

9.

Fuel tank temperature sensor

10. Ignition coil

11.

Fuel injector

BBIA0735E
