EC-742

< FUNCTION DIAGNOSIS >

[MR18DE]

COOLING FAN CONTROL

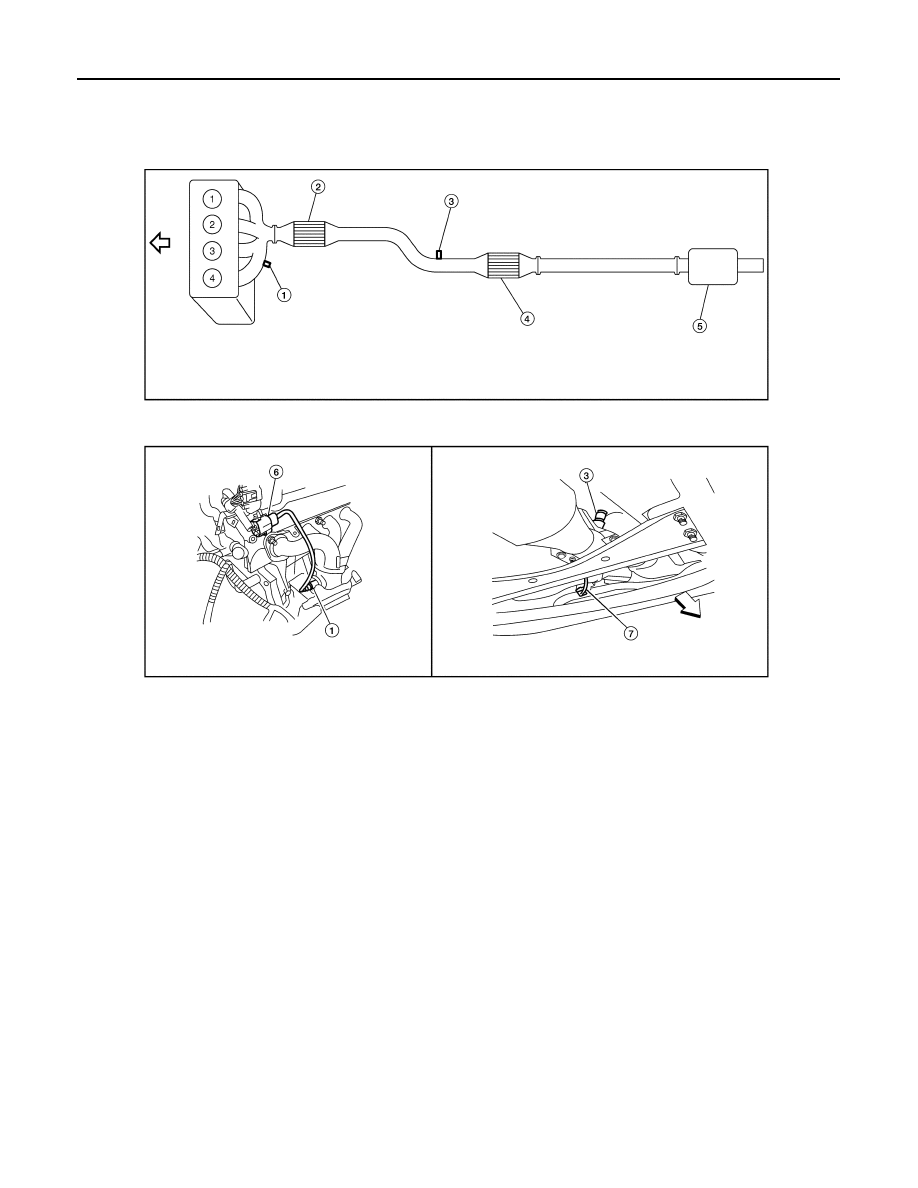

1.

Heated oxygen sensor 1

2.

Three way catalyst (Manifold)

3.

Heated oxygen sensor 2

4.

Three way catalyst (Under floor)

5.

Muffler

6.

Heated oxygen sensor 1 harness
connector

7.

Heated oxygen sensor 2 harness
connector

BBIA0733E

COOLING FAN CONTROL

EC-743

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

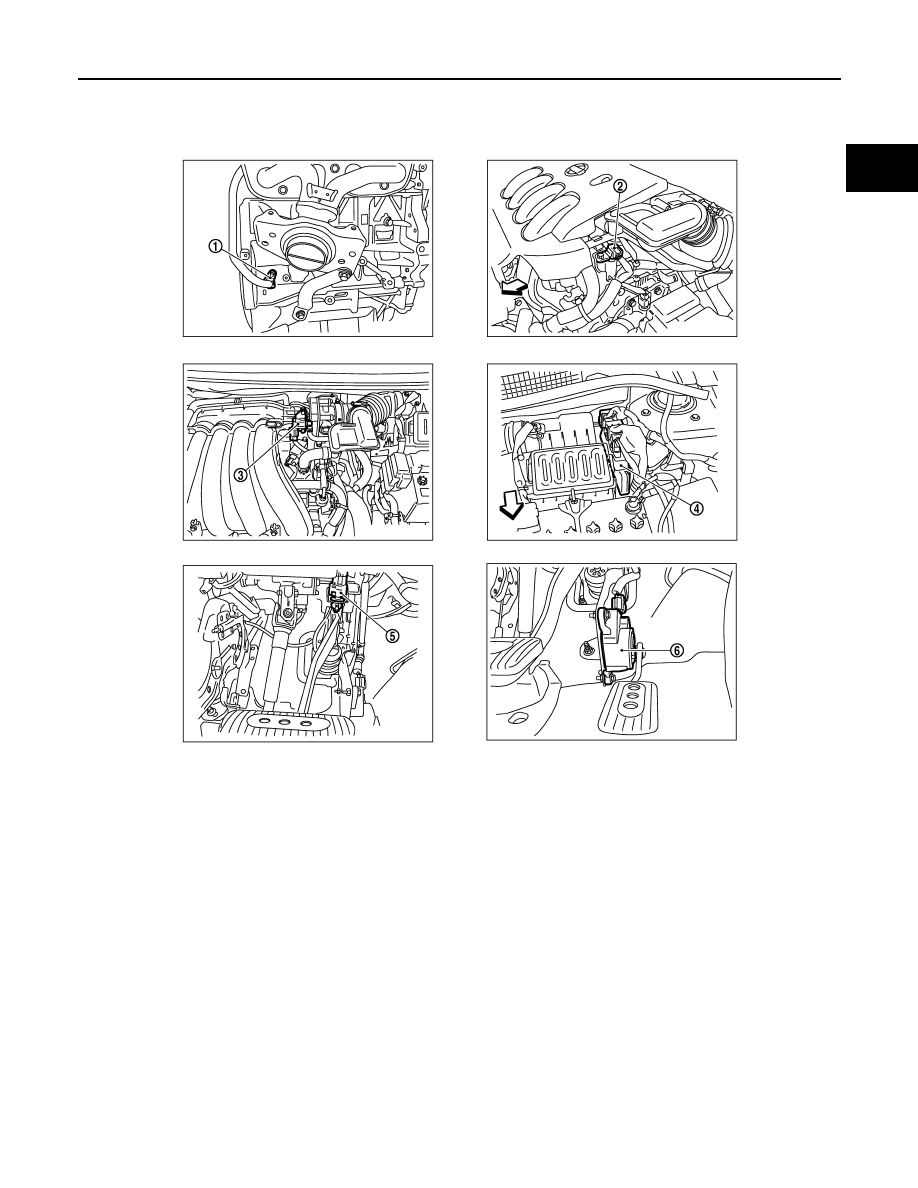

1.

Crankshaft position sensor (POS)

2.

Comshaft position sensor (PHASE)

3.

EVAP canistor purge volume control
solenoid valve

4.

ECM

5.

Stop lamp switch

6.

Accelerator pedal position sensor

PBIA9902J

EC-744

< FUNCTION DIAGNOSIS >

[MR18DE]

COOLING FAN CONTROL

Component Description

INFOID:0000000001161743

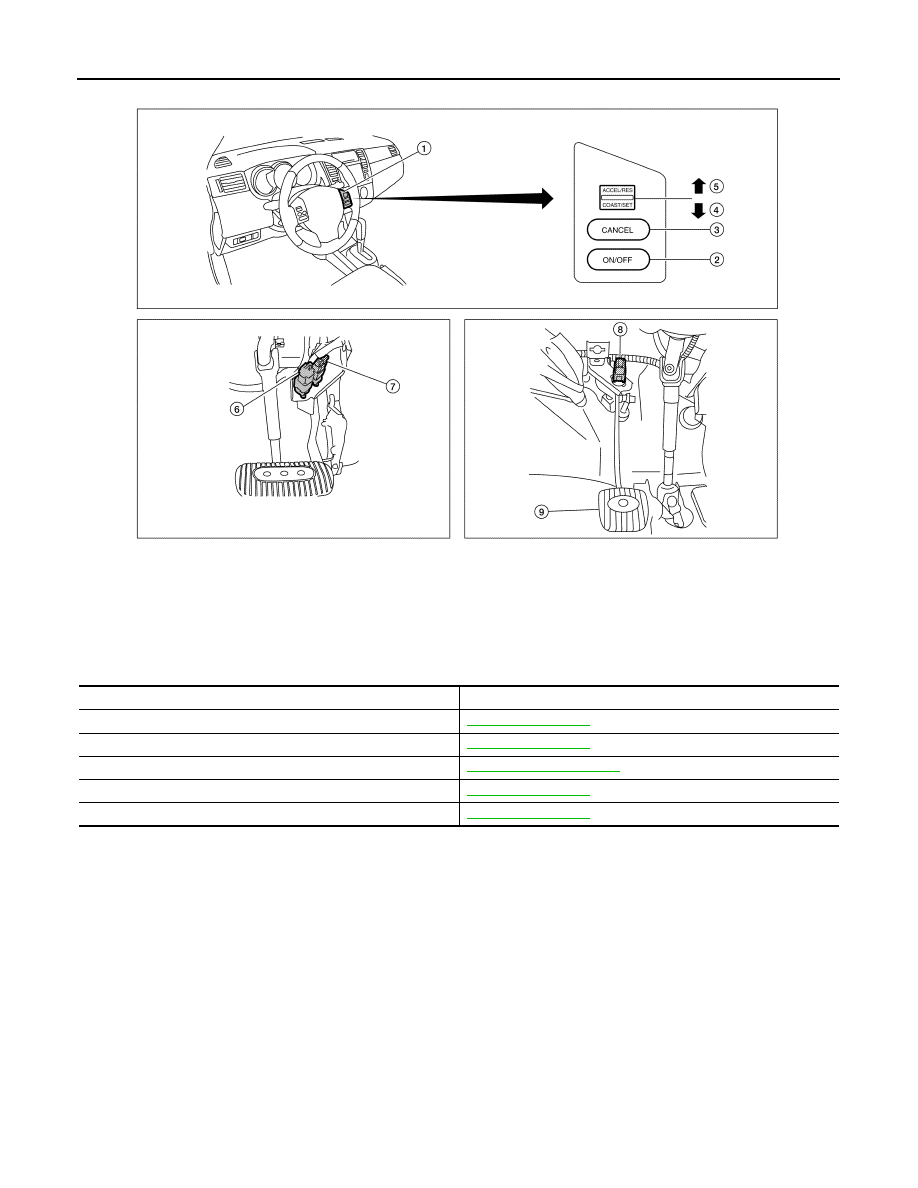

1.

ASCD steering switch

2.

MAIN switch

3.

CANCEL switch

4.

SET/COAST switch

5.

RESUME/ACCELEATE switch

6.

Stop lamp switch

7.

ASCD brake switch

8.

ASCD clutch switch

9.

Cluch pedal

ALBIA0273ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-866, "Description"

Crankshaft position sensor (POS)

EC-862, "Description"

Cooling fan motor

EC-737, "System Diagram"

Engine coolant temperature sensor

EC-807, "Description"

Refrigerant pressure sensor

EC-988, "Description"

EVAPORATIVE EMISSION SYSTEM

EC-745

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

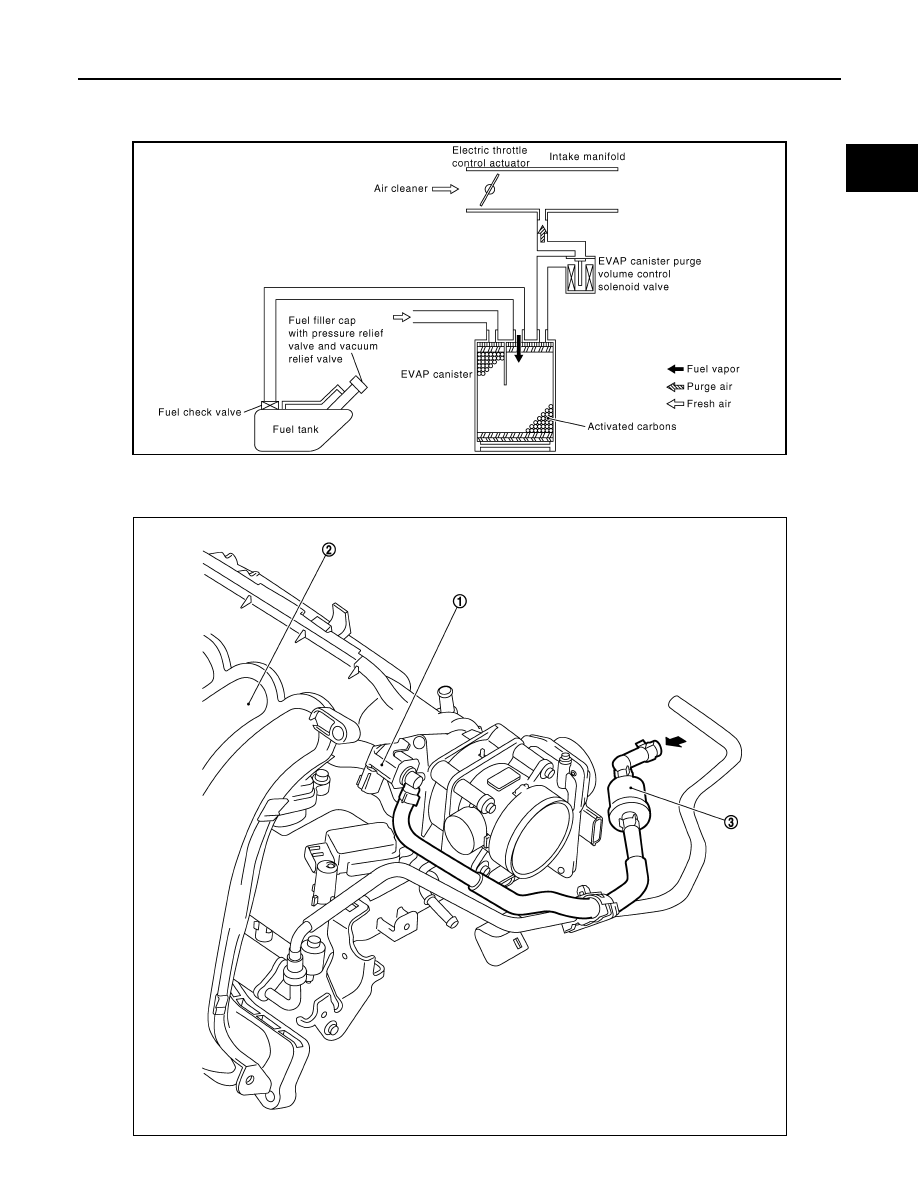

EVAPORATIVE EMISSION SYSTEM

System Diagram

INFOID:0000000001161744

EVAPORATIVE EMISSION LINE DRAWING

PBIB3039E

PBIB3345E
