EC-718

< FUNCTION DIAGNOSIS >

[MR18DE]

ELECTRIC IGNITION SYSTEM

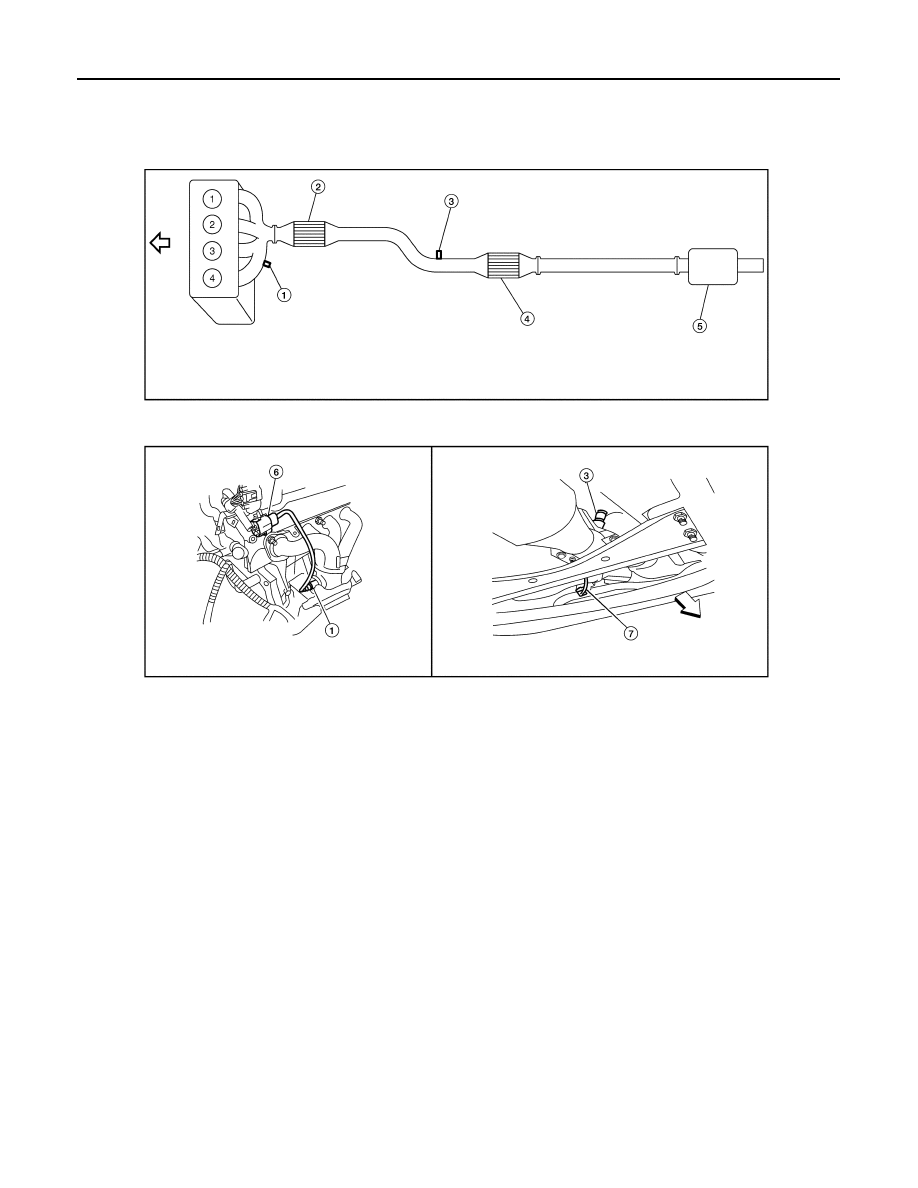

1.

Heated oxygen sensor 1

2.

Three way catalyst (Manifold)

3.

Heated oxygen sensor 2

4.

Three way catalyst (Under floor)

5.

Muffler

6.

Heated oxygen sensor 1 harness
connector

7.

Heated oxygen sensor 2 harness
connector

BBIA0733E

ELECTRIC IGNITION SYSTEM

EC-719

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

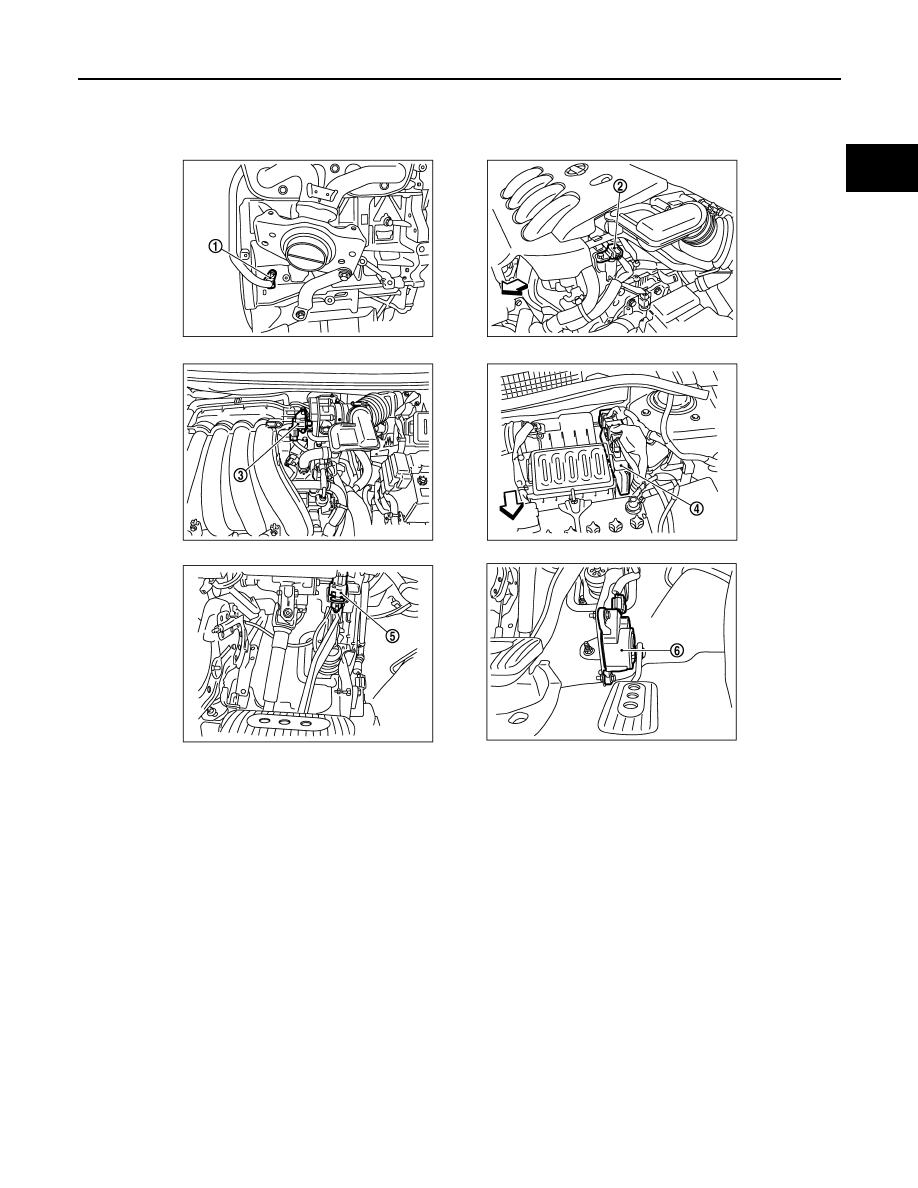

1.

Crankshaft position sensor (POS)

2.

Comshaft position sensor (PHASE)

3.

EVAP canistor purge volume control
solenoid valve

4.

ECM

5.

Stop lamp switch

6.

Accelerator pedal position sensor

PBIA9902J

EC-720

< FUNCTION DIAGNOSIS >

[MR18DE]

ELECTRIC IGNITION SYSTEM

Component Description

INFOID:0000000001161730

1.

ASCD steering switch

2.

MAIN switch

3.

CANCEL switch

4.

SET/COAST switch

5.

RESUME/ACCELEATE switch

6.

Stop lamp switch

7.

ASCD brake switch

8.

ASCD clutch switch

9.

Cluch pedal

ALBIA0273ZZ

Component

Reference

Accelerator pedal position sensor

EC-959, "Description"

Camshaft position sensor (PHASE)

EC-866, "Description"

Crankshaft position sensor (POS)

EC-862, "Description"

Engine coolant temperature sensor

EC-807, "Description"

Ignition signal

EC-981, "Description"

Knock sensor

EC-860, "Description"

Mass air flow sensor

EC-799, "Description"

Park/neutral position (PNP) switch

EC-942, "Description"

Throttle position sensor

EC-810, "Description"

Vehicle speed sensor

EC-878, "Description"

AIR CONDITIONING CUT CONTROL

EC-721

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

AIR CONDITIONING CUT CONTROL

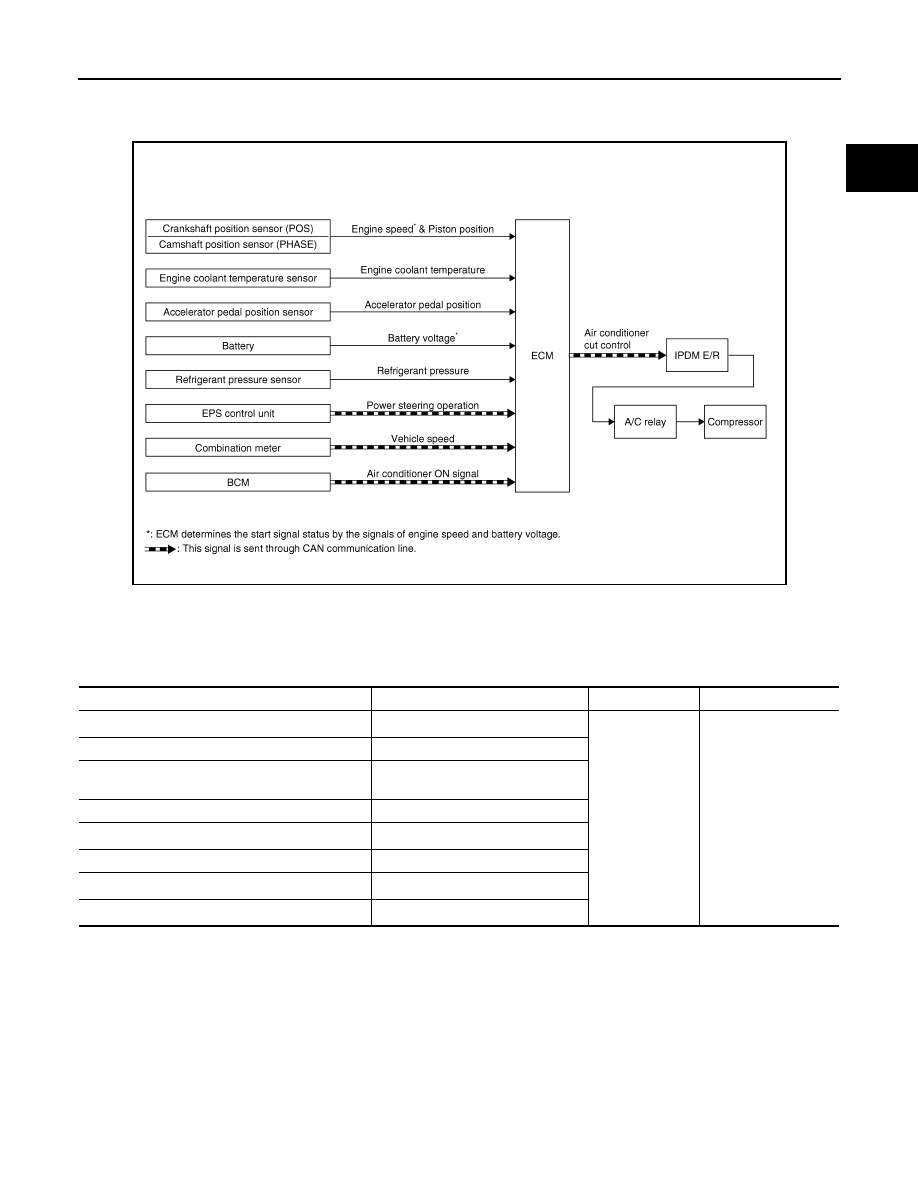

System Diagram

INFOID:0000000001161731

System Description

INFOID:0000000001161732

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM through CAN communication line.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned off.
• When the accelerator pedal is fully depressed.
• When cranking the engine.
• At high engine speeds.
• When the engine coolant temperature becomes excessively high.
• When operating power steering during low engine speed or low vehicle speed.
• When engine speed is excessively low.

JMBIA0449GB

Sensor

Input Signal to ECM

ECM function

Actuator

Air conditioner switch*

1

Air conditioner ON signal

Air conditioner
cut control

IPDM E/R

↓

Air conditioner relay

↓

Compressor

Accelerator pedal position sensor

Accelerator pedal position

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

2

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

2

Refrigerant pressure sensor

Refrigerant pressure

EPS control unit*

1

Power steering operation

Combination meter*

1

Vehicle speed
