AUTOMATIC SPEED CONTROL DEVICE (ASCD)

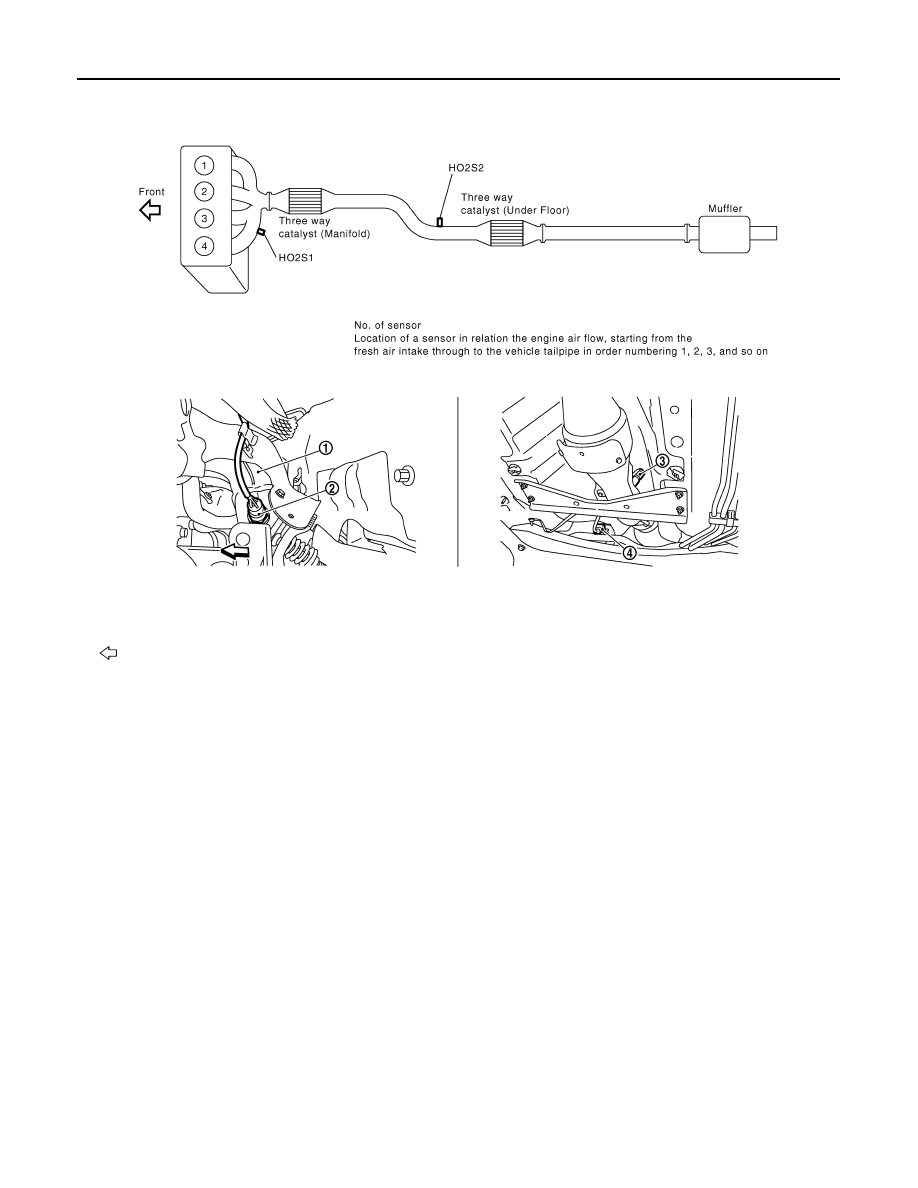

1.

Exhaust manifold

2.

Heated oxygen sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

Vehicle front

PBIB2942E

PBIB2943E

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-67

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

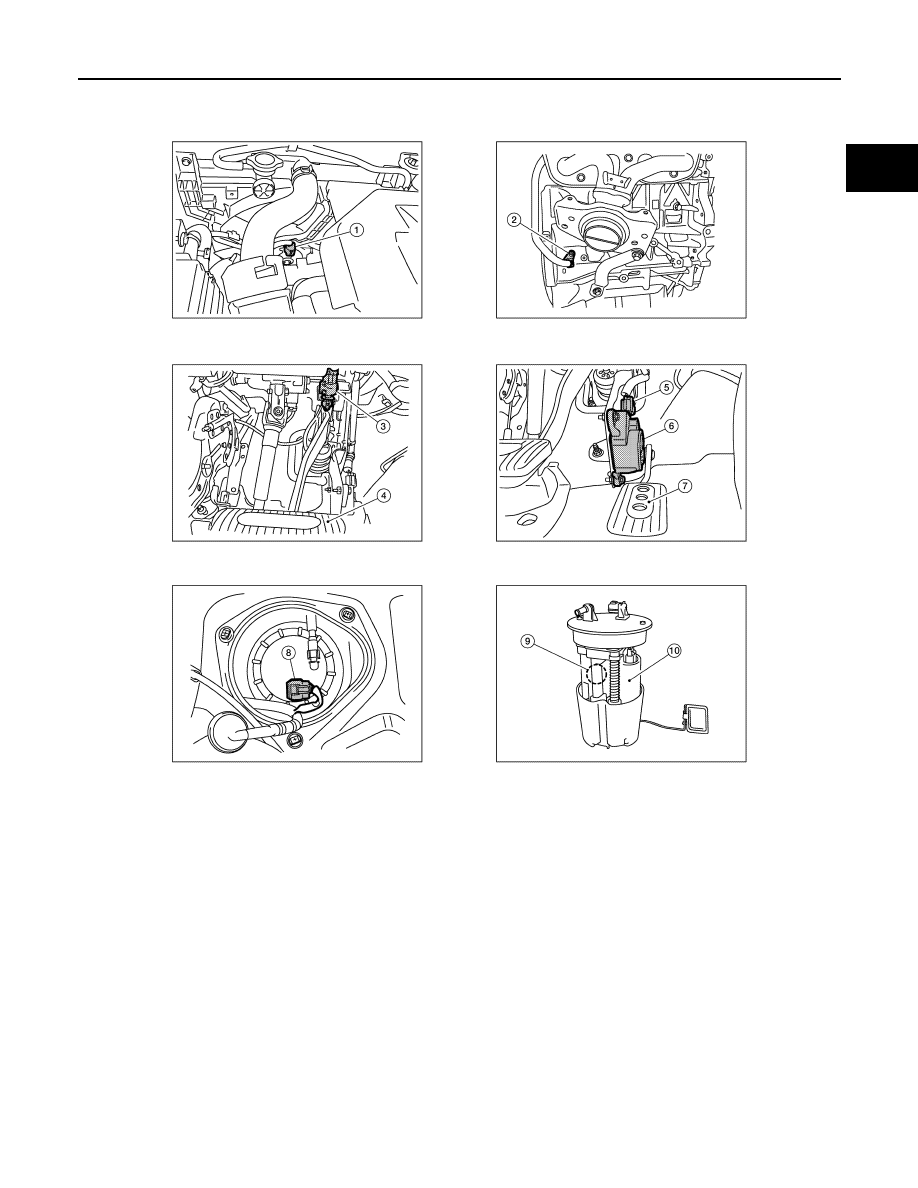

1.

Cooling fan motor harness connec-
tor

2.

Crankshaft position sensor

3.

Stop lamp switch

4.

Brake pedal

5.

Accelerator pedal position sensor
harness connector

6.

Accelerator pedal position sensor

7.

Accelerator pedal

8.

Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed)

9.

Fuel pressure regulator

10. Fuel pump

AWBIA0044ZZ

EC-68

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

Component Description

INFOID:0000000001161157

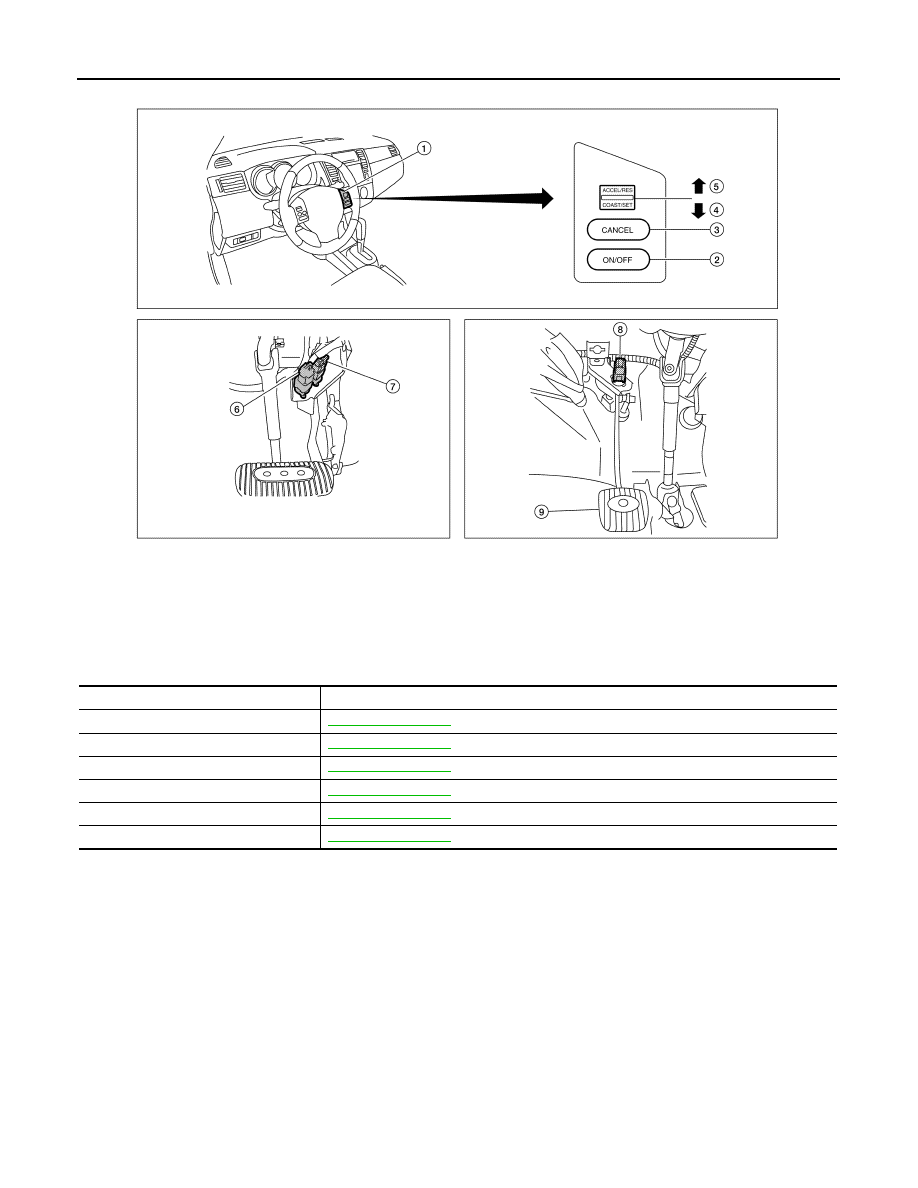

1.

ASCD steering switch

2.

MAIN switch

3.

CANCEL switch

4.

SET/COAST switch

5.

RESUME/ACCELERATE switch

6.

ASCD brake switch

7.

Stop lamp switch

8.

ASCD clutch switch

9.

Clutch pedal

ALBIA0273ZZ

Component

Reference

ASCD steering switch

EC-267, "Description"

ASCD clutch switch

EC-270, "Description"

ASCD brake switch

EC-270, "Description"

ASCD indicator

EC-306, "Description"

Stop lamp switch

EC-283, "Description"

Electric throttle control actuator

EC-222, "Description"

CAN COMMUNICATION

EC-69

< FUNCTION DIAGNOSIS >

[HR16DE (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

CAN COMMUNICATION

System Description

INFOID:0000000001161158

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-33, "CAN Communication Signal Chart"

, about CAN communication for detail.
