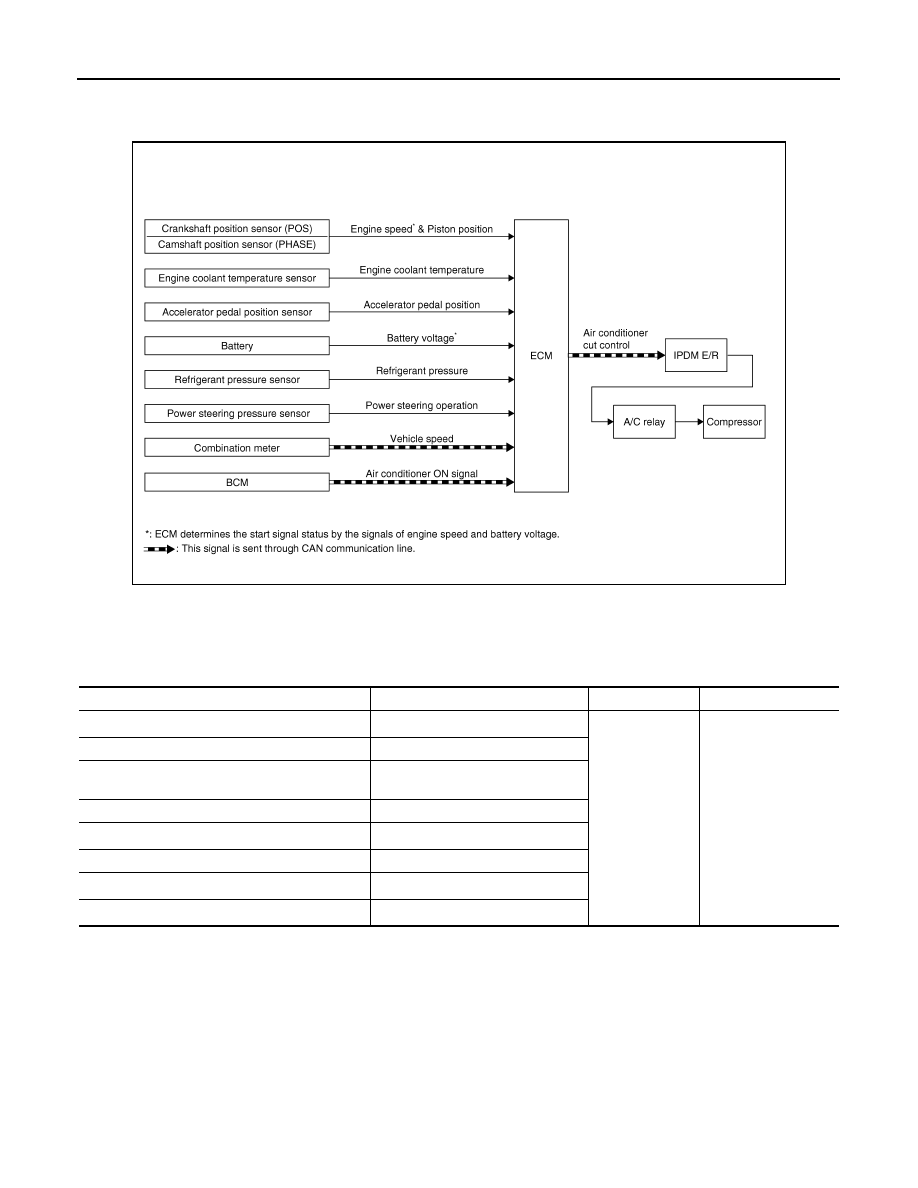

EC-54 < FUNCTION DIAGNOSIS > [HR16DE (WITH EURO-OBD)] AIR CONDITIONING CUT CONTROL AIR CONDITIONING CUT CONTROL System Diagram INFOID:0000000001161150 System Description INFOID:0000000001161151 INPUT/OUTPUT SIGNAL CHART *1: This signal is sent to the ECM through CAN communication line. *2: ECM determines the start signal status by the signals of engine speed and battery voltage. SYSTEM DESCRIPTION This system improves engine operation when the air conditioner is used. JMBIA0175GB Sensor Input Signal to ECM ECM function Actuator BCM* 1 Air conditioner ON signal Air conditioner IPDM E/R ↓ Air conditioner relay ↓ Compressor Accelerator pedal position sensor Accelerator pedal position Crankshaft position sensor (POS) Engine speed* 2 Engine coolant temperature sensor Engine coolant temperature Battery Battery voltage* 2 Refrigerant pressure sensor Refrigerant pressure EPS control unit* 1 Power steering operation Combination meter* 1 Vehicle speed |
