Nissan Tiida C11. Manual - part 335

DLK-750

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

FUEL FILLER LID OPENER

INSTALLATION

Installation is in the reverse order of removal.

FRONT DOOR LOCK

DLK-751

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

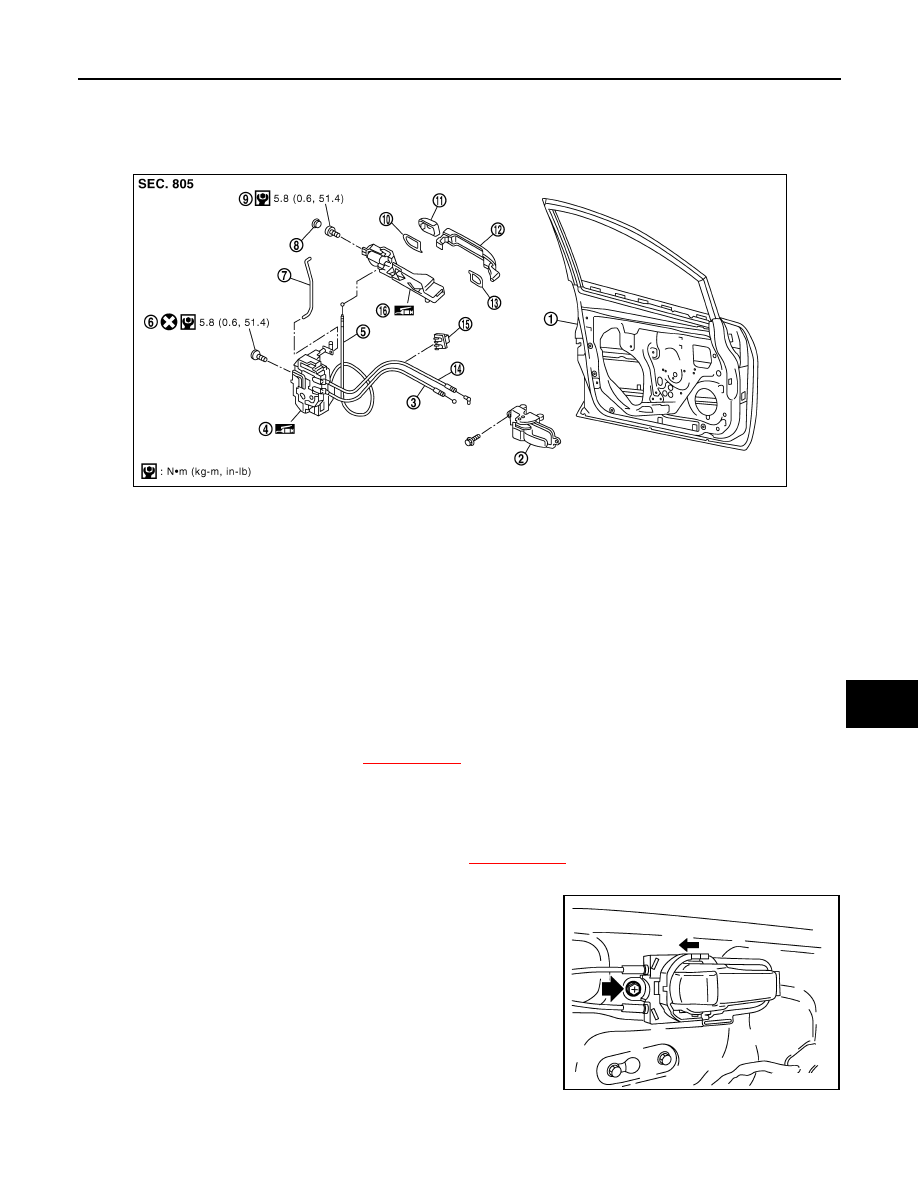

FRONT DOOR LOCK

Component Parts Location

INFOID:0000000001732062

Removal and Installation

INFOID:0000000001732063

REMOVAL

1.

Remove front door finisher. Refer to

XX-XX, "*****"

 .

2.

Fully close front door window.

3.

Remove the front door sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.

4.

Remove front door rear glass run channel. Refer to

XX-XX, "*****"

 .

5.

Remove the cables from the holder.

6.

Remove inside handle bolt, and slide the handle toward the rear
of the vehicle. disengage the handle from the door panel, and
remove the inside handle.

7.

Disengage the handle from the door panel, and remove the inside handle.

1.

Front door

2.

Inside handle

3.

Inside handle cable

4.

Door lock assembly

5.

Outside handle cable

6.

TORX bolt (T30)

7.

Key cylinder connecting rod

8.

Grommet

9.

TORX bolt (T30)

10. Rear gasket

11. Door key cylinder assembly

(Driver's side)
Outside handle escutcheon
(passenger's side)

12. Outside handle

13. Front gasket

14. Lock knob cable

15. Holder

16. Outside handle bracket

PIIB6523E

PIIB6524E

DLK-752

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

FRONT DOOR LOCK

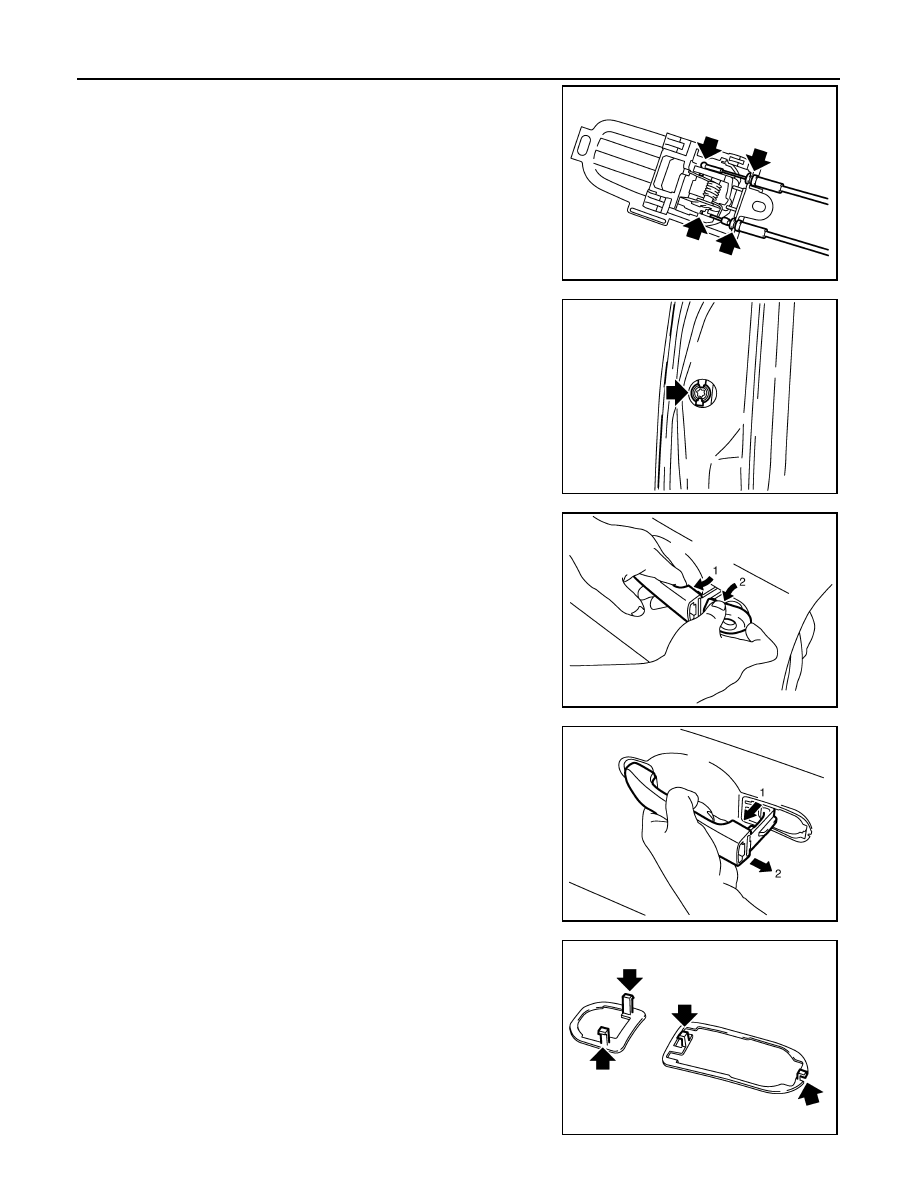

8.

Disconnect the inside handle cable and lock knob cable from the
inside handle.

CAUTION:

During removal and installation, work so as not to bend the
ends of the lock knob cable and inside handle cable.

9.

Remove the door side grommet, and the door key cylinder
assembly (escutcheon) bolt.

10. Remove the key cylinder connecting rod (key cylinder side).

11. If equipped, disconnect the door antenna, the door request

switch connector and remove the harness clamp. (Vehicle with
intelligent key systems only).

12. Remove the door cylinder assembly while pulling the outside

handle forward.

13. Pull the outside door handle forward and then slide it toward the

rear of the vehicle to remove.

14. Remove the front and rear gaskets.

PIIB6525E

PIIB5808E

PIIB5809E

PIIB5810E

PIIB6526E

FRONT DOOR LOCK

DLK-753

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

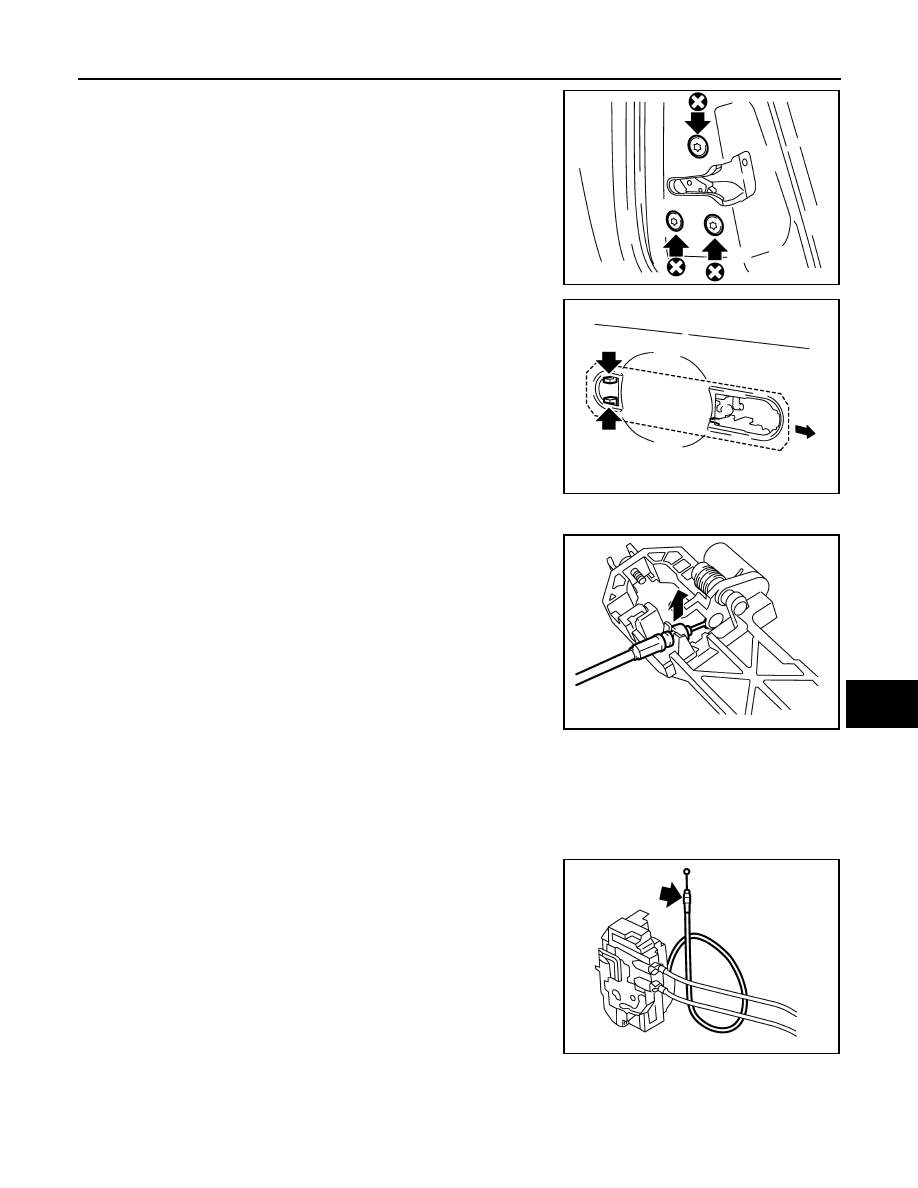

15. Remove the door lock assembly bolts.

16. Slide the outside handle bracket toward the rear of the vehicle,

and remove the assembly.

17. If equipped, disconnect the door lock assembly electrical connector.

18. Separate the outside handle cable from the outside handle

bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• To install each rod, be sure to rotate the rod holder until a click is felt.
• When installing door lock assembly, be careful when rotating the outside handle cable as shown in

the figure.

- Place the outside handle bracket cable on the inside of door

lock assembly before installing.

  5.8 N·m (0.6 kg-m, 51.4 in-lb)

PIIB6527E

PIIB6528E

PIIB5815E

PIIB6529E
