Nissan Tiida C11. Manual - part 296





DLK-594

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

DOOR

1.

Open and support the back door.

2.

Slightly loosen the hinge nuts.

3.

Reposition the door as necessary and tighten the nuts.

4.

Confirm the adjustment. Repeat as necessary to obtain the desired fit.

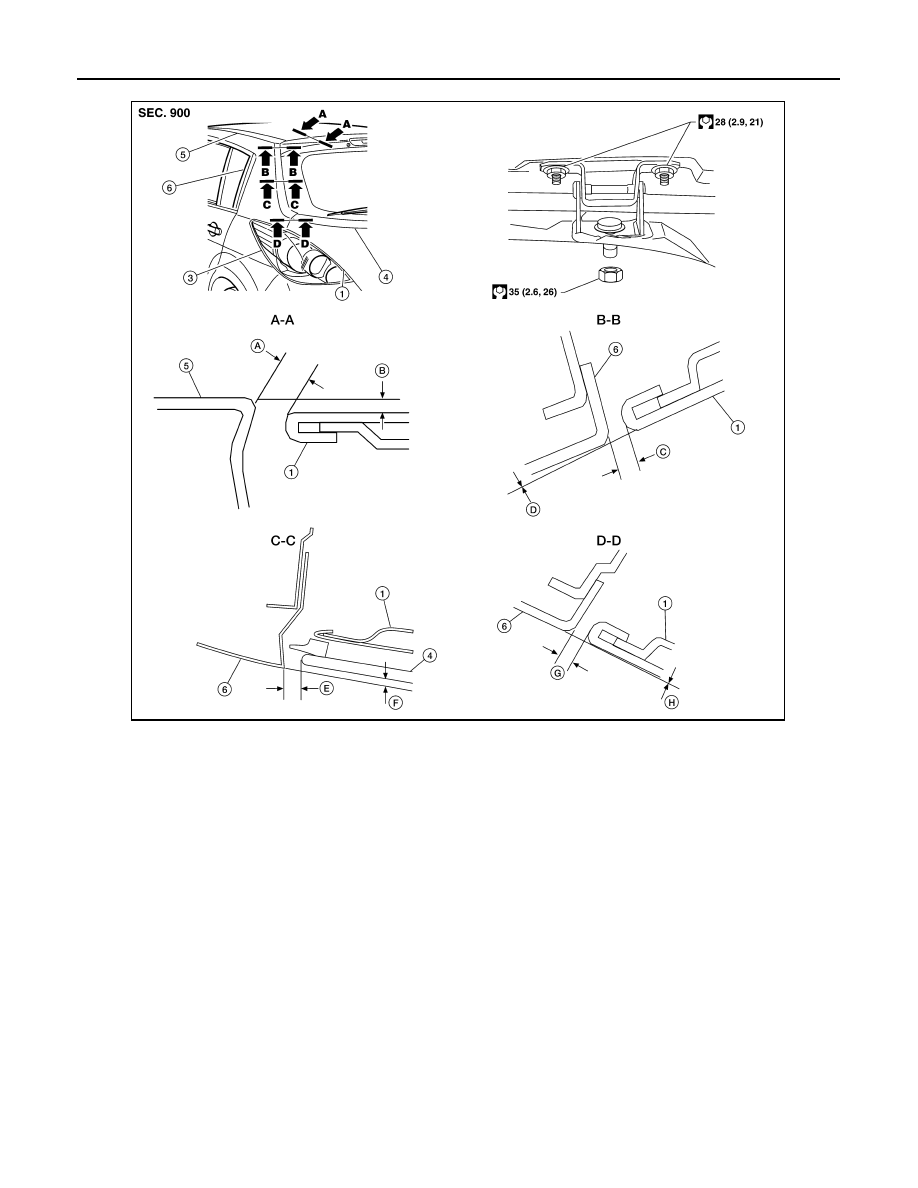

Striker Adjustment

1.

Back door assembly

2.

Back door hinge

3.

Tail lamp assembly

4.

Back window glass

5.

Roof

6.

Rear pillar

A.

6.0

±

 1.0 mm (0.24

±

 0.04 in)

B.

-0.5

±

 1.0 mm (-0.02

±

 0.04 in)

C. 5.0

±

  1.2 mm (0.20

±

 0.05 in)

D.

0.0

±

 1.5 mm (0.0

±

 0.06 in)

E.

5.0

±

 2.3 mm ( 0.20

±

 0.9 in)

F.

2.7 +1.6 -2.1 mm (0.11 + 0.06 - 0.08 in)

G.

5.0

±

 1.2 mm ( 0.20

±

 0.05 in)

H. 0.0

±

 1.5 mm (0.0

±

 0.06 in)

LIIA2668E

DOOR

DLK-595

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Removal and Installation

INFOID:0000000001732042

FRONT DOOR

CAUTION:

• When removing and installing the front door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing front door assembly, be sure to carry out the fitting adjustment. Refer

to

DLK-592, "Fitting Adjustment"

.

• After installing, apply touch-up paint onto the head of the hinge nuts.
• Check the hinge rotating part for lubrication. If necessary, apply “body grease”.
• Operate with two workers, because of its heavy weight.
• Check front door open/close operation after installation.

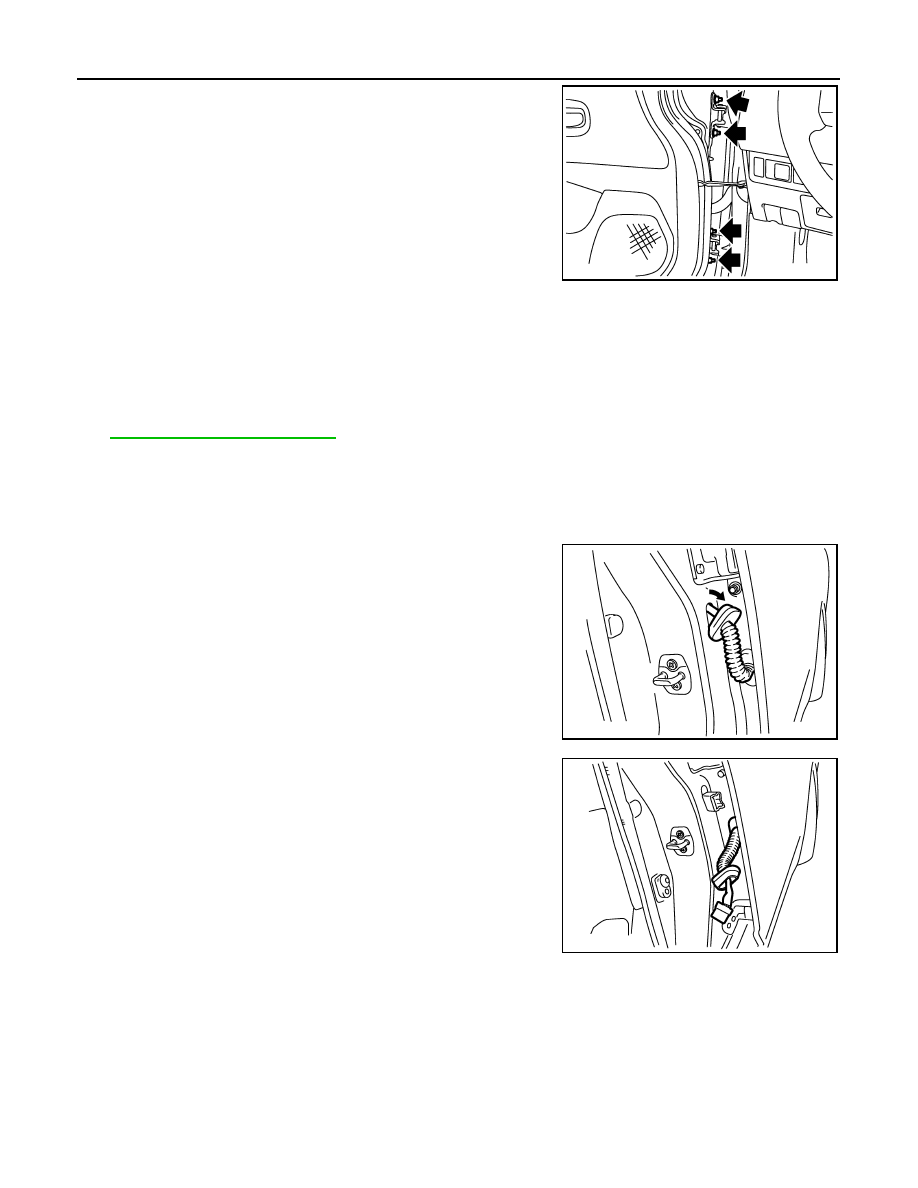

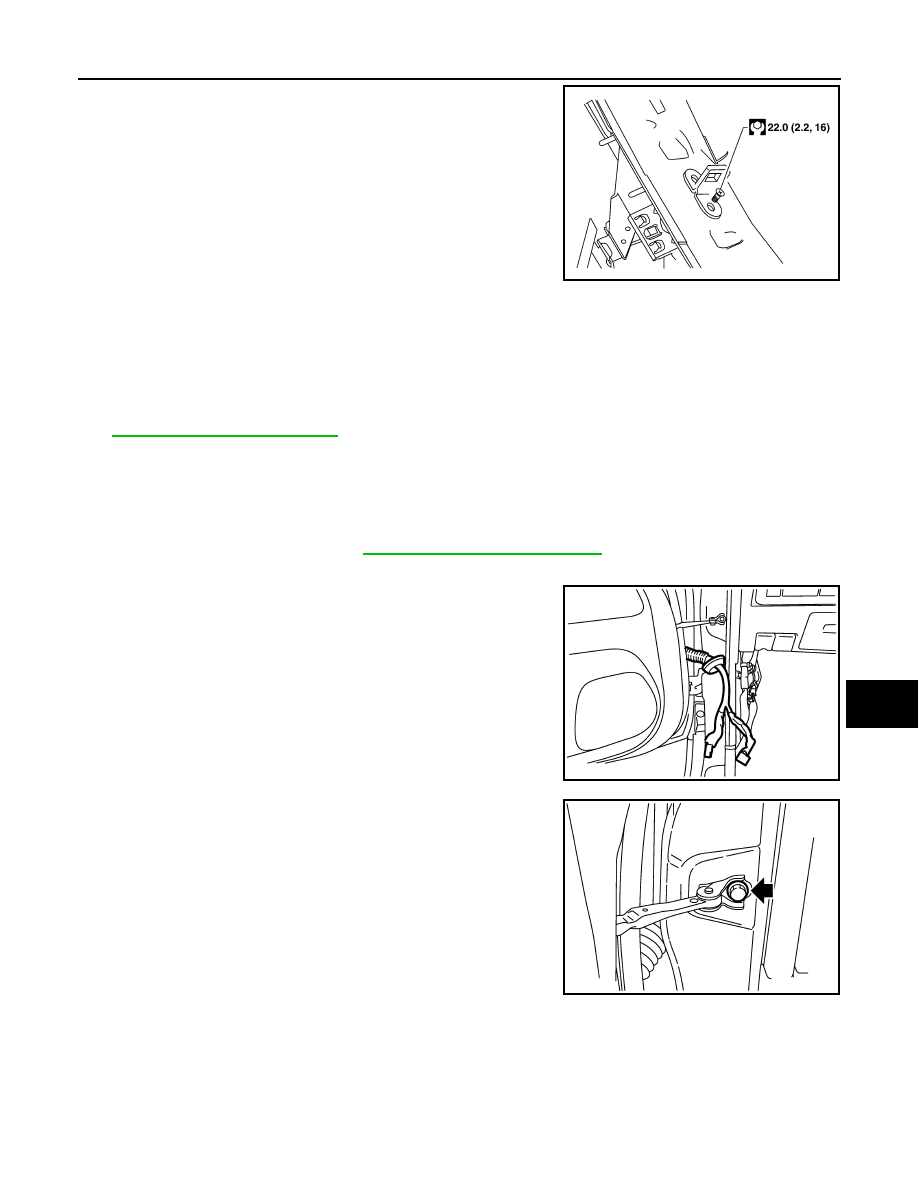

Removal

1.

Remove dash side finisher. Refer to

INT-20, "Removal and Installation"

.

2.

Disconnect the front door harness connectors.

3.

Remove the front door harness grommet, and then remove the
harness from the vehicle.

4.

Remove the check link bolt.

Striker bolts

20 N·m (2.2 kg-m, 16 ft-lb)

LIIA2641E

PIIB6518E

 14.7 N·m (1.5 kg-m, 11 ft-lb)

PIIB6543E

DLK-596

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

DOOR

5.

Remove the hinge nuts and then the door assembly.

Installation

Installation is in the reverse order of removal.

REAR DOOR

CAUTION:

• When removing and installing the rear door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing rear door assembly, be sure to carry out the fitting adjustment. Refer

to

DLK-592, "Fitting Adjustment"

.

• After installing, apply touch-up paint onto the head of the hinge nuts.
• Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.
• Operate with two workers, because of its heavy weight.
• Check rear door open/close operation after installation.

Removal

1.

Remove the rear door harness grommet.

2.

Disconnect the rear door harness connector.

  24.5 N·m (2.5 kg-m, 18 ft-lb)

PIIB6519E

PIIB6520E

PIIB6521E

DOOR

DLK-597

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

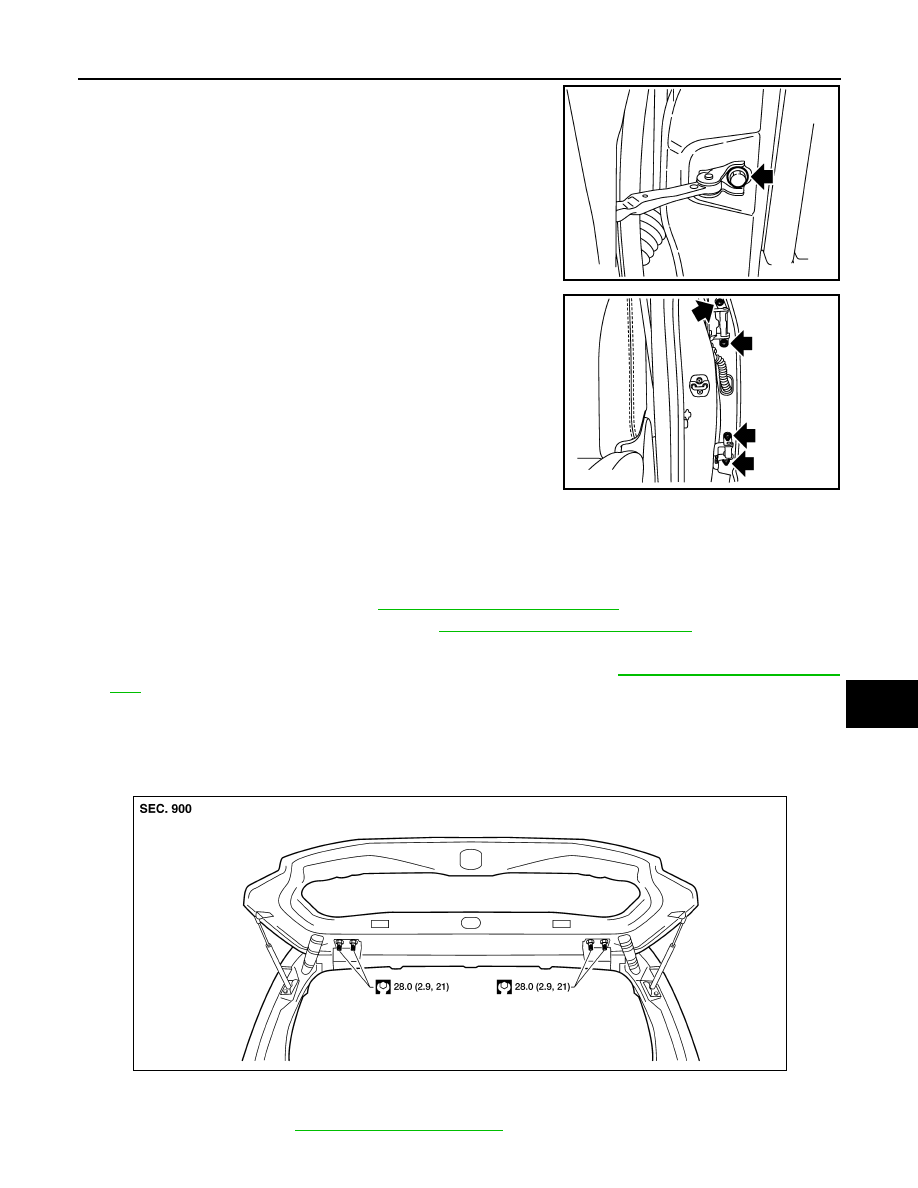

3.

Remove the check link bolt.

4.

Remove the hinge nuts and the door assembly.

Installation

Installation is in the reverse order of removal.

BACK DOOR

Removal

1.

Remove the back door glass. Refer to

GW-18, "Removal and Installation"

.

2.

Remove the back door lock assembly. Refer to

DLK-606, "Removal and Installation"

.

3.

Remove the back door wire harness.

4.

Remove the rear washer nozzle and hose from the back door. Refer to

WW-80, "Removal and Installa-

tion"

.

5.

Support the back door.

CAUTION:

Two technicians should be used to avoid damaging the back door during removal.

6.

Remove the back door stays.

7.

Remove the door side nuts and the back door assembly.

Installation

Installation is in the reverse order of removal.
• Align the back door. Refer to

DLK-592, "Fitting Adjustment"

.

 14.7 N·m (1.5 kg-m, 11 ft-lb)

PIIB6543E

 24.5 N·m (2.5 kg-m, 18 ft-lb)

PIIB6522E

LIIA2639E
