Nissan Tiida C11. Manual - part 294





DLK-586

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

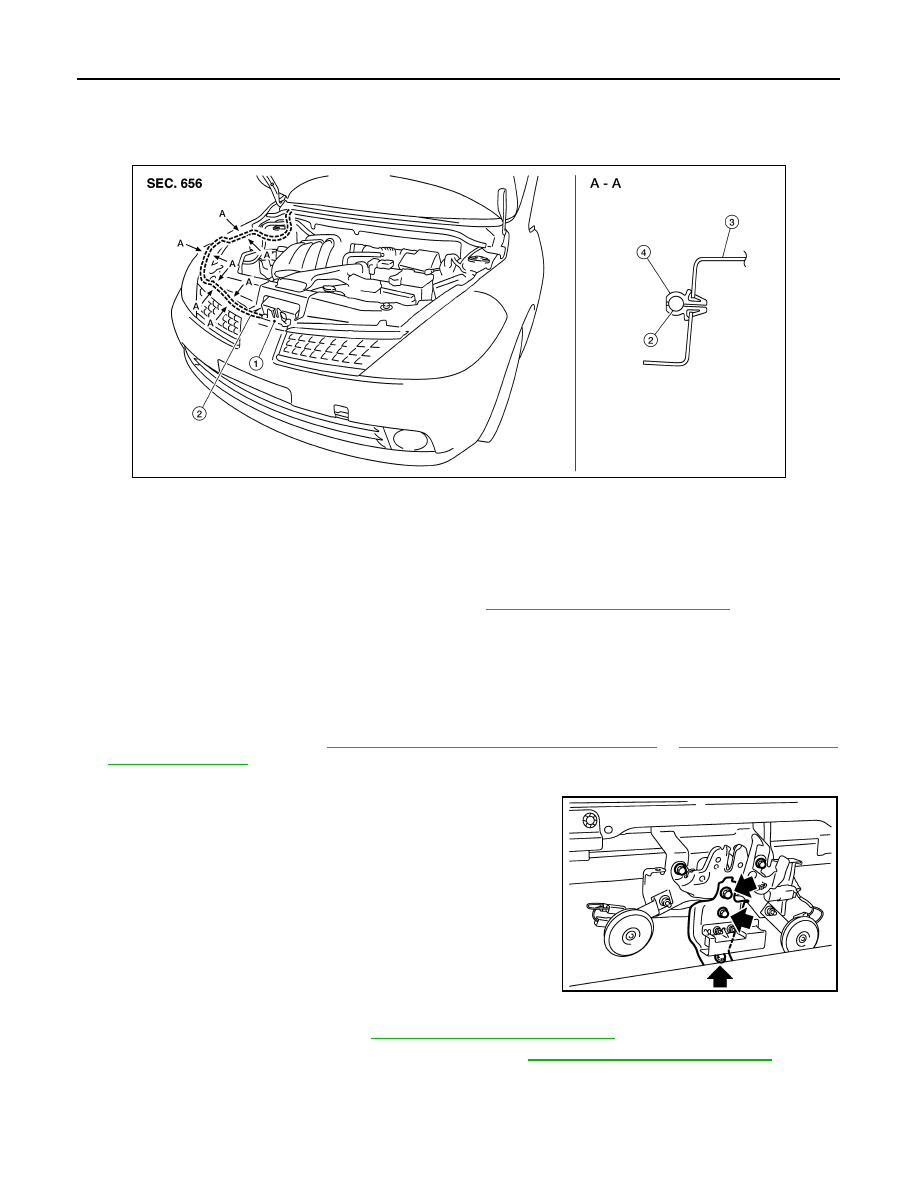

HOOD

RH Drive

REMOVAL

Hood Lock

1.

Remove front grille (LH or RH as necessary). Refer to

EXT-19, "Removal and Installation"

.

2.

Remove hood lock bolts.

3.

Remove hood lock from hood lock cable.

Hood Lock Reinforcement

1.

Remove front bumper. Refer to

EXT-15, "Removal and Installation - Hatchback"

 or

EXT-17, "Removal and

Installation - Sedan"

.

2.

Remove crash zone sensor.

3.

Remove bolts, and the hood lock reinforcement.

Hood Lock Cable

1.

Remove front grille (LH/RH). Refer to

EXT-19, "Removal and Installation"

.

2.

Remove fender protector (LH or RH as necessary). Refer to

EXT-22, "Removal and Installation"

.

3.

Remove hood lock, and remove hood lock cable from hood lock.

4.

Remove radiator core upper support, hood ledge, and then remove hood lock cable.

1.

Hood lock

2.

Hood lock cable

3.

Hood ledge upper front

4.

Clip

ALKIA0638GB

1.

Hood lock

2.

Hood lock cable

3.

Hood ledge upper front

4.

Clip

 23.6 N·m (2.4 kg-m, 17 ft-lb)

 23.6 N·m (2.4 kg-m, 17 ft-lb)

PIIB6511E

HOOD

DLK-587

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

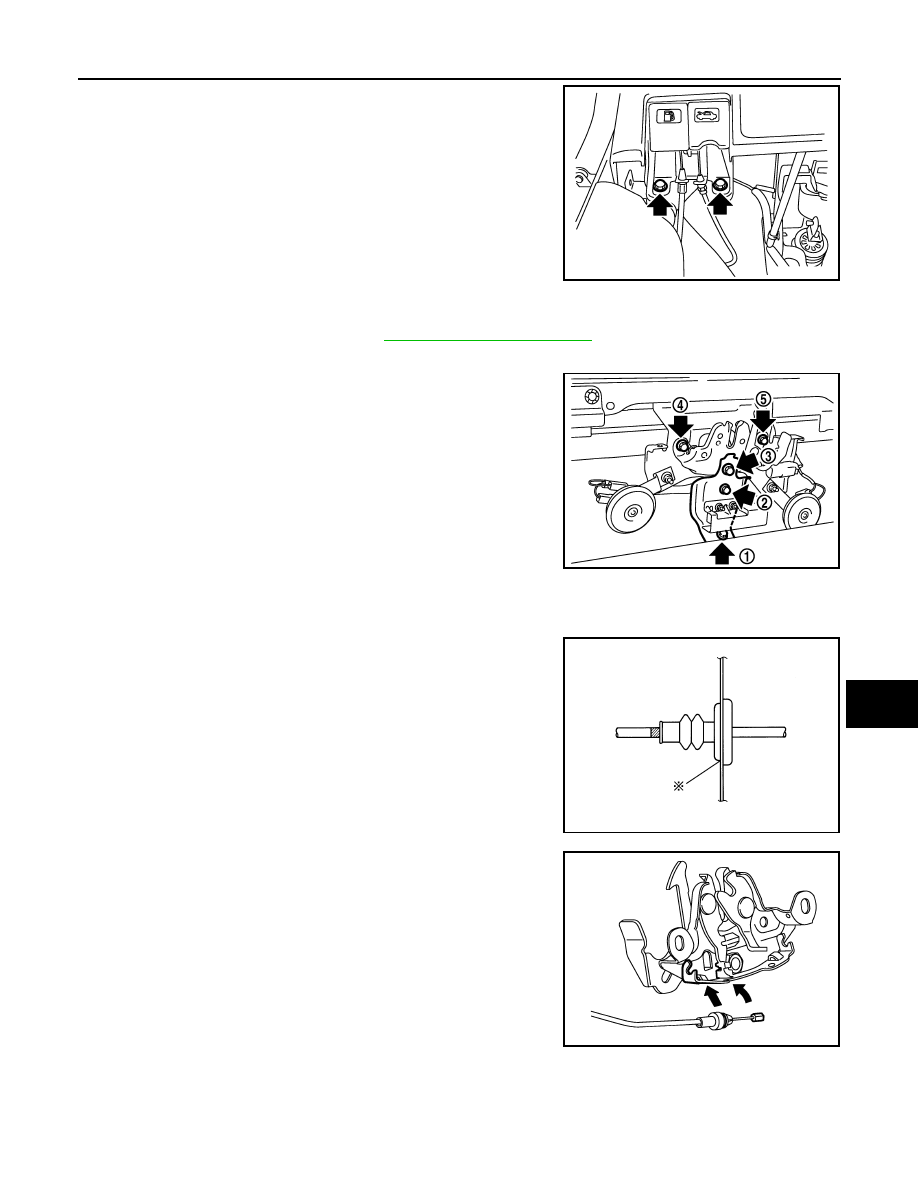

5.

Remove hood opener on bottom left of instrument panel, and
then remove hood lock cable.

6.

Remove grommet on lower dashboard, and pull out hood lock
cable from passenger room side.

CAUTION:

While pulling the cable, be careful not to damage (peel)
hood opener cable outer surface on edges of body through
hole.

INSTALLATION

Installation is in the reverse order of removal.
•  Perform hood fitting adjustment. Refer to

DLK-583, "Fitting Adjustment"

.

Hood Lock Reinforcement

When installing hood lock reinforcement, loosen hood bolts, and
then tighten bolts in the order as shown.

Hood Lock Cable

1.

Pull the hood lock cable through the panel hole to the engine compartment.

CAUTION:

Be careful not to bend the cable too much, keeping the
radius 100 mm (3.94 in) or more.

2.

Check that the cable is not offset from the positioning grommet,
and push the grommet into the panel hole securely.

3.

Apply the sealant around the grommet (at * mark).

4.

Install cable securely to lock.

5.

After installing, check hood lock adjustment and hood opener
operation.

Hood Lock Control Inspection

INFOID:0000000001732038

CAUTION:

If the hood lock cable is bent or deformed, replace it.

LIIA2667E

 23.6 N·m (2.4 kg-m, 17 ft-lb)

PIIB6513E

PIIB5801E

PIIB6537E

DLK-588

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

HOOD

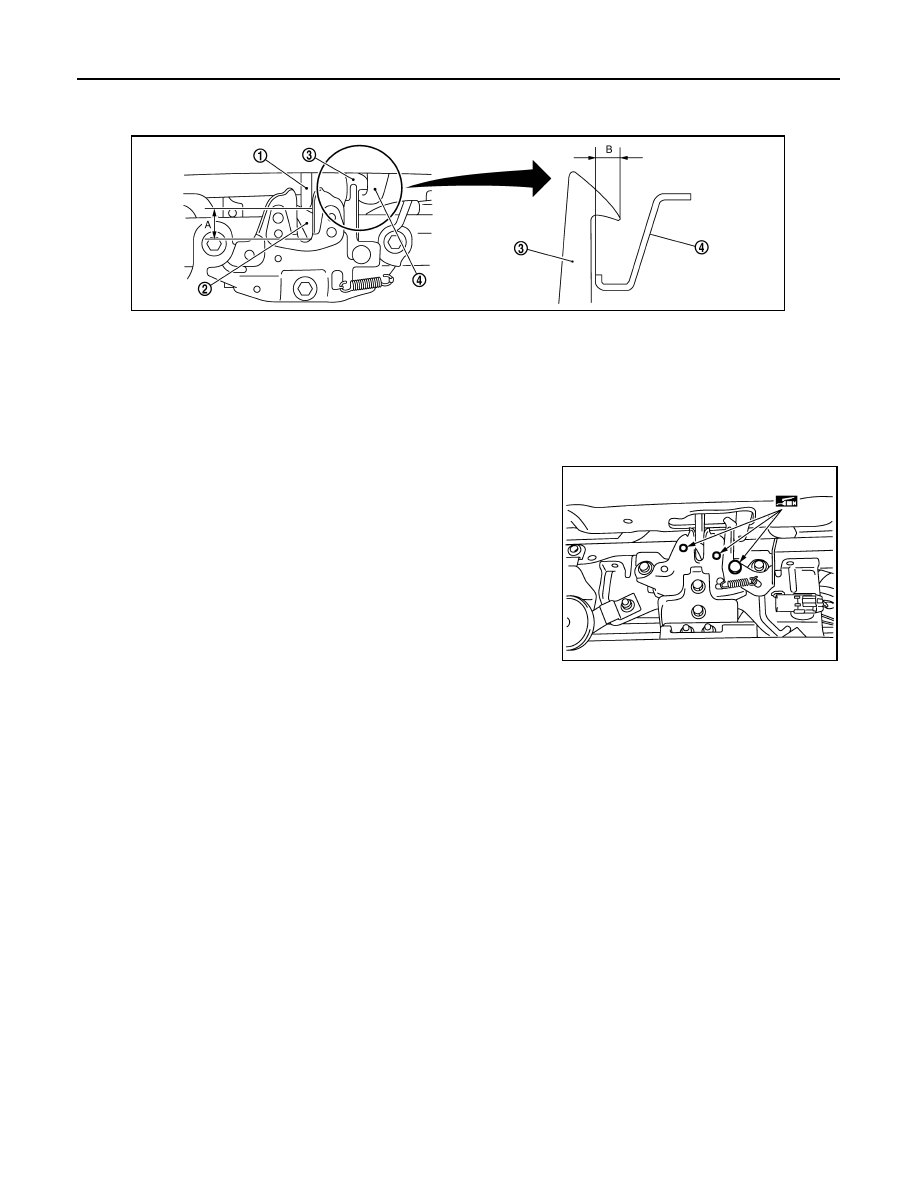

1.

Check that the secondary latch is properly engaged with the secondary striker (B: 6.8 mm (0.268 in) with
hood's own weight.

2.

While operating the hood release handle, carefully check that the front end of the hood is raised by
approx. 20 mm (0.79 in). Also check that the hood release handle returns to the original position.

3.

Check that the secondary hood release operates at 29.4 N (3.0 kg) or below.

4.

Confirm static closing force of the hood is 343 – 441 N·m (35 – 44 kg-m).

5.

Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points as shown.

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

PIIB5794E

PIIB6514E

RADIATOR CORE SUPPORT

DLK-589

< REMOVAL AND INSTALLATION >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

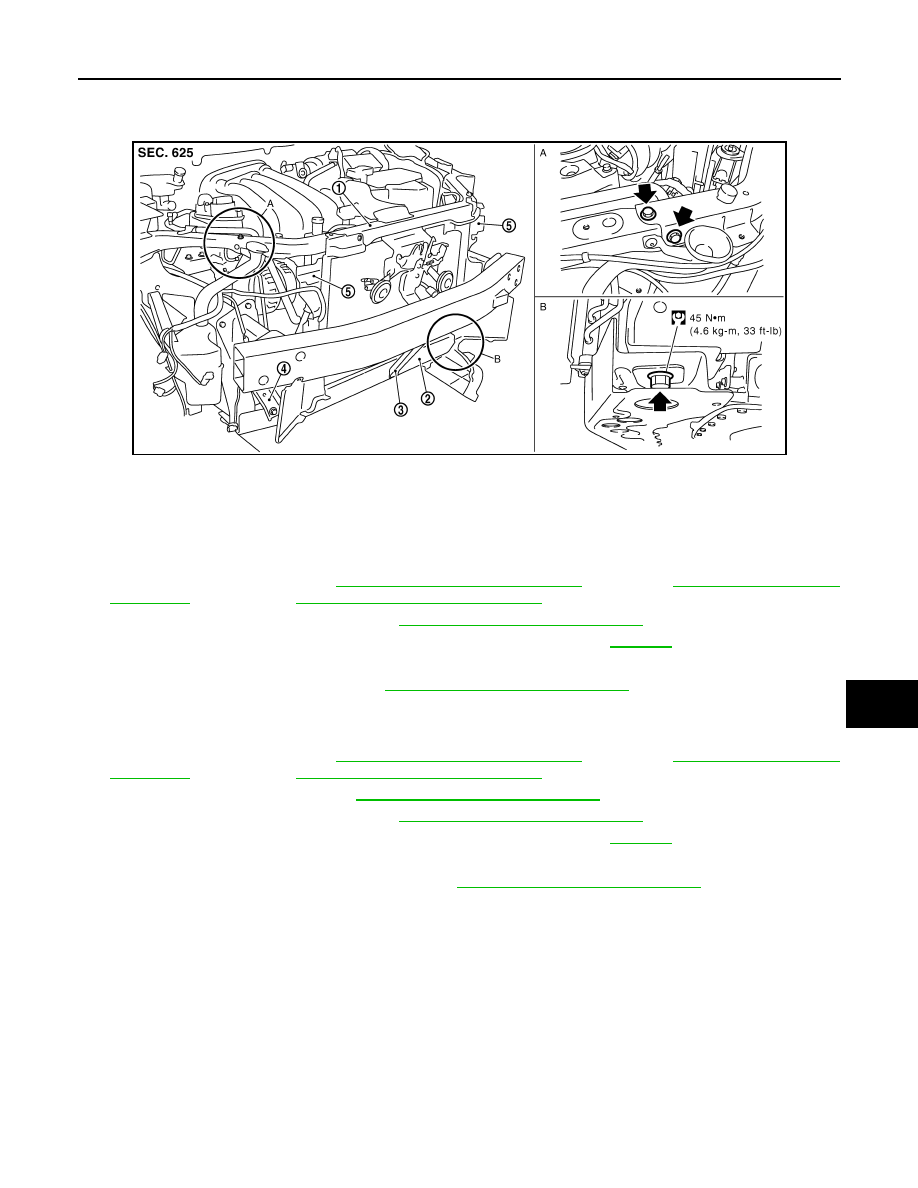

RADIATOR CORE SUPPORT

Removal and Installation

INFOID:0000000001732039

REMOVAL

Radiator Core Support Upper

1.

Remove the air duct. Refer to

EM-27, "Removal and Installation"

 (HR16DE),

EM-154, "Removal and

Installation"

 (MR18DE), or

EM-269, "Removal and Installation"

 (K9K).

2.

Remove the headlamp (LH/RH). Refer to

EXL-84, "Removal and Installation"

 .

3.

Remove the hood lock assembly, and remove hood lock cable. Refer to

DLK-585

 .

4.

Remove the air guide and hood lock cable clip.

5.

Remove the washer tank inlet. Refer to

WW-64, "Removal and Installation"

 .

6.

Remove the radiator core support upper.

Radiator Core Support Lower

1.

Remove the air duct. Refer to

EM-27, "Removal and Installation"

 (HR16DE),

EM-154, "Removal and

Installation"

 (MR18DE), or

EM-269, "Removal and Installation"

 (K9K).

2.

Remove the front bumper. Refer to

EXT-13, "Removal and Installation"

 .

3.

Remove the headlamp (LH/RH). Refer to

EXL-84, "Removal and Installation"

 .

4.

Remove the hood lock assembly, and remove hood lock cable. Refer to

DLK-585

 .

5.

Remove the air guide and hood lock cable mounting clip.

6.

Remove the front bumper reinforcement. Refer to

EXT-13, "Removal and Installation"

.

7.

Remove the radiator core lower stay.

8.

Remove the undercover.

PIIB6515E

1.

Radiator core support upper

2.

Radiator core support lower

3.

Radiator core support lower stay

4.

Radiator core support side stay

5.

Air guide

 24.5 N·m (2.5 kg-m, 18 ft-lb)
