DLK-498

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR LOCK AND UNLOCK SWITCH

Is the inspection result normal?

YES

>> Main power window and door lock/unlock switch is OK.

NO

>> Replace main power window and door lock/unlock switch. Refer to

XX-XX, "*****"

.

Door lock and unlock switch

Terminals

Condition

Continuity

D7, D8

6

17

UNLOCK

Yes

NEUTRAL/LOCK

No

18

LOCK

Yes

NEUTRAL/UNLOCK

No

DOOR SWITCH

DLK-499

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR SWITCH

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001530622

Detects door open/closed condition.

DRIVER SIDE : Component Function Check

INFOID:0000000001530623

1.

CHECK FUNCTION

 With CONSULT-III

Check door switches “DOOR SW-DR” in “Data Monitor” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-499, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001530624

1.

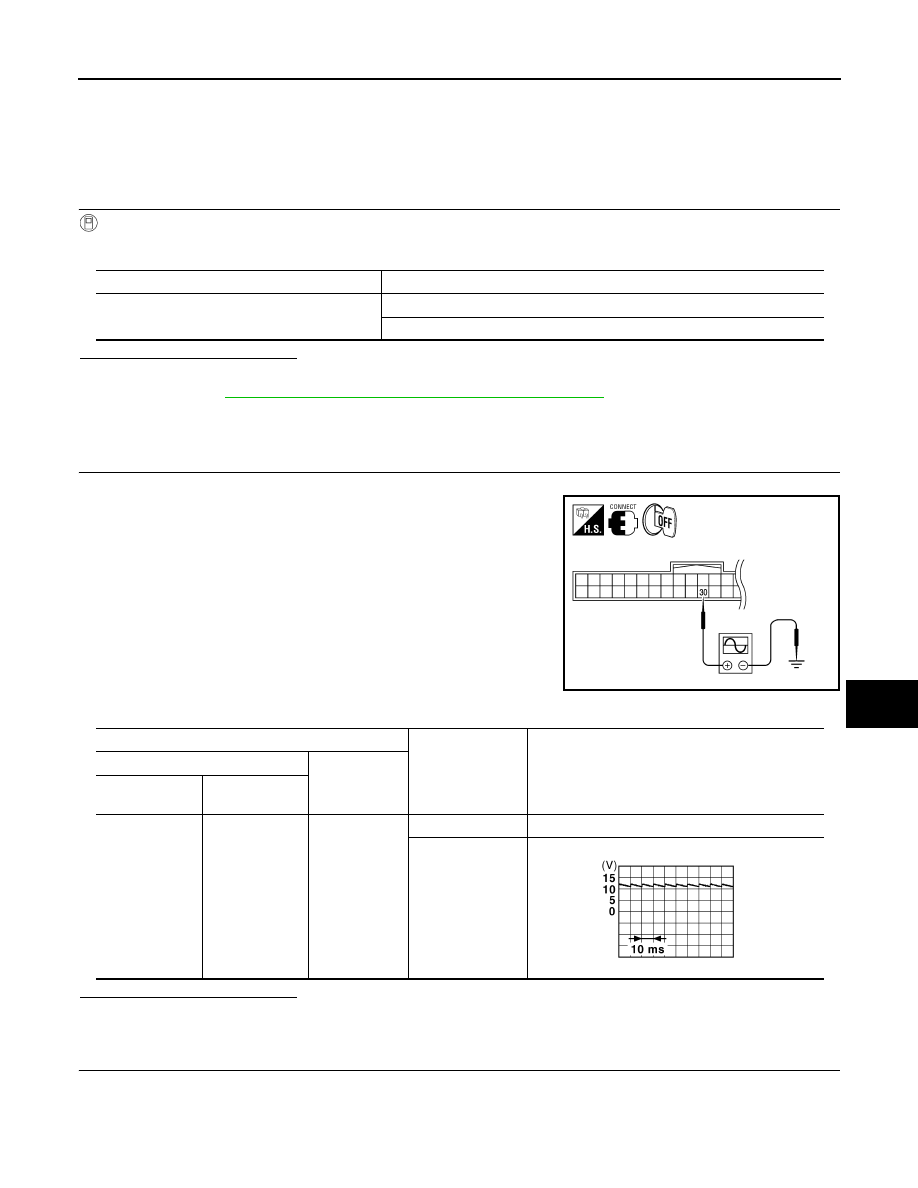

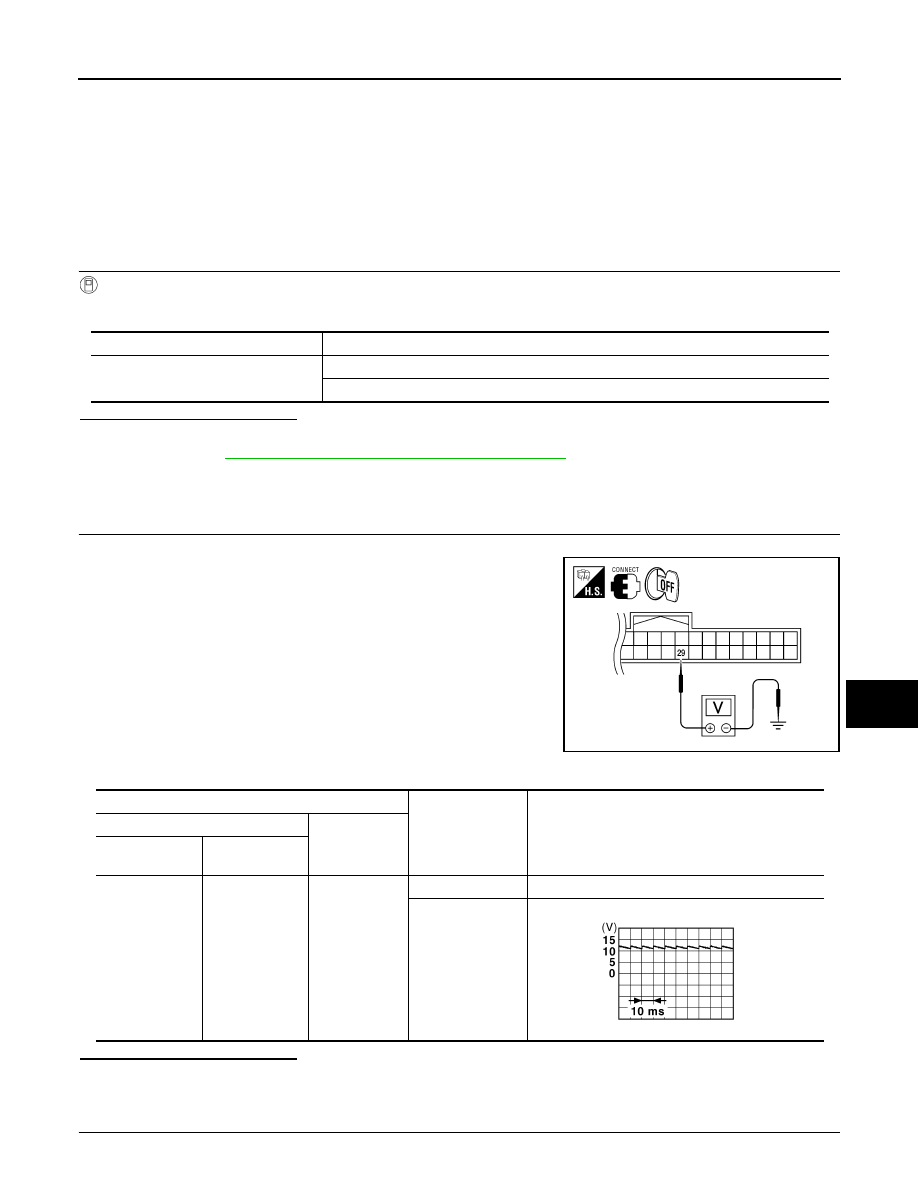

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between BCM connector and ground with oscillo-
scope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

Monitor item

Condition

DOOR SW-DR

 OPEN

:ON

CLOSE

:OFF

ALKIA0745ZZ

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M18

29

Ground

OPEN

0

CLOSE

JPMIA0011GB

DLK-500

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

DOOR SWITCH

1.

Disconnect BCM and driver door switch connectors.

2.

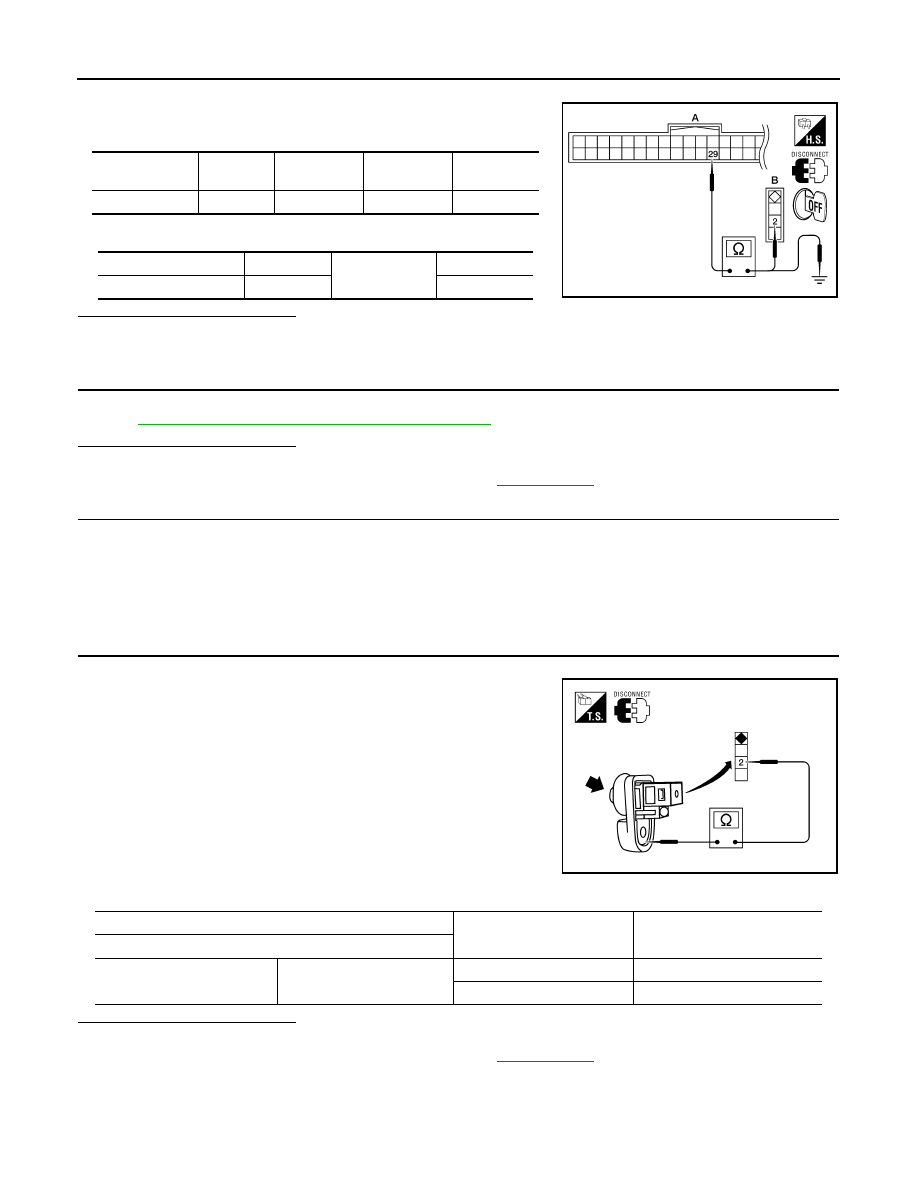

Check continuity between BCM connector (A) M18 terminal 29
and door switch connector (B) B34 terminal 2.

3.

Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between BCM and door switch.

3.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-500, "DRIVER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace front door switch (driver side). Refer to

XX-XX, "*****"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

DRIVER SIDE : Component Inspection

INFOID:0000000001530625

1.

CHECK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Check door switch.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Replace front door switch (driver side). Refer to

XX-XX, "*****"

.

PASSENGER SIDE

BCM connector

Terminal

Door switch

connector

Terminal

Continuity

M18

29

B34

2

Yes

BCM connector

Terminal

Ground

Continuity

M18

29

No

ALKIA0746ZZ

ALKIA0747ZZ

Terminal

Door switch condition

Continuity

Door switch

2

Ground part of door switch

Pressed

Yes

Released

No

DOOR SWITCH

DLK-501

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PASSENGER SIDE : Description

INFOID:0000000001530626

Detects door open/closed condition.

PASSENGER SIDE : Component Function Check

INFOID:0000000001530627

1.

CHECK FUNCTION

 With CONSULT-III

Check door switches “DOOR SW-AS” in “Data Monitor” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-501, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001530628

1.

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between BCM connector and ground with oscillo-
scope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1.

Disconnect BCM and passenger door switch connectors.

Monitor item

Condition

DOOR SW-AS

OPEN

: ON

CLOSE :

OFF

ALKIA0749ZZ

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M18

30

Ground

OPEN

0

CLOSE

JPMIA0011GB
