Nissan Tiida C11. Manual - part 260

DLK-450

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

FRONT FENDER

FRONT FENDER

Removal and Installation

INFOID:0000000001732022

REMOVAL

1.

Remove the headlamp assemblies. Refer to

EXL-84, "Removal and Installation"

.

2.

Remove the cowl top cover (LH/RH). Refer to

EXT-20, "Removal and Installation"

.

3.

Remove the front fender protector. Refer to

DLK-450, "Removal and Installation"

.

4.

Remove the bolt and the front fender.

CAUTION:

While removing use a shop cloth to protect the vechicle body from damage.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installing, apply touch-up paint onto the head of the front fender bolts.
• After installing, check front fender adjustment. Refer to

DLK-442, "Fitting Adjustment"

 and

DLK-451,

"Fitting Adjustment"

.

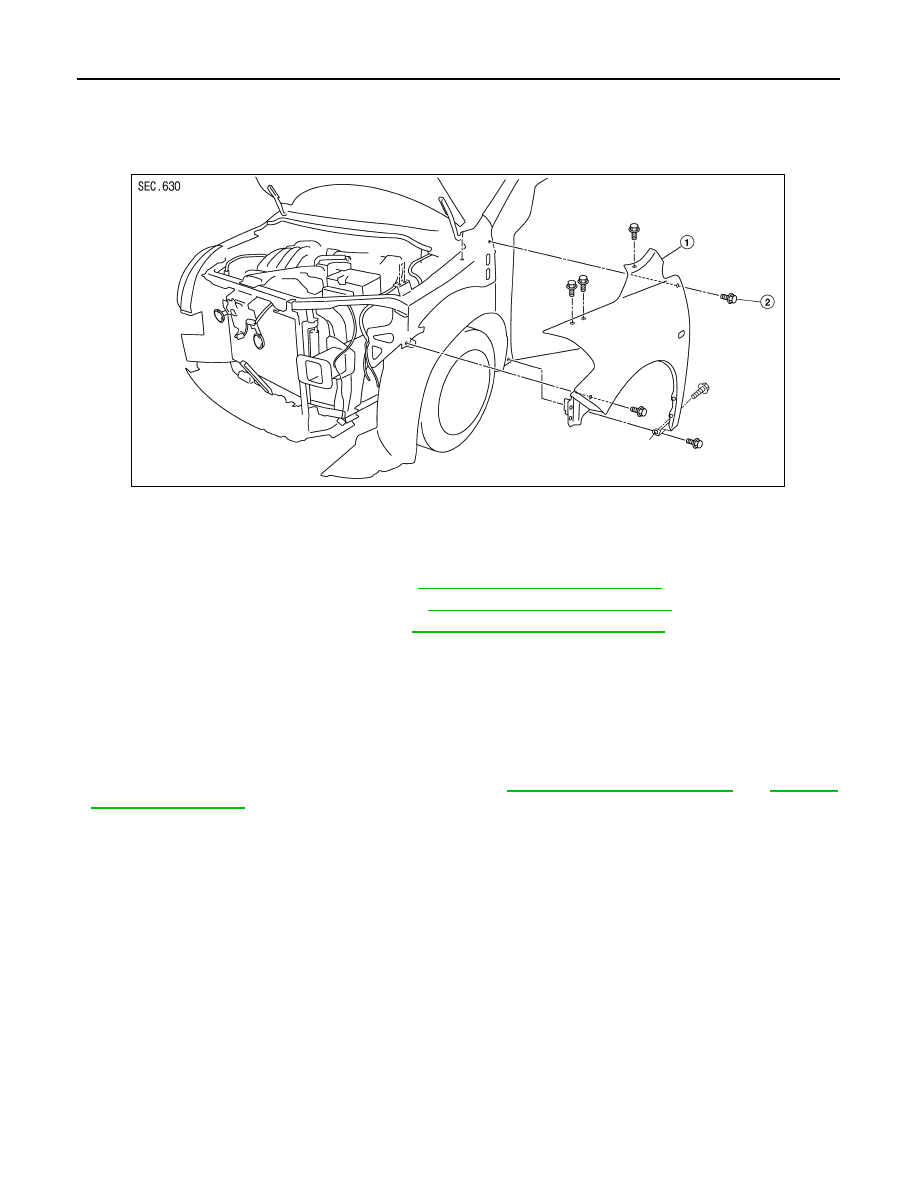

1.

Front fender

2

Bolt (LH 7 bolts required) (RH 8 bolts
required)

LIIA2657E

DOOR

DLK-451

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR

Fitting Adjustment

INFOID:0000000001732023

FRONT DOOR

Longitudinal Clearance and Surface Height Adjustment at Front End

Access from inside the fender  to loosen the hinge bolts. Raise the front door at rear end to adjust.

Surface Height Adjustment

Loosen the front door bolts, and adjust the surface height difference of fender and front door according to the
fitting standard dimension.

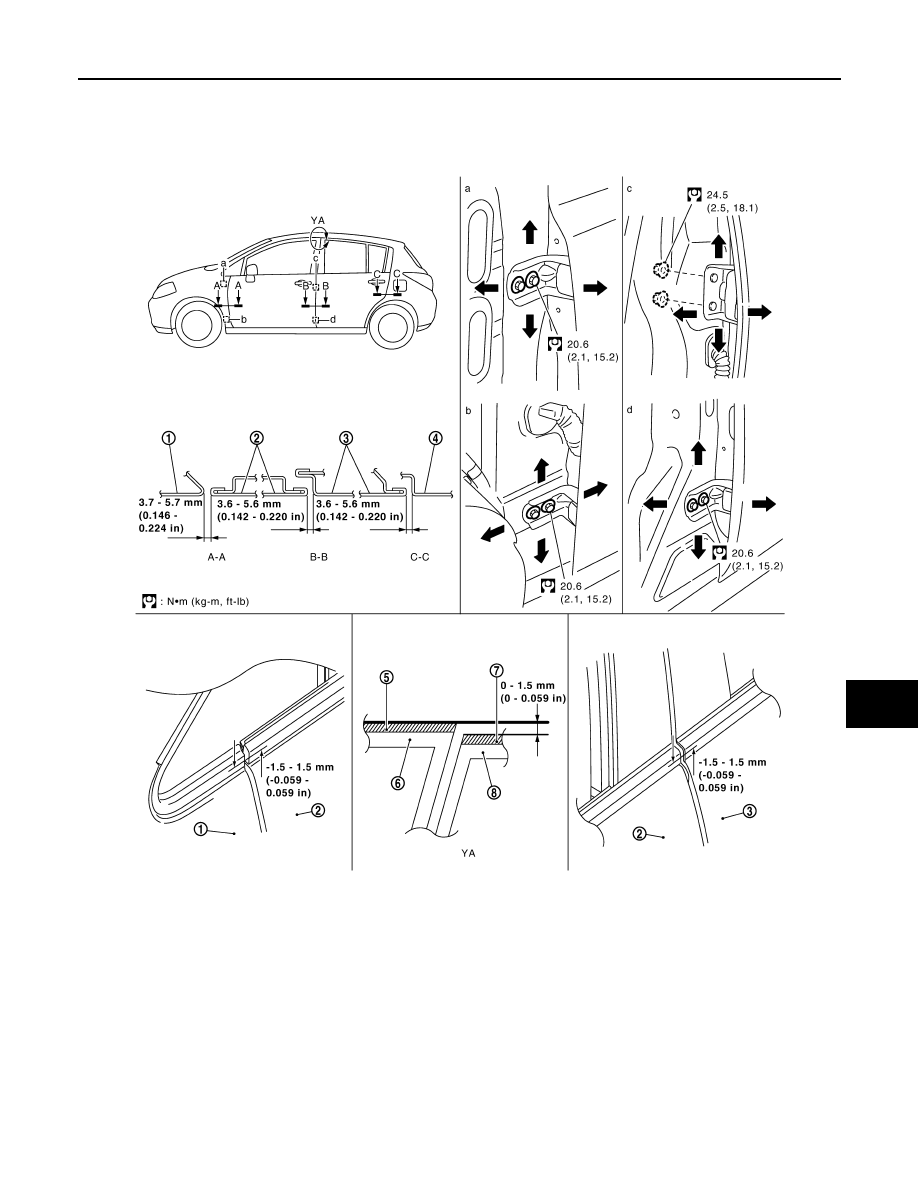

Striker Adjustment

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

5.

Front door weatherstrip

6.

Front door sash

7.

Rear door weatherstrip

8.

Rear door sash

PIIB6516E

DLK-452

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

DOOR

1.

REAR DOOR

Longitudinal Clearance and Surface Height Adjustment at Front End

1.

Remove the center pillar upper and lower garnishes. Refer to

INT-20, "Removal and Installation"

.

2.

Access from inside the vehicle to loosen the hinge nuts. Open the rear door, and raise the rear door at
rear end to adjust.

Surface Height Adjustment

Loosen the front door striker bolts and rear door hinge nuts, and adjust the surface height difference of front
and rear doors according to the fitting standard dimension.

Striker Adjustment

1.

BACK DOOR

Longitudinal Clearance and Surface Height Adjustment

16.7 N·m (1.7 kg-m, 12 ft-lb)

PIIB2804J

16.7 N·m (1.7 kg-m, 12 ft-lb)

PIIB2804J

DOOR

DLK-453

< REMOVAL AND INSTALLATION >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Open and support the back door.

2.

Slightly loosen the hinge nuts.

3.

Reposition the door as necessary and tighten the nuts.

4.

Confirm the adjustment. Repeat as necessary to obtain the desired fit.

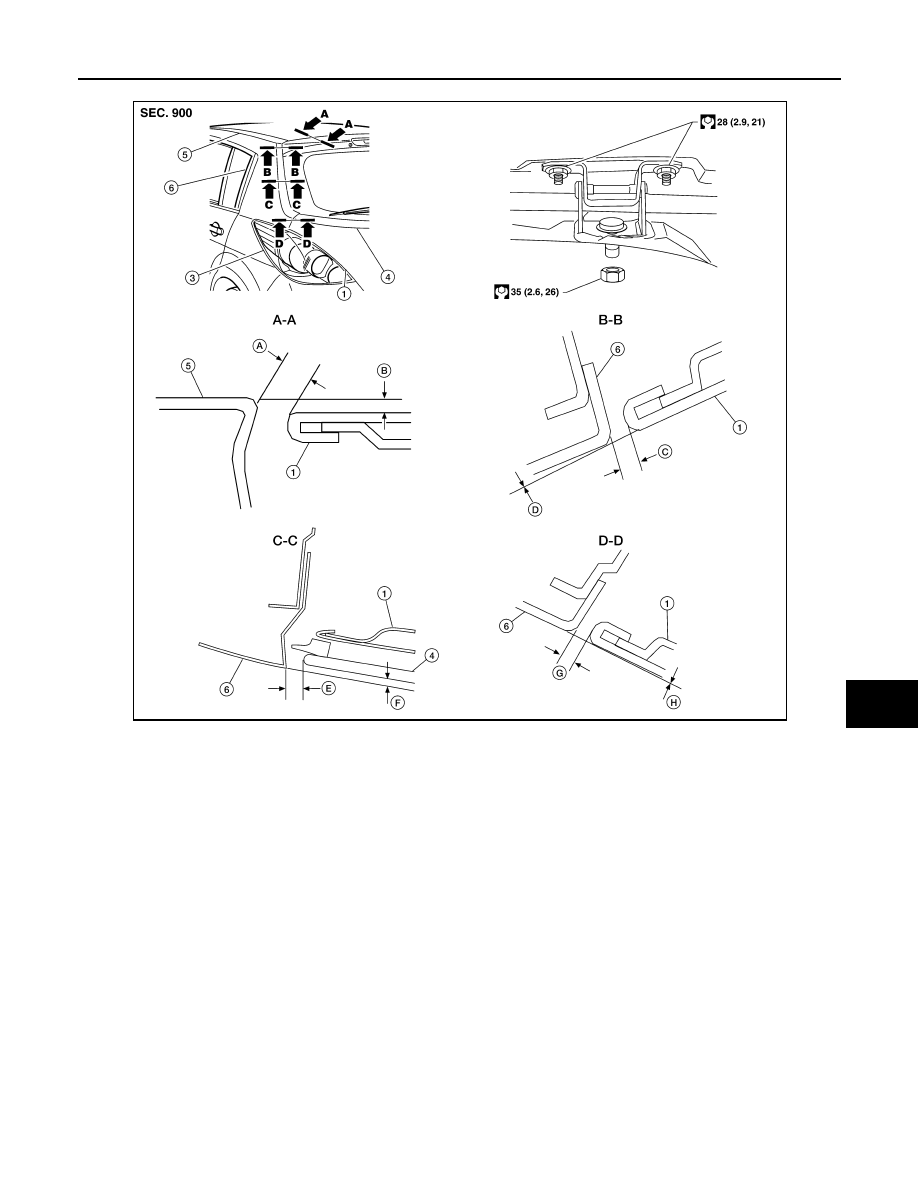

Striker Adjustment

1.

Back door assembly

2.

Back door hinge

3.

Tail lamp assembly

4.

Back window glass

5.

Roof

6.

Rear pillar

A.

6.0

±

 1.0 mm (0.24

±

 0.04 in)

B.

-0.5

±

 1.0 mm (-0.02

±

 0.04 in)

C. 5.0

±

  1.2 mm (0.20

±

 0.05 in)

D.

0.0

±

 1.5 mm (0.0

±

 0.06 in)

E.

5.0

±

 2.3 mm ( 0.20

±

 0.9 in)

F.

2.7 +1.6 -2.1 mm (0.11 + 0.06 - 0.08 in)

G.

5.0

±

 1.2 mm ( 0.20

±

 0.05 in)

H. 0.0

±

 1.5 mm (0.0

±

 0.06 in)

LIIA2668E
