Nissan Tiida C11. Manual - part 244

DLK-386

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

INTELLIGENT KEY UNIT

29

*3

Ground

V

Trunk opener request
switch

Input

Trunk opener
request
switch

ON (Pressed)

0

OFF (Released)

5

30

Ground

GR

Security indicator lamp

Output

Ignition
switch OFF

When security indi-
cator lamp is ON

0

When security indi-
cator lamp is OFF

Battery voltage

31

Ground

BR

Steering lock unit ground

—

—

—

0

32

Ground

GR

Steering lock unit com-
munication

Input/

Output

Steering lock

LOCK status

5

LOCK or UNLOCK

35

Ground

L

Front console antenna
(+)

Output

Ignition knob
is pressed.

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

36

Ground

P

Front console antenna (-)

Output

Ignition knob
is pressed.

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

Terminal No.

Wire

color

Description

Condition

Value [V]

(Approx.)

Signal name

Input/

Output

+

–

JMKIA0433ZZ

JMKIA0393ZZ

JMKIA0391ZZ

JMKIA0392ZZ

JMKIA0390ZZ

INTELLIGENT KEY UNIT

DLK-387

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*1

:M/T models.

*2

: Hatchback models.

*3

: Sedan models.

37

Ground

BR

Outside key antenna (+)
(passenger side)

Output

When the
front door re-
quest switch
(passenger
side) is oper-
ated with ig-
nition switch
OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is in the antenna de-
tection area

38

Ground

Y

Outside key antenna (-)
(passenger side)

Output

When the
front door re-
quest switch
(passenger
side) is oper-
ated with ig-
nition switch
OFF

When Intelligent Key
is in the antenna de-
tection area

When Intelligent Key
is not in the antenna
detection area

Terminal No.

Wire

color

Description

Condition

Value [V]

(Approx.)

Signal name

Input/

Output

+

–

JMKIA0397ZZ

JMKIA0514ZZ

JMKIA0395ZZ

JMKIA0515ZZ

DLK-388

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

INTELLIGENT KEY UNIT

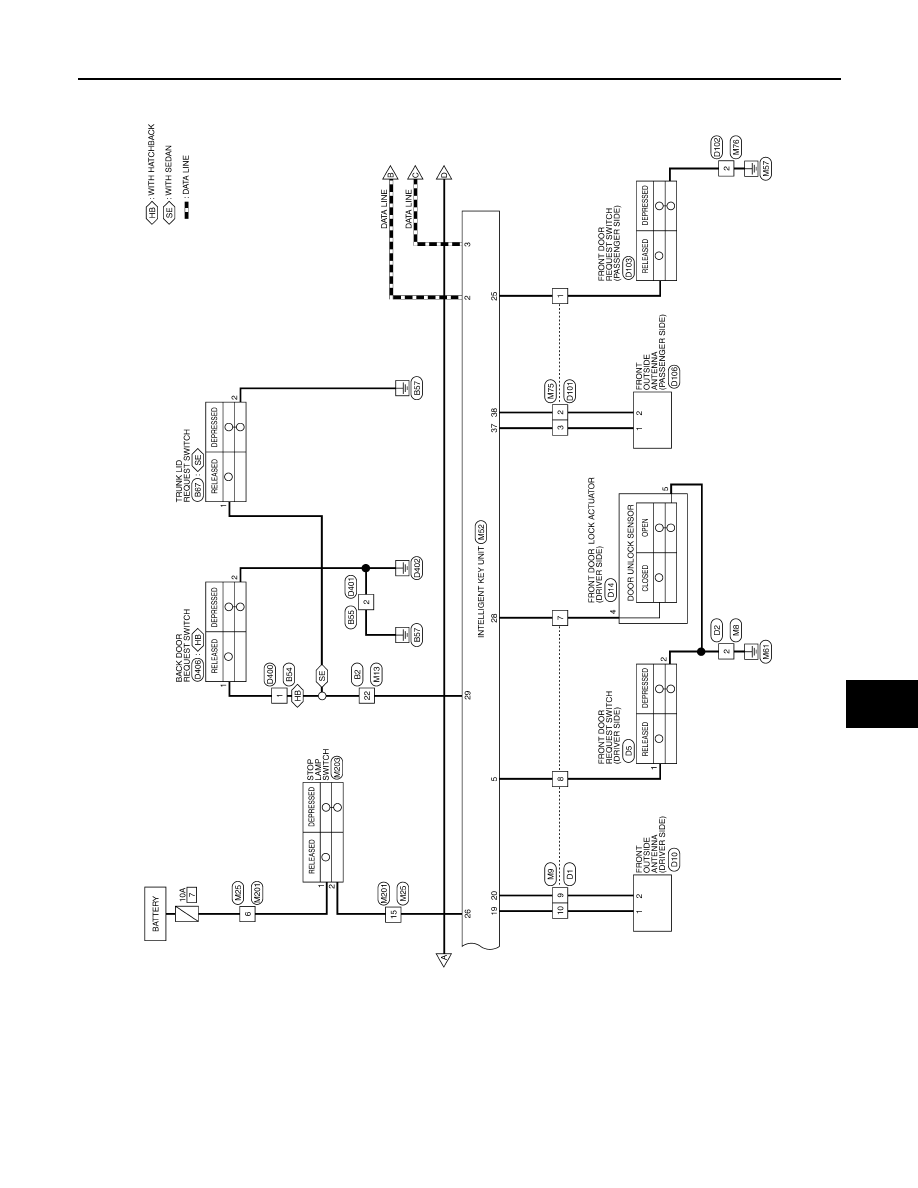

Wiring Diagram - INTELLIGENT KEY SYSTEM -

INFOID:0000000001530545

ALKWA0114GB

INTELLIGENT KEY UNIT

DLK-389

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ALKWA0115GB
