Nissan Tiida C11. Manual - part 242

DLK-378

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

HAZARD WARNING LAMPS

HAZARD WARNING LAMPS

Description

INFOID:0000000001530375

Performs answer-back for each operation with the number of blinks.

Component Function Check

INFOID:0000000001530376

1.

CHECK FUNCTION

With CONSULT-III

Check hazard warning lamp “FLASHER” in “Active Test” mode.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-378, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530377

1.

CHECK HAZARD SWITCH CIRCUIT

Use the hazard warning switch circuit.

Do the hazard warning lamps operate normally?

YES

>> GO TO 2.

NO

>> Repair hazard warning lamps. Refer to

BCS-9, "System Diagram"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

VEHICLE SPEED SIGNAL CIRCUIT

DLK-379

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

VEHICLE SPEED SIGNAL CIRCUIT

Description

INFOID:0000000001530378

Displays the vehicle speed signal received from combination meter as a numerical value (km/h).

Component Function Check

INFOID:0000000001530379

1.

CHECK FUNCTION

Check that all doors are automatically locked at the vehicle speed of more than 12 km/h (7 MPH).

Is the inspection result normal?

YES

>> Vehicle speed signal circuit is OK.

NO

>> Refer to

DLK-379, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530380

1.

CHECK VEHICLE SPEED SIGNAL CIRCUIT

Check vehicle speed signal “VEHICLE SPEED” in “Data Monitor” mode.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace vehicle speed signal circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

DLK-380

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

INTELLIGENT KEY BATTERY AND FUNCTION

INTELLIGENT KEY BATTERY AND FUNCTION

Description

INFOID:0000000001530384

The following functions are available when having and carrying the Intelligent Key.
• Door lock/unlock
• Back door open (hatchback)
• Trunk lid release (sedan)
• Engine start
Remote control entry function is available when operating the remote buttons.

Component Function Check

INFOID:0000000001530385

1.

CHECK FUNCTION

 With CONSULT-III

Check remote keyless entry receiver "RKE OPE COUN1" in DATA MONITOR mode with CONSULT-III.

Is the inspection result normal?

YES

>> Intelligent Key is OK.

NO

>> Refer to

DLK-380, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530386

1.

CHECK INTELLIGENT KEY FUNCTION

Do doors lock and unlock when using the Intelligent Key buttons?
YES or NO?

YES

>> Intelligent Key is OK.

NO

>> GO TO 2.

2.

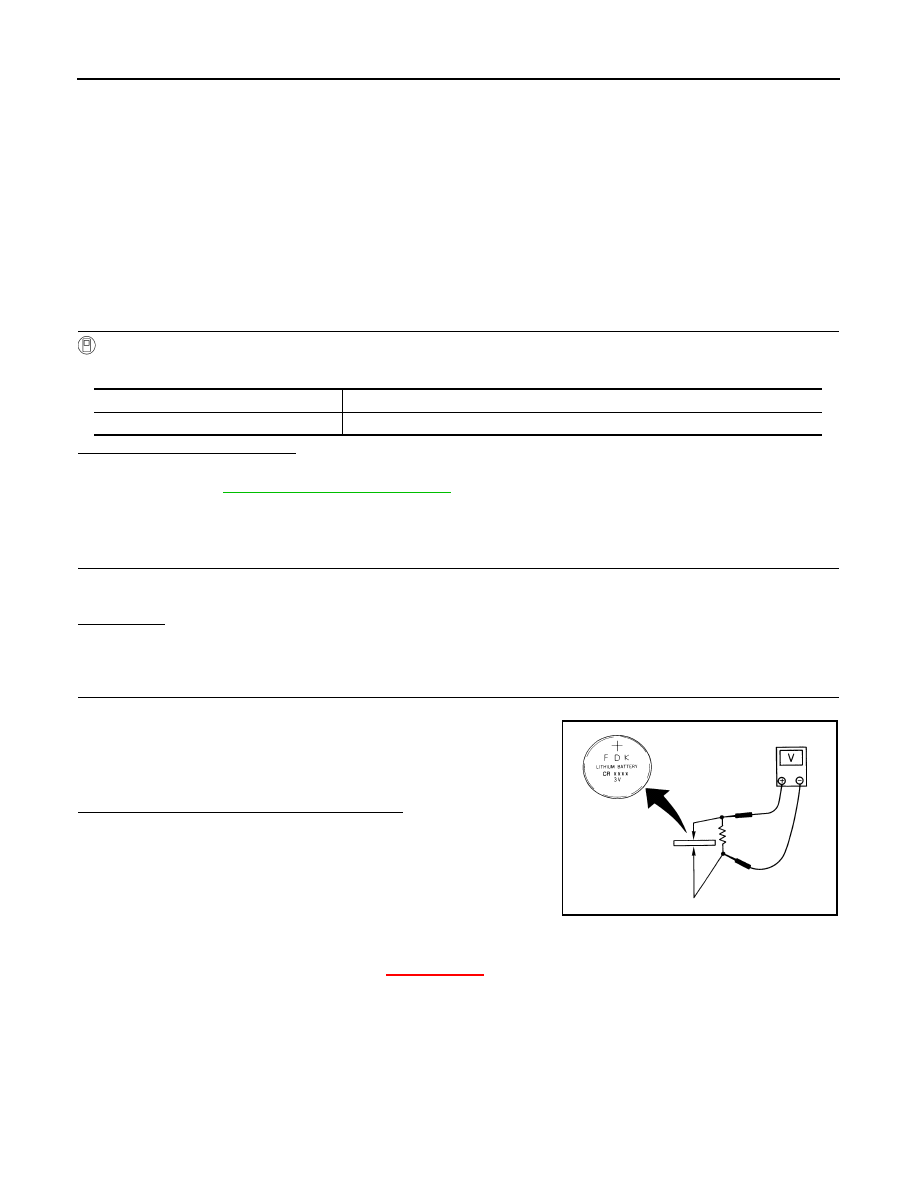

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within specification?

YES

>> Intelligent Key battery is OK.

NO

>> Replace Intelligent Key battery.

Component Inspection

INFOID:0000000001530387

For battery removal and installation, refer to

XX-XX, "*****"

.

Special Repair Requirement

INFOID:0000000001530388

Refer to CONSULT-III Operation Manual.

Monitor item

Condition

RKE OPE COUN1

Check that the numerical value is changing while operating the Intelligent Key.

Standard

: Approx. 2.5 - 3.0V

OCC0607D

INTELLIGENT KEY UNIT

DLK-381

< ECU DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ECU DIAGNOSIS

INTELLIGENT KEY UNIT

Reference Value

INFOID:0000000001530544

VALUES ON THE DIAGNOSIS TOOL

CONSULT-III MONITOR ITEM

Monitor Item

Condition

Value/Status

PUSH SW

Ignition knob

Release

OFF

Press

ON

KEY ON SW

Mechanical key

Removed

OFF

Inserted

ON

DR REQ SW

Door request switch
(driver)

Release

OFF

Press

ON

AS REQ SW

Door request switch
(passenger)

Release

OFF

Press

ON

BD/TR REQ SW

Door request switch
(back door)

Release

OFF

Press

ON

IGN SW

Ignition switch

Other than ON position

OFF

ON position

ON

ACC SW

Ignition switch

Other than ACC or ON position

OFF

ACC or ON position

ON

STOP LAMP SW

Brake pedal

Press

OFF

Release

ON

DOOR LOCK SIG

Lock button of
Intelligent Key

Release

OFF

Press

ON

DOOR UNLOCK SIG

Unlock button of
Intelligent Key

Release

OFF

Press

ON

DOOR SW DR

Door (driver side)

Close

OFF

Open

ON

DOOR SW AS

Door (passenger side)

Close

OFF

Open

ON

DOOR SW RR

Door (rear RH)

Close

OFF

Open

ON

DOOR SW RL

Door (rear LH)

Close

OFF

Open

ON

DOOR BK SW

Back door

Close

OFF

Open

ON

VEHICLE SPEED

While driving

Equivalent to speedometer reading
