DLK-210

< PREPARATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

PREPARATION

PREPARATION

PREPARATION

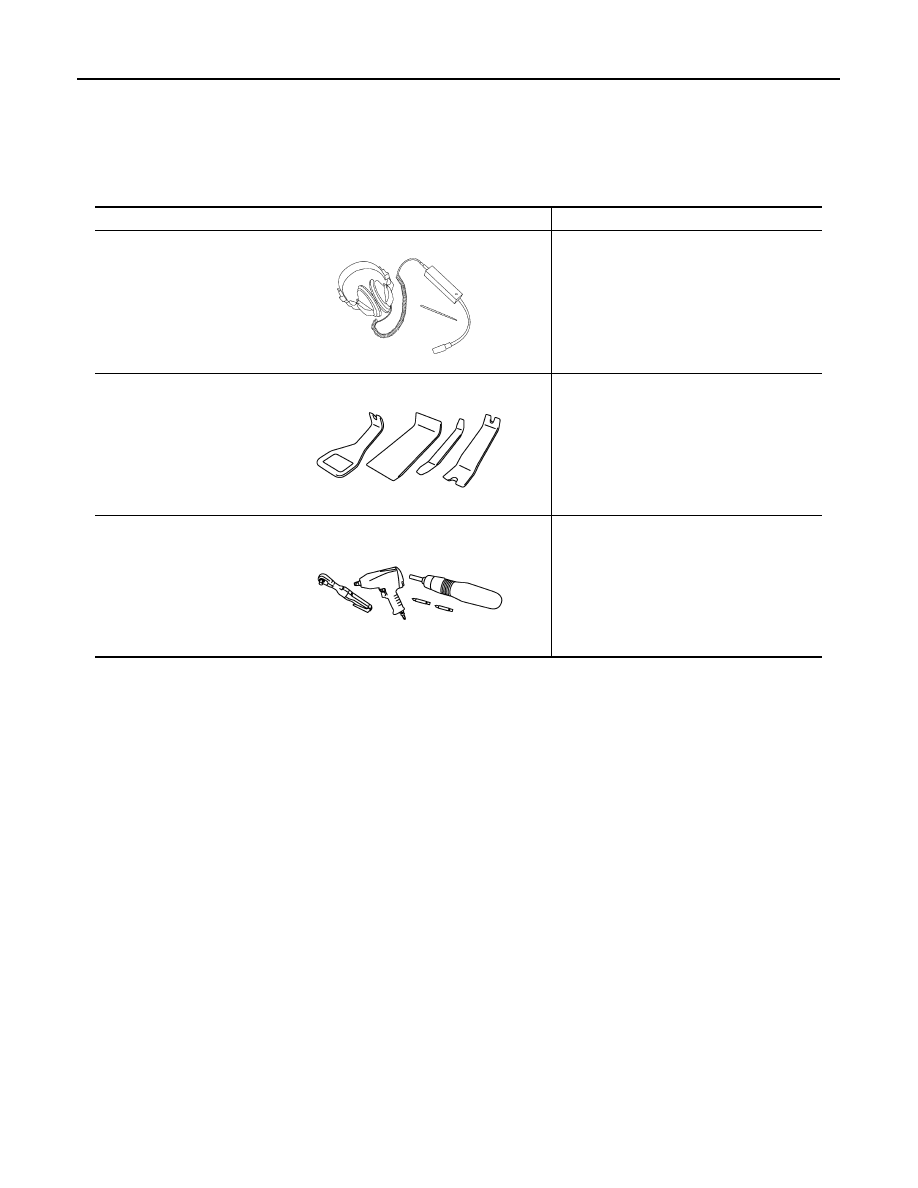

Commercial Service Tool

INFOID:0000000001315830

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

Removing nuts and bolts

SIIA0995E

PIIB7923J

PIIB1407E

PRE-INSPECTION FOR DIAGNOSTIC

DLK-211

< ON-VEHICLE MAINTENANCE >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001396666

BASIC INSPECTION

1.

CHECK POWER DOOR LOCK AND UNLOCK SWITCH OPERATION

Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

DLK-191, "DOOR LOCK AND UNLOCK SWITCH : Symptom Table"

.

2.

CHECK INTELLIGENT KEY OPERATION

Check door lock and unlock operation by operating the Intelligent Key remote control button.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

DLK-192, "INTELLIGENT KEY : Symptom Table"

.

3.

CHECK DOOR REQUEST SWITCH OPERATION

Check door lock and unlock operation by operating door request switch.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Refer to

DLK-193, "DOOR REQUEST SWITCH : Symptom Table"

.

4.

CHECK KEY REMINDER OPERATION

Check key reminder operation. Refer to

DLK-31, "KEY REMINDER : System Description"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Refer to

DLK-194, "KEY REMINDER : Symptom Table"

.

5.

CHECK AUTO DOOR LOCK OPERATION

Check auto door lock operation. Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Refer to

DLK-194, "AUTO RELOCK : Symptom Table"

.

6.

CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION

Check vehicle speed sensing auto door lock operation. Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Refer to

XX-XX, "*****"

.

7.

CHECK BACK DOOR (HATCHBACK) / TRUNK LID (SEDAN) OPENER OPERATION

Check back door (hatchback)/trunk lid (sedan) opener operation by operating the opener switch.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Refer to

DLK-195, "BACK DOOR OPENER SWITCH : Symptom Table"

.

8.

CHECK WARNING FUNCTION

Check warning function. Refer to

DLK-39, "System Description"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO [Buzzer (combination meter)]>>  Refer  to

DLK-197, "BUZZER (COMBINATION METER) : Symptom

Table"

.

DLK-212

< ON-VEHICLE MAINTENANCE >

[WITH I-KEY, WITHOUT SUPER LOCK]

PRE-INSPECTION FOR DIAGNOSTIC

NO (Intelligent Key warning buzzer)>> Refer to

DLK-197, "INTELLIGENT KEY WARNING BUZZER : Symp-

tom Table"

.

NO (Warning lamp)>> Refer to

DLK-199, "WARNING LAMP : Symptom Table"

.

NO (Back door open warning)>> Refer to

DLK-200, "BACK DOOR : Symptom Table"

.

9.

CHECK HAZARD AND BUZZER REMINDER FUNCTION

Check hazard and buzzer reminder function by Intelligent Key or request switch. Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO (Hazard warning lamp)>> Refer to

DLK-201, "HAZARD WARNING LAMP : Symptom Table"

.

NO (Intelligent Key warning buzzer)>> Refer to

DLK-201, "INTELLIGENT KEY WARNING BUZZER : Symp-

tom Table"

.

10.

CHECK OUT

CHECK OUT.

>> INSPECTION END

HOOD

DLK-213

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL AND INSTALLATION

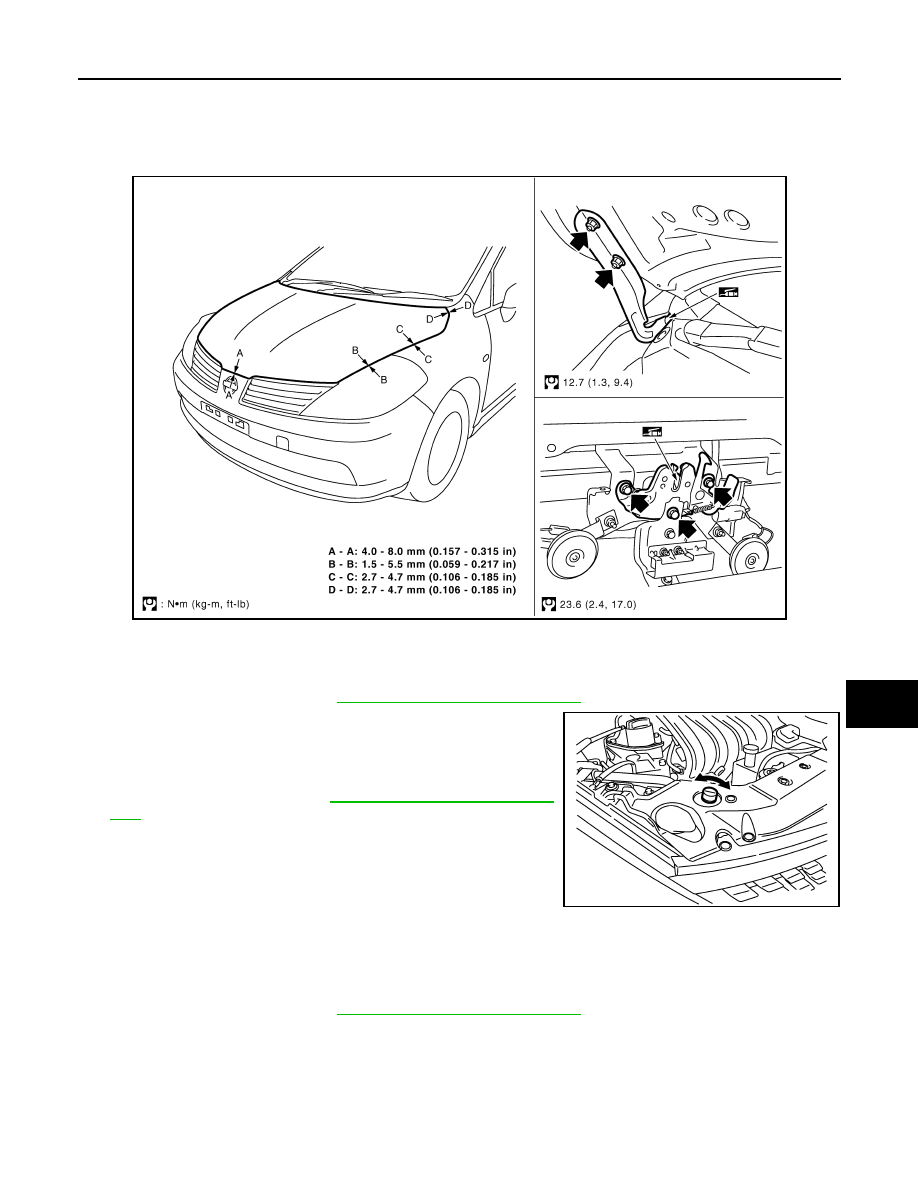

HOOD

Fitting Adjustment

INFOID:0000000001315831

FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT

1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove hood lock. Rotate bumper rubber to adjust height until
hood becomes 1.0 to 1.5 mm lower than the fender.

3.

Position hood lock and engage striker. Check hood lock and
striker for looseness. Tighten lock bolts to the specified torque.

4.

Install the front grille. Refer to

EXT-19, "Removal and Installa-

tion"

.

CAUTION:

Adjust the clearance between hood and other parts so that the
dimensional difference left and right is as follows.

SURFACE MISMATCH ADJUSTMENT

1.

Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Release hood lock, and adjust surface level difference of hood, fender, and headlamp according to the fit-
ting standard dimension, using RH and LH bumper rubbers.

3.

Install and align the hood lock until the center of the striker and the hood lock are vertically aligned.

PIIB6508E

Hood and headlamp (B - B)

: Less than 2.0 mm (0.08 in)

Hood and fender (C - C)

: Less than 1.5 mm (0.06 in)

Hood and fender (D - D)

: Less than 1.5 mm (0.06 in)

PIIB2526J

Hood and front bumper (A - A)

: -1.3 - 2.7 mm (-0.05 - 0.11 in)

Hood and fender (D - D)

: -0.4 - 1.7 mm (-0.16 - 0.07 in)
