DLK-186

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

BCM (BODY CONTROL MODULE)

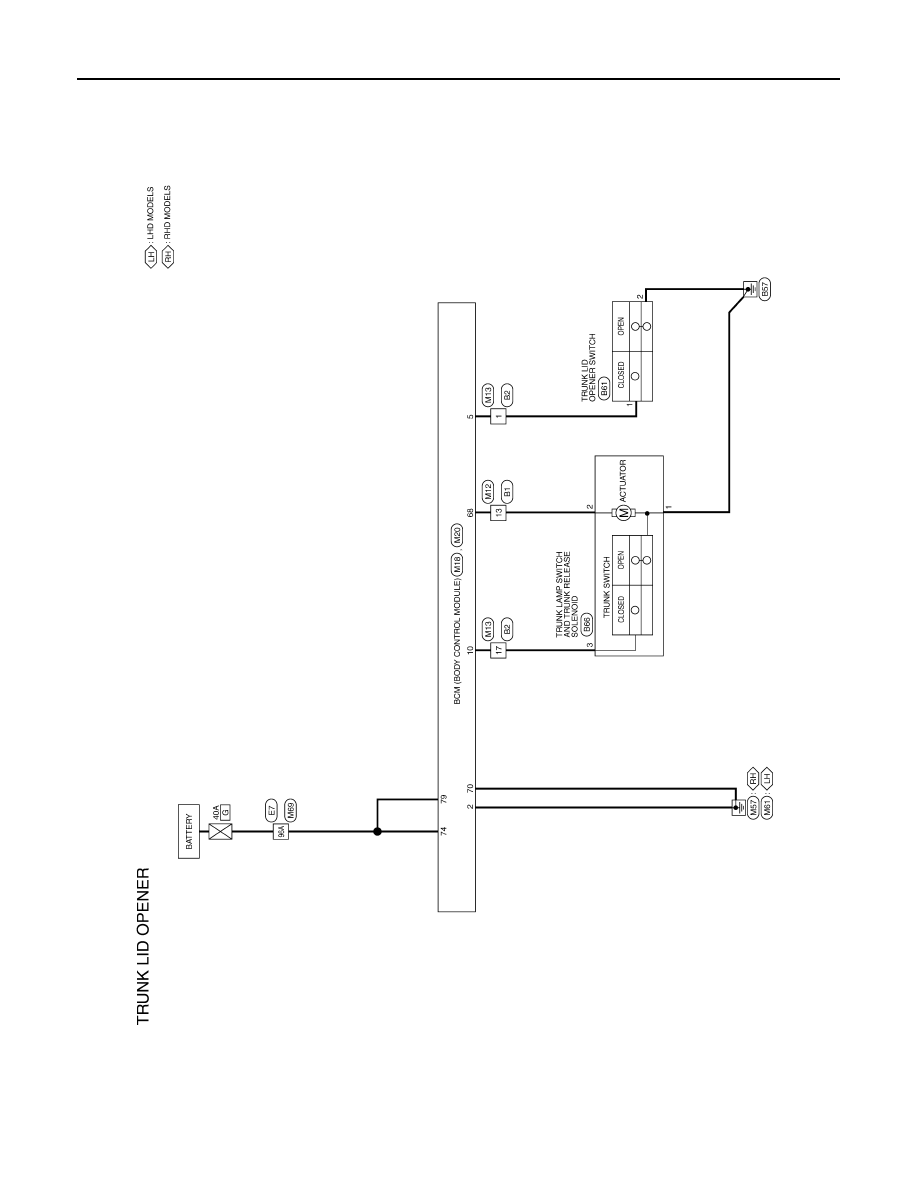

Wiring Diagram - TRUNK LID OPENER SYSTEM -

INFOID:0000000001523299

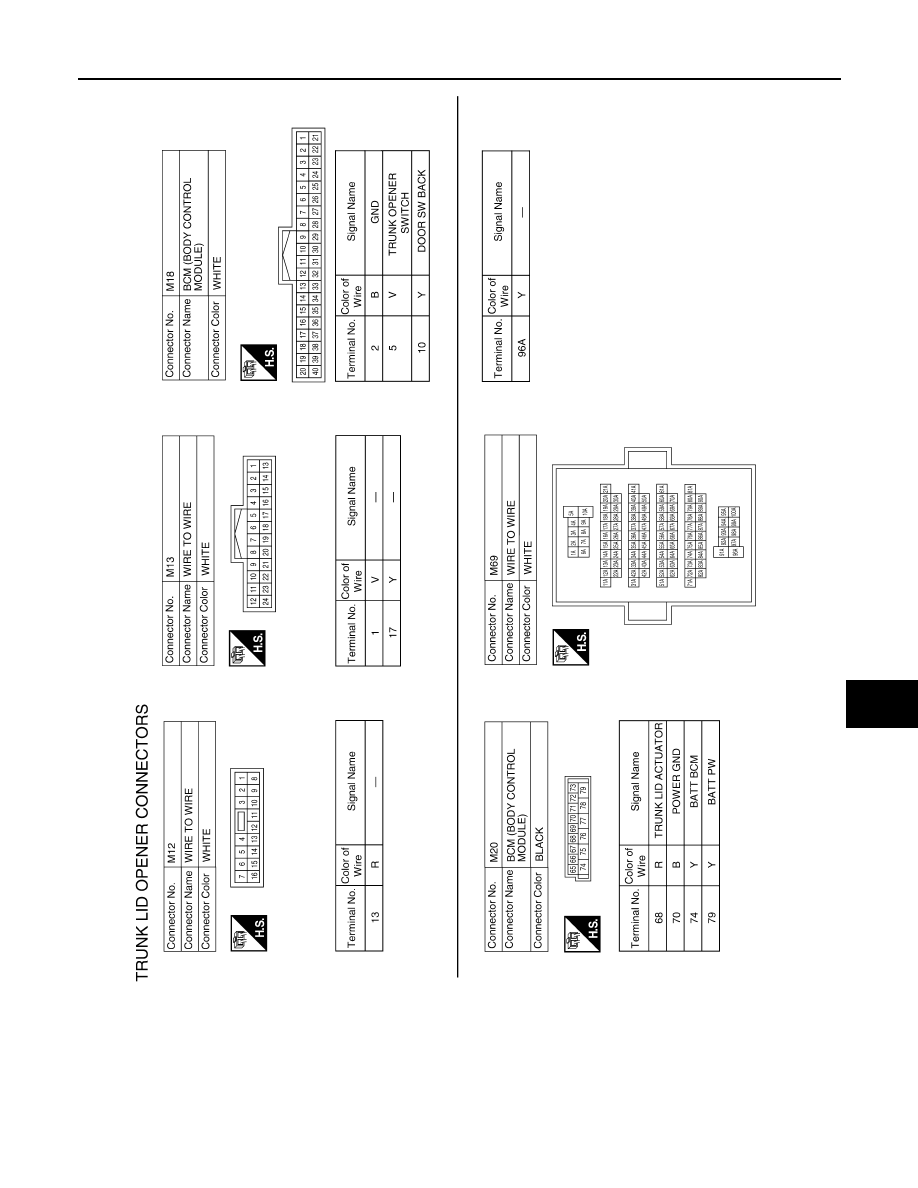

ALKWA0119GB

BCM (BODY CONTROL MODULE)

DLK-187

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

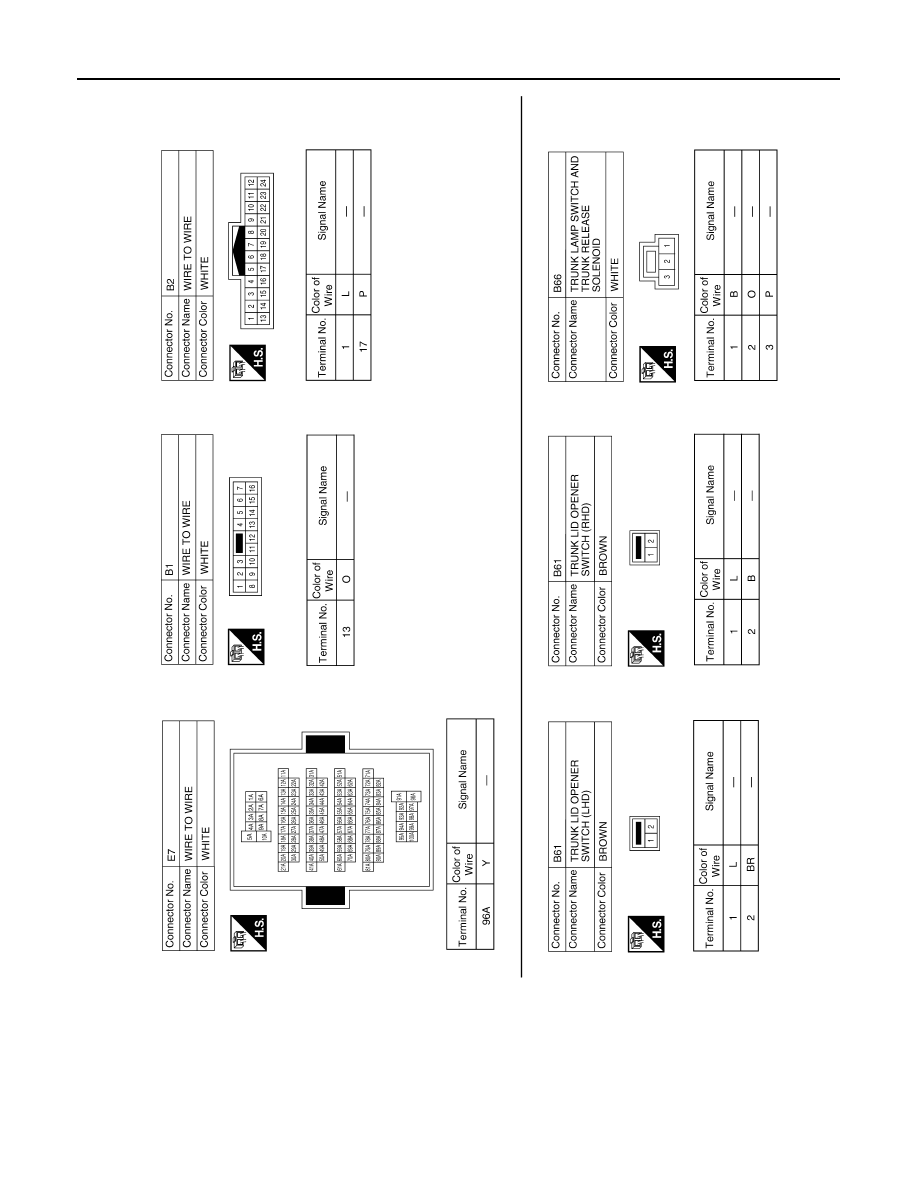

ALKIA1155GB

DLK-188

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

BCM (BODY CONTROL MODULE)

Fail Safe

INFOID:0000000001396647

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ALKIA1156GB

BCM (BODY CONTROL MODULE)

DLK-189

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TURN SIGNAL LAMP CONTROL

BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.

LIGHT & RAIN SENSOR MALFUNCTION DETECTION FUNCTION

BCM controls the following items when LIGHT & RAIN sensor has a malfunction.

Auto Light Control

Headlamp is turned ON.

Front Wiper Control

The condition just before the activation of Fail-safe is maintained until the front wiper switch is turned OFF.

DTC Inspection Priority Chart

INFOID:0000000001396648

DTC Index

INFOID:0000000001396649

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→

 ON again.

• PAST: Displays when there is a malfunction that is detected in the past and stored.
• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→

 2

→

 3...38

→

 39 after returning to the normal condition whenever ignition switch OFF

→

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

→

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

B2190: NATS ANTENNA AMP

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2191: DIFFERENCE OF KEY

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2192: ID DISCORD BCM-ECM

Fuel cut (ECM)

Erase DTC

B2193: CHAIN OF BCM-ECM

Fuel cut (ECM)

Erase DTC

B2194: DISCORD BCM-I-KEY

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2195: ANTI SCANNING

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

B2196: DONGLE NG

• Inhibits engine cranking
• Inhibits steering lock unlocking (Intelligent Key unit)
• Fuel  cut  (ECM)

Erase DTC

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERNCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2194: DISCORD BCM-I-KEY
• B2195: ANTI SCANNING
• B2196: DONGLE NG
