Nissan Tiida C11. Manual - part 193

DLK-182

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

BCM (BODY CONTROL MODULE)

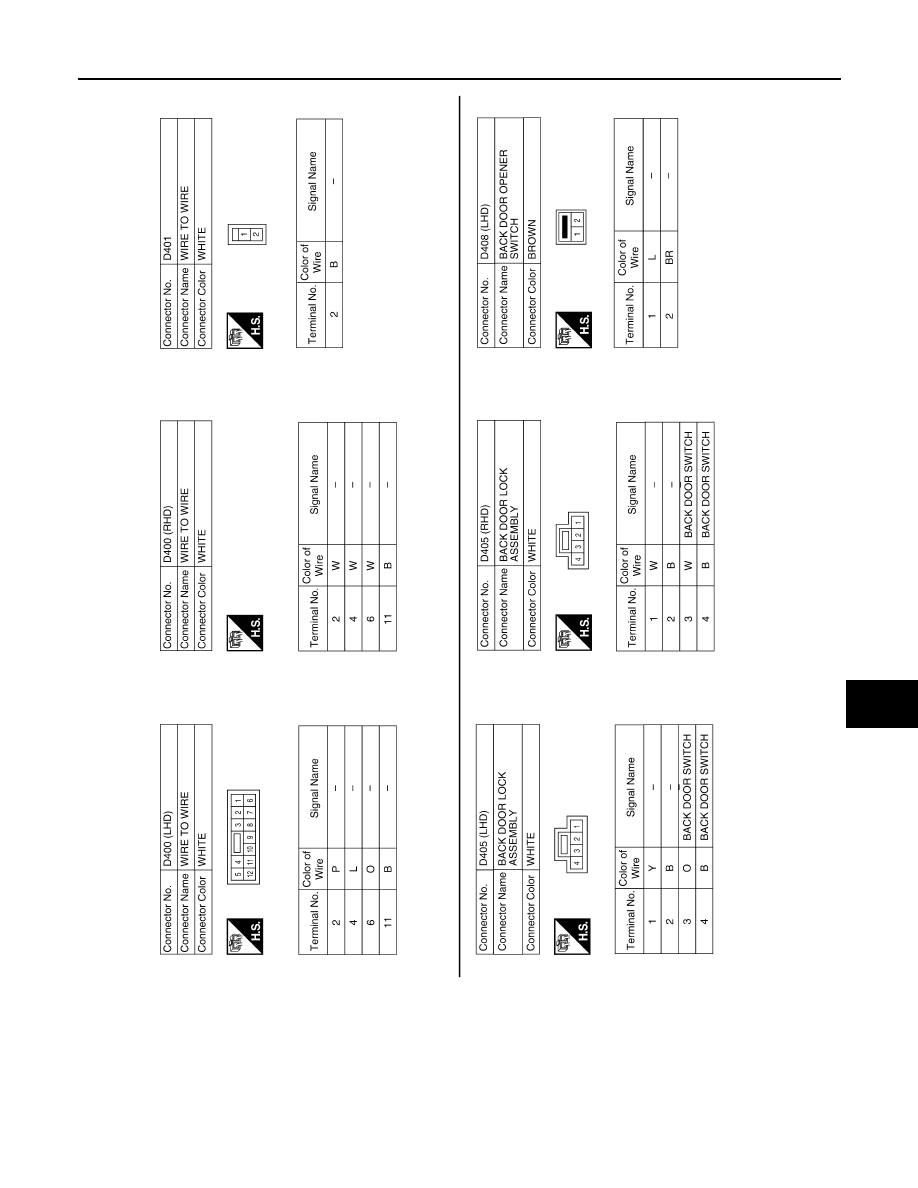

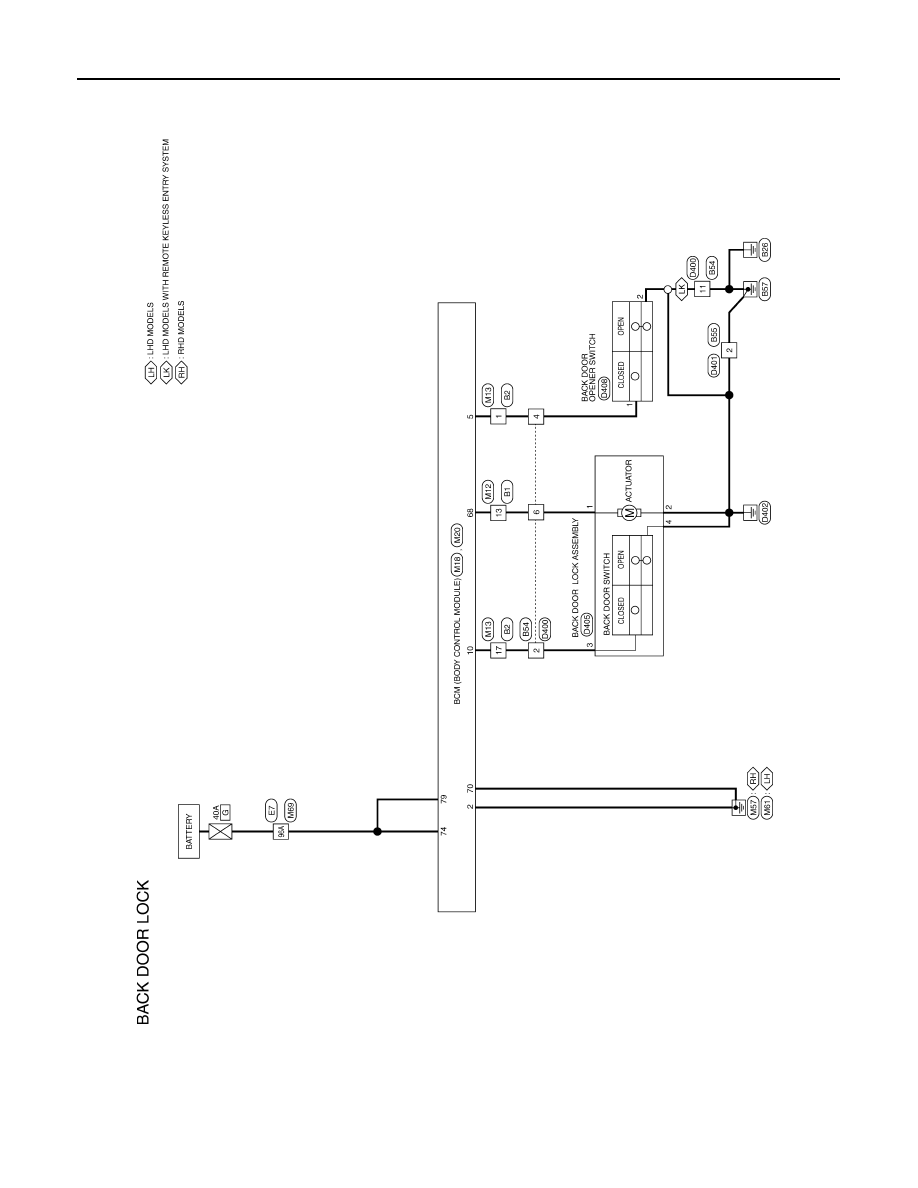

Wiring Diagram - BACK DOOR OPENER SYSTEM -

INFOID:0000000001396639

ALKWA0118GB

BCM (BODY CONTROL MODULE)

DLK-183

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

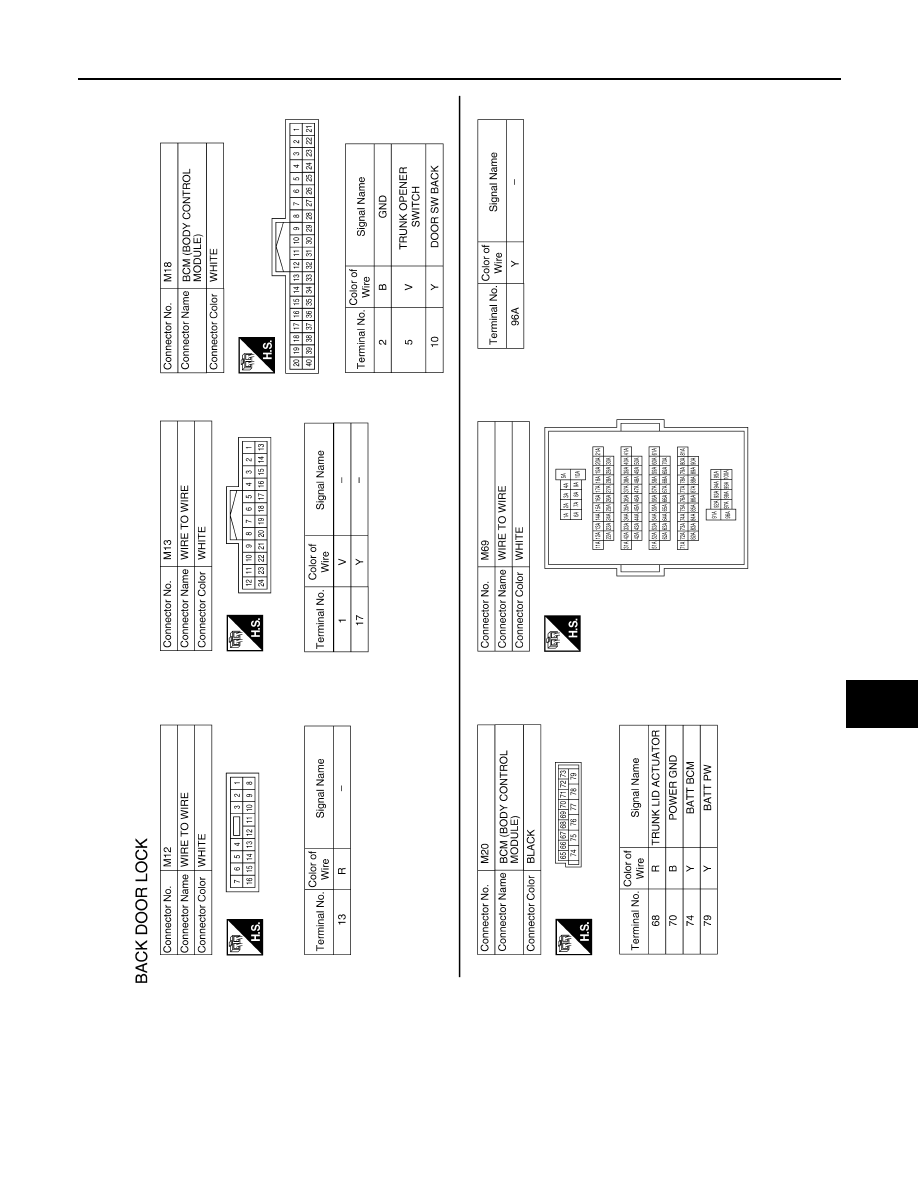

ALKIA1152GB

DLK-184

< ECU DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

BCM (BODY CONTROL MODULE)

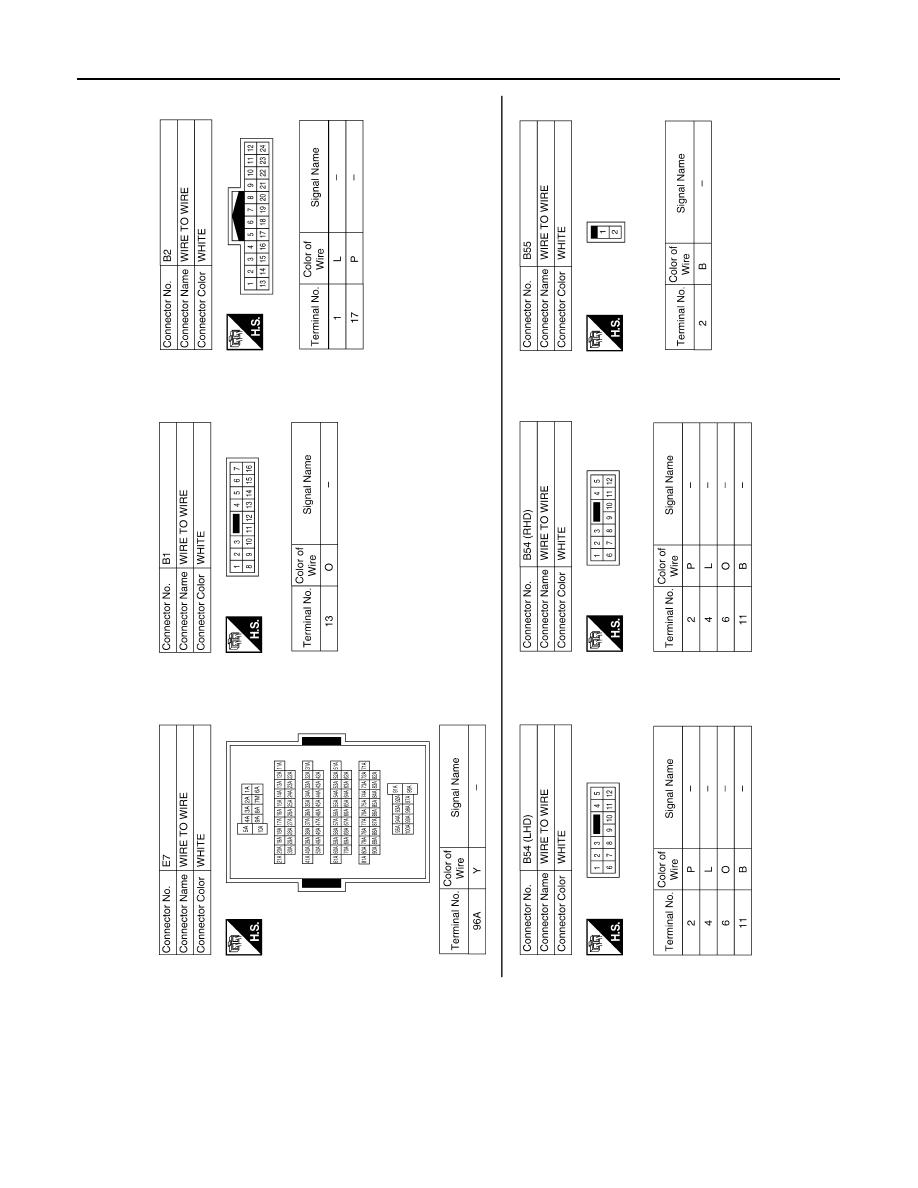

ALKIA1153GB
