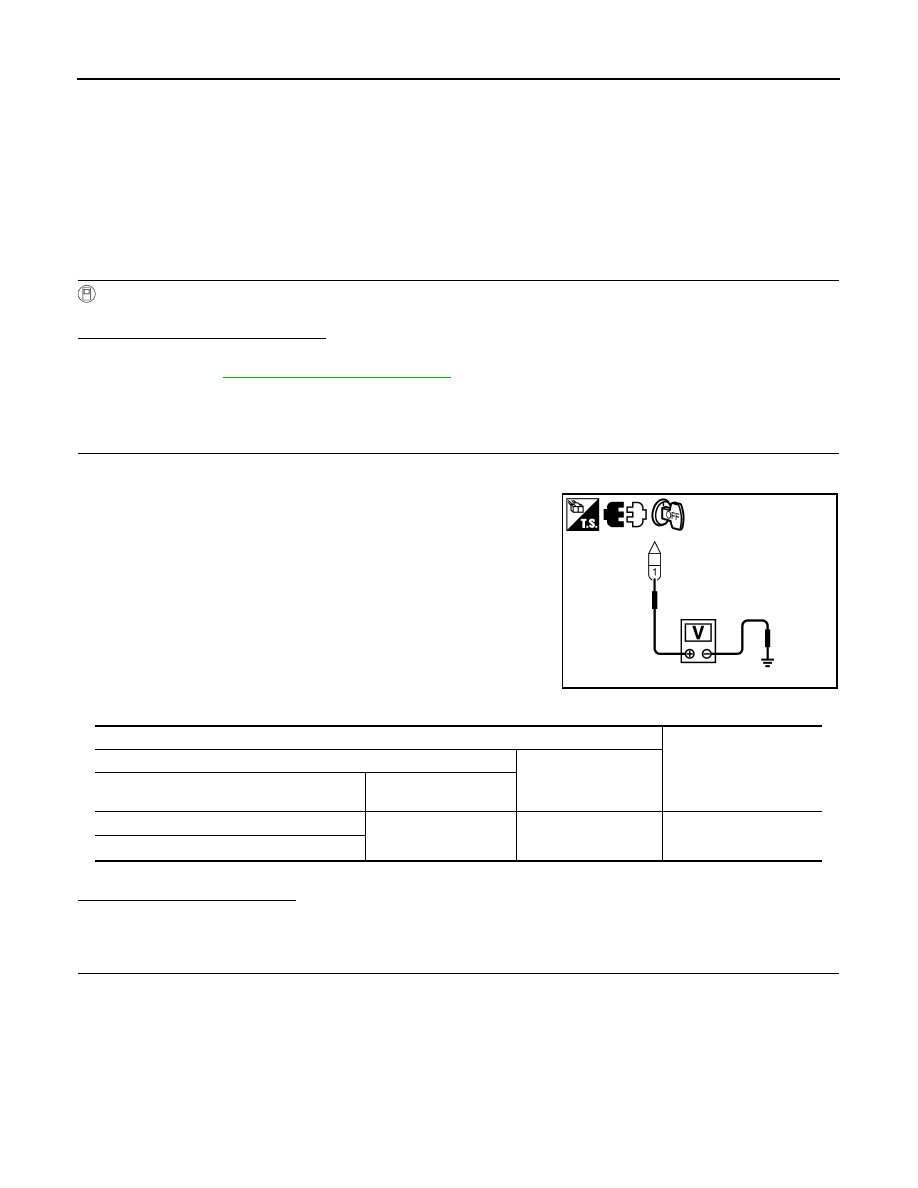

DLK-142

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Description

INFOID:0000000001396614

Answers back and warns about an inappropriate operation. Hatchback vehicles are equipped with a warning
buzzer located inside the driver door. In addition to this buzzer, the sedan vehicles are equipped with a second
buzzer located in the trunk area.

Component Function Check

INFOID:0000000001396615

1.

CHECK FUNCTION

With CONSULT-III

Check Intelligent Key warning buzzer “OUTSIDE BUZZER” operation in “Active Test” mode.

Does the warning buzzer(s) sound?

YES

>> Intelligent Key warning buzzer(s) is OK.

NO

>> Refer to

DLK-142, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001396616

1.

CHECK INTELLIGENT KEY WARNING BUZZER(S) POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key warning buzzer connector.

3.

Check voltage between Intelligent Key warning buzzer connec-
tor and ground.

*: Sedan only

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace Intelligent Key warning buzzer power supply circuit.

2.

CHECK HARNESS CONTINUITY

NOTE:
For sedan vehicles, ensure both Intelligent Key warning buzzers are disconnected before proceeding.
1.

Disconnect Intelligent Key unit connector.

PIIB6622E

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key warning buzzer

connector

Terminal

D6 (driver door)

1

Ground

Battery voltage

B82 (trunk)

*

INTELLIGENT KEY WARNING BUZZER

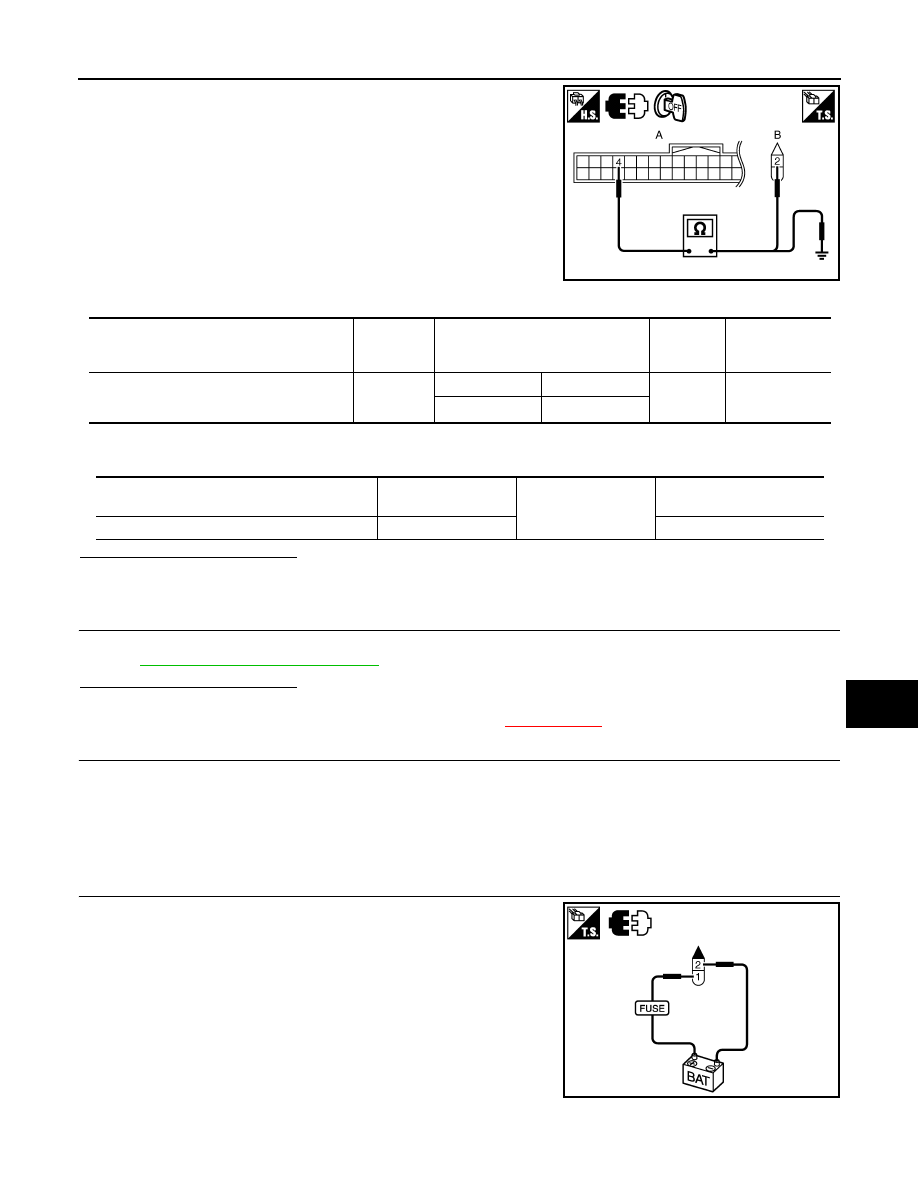

DLK-143

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check continuity between Intelligent Key unit connector and
Intelligent Key warning buzzer connector.

*: Sedan only

3.

Check continuity between Intelligent Key warning buzzer connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between Intelligent Key warning buzzer and Intelligent Key unit.

3.

CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.
Refer to

DLK-143, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace Intelligent Key warning buzzer. Refer to

XX-XX, "*****"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

Component Inspection

INFOID:0000000001396617

1.

CHECK INTELLIGENT KEY WARNING BUZZER

Connect battery power supply to Intelligent Key warning buzzer ter-
minals 1 and 2, and check the operation.

PIIB6623E

Intelligent Key unit

connector

Terminal

Intelligent Key warning buzzer

connector

Terminal

Continuity

M52

4

Driver door

D6

2

Yes

Trunk

*

B82

Intelligent Key unit

connector

Terminal

Ground

Continuity

M52

4

No

PIIB6624E

DLK-144

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

INTELLIGENT KEY WARNING BUZZER

*: Sedan only

Is the inspection result normal?

YES

>> Intelligent Key warning buzzer is OK.

NO

>> Replace Intelligent Key warning buzzer. Refer to

XX-XX, "*****"

.

Intelligent Key warning buzzer

connector

Terminal

Operation

(+)

(-)

Buzzer sounds

D6 (driver door)

1

2

B82 (trunk)

*

BUZZER (COMBINATION METER)

DLK-145

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BUZZER (COMBINATION METER)

Description

INFOID:0000000001396618

Performs operation method guide and warning with buzzer.

Component Function Check

INFOID:0000000001396619

1.

CHECK FUNCTION

 With CONSULT-III

Check the operation with “INSIDE BUZZER” in “Active Test”.

Is the inspection result normal?

Yes

>> Warning buzzer in combination meter is OK.

No

>> Refer to

DLK-145, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001396620

1.

CHECK BUZZER (COMBINATION METER) CIRCUIT

Refer to

XX-XX, "*****"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace buzzer (combination meter) circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

Test item

Condition

INSIDE BUZZER

:TAKE OUT

Take away warning chime sounds

:KNOB

Ignition knob switch warning chime sounds

:KEY

Key warning chime sounds
