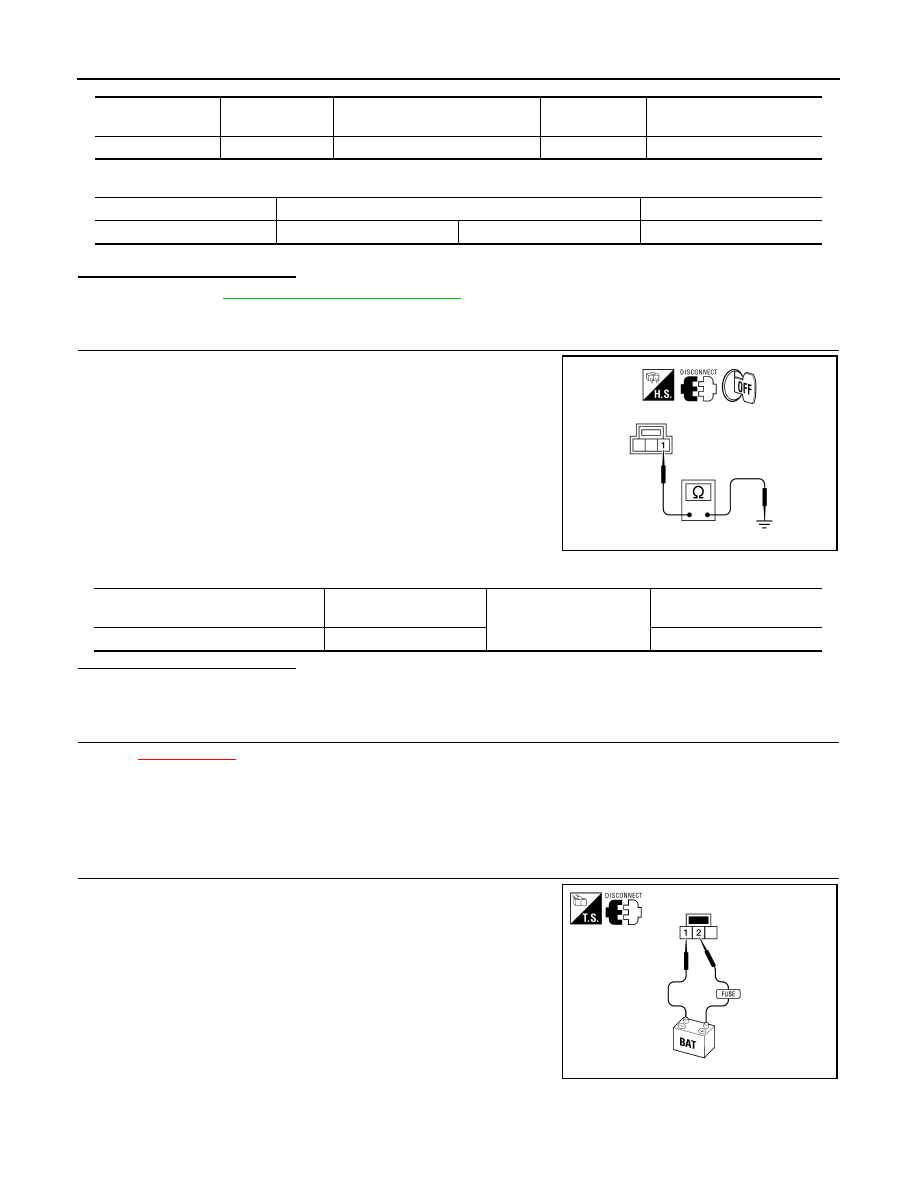

DLK-118

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

TRUNK LID OPENER ACTUATOR

3.

Check continuity between BCM connector (A) M20 terminal 68 and ground.

Is the inspection result normal?

YES

>> Refer to

DLK-118, "Component Inspection"

.

NO

>> Repair or replace harness.

3.

CHECK TRUNK LID OPENER ACTUATOR GROUND CIRCUIT

Check continuity between trunk lamp switch and trunk release sole-
noid connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace trunk lamp switch and trunk release solenoid ground circuit.

4.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END.

Component Inspection

INFOID:0000000001507351

1.

CHECK TRUNK LAMP SWITCH

Momentarilly, connect battery power supply to trunk lamp switch and
trunk release solenoid terminals and check for solenoid operation.

BCM connector

Terminal

trunk lamp switch and trunk re-

lease solenoid connector

Terminal

Continuity

M20

68

B66

2

Yes

BCM connector

Terminal

Continuity

M20

68

Ground

No

ALKIA0763ZZ

Trunk lamp switch and trunk release

solenoid connector

Terminal

Ground

Continuity

B66

1

Yes

ALKIA0767ZZ

TRUNK LID OPENER ACTUATOR

DLK-119

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace trunk lamp switch and trunk release solenoid.

Terminal

Trunk condition

Trunk lamp switch and trunk release solenoid

1 BAT (-)

2 BAT (+)

Solenoid operates

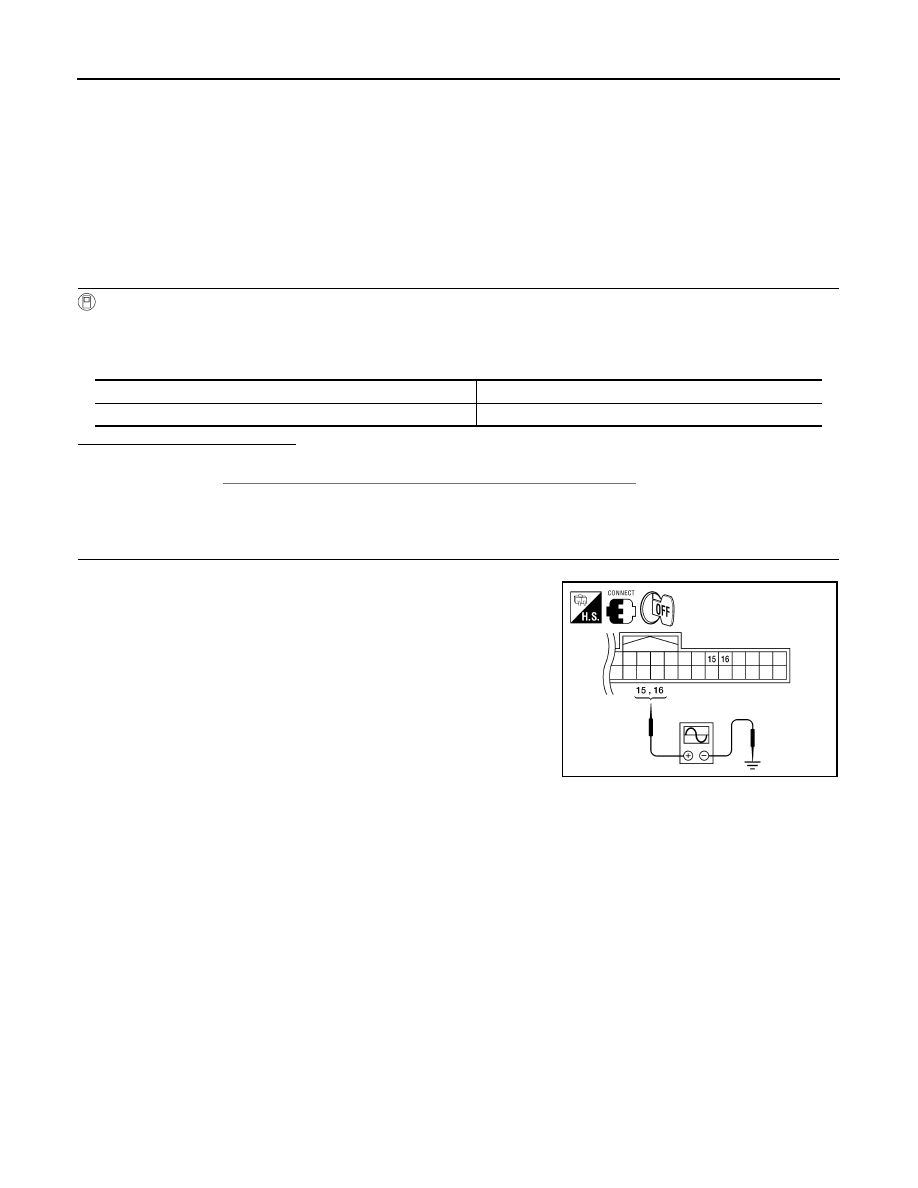

DLK-120

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Description

INFOID:0000000001396601

Detects whether Intelligent Key is inside the vehicle.

INSTRUMENT CENTER : Component Function Check

INFOID:0000000001396602

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL

With CONSULT-III

1.

Check “ANTENNA” in “Active Test” mode with CONSULT-III.

2.

Touch “ROOM ANT 2”.

3.

When Intelligent Key is in inside key antenna (instrument panel) detection area, hazard lamp flashes.

Is the inspection result normal?

YES

>> Inside key antenna (instrument panel) is OK.

NO

>> Refer to

DLK-120, "INSTRUMENT CENTER : Diagnosis Procedure"

.

INSTRUMENT CENTER : Diagnosis Procedure

INFOID:0000000001396603

1.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between Intelligent Key unit connector and ground
with oscilloscope.

Test Item

Inside Antenna

ANTENNA

:ROOM ANT 2

Inside key antenna (instrument panel)

ALKIA0783ZZ

INSIDE KEY ANTENNA

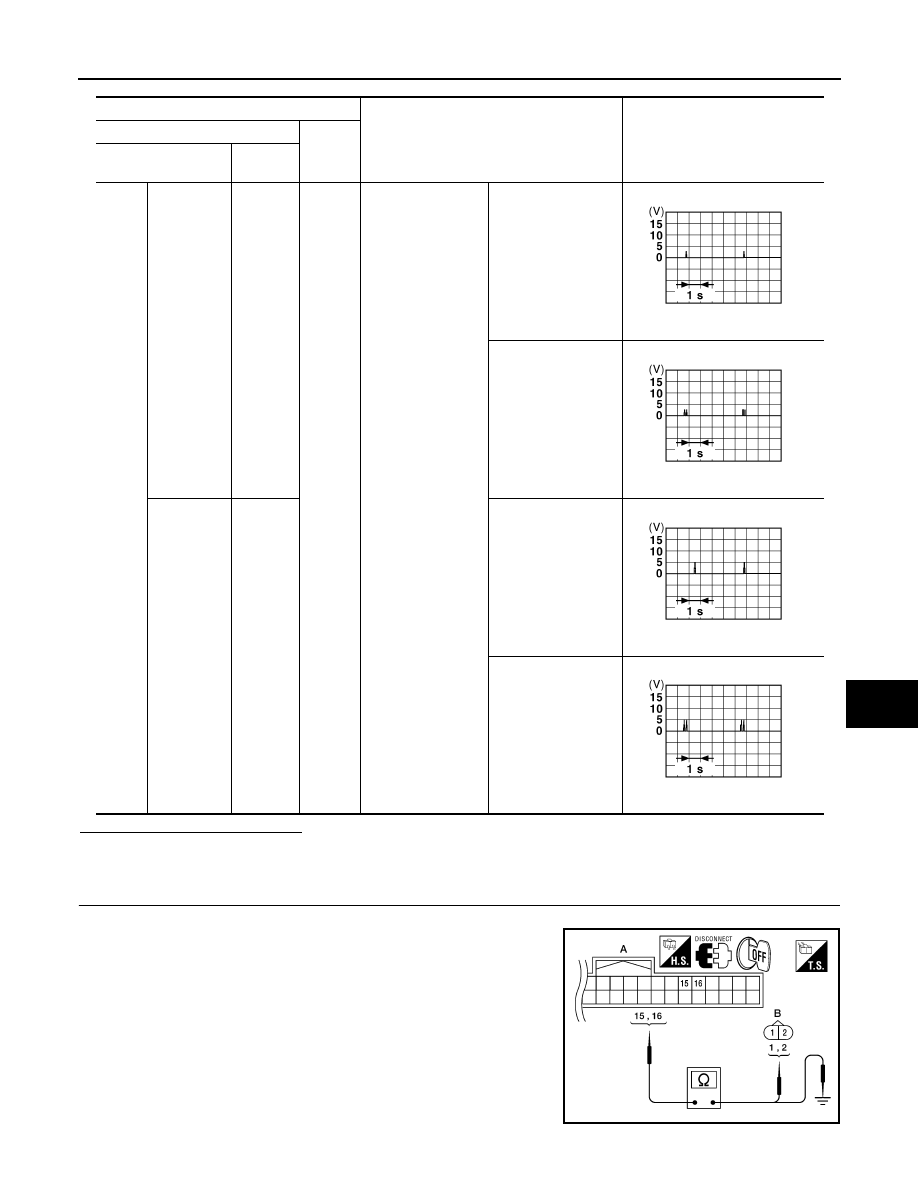

DLK-121

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1.

Disconnect Intelligent Key unit connector and inside key antenna (instrument panel) connector.

2.

Check continuity between Intelligent Key unit connector (A) M52
terminals 15, 16 and instrument panel antenna connector (B)
M10 terminals 1, 2.

Terminals

Condition

Signal

(Reference value)

(+)

(–)

Intelligent Key unit

connector

Terminal

M52

Instrument

panel

(+)

15

Ground

• All doors are

closed

• Ignition knob

switch is pressed

When Intelligent Key
is in the antenna de-
tection area.

When Intelligent Key
is not in the antenna
detection area.

Instrument

panel

(-)

16

When Intelligent Key
is in the antenna de-
tection area.

When Intelligent Key
is not in the antenna
detection area.

JMKIA0393ZZ

JMKIA0391ZZ

JMKIA0392ZZ

JMKIA0390ZZ

ALKIA0586ZZ
