DOOR LOCK ACTUATOR

2.

Check voltage between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

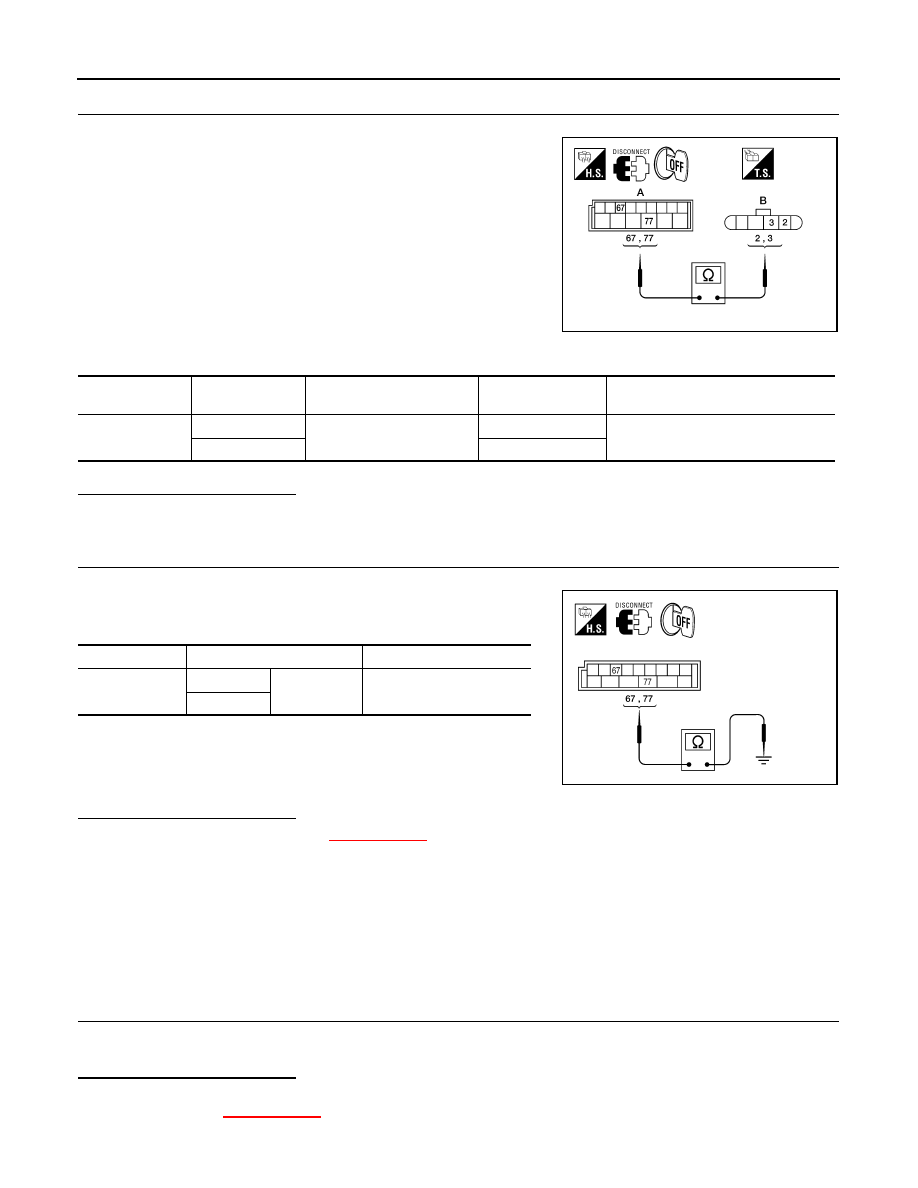

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and front door lock actuator (passenger side) (B) D114 termi-
nals 2, 3.

Is the inspection result normal?

YES

>> Replace front door lock actuator (passenger side). Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

ALKIA0775ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

77

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0776ZZ

BCM connector

Terminal

Front door lock actuator

(passenger side) connector

Terminal

Continuity

M20

67

D114

2

Yes

77

3

DOOR LOCK ACTUATOR

DLK-111

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

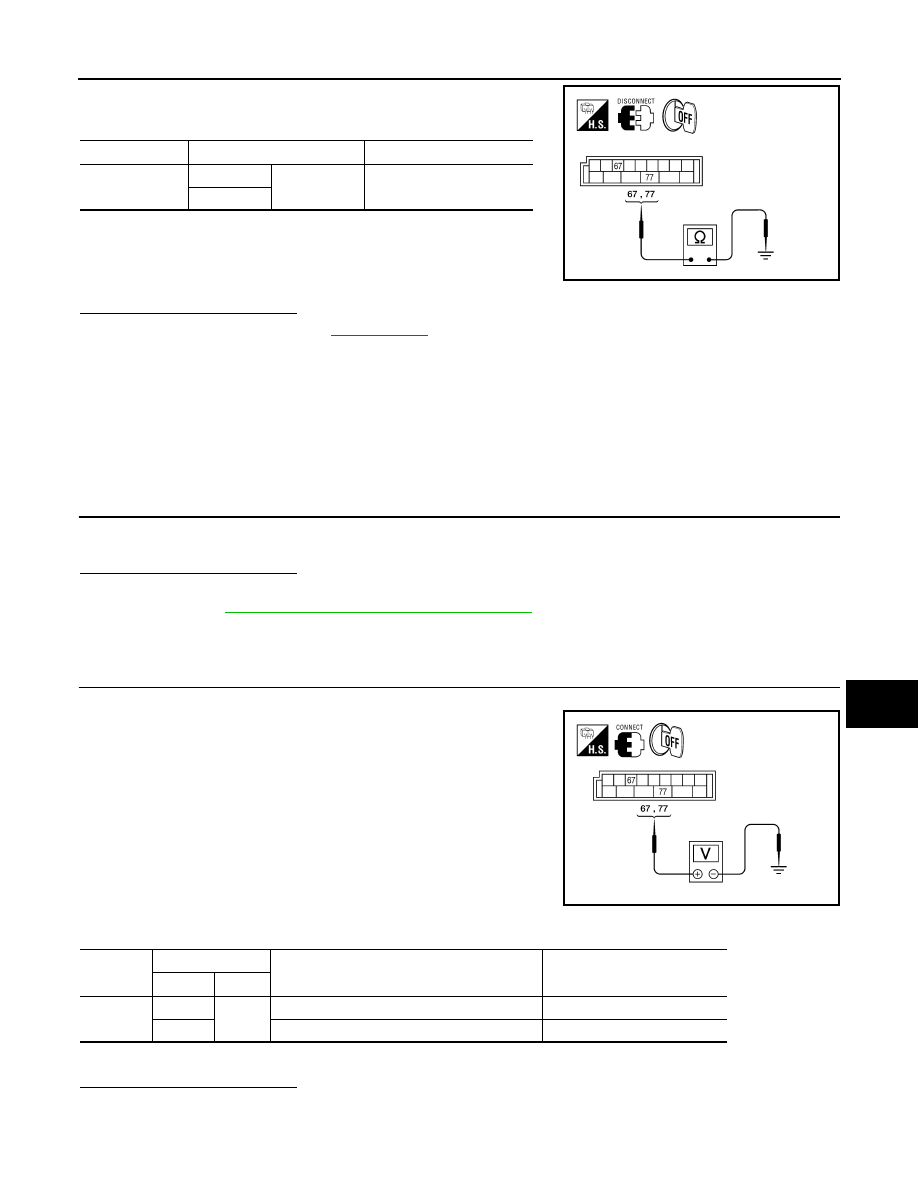

2.

Check continuity between BCM connector M19 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR LH

REAR LH : Description

INFOID:0000000001507388

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

INFOID:0000000001507389

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-111, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000001507390

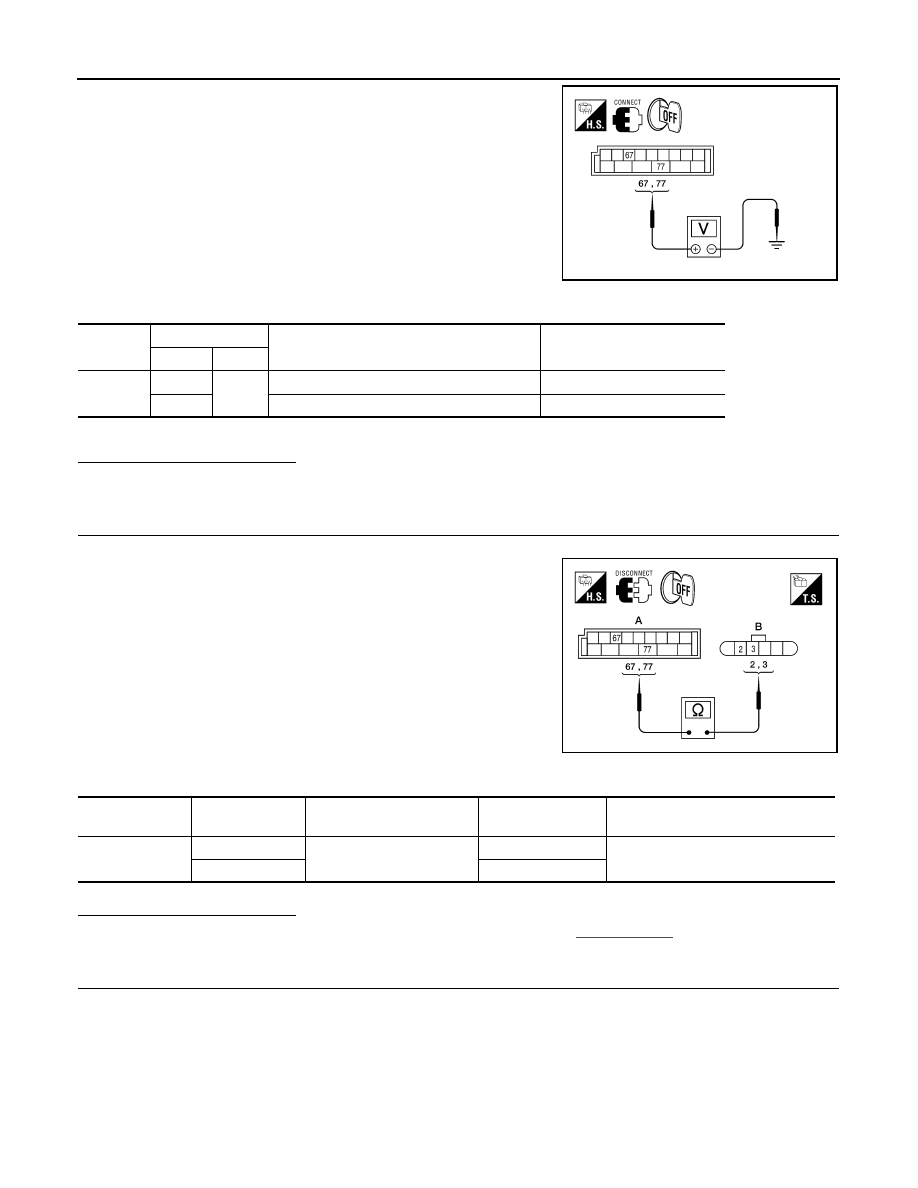

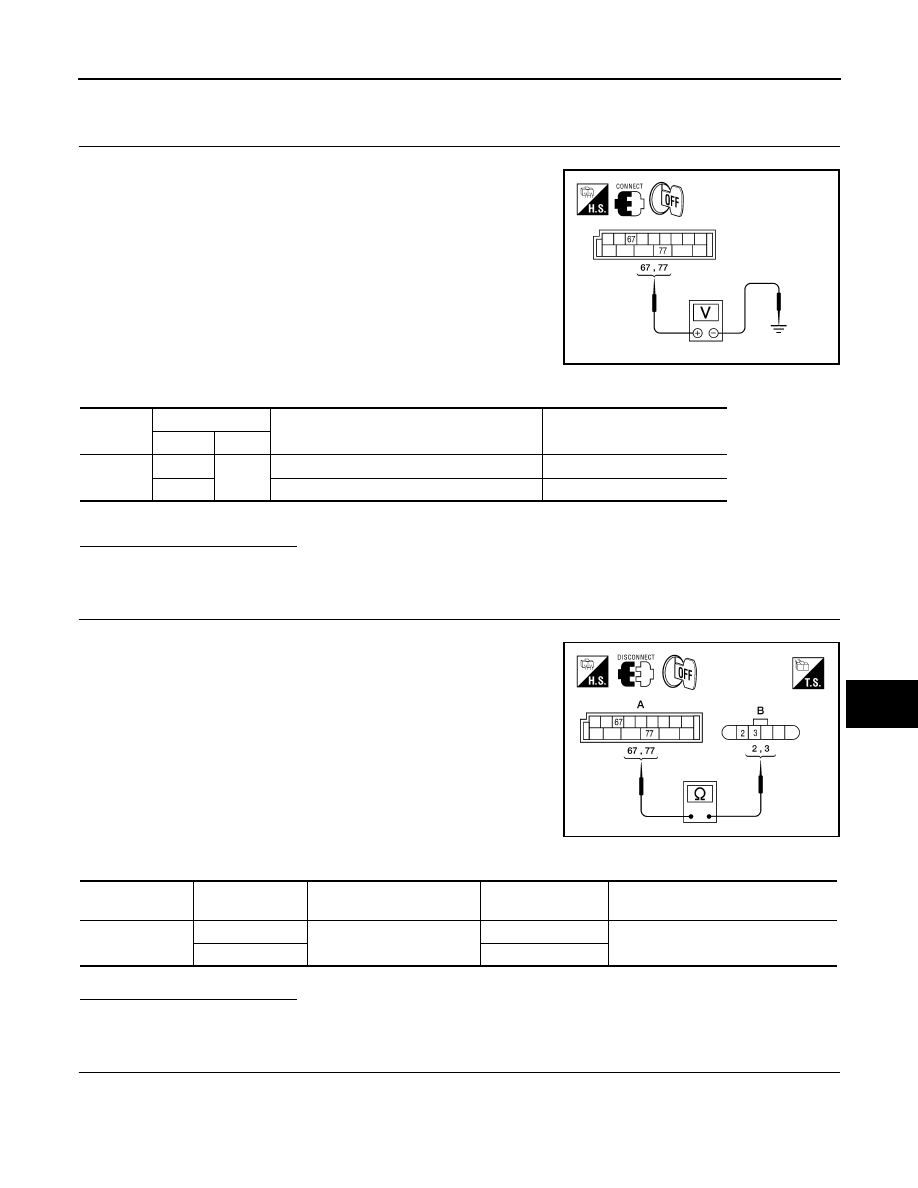

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

BCM connector

Terminals

Continuity

M20

67

Ground

No

77

ALKIA0777ZZ

ALKIA0775ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

77

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

DLK-112

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK ACTUATOR

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator LH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and rear door lock actuator LH connector (B) D205 terminals
2, 3.

Is the inspection result normal?

YES

>> Replace rear door lock actuator LH.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and each door lock actuator.

2.

Check continuity between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR RH

REAR RH : Description

INFOID:0000000001507391

Locks/unlocks the door with the signal from BCM.

REAR RH : Component Function Check

INFOID:0000000001507392

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

XX-XX, "*****"

.

ALKIA0778ZZ

BCM connector

Terminal

Rear door lock actuator LH

connector

Terminal

Continuity

M20

67

D205

2

Yes

77

3

BCM connector

Terminals

Continuity

M20

67

Ground

No

77

ALKIA0777ZZ

DOOR LOCK ACTUATOR

DLK-113

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR RH : Diagnosis Procedure

INFOID:0000000001507393

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and rear door lock actuator RH connector (B) D305 terminals
2, 3.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

ALKIA0775ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

77

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0776ZZ

BCM connector

Terminal

Rear door lock actuator RH

connector

Terminal

Continuity

M20

67

D305

2

Yes

77

3
