UNLOCK SENSOR

2.

Check signal between Intelligent Key unit connector and ground
with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace Intelligent Key unit.

XX-XX, "*****"

5.

CHECK UNLOCK SENSOR

Refer to

DLK-106, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Replace front door lock actuator (driver side). Refer to

XX-XX, "*****"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END.

Component Inspection

INFOID:0000000001507336

1.

CHECK UNLOCK SENSOR

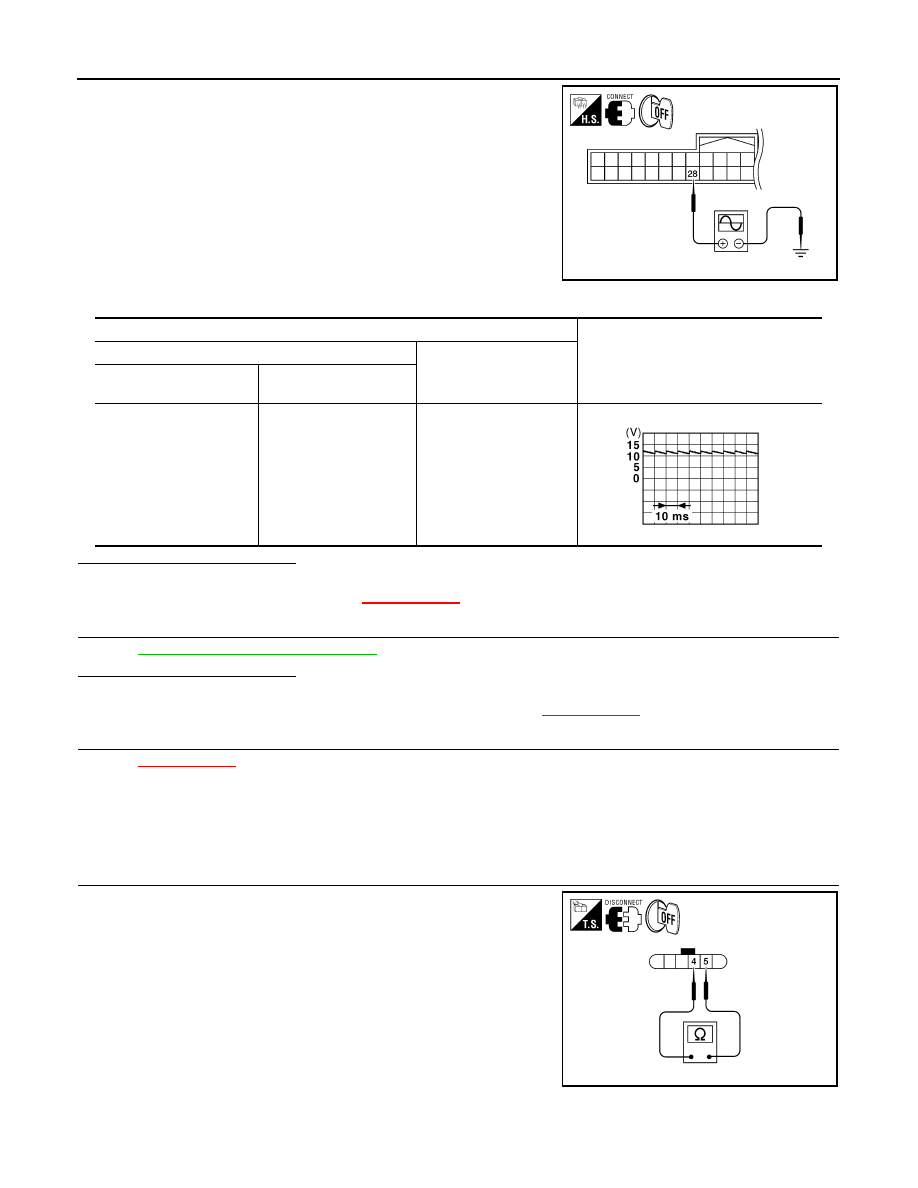

Check unlock sensor.

ALKIA0759ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key unit connec-

tor

Terminal

M52

28

Ground

JPMIA0011GB

ALKIA0760ZZ

UNLOCK SENSOR

DLK-107

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace front lock assembly LH. Refer to

XX-XX, "*****"

.

Terminal

Front door lock actuator (driver side) condition

Continuity

Front door lock actuator (driver side)

4

5

Unlock

Yes

Lock

No

DLK-108

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK ACTUATOR

DOOR LOCK ACTUATOR

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001507385

Locks/unlocks the door with the signal from BCM.

DRIVER SIDE : Component Function Check

INFOID:0000000001507386

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-108, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001507387

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

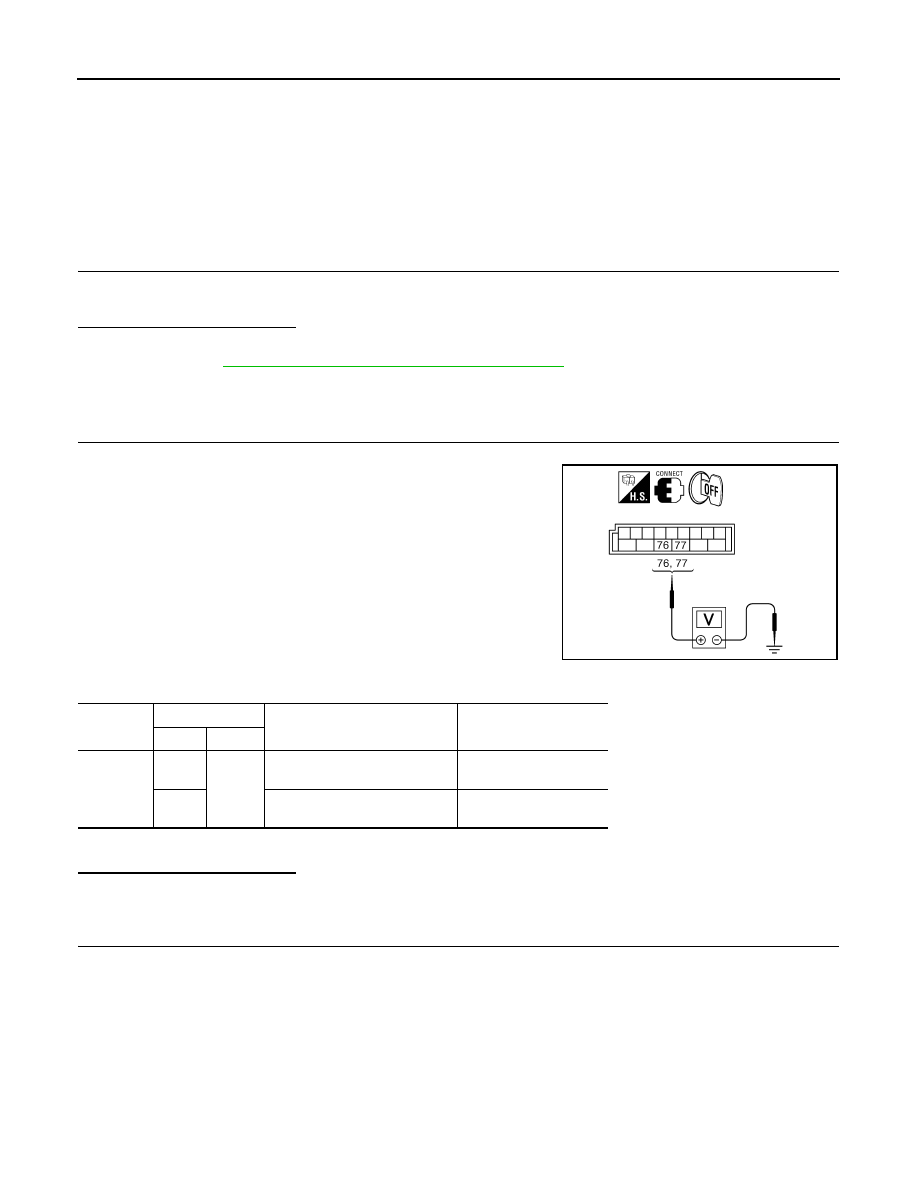

Check voltage between BCM connector M20 terminals 76, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

ALKIA0772ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

76

Ground

Driver door lock/unlock switch is
turned to UNLOCK

0

→

 Battery voltage

→

 0

77

Driver door lock/unlock switch is
turned to LOCK

0

→

 Battery voltage

→

 0

DOOR LOCK ACTUATOR

DLK-109

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

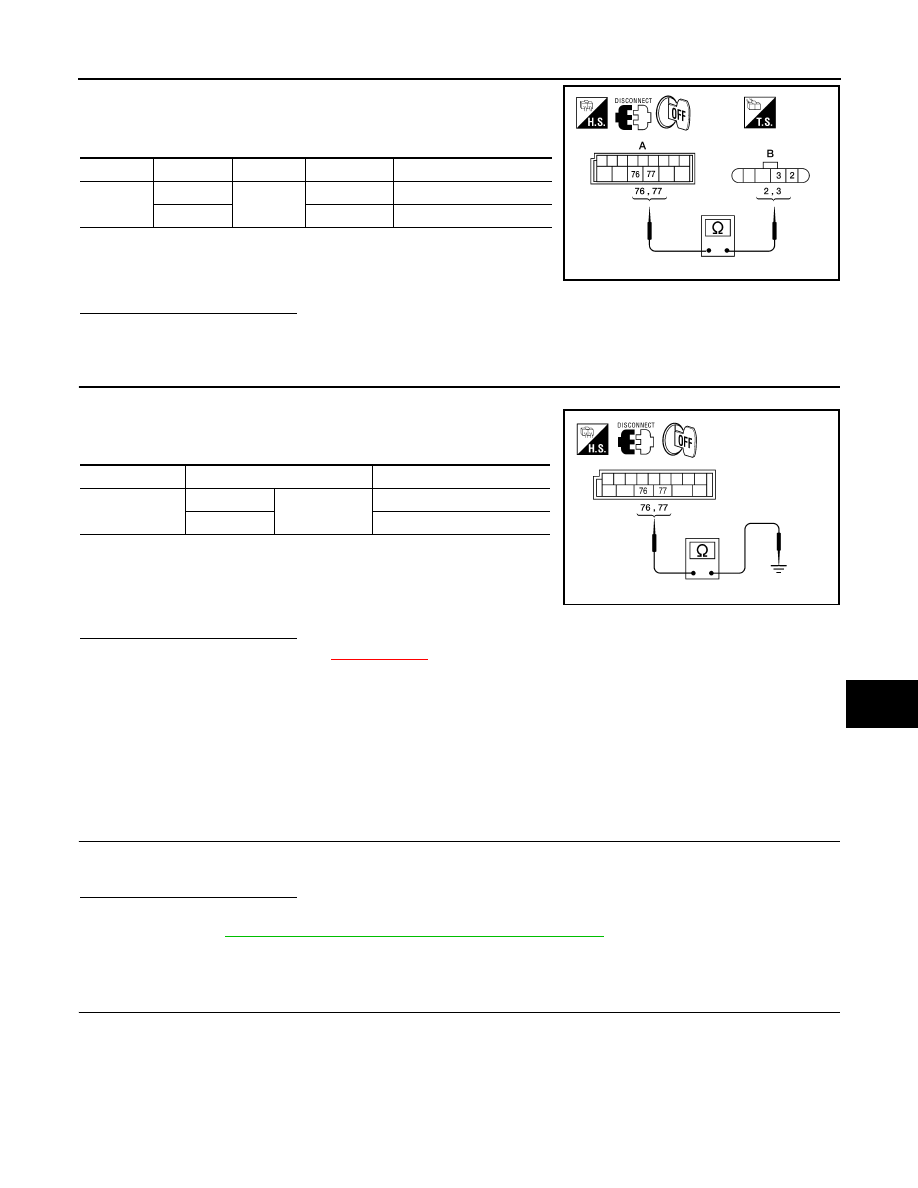

Check continuity between BCM connector (A) M20 terminals 76,
77 and front door lock actuator (driver side) connector (B) D14
terminals 2, 3.

Is the inspection result normal?

YES

>> Replace front door lock actuator (driver side).

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

2.

Check continuity between BCM connector M20 terminals 76, 77
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000001507382

Locks/unlocks the door with the signal from BCM.

PASSENGER SIDE : Component Function Check

INFOID:0000000001507383

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test DOOR LOCK.

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-109, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001507384

1.

CHECK FRONT DOOR LOCK ACTUATOR (PASSENGER SIDE) SIGNAL

1.

Turn ignition switch OFF.

Connector

Terminals

Connector

Terminals

Continuity

M20

76

D14

2

Yes

77

3

Yes

ALKIA0773ZZ

Connector

Terminals

Continuity

M20

76

Ground

No

77

No

ALKIA0774ZZ
