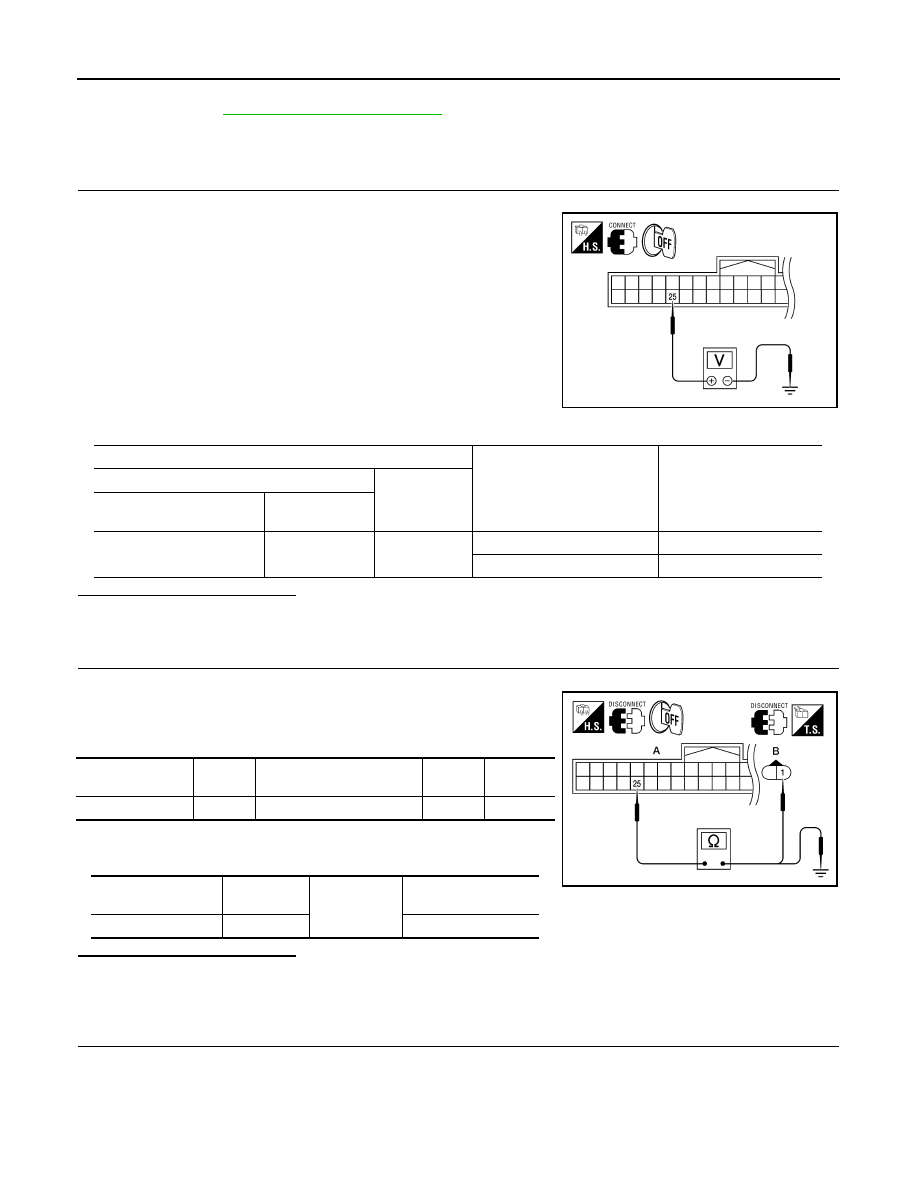

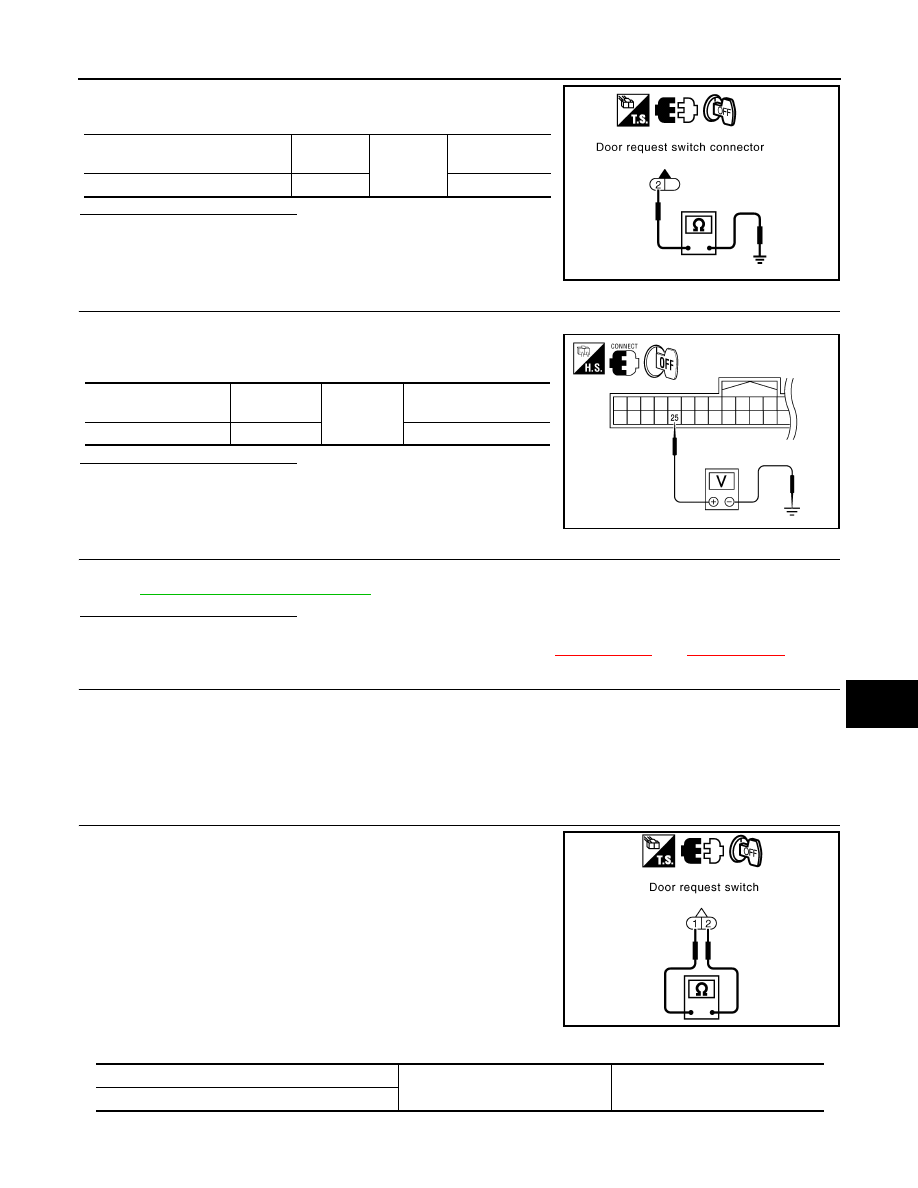

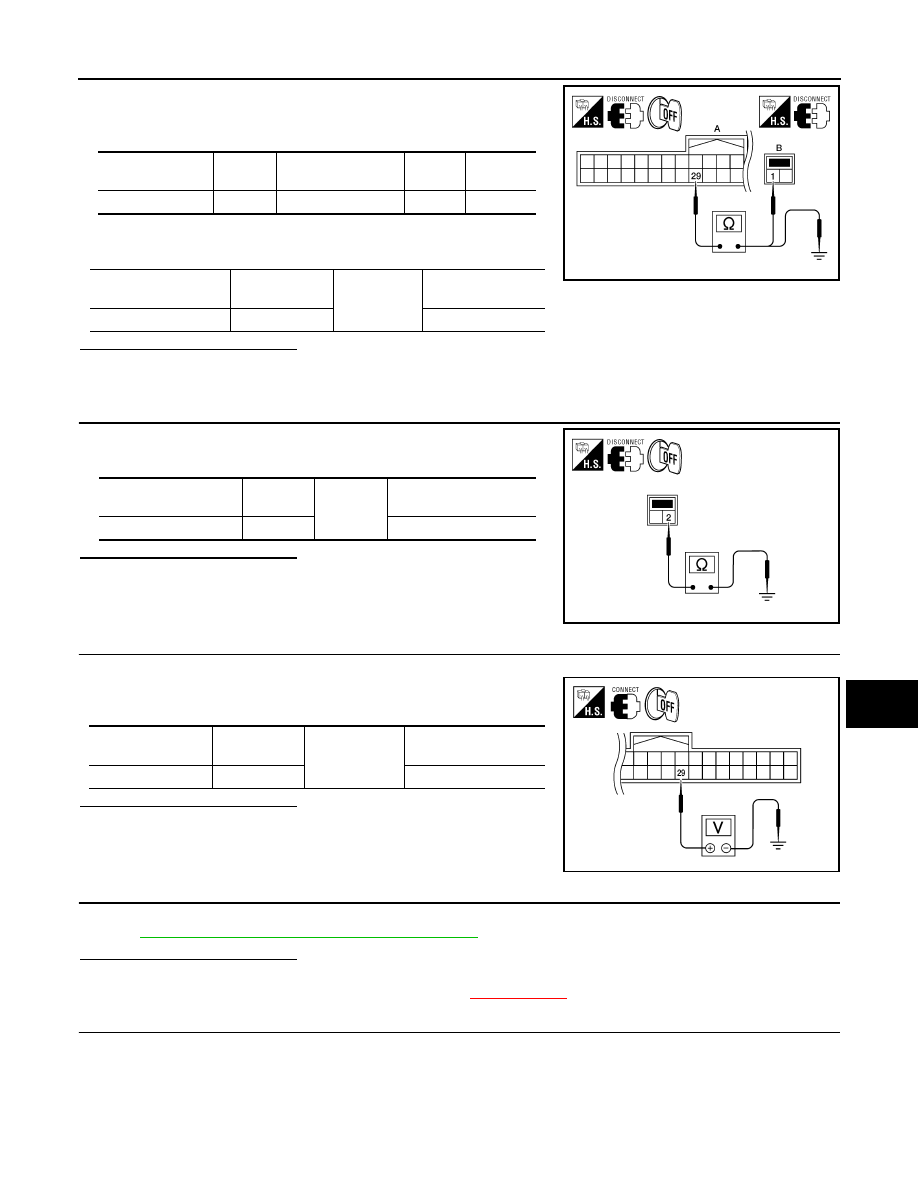

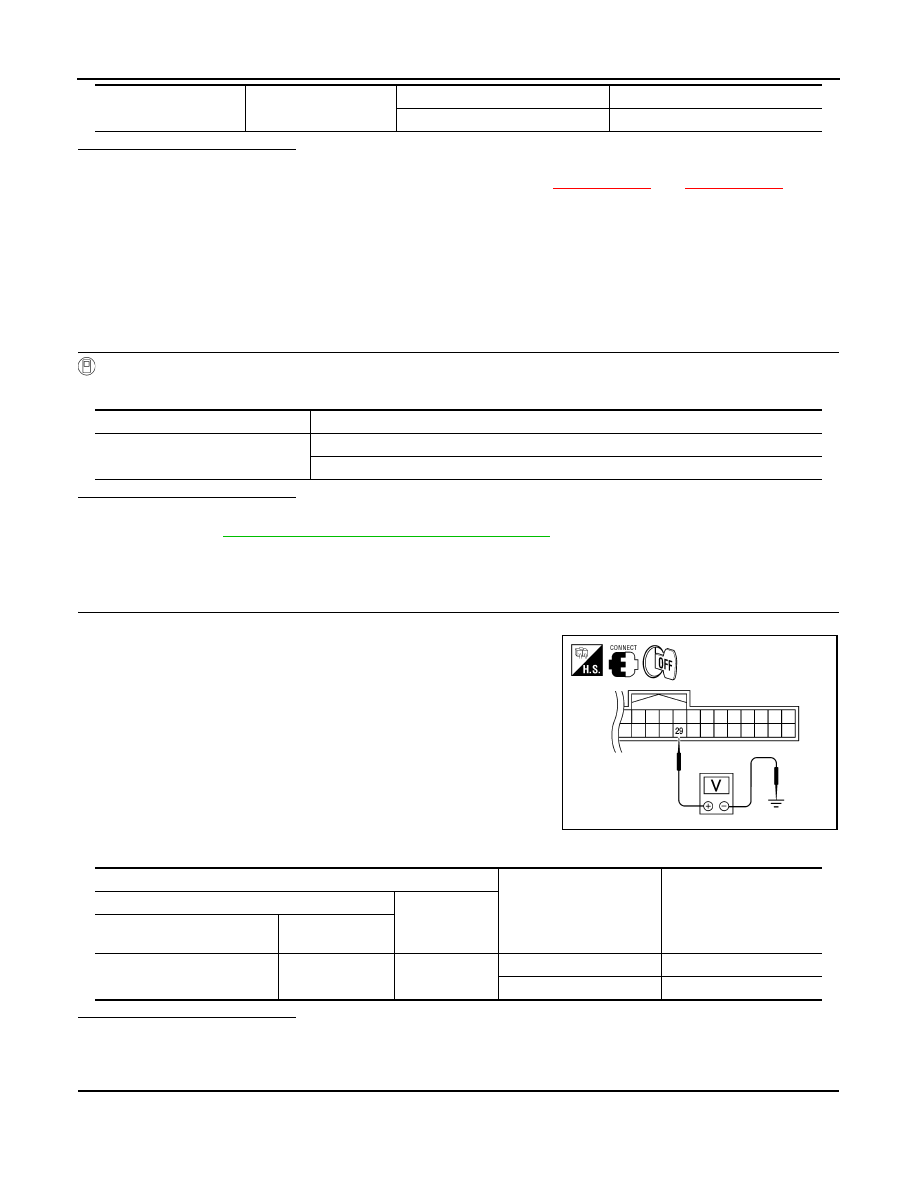

DLK-86 < COMPONENT DIAGNOSIS > [WITH I-KEY, WITHOUT SUPER LOCK] DOOR REQUEST SWITCH YES >> Door request switch is OK. NO >> Refer to . PASSENGER SIDE : Diagnosis Procedure INFOID:0000000001396530 1. CHECK INTELLIGENT KEY UNIT INPUT SIGNAL 1. Turn ignition switch OFF. 2. Check voltage between Intelligent Key unit harness connector Is the inspection result normal? YES >> GO TO 6. NO >> GO TO 2. 2. CHECK DOOR REQUEST SWITCH CIRCUIT 1. Disconnect Intelligent Key unit and passenger door request switch. 2. Check continuity between Intelligent Key unit connector (A) M52 3. Check continuity between Intelligent Key unit connector (A) M52 Is the inspection result normal? YES >> GO TO 3. NO >> Repair or replace harness between Intelligent Key unit and front door request switch (passenger side). 3. CHECK DOOR REQUEST SWITCH GROUND CIRCUIT ALKIA0743ZZ Terminal Door request switch condition Voltage (V) (Approx.) (+) (–) Intelligent Key unit connector Terminal M52 25 Ground Pressed 0 Released 5 Intelligent Key unit connector Terminal Front door request switch (passenger side) connector Terminal Continuity M52 25 D103 1 Yes Intelligent Key unit connector Terminal Ground Continuity M52 25 No ALKIA0744ZZ |
