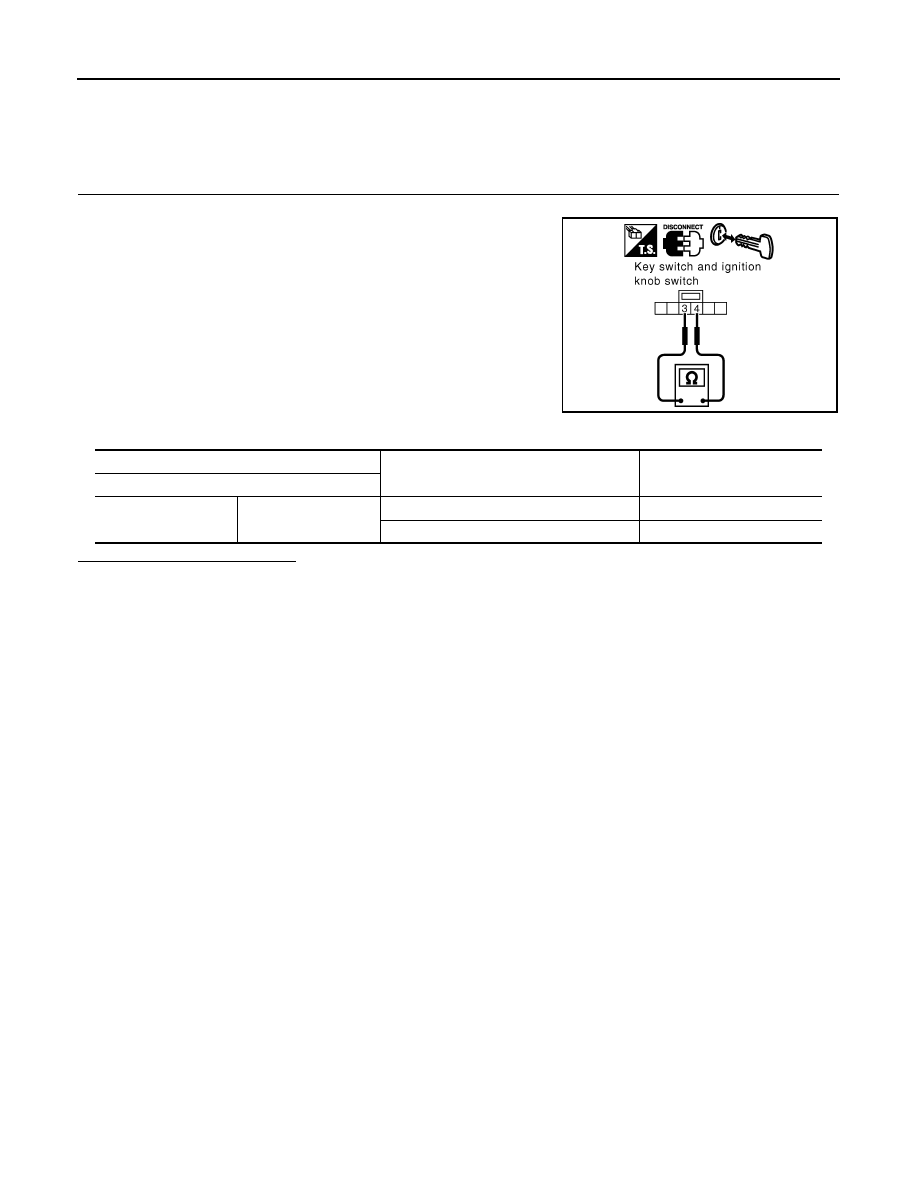

DLK-82

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

IGNITION KNOB SWITCH

>> INSPECTION END

Component Inspection

INFOID:0000000001396563

1.

CHECK IGNITION KNOB SWITCH

1.

Turn ignition switch OFF.

2.

Check continuity between key switch and ignition knob switch
terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace key switch and ignition knob switch.

PIIA6140E

key switch and ignition knob switch

Condition

Continuity

Terminals

3

4

Ignition knob switch is pressed

Yes

Ignition knob switch is released

No

DOOR REQUEST SWITCH

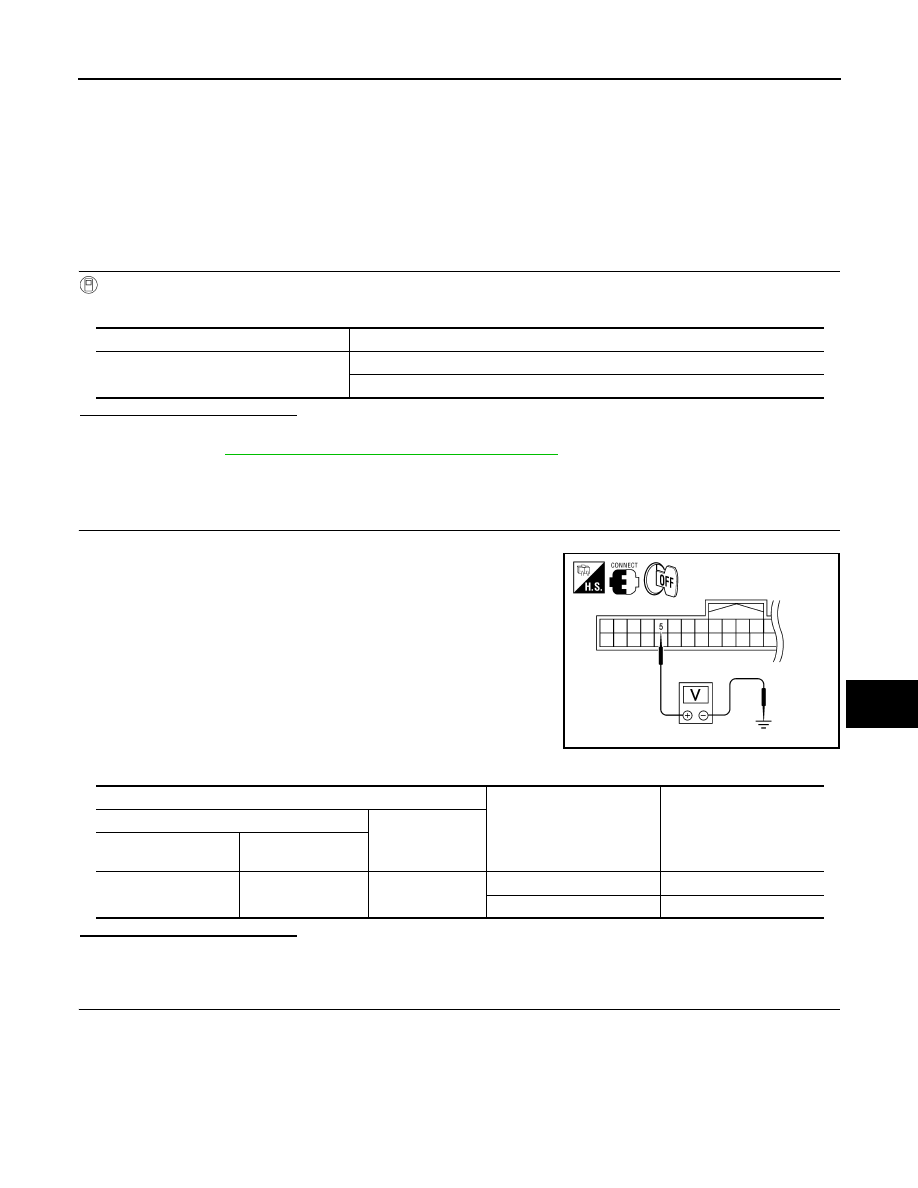

DLK-83

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR REQUEST SWITCH

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001396524

Transmits lock/unlock operation to Intelligent Key unit.

DRIVER SIDE : Component Function Check

INFOID:0000000001396525

1.

CHECK FUNCTION

 With CONSULT-III

Check door request switch “DR REQ SW” in “Data Monitor” mode.

Is the inspection result normal?

YES

>> Door request switch is OK.

NO

>> Refer to

DLK-83, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001396526

1.

CHECK INTELLIGENT KEY UNIT INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between Intelligent Key unit harness connector
and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 2.

2.

CHECK FRONT DOOR REQUEST SWITCH CIRCUIT

1.

Disconnect Intelligent Key unit and driver door request switch.

Monitor item

Condition

DR REQ SW

Door request switch is pressed

:ON

Door request switch is released

:OFF

ALKIA0741ZZ

Terminal

Door request

switch condition

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key unit

connector

Terminal

M52

5

Ground

Pressed

0

Released

5

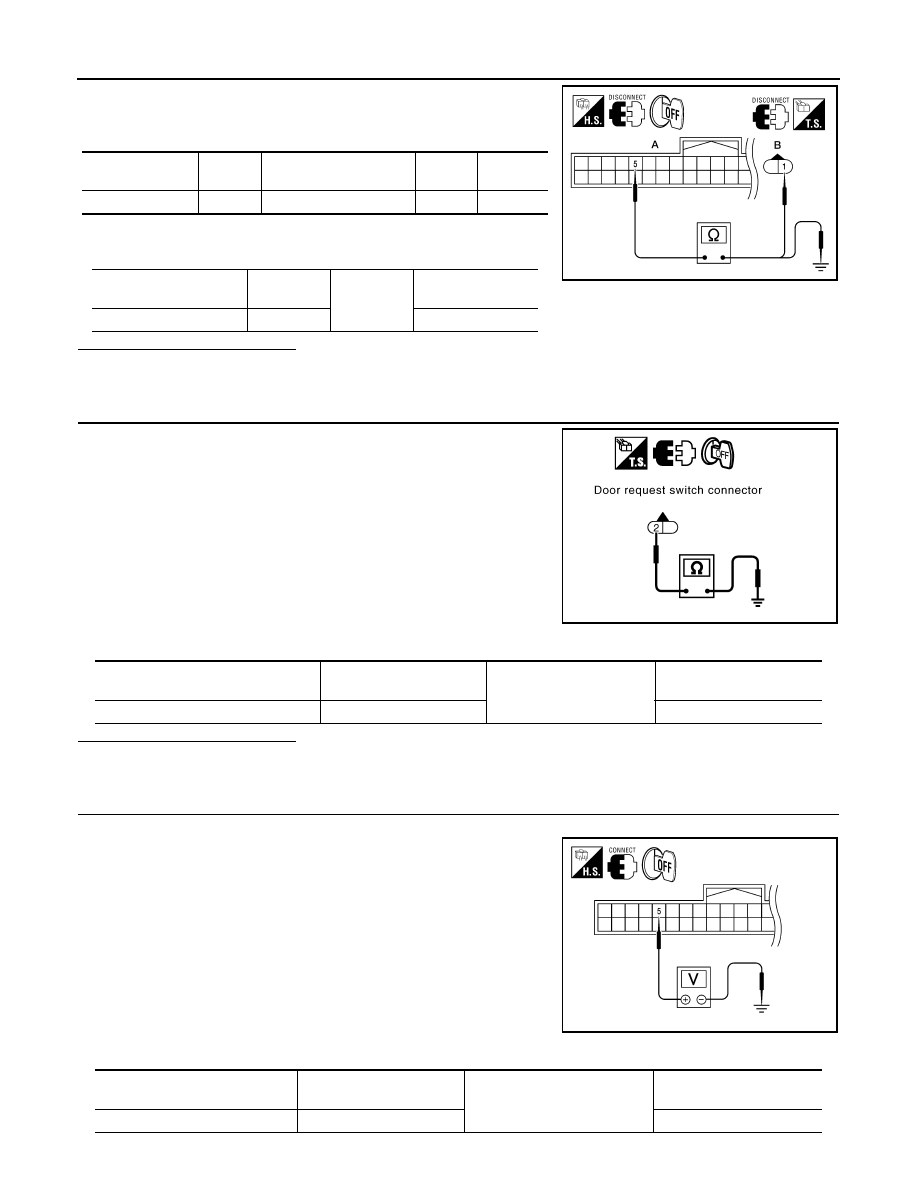

DLK-84

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR REQUEST SWITCH

2.

Check continuity between Intelligent Key unit connector (A) M52
terminal 5 and  front door request switch (driver side) connector
(B) D5 terminal 1.

3.

Check continuity between Intelligent Key unit connector (A) M52
terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between Intelligent Key unit and front door request switch (driver side).

3.

CHECK DOOR REQUEST SWITCH GROUND CIRCUIT

Check continuity between front door request switch (driver side) con-
nector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace front door request switch (driver side) ground circuit.

4.

CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL

1.

Connect Intelligent Key unit connector.

2.

Check voltage between Intelligent Key unit connector and
ground.

Intelligent Key unit

connector

Terminal

Front door request switch

(driver side)

Terminal

Continuity

M52

5

D5

1

Yes

Intelligent Key unit

connector

Terminal

Ground

Continuity

M52

5

No

ALKIA0742ZZ

PIIB7427E

Front door request switch (driver side)

connector

Terminal

Ground

Continuity

D5

2

Yes

ALKIA0741ZZ

Intelligent Key unit

connector

Terminal

Ground

Voltage (V)

(Approx.)

M52

5

5

DOOR REQUEST SWITCH

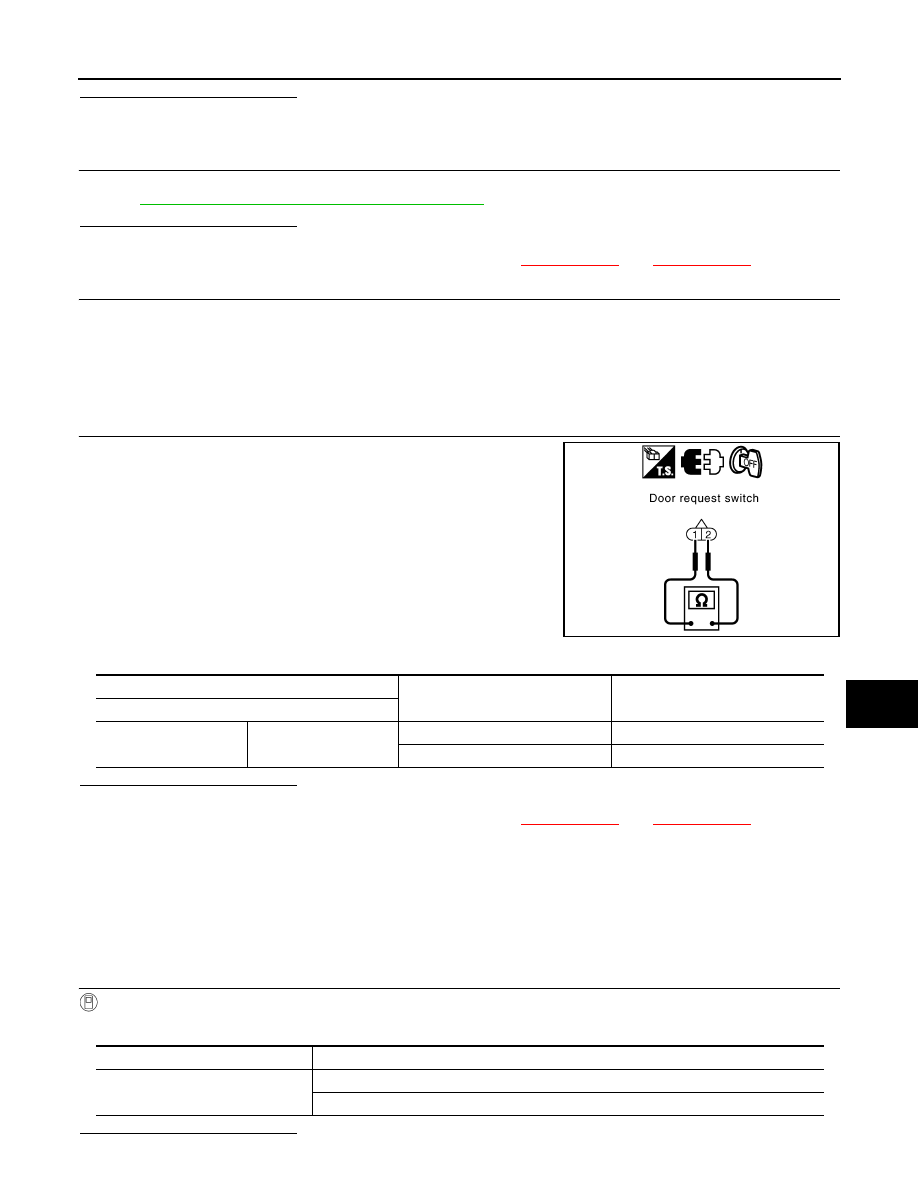

DLK-85

< COMPONENT DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

CHECK DOOR REQUEST SWITCH

Check door request switch.
Refer to

DLK-85, "DRIVER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace front outside handle (driver side). Refer to

XX-XX, "*****"

 and

XX-XX, "*****"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

DRIVER SIDE : Component Inspection

INFOID:0000000001396527

1.

CHECK DOOR REQUEST SWITCH

Check door request switch.

Is the inspection result normal?

YES

>> Door request switch is OK.

NO

>> Replace front outside handle (driver side). Refer to

XX-XX, "*****"

 and

XX-XX, "*****"

.

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000001396528

Transmits lock/unlock operation to Intelligent Key unit.

PASSENGER SIDE : Component Function Check

INFOID:0000000001396529

1.

CHECK FUNCTION

 With CONSULT-III

Check door request switch “AS REQ SW” in “Data Monitor” mode.

Is the inspection result normal?

PIIB7426E

Terminal

Door request switch condition

Continuity

front door request switch (driver side)

1

2

Pressed

Yes

Released

No

Monitor item

Condition

AS REQ SW

Door request switch is pressed

:ON

Door request switch is released

:OFF
