HAZARD AND BUZZER REMINDER FUNCTION

ANSWER BACK WITH
 I-KEY
UNLOCK

BUZZER

Lock

Depends on other setting

Unlock

Twice

Unlock (Anti-hijack)

Twice

OFF

Any

—

ANSWER BACK FUNC-
TION

ON

Lock

Once

Unlock

Twice

Unlock (Anti-hijack)

Twice

OFF

Any

—

Buzzer reminder setting

(With CONSULT-III)

Door lock operation

(with Intelligent Key or door request switch)

Buzzer warning sounds

HAZARD AND BUZZER REMINDER FUNCTION

DLK-47

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

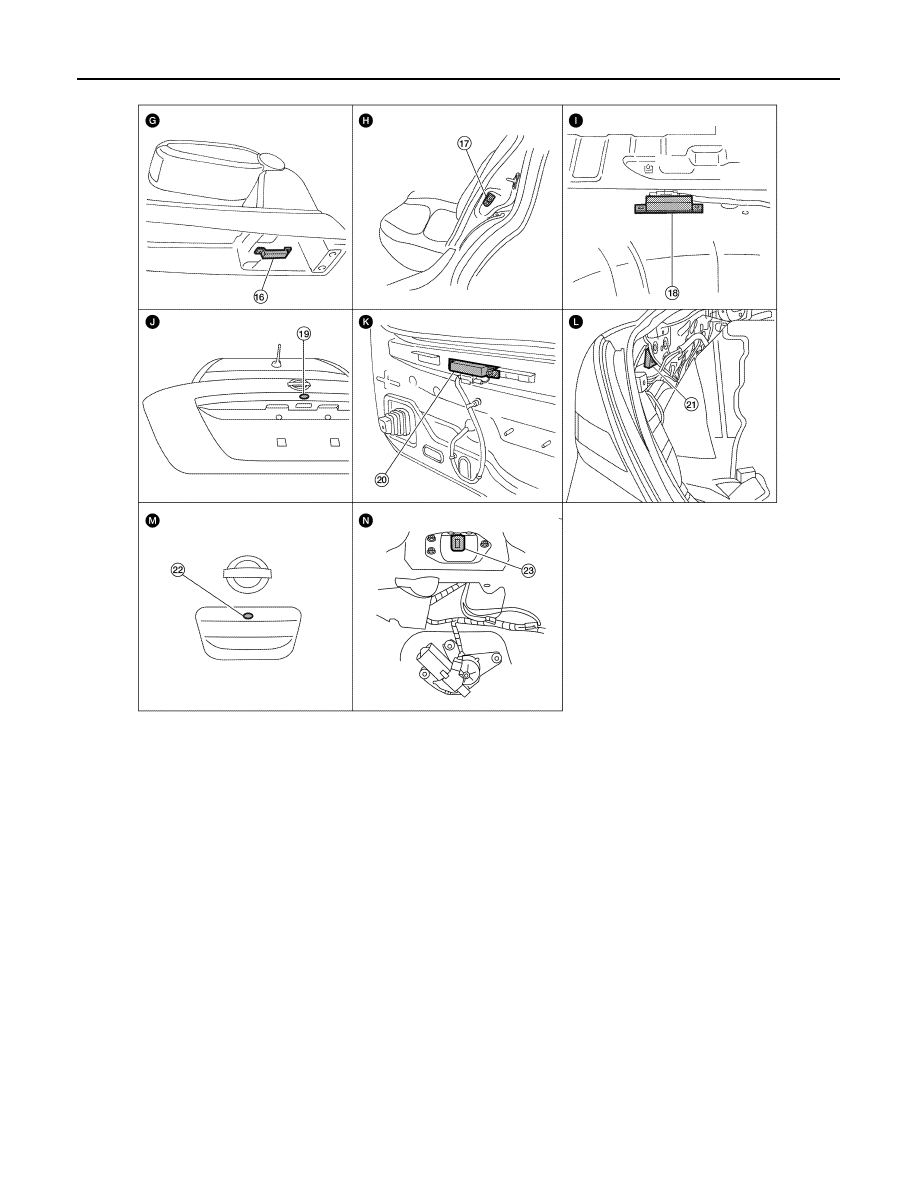

Component Parts Location

INFOID:0000000001396500

ALKIA0814ZZ

DLK-48

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

HAZARD AND BUZZER REMINDER FUNCTION

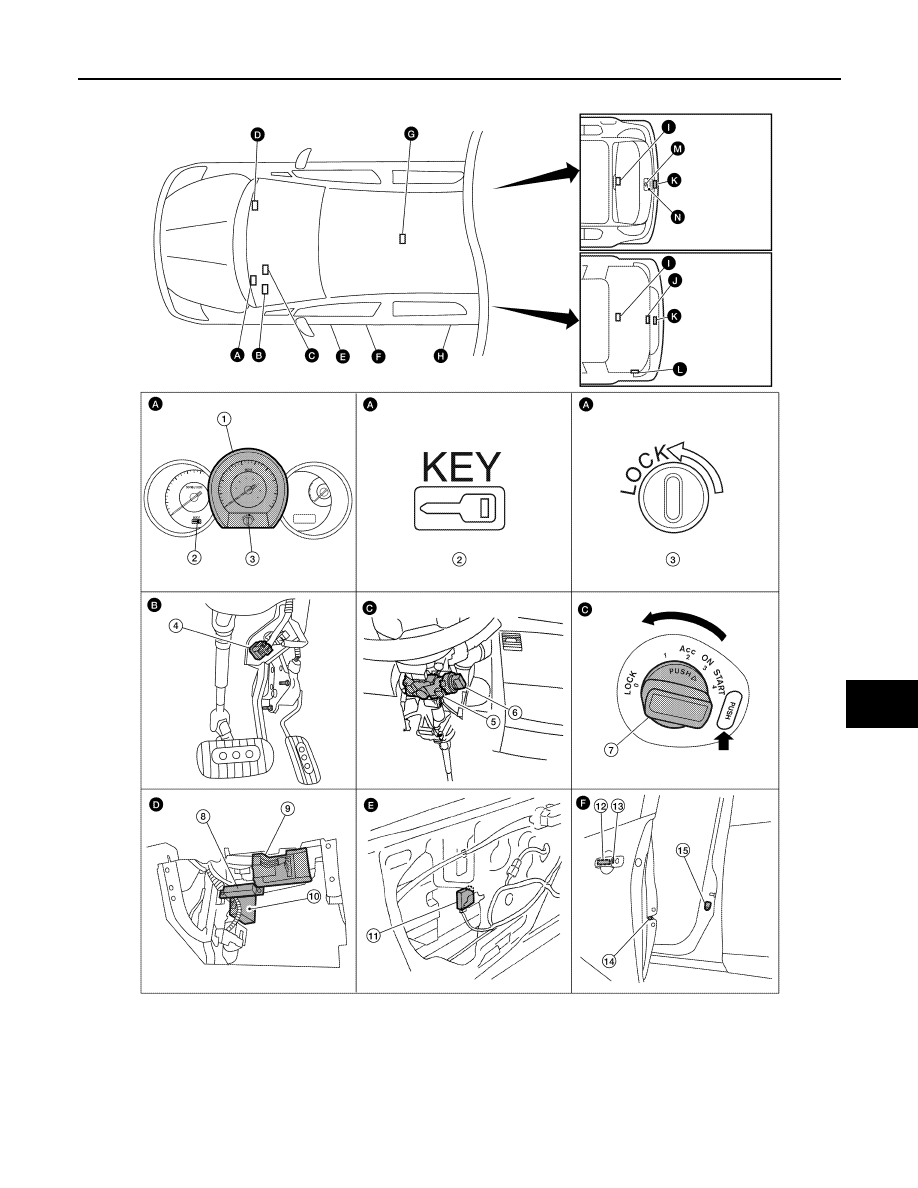

ALKIA0815ZZ

1.

Combination meter M24

2.

Key warning lamp (combination meter)

3.

Lock warning lamp (combination meter)

4.

Stop lamp switch E13
(view with instrument panel LH re-
moved)

5.

Steering lock solenoid M6
(bottom view of steering column)

6.

Key switch and ignition knob switch (A/
T) M32

7.

Key switch and ignition knob
switch (M/T) M32

8.

Instrument panel antenna M10
(view with glove box removed)

9.

BCM M18, M19, M20

10. Intelligent Key Unit M52

11.  Intelligent key warning buzzer (driver side)

D6 (view with front door finisher removed)

12. Front outside antenna (driver side) D10

(Passenger side) D106

13. Front door request switch (driver

side) D5
(Passenger side) D103

14. Door unlock sensor D14

[Front door lock actuator (driver side)]

15. Front door switch (driver side) B34

(Passenger side) B29

16. Front console antenna B45

(view with front console removed)

17.  Rear door switch LH B71

RH B53

18. Rear floor antenna B46

(behind rear seat)

19. Trunk request switch B67

(sedan)

20. Rear bumper antenna B81

(view with rear fascia removed)

21. Intelligent Key warning buzzer (trunk)

B82 (sedan)
(view with trunk finisher LH removed)

22. Back door request switch D406

(hatchback)

23.  Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

HAZARD AND BUZZER REMINDER FUNCTION

DLK-49

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Description

INFOID:0000000001396501

*: Sedan only

Item

Function

BCM

Controls the hazard and buzzer reminder function with Intelligent Key unit.

Intelligent Key unit

Controls the hazard and buzzer reminder function with BCM.

Combination meter

Turns ON the LOCK indicator, KEY indicator, turn signal indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.

Intelligent Key warning buzzer (driver side)

Sounds by the request signal from Intelligent Key unit via CAN communication.

Intelligent Key warning buzzer (trunk)

*

Sounds by the request signal from Intelligent Key unit via CAN communication.
