DLK-26

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

ALKIA0815ZZ

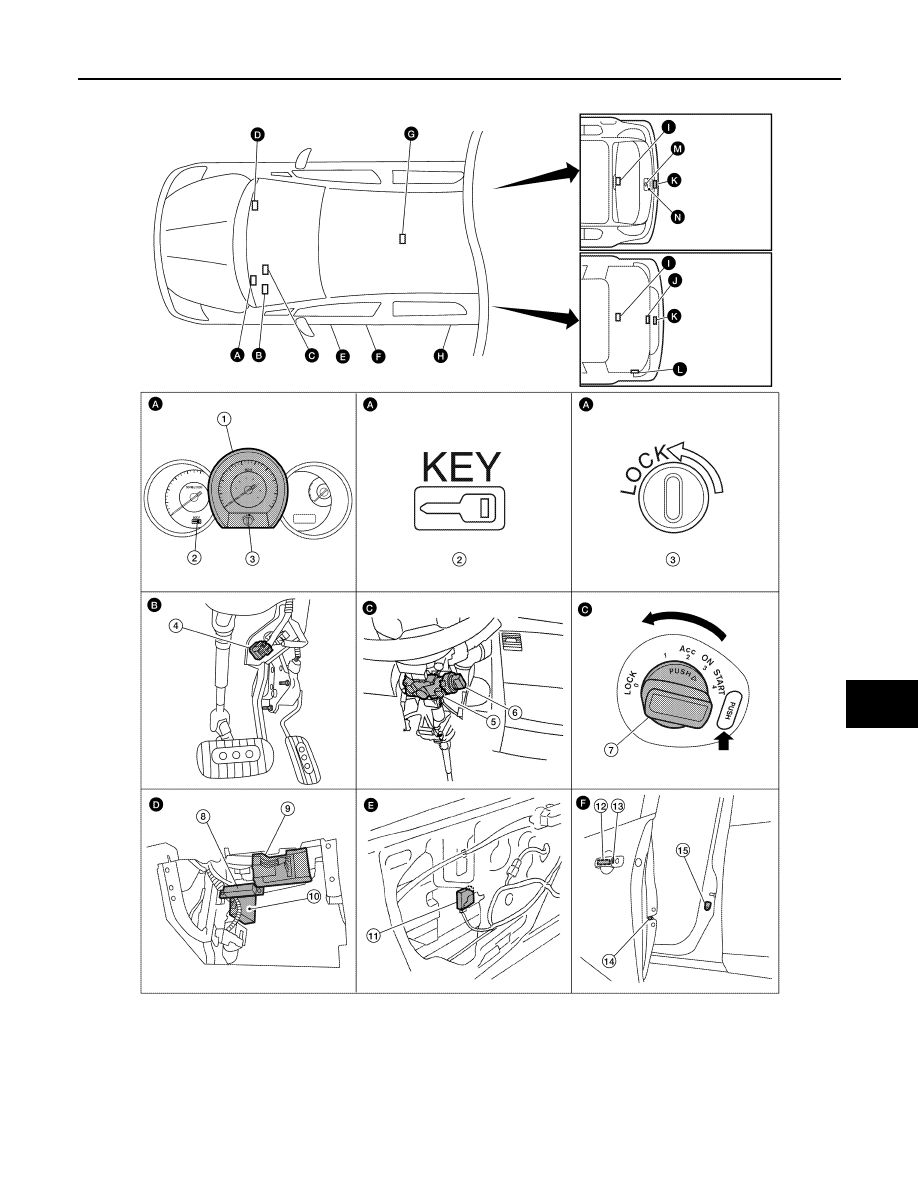

1.

Combination meter M24

2.

Key warning lamp (combination meter)

3.

Lock warning lamp (combination meter)

4.

Stop lamp switch E13
(view with instrument panel LH re-
moved)

5.

Steering lock solenoid M6
(bottom view of steering column)

6.

Key switch and ignition knob switch (A/
T) M32

7.

Key switch and ignition knob
switch (M/T) M32

8.

Instrument panel antenna M10
(view with glove box removed)

9.

BCM M18, M19, M20

10. Intelligent Key Unit M52

11.  Intelligent key warning buzzer (driver side)

D6 (view with front door finisher removed)

12. Front outside antenna (driver side) D10

(Passenger side) D106

13. Front door request switch (driver

side) D5
(Passenger side) D103

14. Door unlock sensor D14

[Front door lock actuator (driver side)]

15. Front door switch (driver side) B34

(Passenger side) B29

16. Front console antenna B45

(view with front console removed)

17.  Rear door switch LH B71

RH B53

18. Rear floor antenna B46

(behind rear seat)

19. Trunk request switch B67

(sedan)

20. Rear bumper antenna B81

(view with rear fascia removed)

21. Intelligent Key warning buzzer (trunk)

B82 (sedan)
(view with trunk finisher LH removed)

22. Back door request switch D406

(hatchback)

23.  Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

DOOR LOCK FUNCTION

DLK-27

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY : Component Description

INFOID:0000000001396469

DOOR REQUEST SWITCH

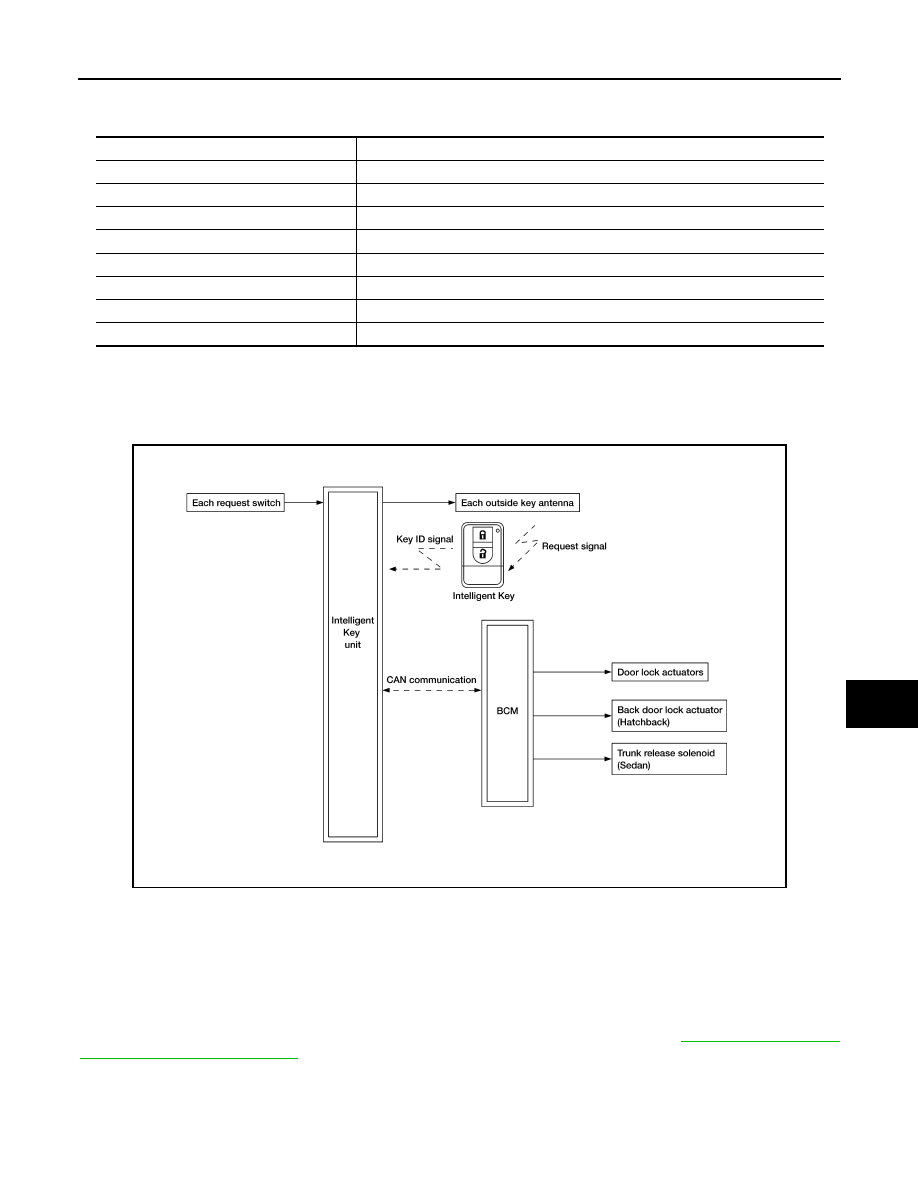

DOOR REQUEST SWITCH : System Diagram

INFOID:0000000001396470

DOOR REQUEST SWITCH OPERATION

DOOR REQUEST SWITCH : System Description

INFOID:0000000001396471

DOOR REQUEST SWITCH OPERATION

Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key. The Intelligent Key system is a system that makes it possible to lock and unlock the door by carrying the
Intelligent Key, which operates based on the results of electronic ID verification using two-way communica-
tions between the Intelligent Key and the vehicle (Intelligent Key unit).
This function can be set to OFF with CONSULT-III. For the setting information, refer to

DLK-53, "CONSULT-III

Function (INTELLIGENT KEY)"

.

CAUTION:

The driver should always carry the Intelligent Key

OPERATION CONDITION

Item

Function

Intelligent Key unit

Controls the door lock/unlock operation with BCM.

BCM

Controls the door lock/unlock operation with Intelligent Key unit.

Door switch

Detects door state (open or closed).

Key switch

Detects that mechanical key is inserted into ignition key cylinder.

Ignition knob switch

Detects ignition knob state (push or release).

Outside key antenna

Detects that Intelligent Key is in detection area of outside key antenna.

Intelligent Key

Transmits key ID to Intelligent Key unit when lock/unlock button is pressed.

Door lock actuator

Receives lock/unlock signal from BCM and locks and unlocks each door.

ALKIA0712GB

DLK-28

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

If the following conditions are not satisfied, door lock and unlock operation is not performed even if the request
switch is operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

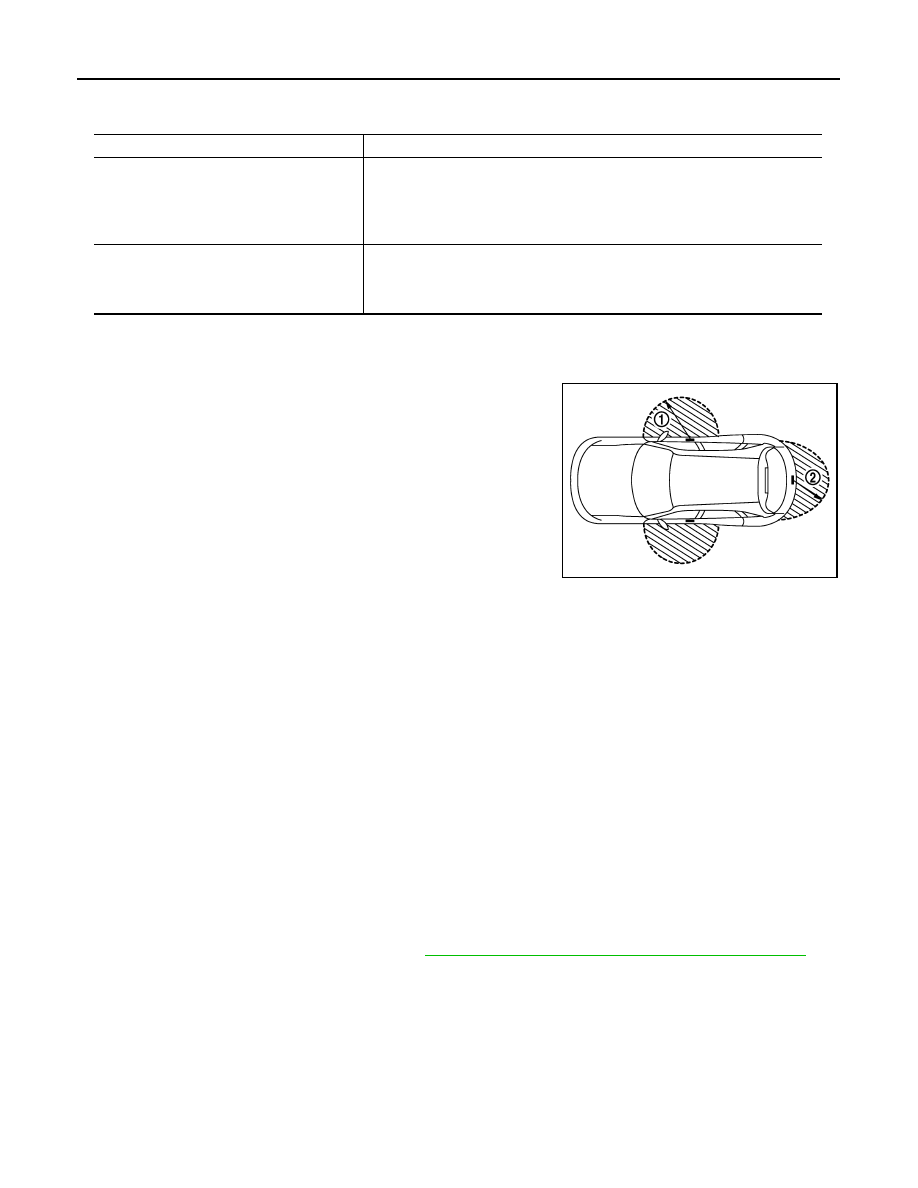

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock and unlock
function is in the range of approximately 80 cm (31.50 in) surround-
ing the driver and passenger door handles (1) and the back door
(hatchback) or trunk (sedan) request switch. However, this operating
range depends on the ambient conditions.

DOOR LOCK AND UNLOCK CONTROL

When the Intelligent Key detects that door request switch is pressed, it starts corresponding with outside key
antenna (door of request switch pressed side). Then, the Intelligent Key is checked to be near the door.
If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and trans-
mits the key ID signal to the Intelligent Key unit. Intelligent Key unit receives the key ID signal and compares it
with the registered key ID. Intelligent Key unit sends the door lock and unlock signal to BCM via CAN commu-
nication.

ANTI-HIJACK MODE

When door lock is unlocked, pressing LOCK buttons on Intelligent Key once will lock all doors. When door lock
is locked, pressing UNLOCK button on Intelligent Key once will unlock driver door. Pressing UNLOCK button
on Intelligent Key a second time within 5 seconds from the first time will unlock all doors and back door (hatch-
back) can be opened with back door opener switch or trunk (sedan) can be opened with trunk lid opener
switch.

CONVENIENCE MODE

When door lock is unlocked, pressing LOCK buttons on Intelligent Key once will lock all doors. When door lock
is locked, pressing UNLOCK button on Intelligent Key once will unlock all doors and back door (hatchback)
can be opened with back door opener switch or trunk (sedan) can be opened with trunk lid opener switch.
NOTE:
Anti-hijack mode can be set to ON or OFF with CONSULT-III. Once OFF, the convenience mode will be active.
For setting information with CONSULT-III, refer to

DLK-53, "CONSULT-III Function (INTELLIGENT KEY)"

. For

setting information without CONSULT-III, refer to Owner's Manual.

Each request switch operation

Operation condition

Lock operation

• All doors are closed.
• Key switch is OFF. (Key is removed from ignition key cylinder.)
• Ignition knob switch is OFF. (Ignition switch is not pushed.)
• Any Intelligent Key is not inside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock Operation

• Key switch is OFF. (Key is removed from ignition key cylinder.)
• Ignition knob switch is OFF. (Ignition switch is not pushed.)
• Intelligent Key is not inside the vehicle.*
• Intelligent Key is within outside key antenna detection area.

PIIB4602E

DOOR LOCK FUNCTION

DLK-29

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

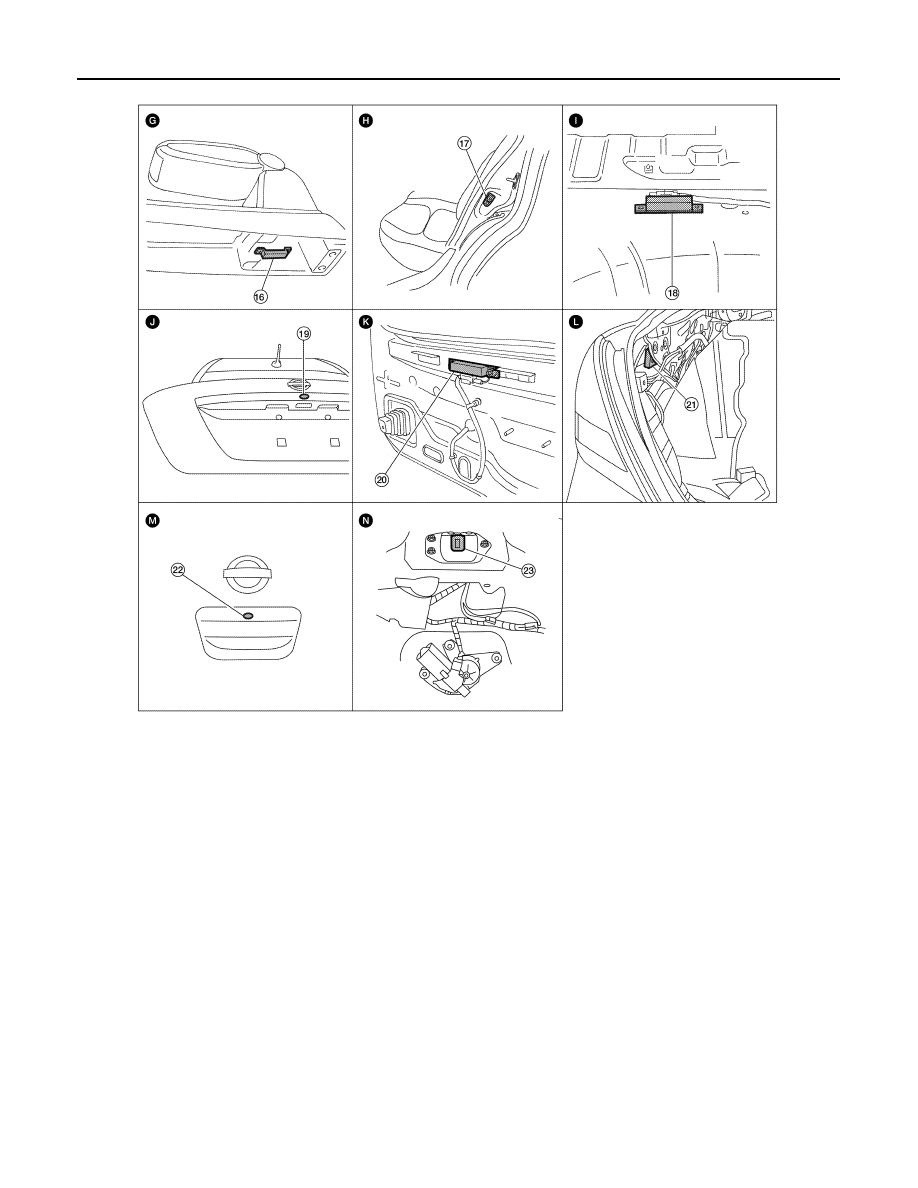

DOOR REQUEST SWITCH : Component Parts Location

INFOID:0000000001396472

ALKIA0814ZZ
