Nissan Tiida C11. Manual - part 152

DLK-18

< BASIC INSPECTION >

[WITH I-KEY, WITHOUT SUPER LOCK]

DIAGNOSIS AND REPAIR WORKFLOW

9.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is displayed, erase it.

>> GO TO 10.

10.

FINAL CHECK

When DTC was detected in step 9, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunctions have been fully repaired.
When symptom was described by the customer, refer to the confirmed symptom in step 3 or 4, and check that
the symptom is not detected.

Does the symptom reappear?

YES (DTC is detected)>>GO TO 8.
YES (Symptom remains)>>GO TO 6.
NO

>> INSPECTION END

INSPECTION AND ADJUSTMENT

DLK-19

< BASIC INSPECTION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001396460

Perform the system initialization when replacing Intelligent Key unit, replacing Intelligent Key or registering an
additional Intelligent Key.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001396461

Refer to the CONSULT-III Operation Manual-NATS.

DLK-20

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK FUNCTION

FUNCTION DIAGNOSIS

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

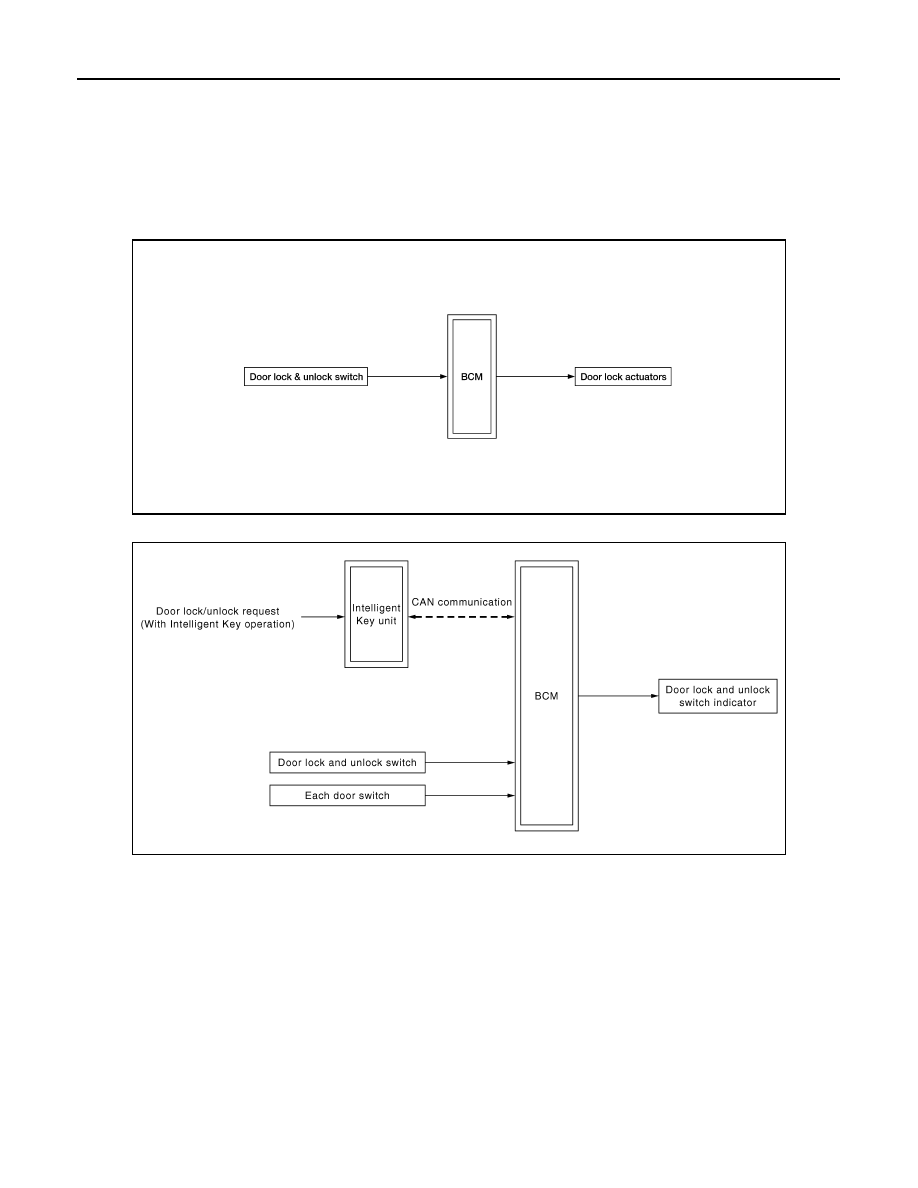

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000001396462

DOOR LOCK AND UNLOCK SWITCH OPERATION

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000001396463

DOOR LOCK AND UNLOCK SWITCH OPERATION

Functions are available by operating the door lock and unlock switch on driver door. Interlocked with the lock/
unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.

Operation Condition

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.

ALKIA0710GB

JMKIA0408GB

DOOR LOCK FUNCTION

DLK-21

< FUNCTION DIAGNOSIS >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NOTE:
When the door lock is locked with Intelligent Key or door request switch, door lock and unlock switch operation
will be invalid until either of the following conditions is satisfied.
• Turn ignition switch ON.
• Unlock with Intelligent Key or door request switch.

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

Door lock and unlock switch indicator indicates door lock status. The indicator turns ON while ignition switch is
ON and each door lock is locked. If any door is opened, the indicator will turn OFF.

1 Minute Timer

A timer must be running to turn OFF the indicator. The timer will run for 1 minute after locking with Intelligent
Key, door request switch or auto door lock.

30 Minutes Timer

A timer must be running to turn OFF the indicator. The timer will run for 30 minutes after locking with door lock
and unlock switch.
NOTE:
1 minute timer condition is satisfied while the 30 minutes timer is active, however the 30 minutes timer does
not change to 1 minute timer condition.

Door lock and unlock switch

Operation condition

Lock operation

All of the following conditions are satisfied.
• Except driver side doors are closed.
• Doors are not locked with Intelligent Key or door request switch.

Unlock operation

All of the following conditions are satisfied.
• Doors are not locked with Intelligent Key or door request switch.
