Nissan Tiida C11. Manual - part 151

DLK-14

REAR LH ..................................................................

REAR LH : Description ..........................................

REAR LH : Component Function Check ..............

REAR LH : Diagnosis Procedure ...........................

REAR RH .................................................................

REAR RH : Description .........................................

REAR RH : Component Function Check .............

REAR RH : Diagnosis Procedure ..........................

TRUNK LID OPENER ACTUATOR .................

Description .............................................................

Component Function Check ................................

Diagnosis Procedure .............................................

Component Inspection ...........................................

BUZZER (COMBINATION METER) ................

Description .............................................................

Component Function Check ................................

Diagnosis Procedure .............................................

HAZARD WARNING LAMPS ..........................

Description .............................................................

Component Function Check ................................

Diagnosis Procedure .............................................

VEHICLE SPEED SIGNAL CIRCUIT ..............

Description .............................................................

Component Function Check ................................

Diagnosis Procedure .............................................

KEYFOB BATTERY AND FUNCTION ............

Description .............................................................

Component Function Check ................................

Diagnosis Procedure .............................................

Component Inspection ...........................................

Special Repair Requirement ..................................

ECU DIAGNOSIS .......................................

BCM (BODY CONTROL MODULE) ................

Reference Value ....................................................

Wiring Diagram - POWER DOOR LOCK SYSTEM
- .............................................................................

Wiring Diagram - REMOTE KEYLESS ENTRY
SYSTEM - ..............................................................

Wiring Diagram - BACK DOOR OPENER SYS-
TEM - .....................................................................

Wiring Diagram - TRUNK LID OPENER SYSTEM
- .............................................................................

Fail Safe ................................................................

DTC Inspection Priority Chart .............................

DTC Index .............................................................

SYMPTOM DIAGNOSIS ............................

DOOR LOCK FUNCTION SYMPTOMS ..........

DOOR LOCK AND UNLOCK SWITCH ...................

DOOR LOCK AND UNLOCK SWITCH : Symptom
Table ......................................................................

KEYFOB ..................................................................

KEYFOB : Symptom Table ...................................

BACK DOOR OPEN FUNCTION SYMPTOMS

..

BACK DOOR OPENER SWITCH ...........................

BACK DOOR OPENER SWITCH : Symptom Ta-
ble .........................................................................

TRUNK OPEN FUNCTION SYMPTOMS .........

TRUNK LID OPENER SWITCH ..............................

TRUNK LID OPENER SWITCH : Symptom Table .

WARNING FUNCTION SYMPTOMS ...............

BACK DOOR ...........................................................

BACK DOOR : Symptom Table ............................

HAZARD REMINDER FUNCTION ...................

HAZARD WARNING LAMP ....................................

HAZARD WARNING LAMP : Symptom Table ......

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

Work Flow .............................................................

Inspection Procedure ............................................

Diagnostic Worksheet ...........................................

PRECAUTION ...........................................

PRECAUTIONS ................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

Procedure without Cowl Top Cover ...................

Steering Wheel Rotation after Battery Disconn
ect .........................................................................

Work ......................................................................

PREPARATION .........................................

PREPARATION ................................................

Commercial Service Tool ......................................

ON-VEHICLE MAINTENANCE .................

PRE-INSPECTION FOR DIAGNOSTIC ...........

Basic Inspection ....................................................

REMOVAL AND INSTALLATION .............

HOOD ...............................................................

Fitting Adjustment .................................................

Removal and Installation .......................................

Removal and Installation of Hood Lock Control ....

Hood Lock Control Inspection ...............................

RADIATOR CORE SUPPORT .........................

Removal and Installation .......................................

DLK-15

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT FENDER ..............................................

Removal and Installation .......................................

DOOR ...............................................................

Fitting Adjustment .................................................

Removal and Installation .......................................

FUEL FILLER LID OPENER ............................

Removal and Installation of Fuel Filler Lid Opener

FRONT DOOR LOCK .......................................

Component Parts Location ....................................

Removal and Installation .......................................

REAR DOOR LOCK ........................................

Component Parts Location ....................................

Removal and Installation .......................................

BACK DOOR LOCK .......................................

Removal and Installation .......................................

TRUNK LID .....................................................

Fitting Adjustment ..................................................

Trunk Lid Assembly ...............................................

Trunk Lid Lock .......................................................

Trunk Lid Striker ....................................................

DLK-16

< BASIC INSPECTION >

[WITH I-KEY, WITHOUT SUPER LOCK]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

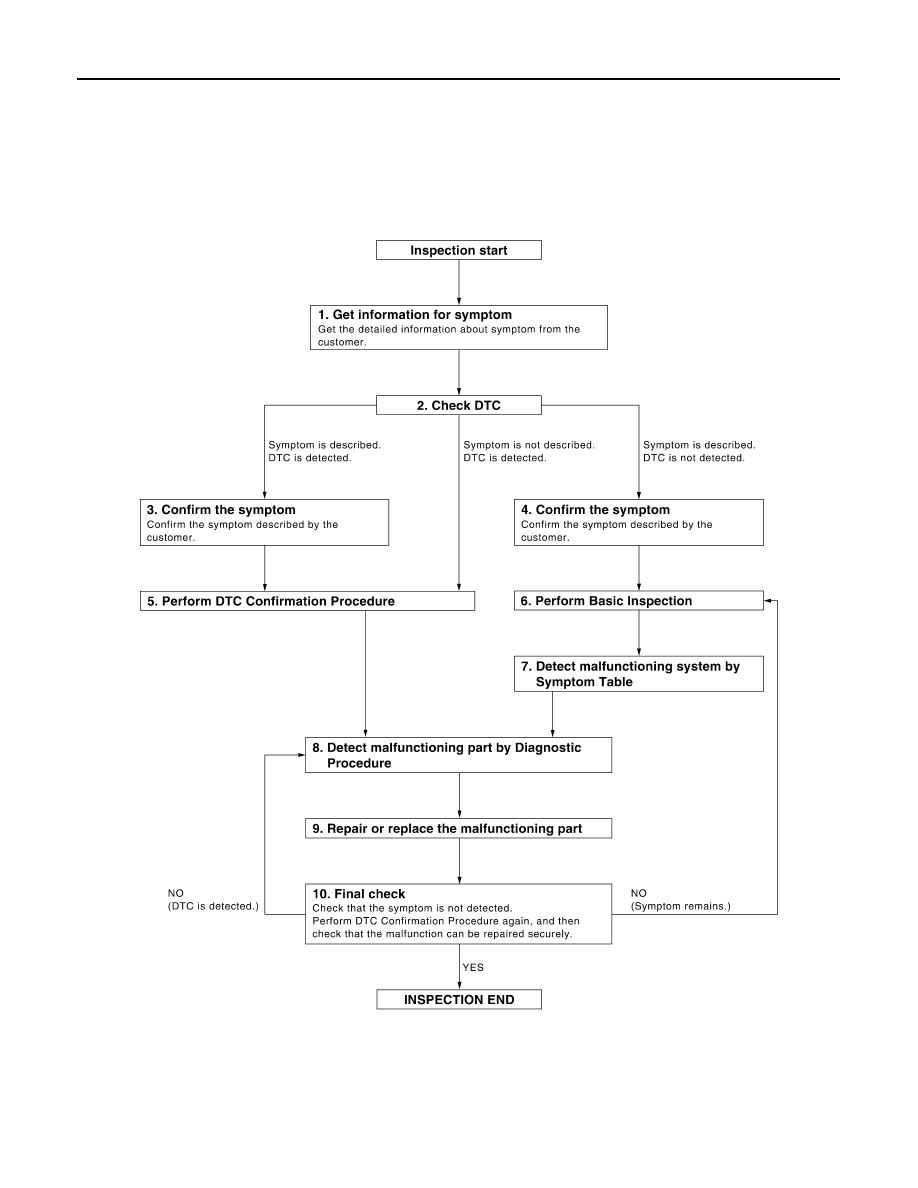

Work Flow

INFOID:0000000001396459

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0246GB

DIAGNOSIS AND REPAIR WORKFLOW

DLK-17

< BASIC INSPECTION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC for Intelligent Key unit and BCM.

2.

Perform the following procedure if DTC is displayed.

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real-time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real-time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
If two or more DTCs are detected, refer to

DLK-171, "DTC Inspection Priority Chart"

(Intelligent Key unit),

DLK-189, "DTC Inspection Priority Chart"

(BCM) and determine trouble diagnosis order.

Is DTC detected?

YES

>> GO TO 8.

NO

>> Refer to

XX-XX, "*****"

.

6.

PERFORM BASIC INSPECTION

Perform Basic Inspection. Refer to

DLK-211, "Basic Inspection"

>> GO TO 7.

7.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to Symptom Table based on the confirmed symptom in step 4.

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure is described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.

>> GO TO 9.
