HEADLAMP WASHER CIRCUIT

WW-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Does continuity exist?

YES

>> GO TO 8

NO

>> Repair or replace harness.

8.

 CHECK HEADLAMP WASHER PUMP SHORT CIRCUIT

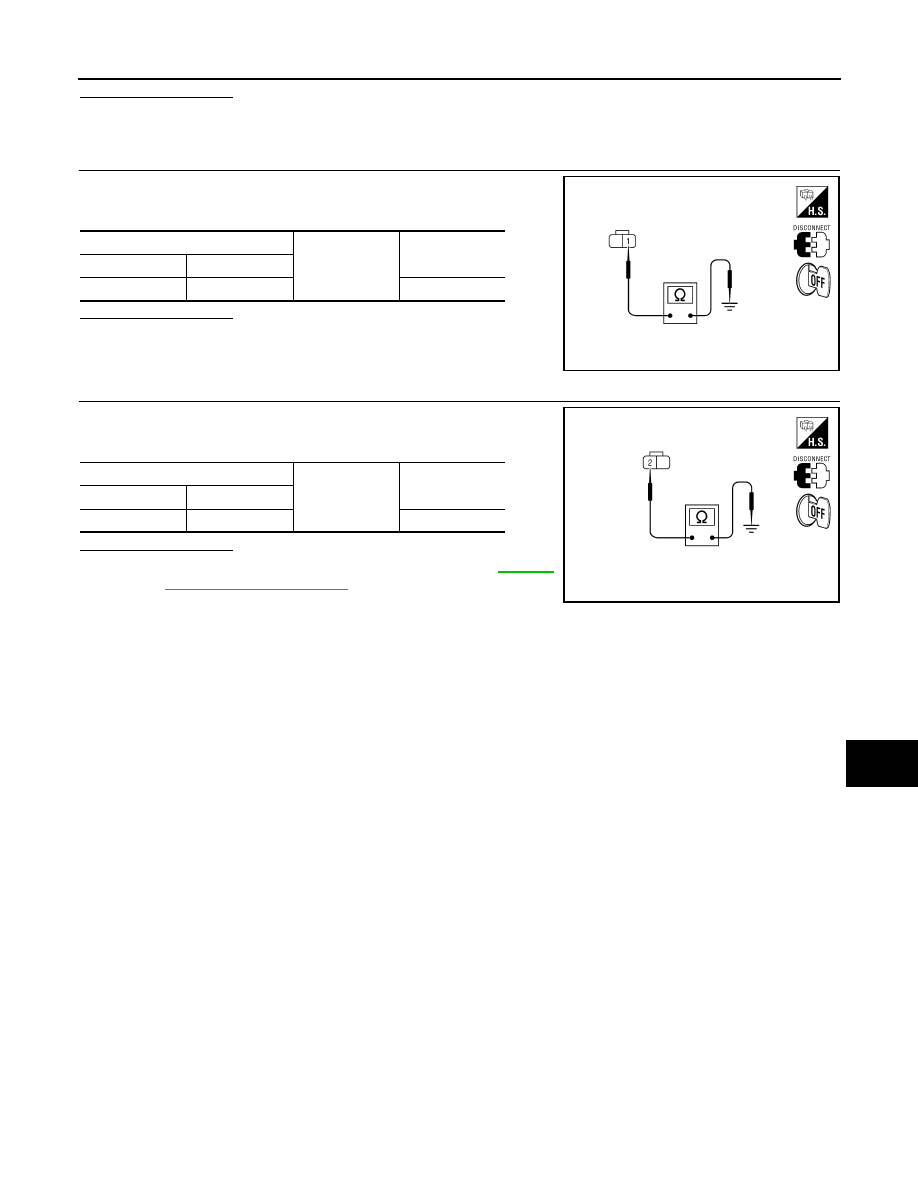

Check continuity between headlamp washer pump harness connec-
tor and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> GO TO 9

9.

 CHECK HEADLAMP WASHER PUMP (GROUND) OPEN CIRCUIT

Check continuity between headlamp washer pump harness connec-
tor and ground.

Does continuity exist?

YES

>> Replace the headlamp washer pump. Refer to

WW-66,

"Removal and Installation"

.

NO

>> Repair or replace harness.

Headlamp washer pump

Ground

Continuity

Connector

Terminal

E35

1

No

ALLIA0364ZZ

Headlamp washer pump

Ground

Continuity

Connector

Terminal

E35

2

Yes

ALLIA0365ZZ

WW-36

< COMPONENT DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEM

Wiring Diagram

INFOID:0000000001366628

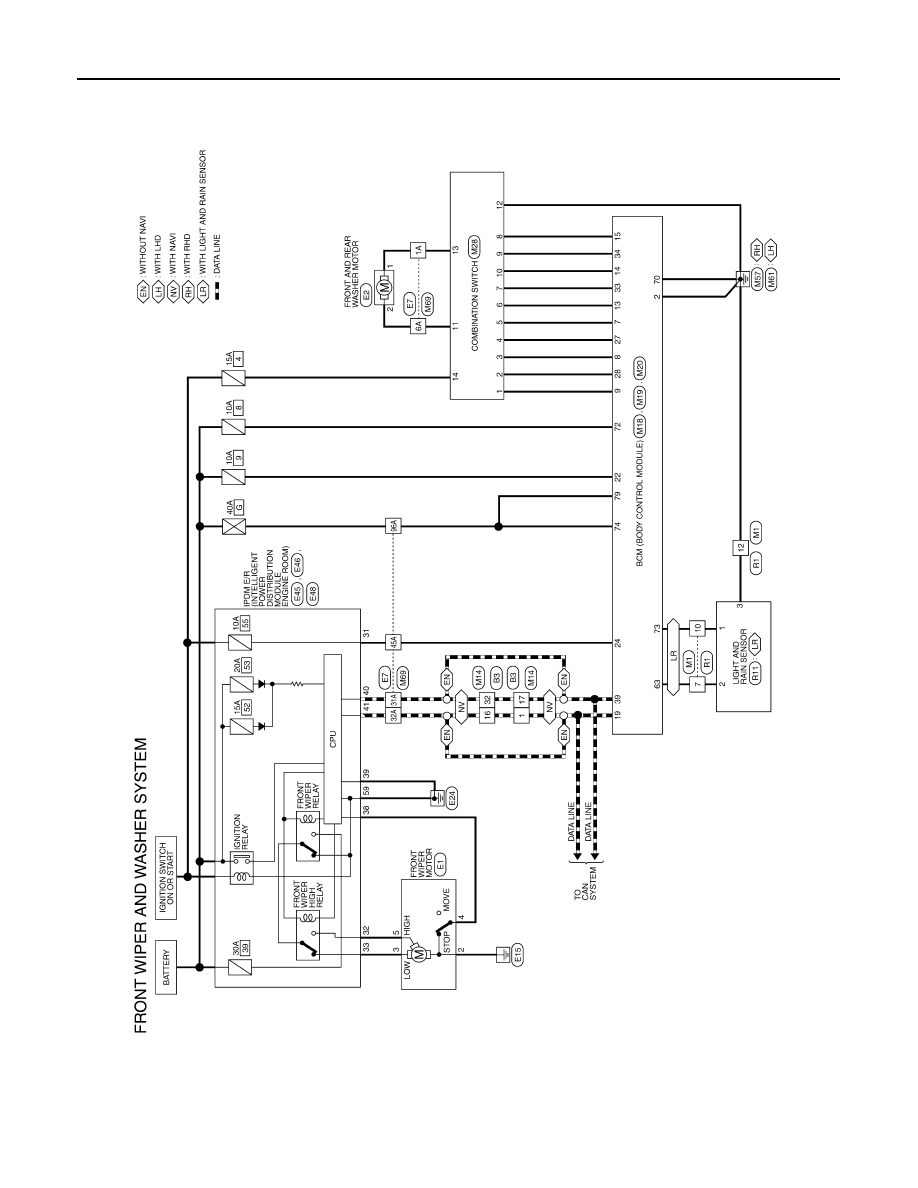

ALLWA0062GB

FRONT WIPER AND WASHER SYSTEM

WW-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

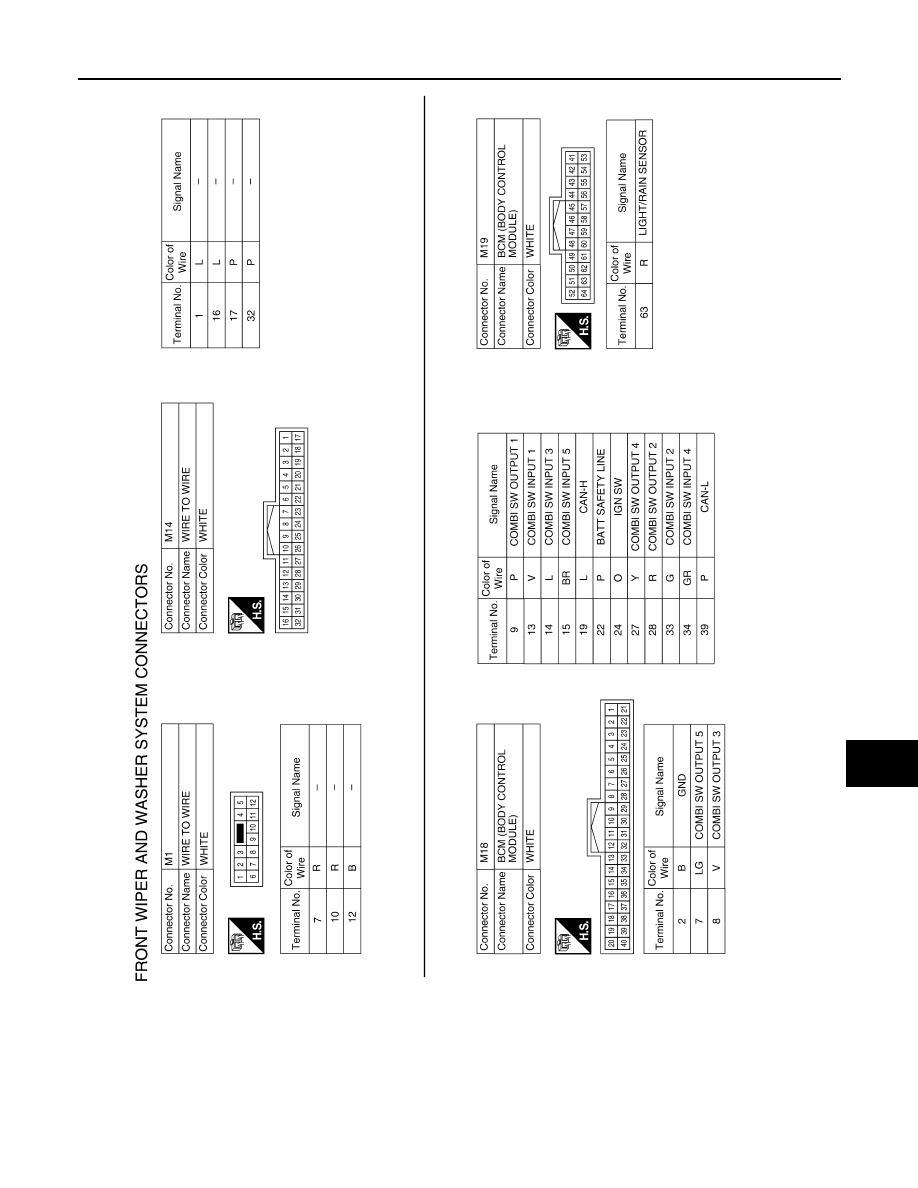

ALLIA0607GB

WW-38

< COMPONENT DIAGNOSIS >

FRONT WIPER AND WASHER SYSTEM

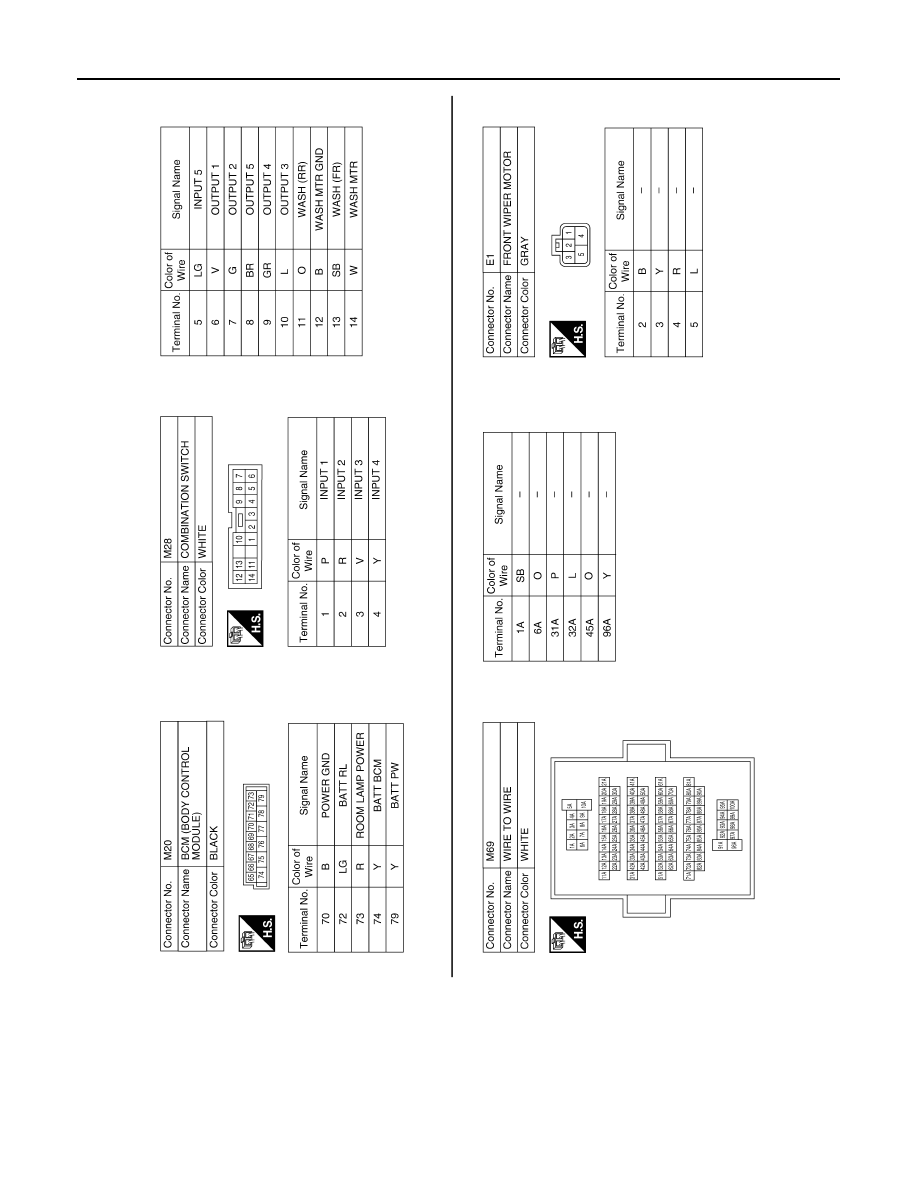

ALLIA0608GB
