WCS-54

< ECU DIAGNOSIS >

COMBINATION METER

Fail Safe

INFOID:0000000001728310

The combination meter performs a fail-safe operation for the functions listed below when communication is
lost.

ALNIA0862GB

WCS

COMBINATION METER

WCS-55

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000001728311

NOTE:
“TIME” indicates the following.
• 0: Indicates that a malfunction is detected at present.
• 1-63: Indicates that a malfunction was detected in the past. (Displays number of ignition switch OFF

→

 ON

cycles after malfunction is detected. Self-diagnosis result is erased when “63” is exceeded.)

Function

Specifications

Speedometer

Zero indication.

Tachometer

Fuel gauge

Illumination control

Meter illumination

Change to nighttime mode when communication is lost.

Segment LCD

Odometer

Freeze current indication.

Buzzer

Buzzer turns off.

Warning lamp/indicator lamp

ABS warning lamp

Lamp turns on when communication is lost.

Brake warning lamp

ESP OFF indicator lamp

SLIP indicator lamp

Side and headlight indicator

Lamp turns off when communication is lost.

Low water temperature indicator lamp

High water temperature warning lamp

Malfunction indicator

Power steering warning lamp

Air bag warning lamp

High beam indicator

Turn signal indicator lamp

Intelligent Key system warning lamp

CRUISE indicator lamp

Oil pressure warning lamp

Door warning lamp

Front fog lamp indicator

Rear fog lamp indicator

O/D OFF indicator lamp

Lamp turns off when disconnected.

Charge warning lamp

Driver and passenger seat belt warn-
ing lamp

CONSULT-III display

Malfunction

Reference

page

CAN COMM CIRC
[U1000]

Malfunction is detected in CAN communication.

CAUTION:

Even when there is no malfunction on CAN communication system, malfunction may be
misinterpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 sec-
onds) or 10A fuse [No. 19, located in the fuse block (J/B)] is disconnected.

MWI-24

VEHICLE SPEED
CIRC
[B2205]

Malfunction is detected when an erroneous speed signal is input.

CAUTION:

Even when there is no malfunction on speed signal system, malfunction may be misin-
terpreted when battery has low voltage (when maintaining 7 - 8 V for about 2 seconds).

MWI-25

WCS-56

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001728312

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

AIR COND SW

A/C switch OFF

OFF

A/C switch ON

ON

AUT LIGHT SYS

Outside of the room is dark

OFF

Outside of the room is bright

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

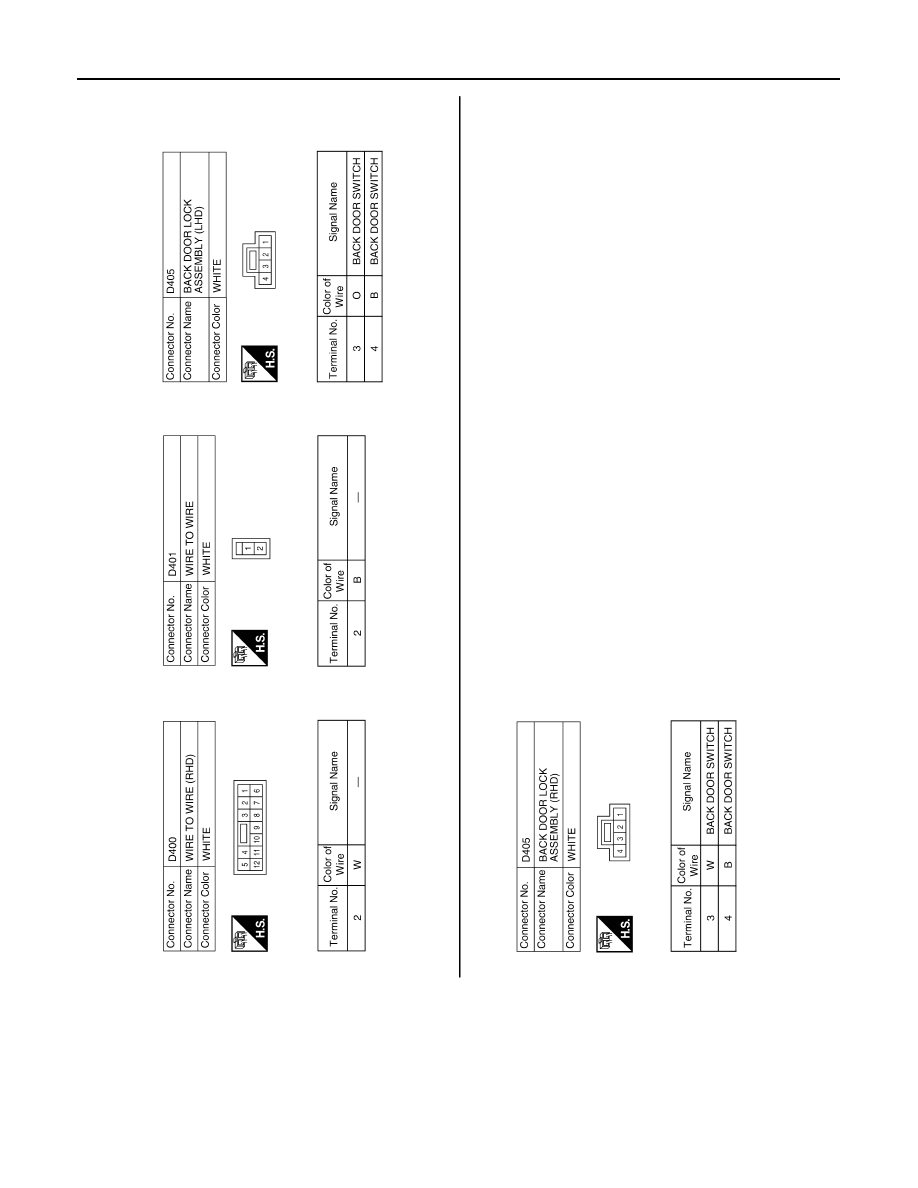

BACK DOOR SW

Back door closed

OFF

Back door opened

ON

BATTERY VOLT
NOTE:
Diesel engine models
only

Ignition switch ON

Approximately the same as power
supply voltage

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the LOCK side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the UNLOCK side

ON

DOOR SW-AS

Passenger door closed

OFF

Passenger door opened

ON

DOOR SW-DR

Driver door closed

OFF

Driver door opened

ON

DOOR SW-RL

Rear LH door closed

OFF

Rear LH door opened

ON

DOOR SW-RR

Rear RH door closed

OFF

Rear RH door opened

ON

ELEC PWR CUT
NOTE:
Diesel engine models
only

Engine running

Fan switch ON (when engine coolant is
cool)
NOTE:
Depending on the ambient tempera-
ture, battery voltage, etc.

OFF

The current status maintained with the
signal from ECM received.

FREEZ

• Fan switch OFF
• Fan switch ON after engine warming

UP
NOTE:
Depending on the engine coolant
temperature, ambient temperature,
battery voltage, etc.

INHBT

ENG COOLNT T
NOTE:
Diesel engine models
only

Engine running

Approximately the same as engine
water temperature

ENGINE RPM
NOTE:
Diesel engine models
only

Engine running

Approximately the same as tachom-
eter reading

WCS

BCM (BODY CONTROL MODULE)

WCS-57

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ENGINE RUN

Engine stopped

OFF

Engine running

ON

ENGINE STATUS
NOTE:
Diesel engine models
only

Engine stopped

STOP

While the engine stalls

STALL

Engine running

RUN

At engine cranking

CRA

FAN ON SIG

Fan switch OFF

OFF

Fan switch ON

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

HAZARD SW

When hazard switch is not pressed

OFF

When hazard switch is pressed

ON

LIGHT SW 1ST

Lighting switch OFF

OFF

Lighting switch 1st

ON

H/L SW POS

Headlamp switch OFF

OFF

Headlamp switch 1st

ON

HI BEAM SW

High beam switch OFF

OFF

High beam switch HI

ON

HOOD SW

Close the hood
NOTE:
Vehicles without theft warning system are OFF-fixed

OFF

Open the hood

ON

H/L WASH SW

NOTE:
The item is indicated, but not monitored

OFF

IGN ON SW

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

IGN SW CAN

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

I-KEY LOCK

1

LOCK button of Intelligent Key is not pressed

OFF

LOCK button of Intelligent Key is pressed

ON

I-KEY UNLOCK

1

UNLOCK button of Intelligent Key is not pressed

OFF

UNLOCK button of Intelligent Key is pressed

ON

KEY SW

2

Mechanical key is removed from key cylinder

OFF

Mechanical key is inserted to key cylinder

ON

Monitor Item

Condition

Value/Status
