VTL-36

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000001700349

REMOVAL

1.

Remove the evaporator. Refer to

VTL-41, "Removal and Installation of Evaporator"

.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

2.

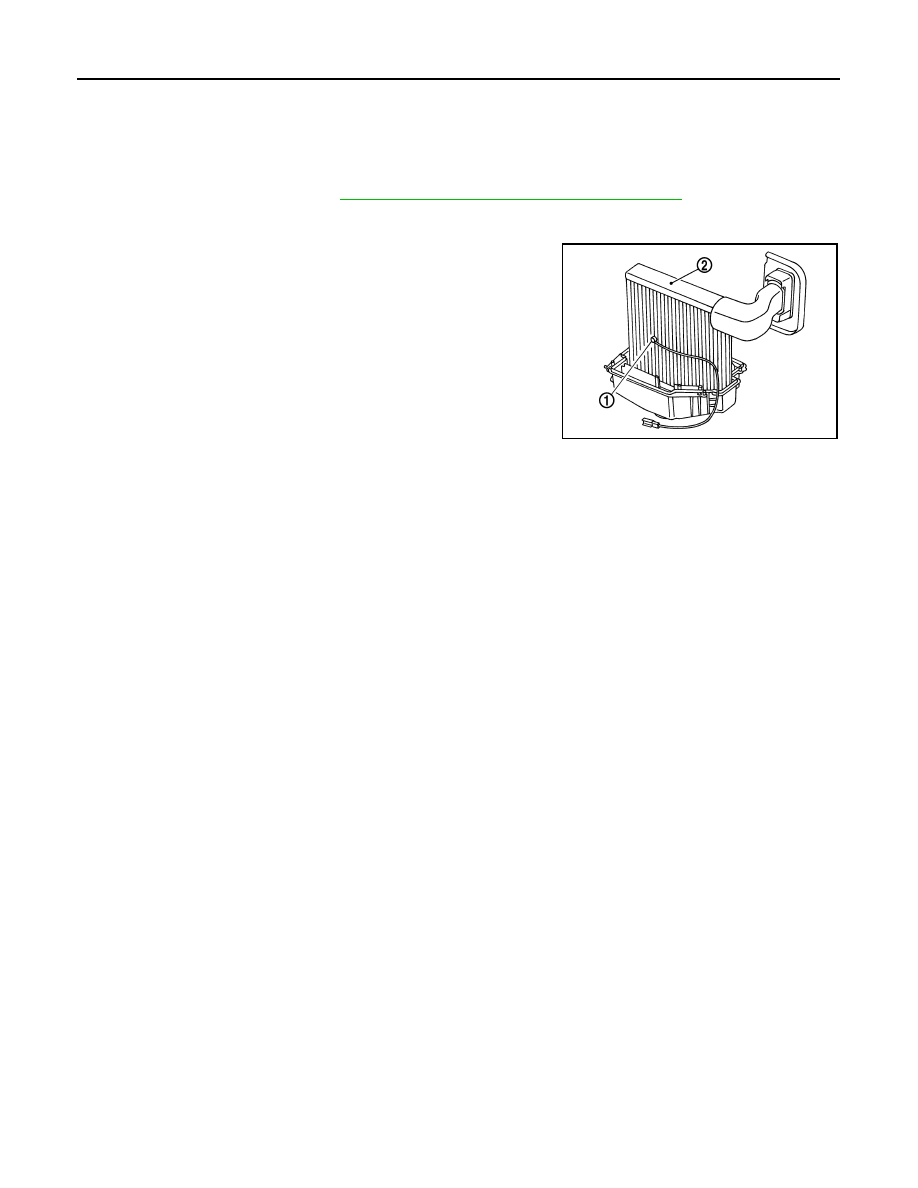

Remove the intake sensor (1) from the evaporator (2).

CAUTION:

Mark the position of intake sensor on the evaporator for
installation.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace O-rings for A/C piping with new ones, and then apply compressor oil to it when installing it.
• Install the intake sensor in the same position as the original intake sensor.
• When recharging refrigerant, check for leaks.

ZJIA0798J

A/C UNIT ASSEMBLY

VTL-37

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

A/C UNIT ASSEMBLY

Removal and Installation

INFOID:0000000001696531

NOTE:
A LHD model shown, RHD model similar.

REMOVAL

1.

Use a recovery/recycling equipment (for HFC-134a) to discharge refrigerant. Refer to

HA-29, "HFC-134a

(R-134a) Service Procedure"

.

2.

Drain coolant from cooling system. Refer to

CO-11, "Changing Engine Coolant"

 (HR16DE),

CO-35,

"Changing Engine Coolant"

 (MR18DE),

CO-58, "Draining"

 (K9K).

3.

Remove cowl top cover. Refer to

EXT-20, "Removal and Installation"

.

4.

Remove lower dash insulator.

5.

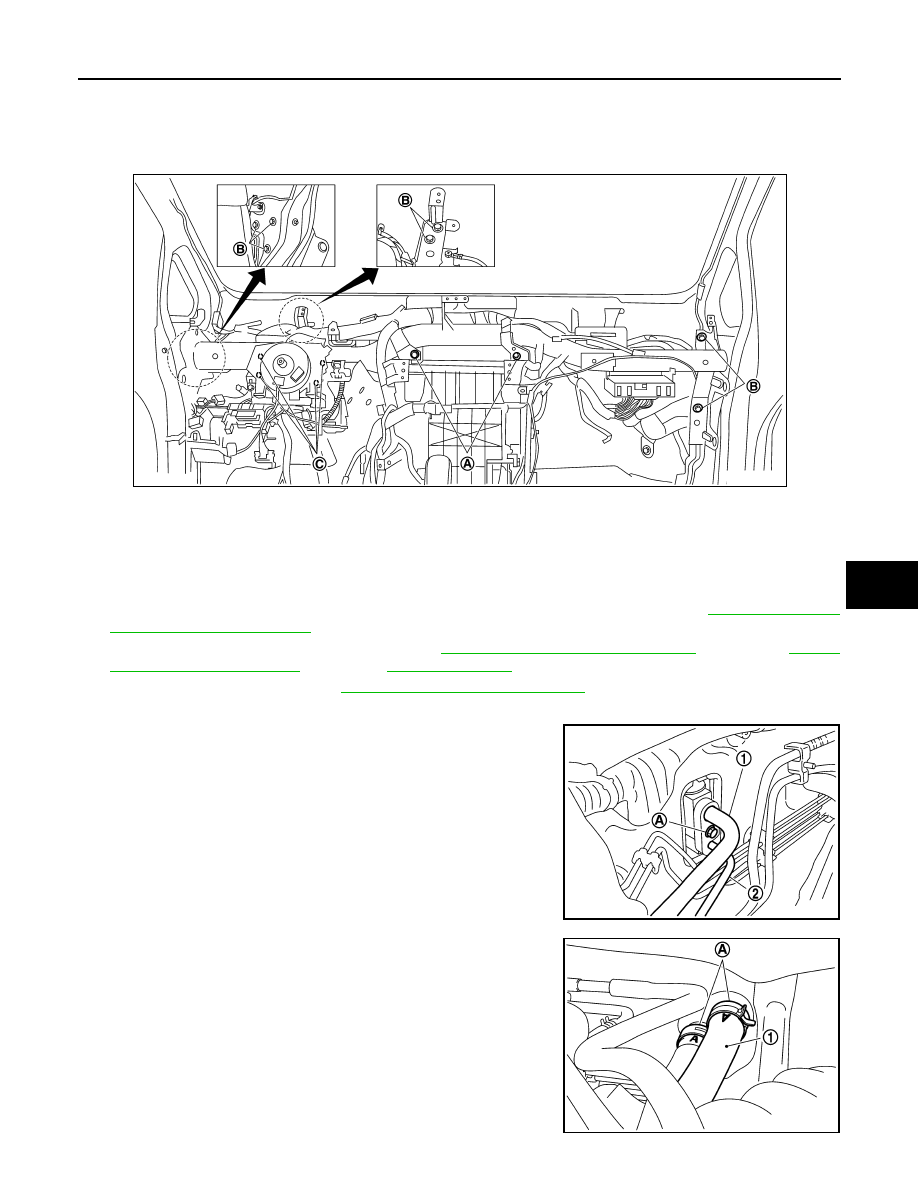

Remove bolt (A), and then disconnect low-pressure flexible
hose (1) and high-pressure pipe (2) from evaporator.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.

6.

Remove clamps (A), and then disconnect heater hoses (1) from
heater core.

A.

A/C unit assembly bolts

B.

Steering member bolts

C.

Steering column nuts

SJIA0648E

SJIA0644E

SJIA0645E

VTL-38

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

A/C UNIT ASSEMBLY

7.

Remove console box assembly. Refer to

IP-11, "Removal and Installation"

 .

8.

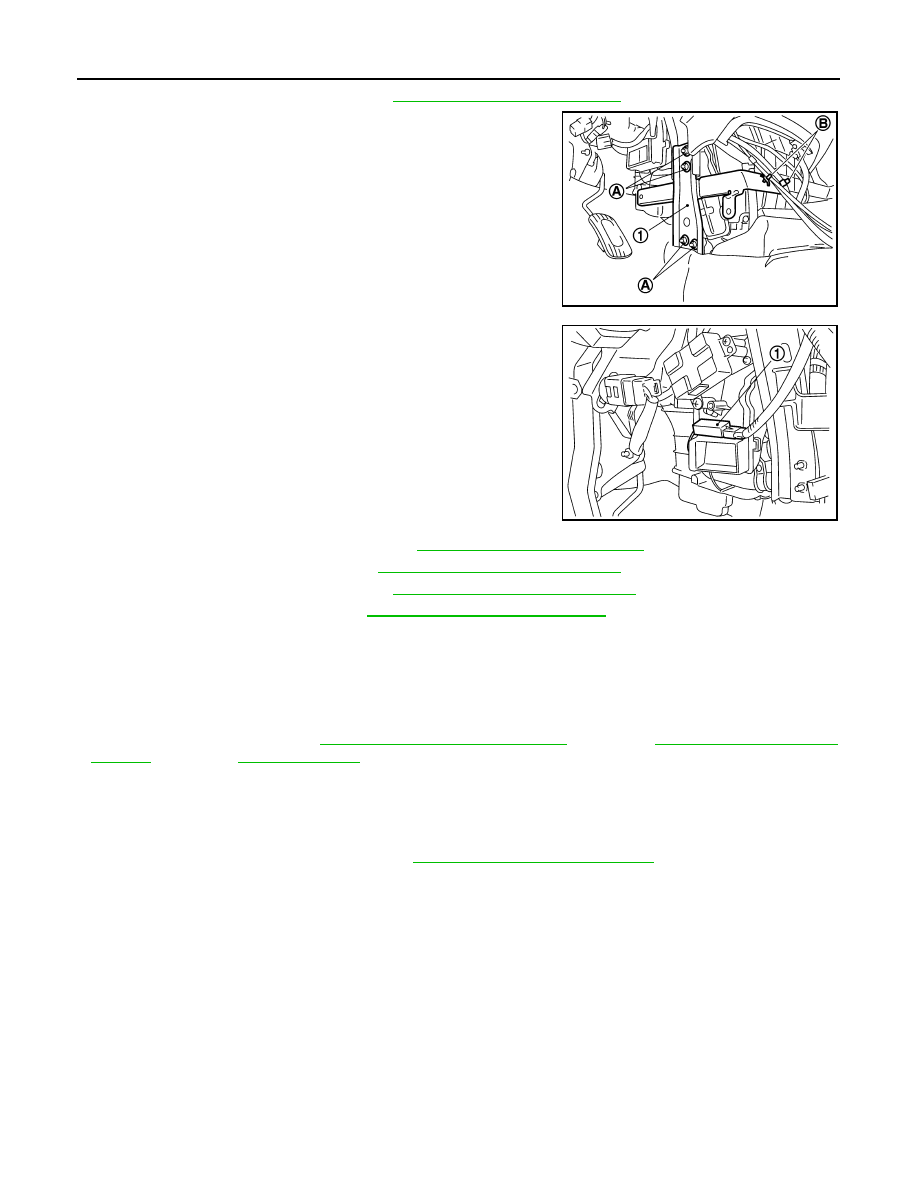

Remove instrument stay nuts (A) and harness clamps (B), and
then remove instrument stay (1).

9.

Disconnect thermo control amp. connector (1).

10. Remove instrument panel and pad. Refer to

IP-11, "Removal and Installation"

.

11. Remove side ventilator ducts. Refer to

VTL-48, "Removal and Installation"

.

12. Remove center ventilator ducts. Refer to

VTL-48, "Removal and Installation"

.

13. Remove side kicking plates. Refer to

INT-20, "Removal and Installation"

.

14. Disconnect the fuel filler door cable and the rear hatch door cable.
15. Remove A/C unit assembly bolts, steering member bolts, steering column nuts and harness clips.

16. Remove steering member, and then remove A/C unit assembly.

INSTALLATION

Installation is in the reverse order of removal.
• Fill the cooling system. Refer to

CO-11, "Changing Engine Coolant"

 (HR16DE),

CO-35, "Changing Engine

Coolant"

 (MR18DE),

CO-58, "Refilling"

 (K9K).

• Recharge the refrigerant.

CAUTION:

• Replace O-rings for A/C piping with new ones, and apply compressor oil when installing.
• When recharging refrigerant, check for leaks.

SJIA0646E

SJIA0647E

A/C unit assembly bolt

: 6.9 N·m (0.7 kg-m, 61 in-lb)

Steering member bolt

: 12 N·m (1.25 kg-m, 9 ft-lb)

Steering column nut

: Refer to

ST-9, "Removal and Installation"

.

A/C UNIT ASSEMBLY

VTL-39

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

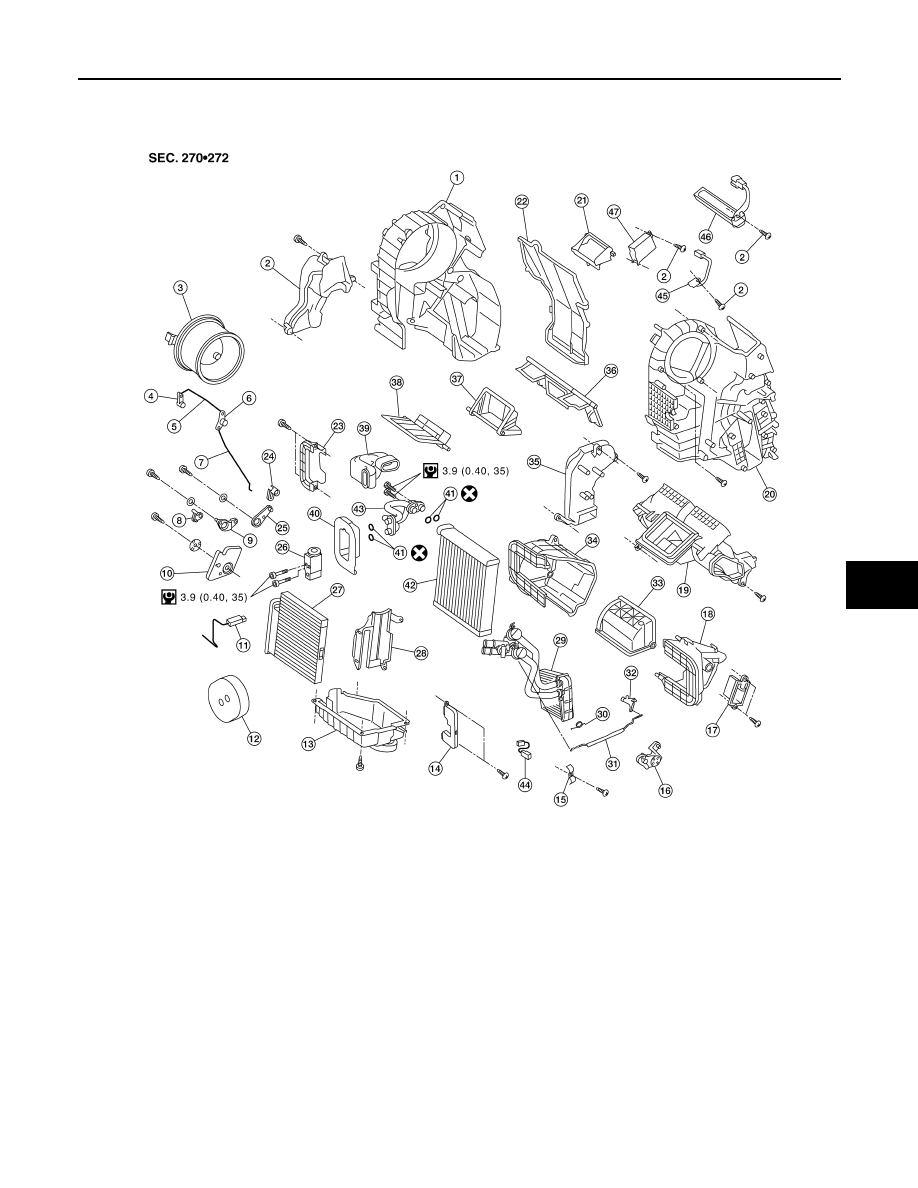

Disassembly and Assembly

INFOID:0000000001696532

1.

Blower case (right)

2.

Foot duct (right)

3.

Blower motor

4.

Sub ventilator·defroster door lever

5.

Sub ventilator·defroster door rod

6.

Ventilator·defroster door lever

7.

Ventilator·defroster door rod

8.

Intake door lever

9.

Ventilator·defroster door link

10.

Main link

11.

Thermo control amp. (TYPE 1*)

12. Heater pipe packing

13.

Lower blower case

14.

Heater pipe cover

15. Heater pipe clip

16.

Intake door link

17.

Blower fan resistor

18. Intake case (left)

19.

Center defroster duct

20.

Blower case (left)

21. Cover

22.

Cover

23.

Expansion valve cover

24. Foot door lever

25.

Foot door link

26.

Expansion valve

27. Air conditioner filter

28.

Evaporator cover

29.

Heater core

30. Spring

31.

Water valve rod

32.

Air mix door lever

33. Intake door

34.

Intake case (right)

35.

Foot duct (left)

36. Ventilator·defroster door

37.

Foot door

38.

Air mix door

39. Seal

40.

Expansion valve grommet

41.

O-ring

42. Evaporator

AWIIA0591ZZ
