Nissan Tiida C11. Manual - part 1418

VTL-8

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

CONTROLLER

1.

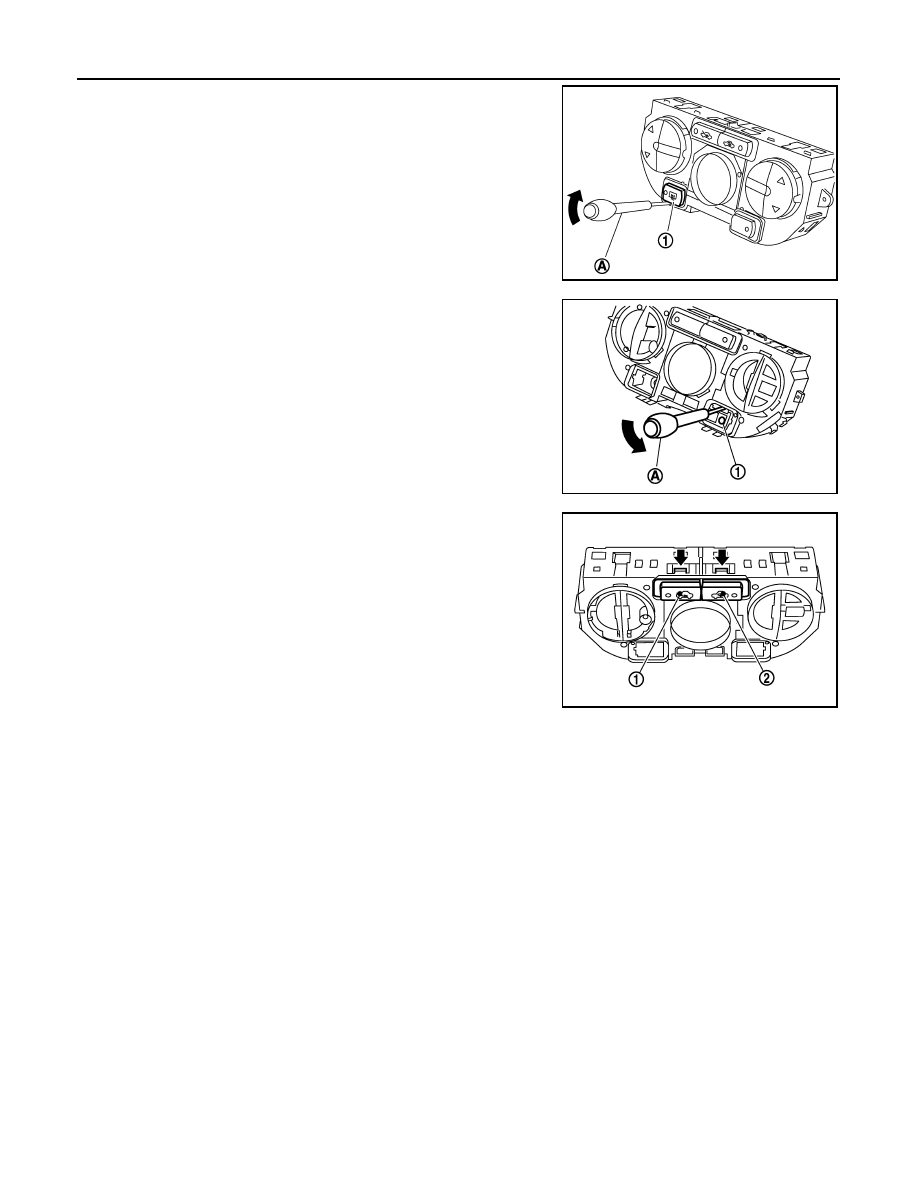

Remove rear DEF button (1) using a suitable tool (A) as shown.

2.

Remove A/C button (1) using a suitable tool (A) as shown.

3.

Remove FRE button (1) and REC button (2) using a suitable tool
as shown.

ASSEMBLY

Assembly is in the reverse order of disassembly.

ZJIA0792J

ZJIA0793J

ZJIA0794J

IN-VEHICLE SENSOR

VTL-9

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000001696282

REMOVAL

1.

Remove instrument lower finisher. Refer to

IP-11, "Removal and Installation"

.

2.

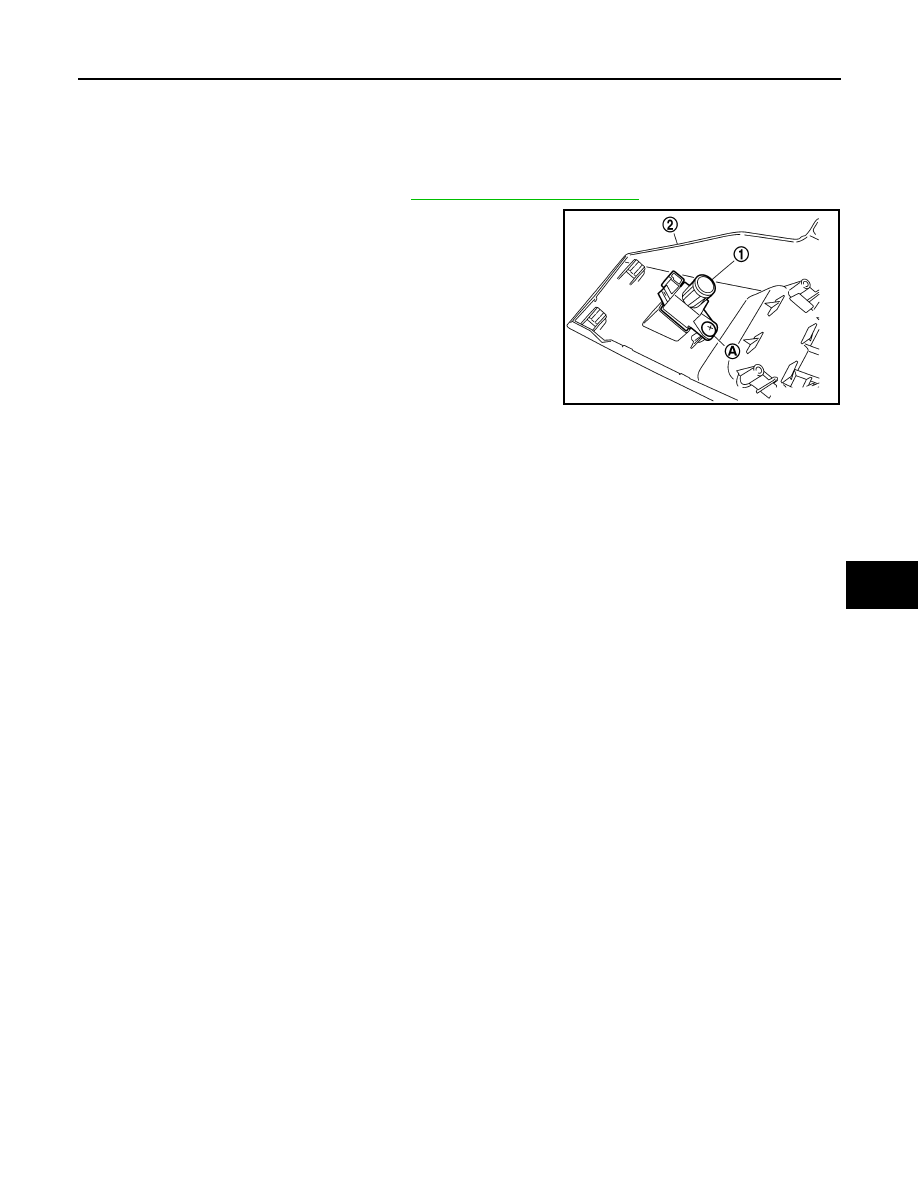

Remove in-vehicle sensor screw (A), and then remove in-vehi-
cle sensor (1) from instrument lower finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

SJIA0688E

VTL-10

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000001696283

REMOVAL

1.

Remove instrument upper mask using a suitable tool as shown.

2.

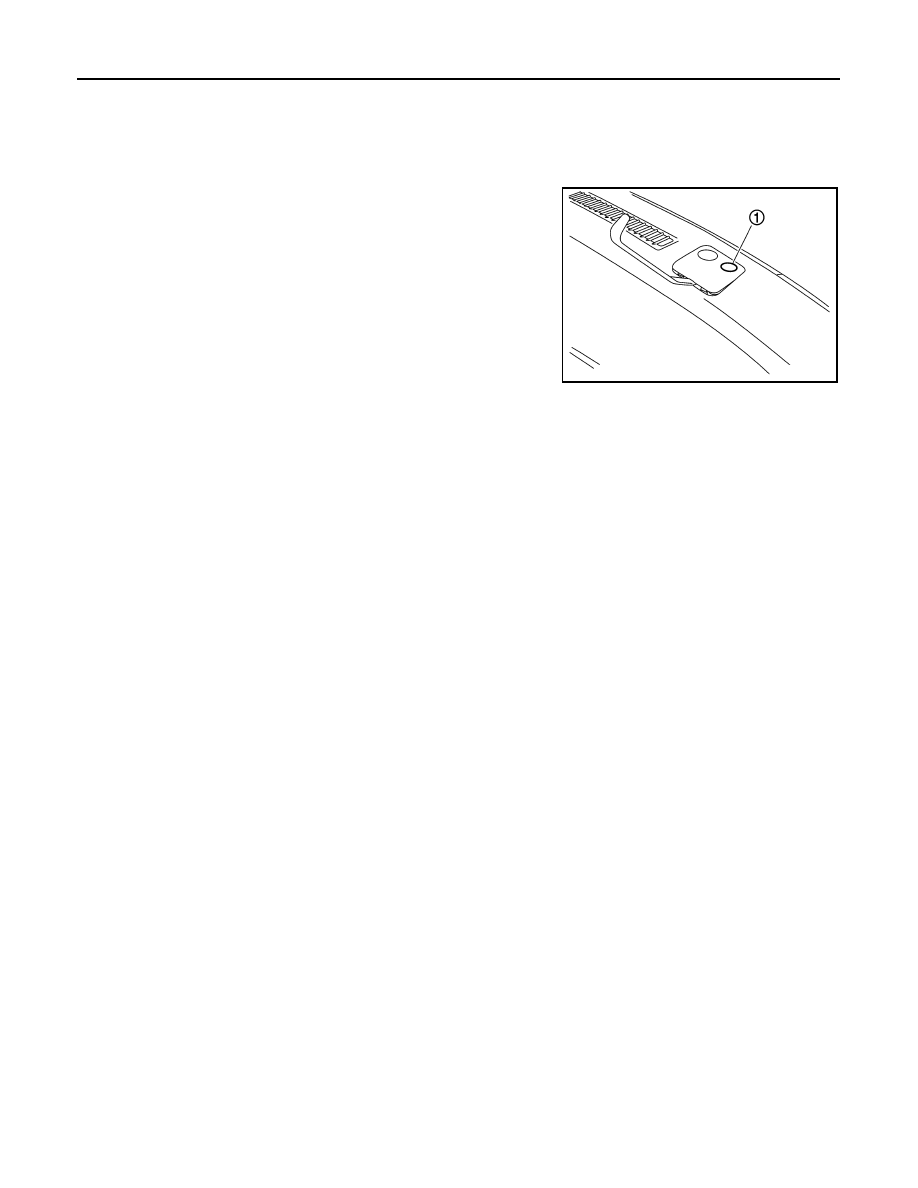

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

SJIA0689E

INTAKE SENSOR

VTL-11

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

Removal and Installation

INFOID:0000000001696284

REMOVAL

1.

Remove the evaporator. Refer to

VTL-16, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.

2.

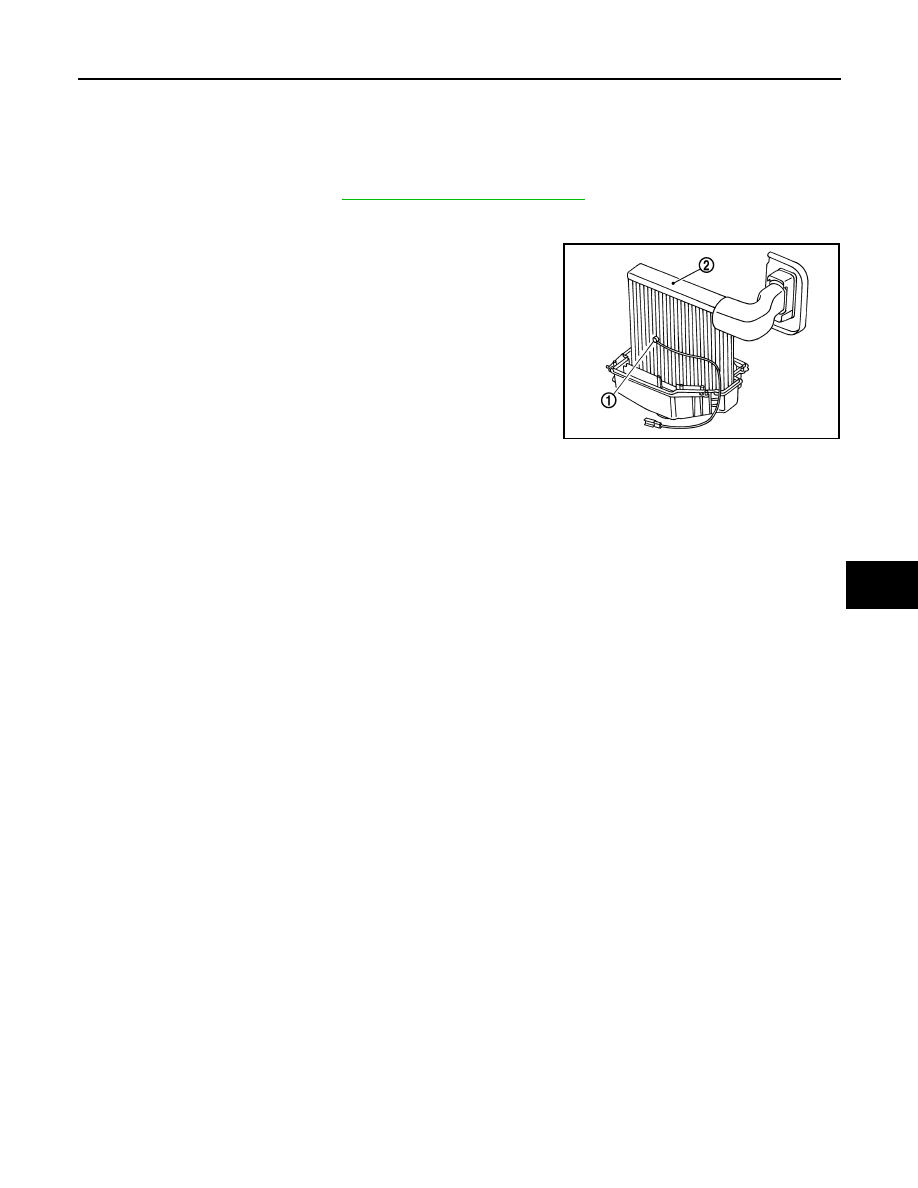

Remove the intake sensor (1) from the evaporator (2).

CAUTION:

Mark the position of intake sensor on the evaporator for
installation.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Replace O-rings for A/C piping with new ones, and then apply compressor oil to it when installing it.
• Install the intake sensor in the same position as the original intake sensor.
• When recharging refrigerant, check for leaks.

ZJIA0798J
