Nissan Tiida C11. Manual - part 1417

VTL-4

< PREPARATION >

[AUTOMATIC AIR CONDITIONER]

PREPARATION

PREPARATION

PREPARATION

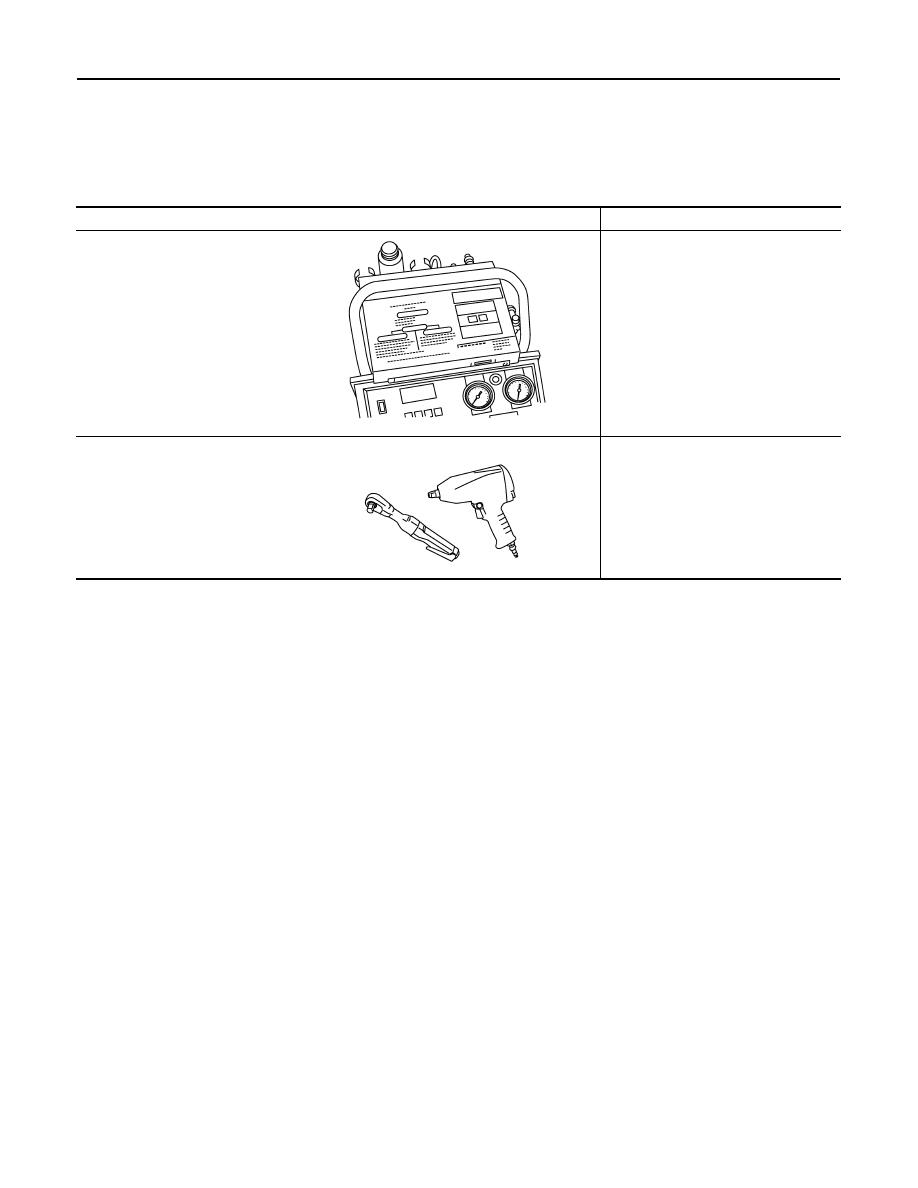

Commercial Service Tool

INFOID:0000000001696276

Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

Power tool

Loosening bolts and nuts

RJIA0197E

PBIC0190E

AIR CONDITIONER FILTER

VTL-5

< FUNCTION DIAGNOSIS >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FUNCTION DIAGNOSIS

AIR CONDITIONER FILTER

Description

INFOID:0000000001696277

FUNCTION

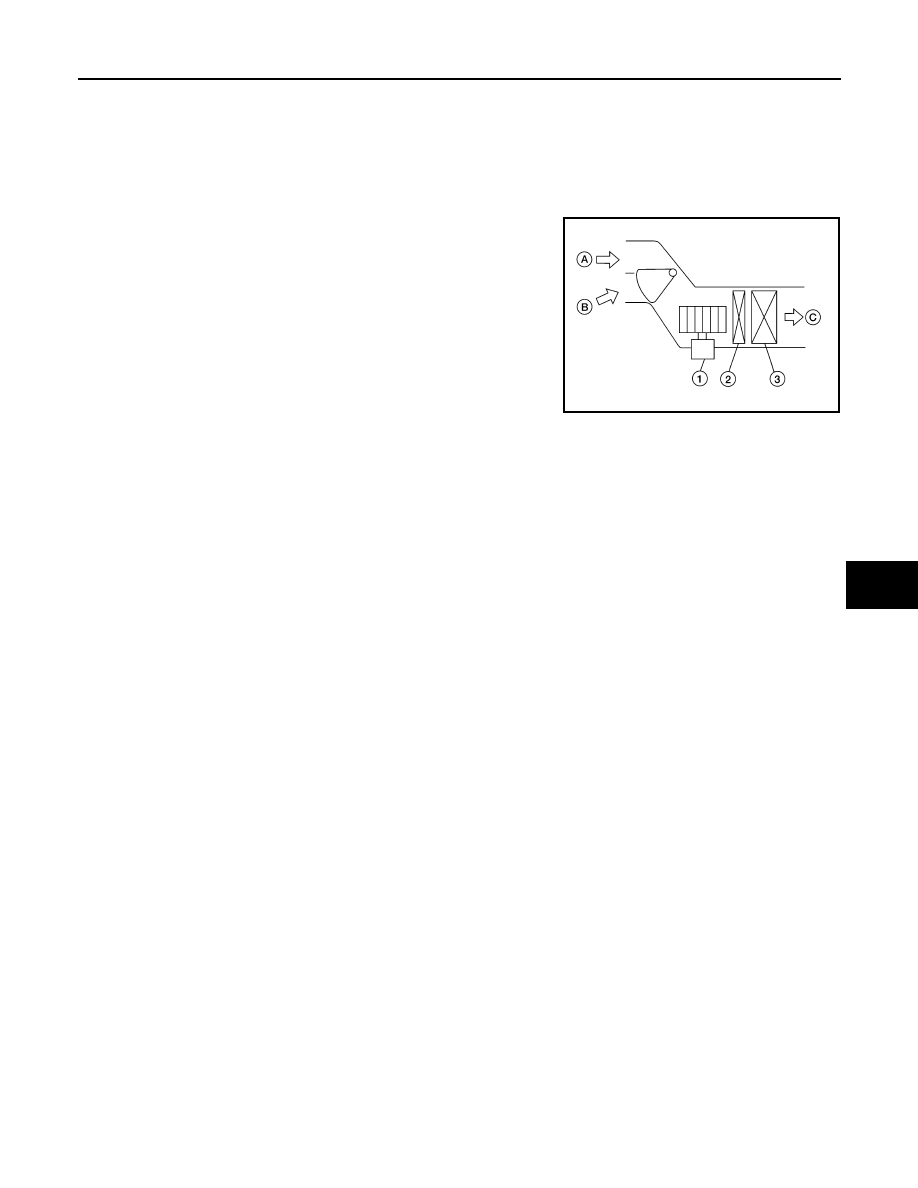

The fresh air (A) and the recirculated air (B) drawn inside the pas-
senger compartment by the front blower motor (1) is kept clean (C)
on either mode by the air conditioner filter (2), located before the
evaporator (3), in the A/C unit assembly.

WJIA2253E

VTL-6

< ON-VEHICLE MAINTENANCE >

[AUTOMATIC AIR CONDITIONER]

AIR CONDITIONER FILTER

ON-VEHICLE MAINTENANCE

AIR CONDITIONER FILTER

Removal and Installation

INFOID:0000000001696278

REPLACEMENT TIMING

Replace the air conditioner filter according to the maintenance schedules. Refer to

MA-7, "Periodic Mainte-

nance"

.

NOTE:
The air conditioner filter caution label is located inside the glove box door.

REPLACEMENT PROCEDURES

1.

Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to

IP-11,

"Removal and Installation"

.

2.

Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to

IP-11, "Removal

and Installation"

.

3.

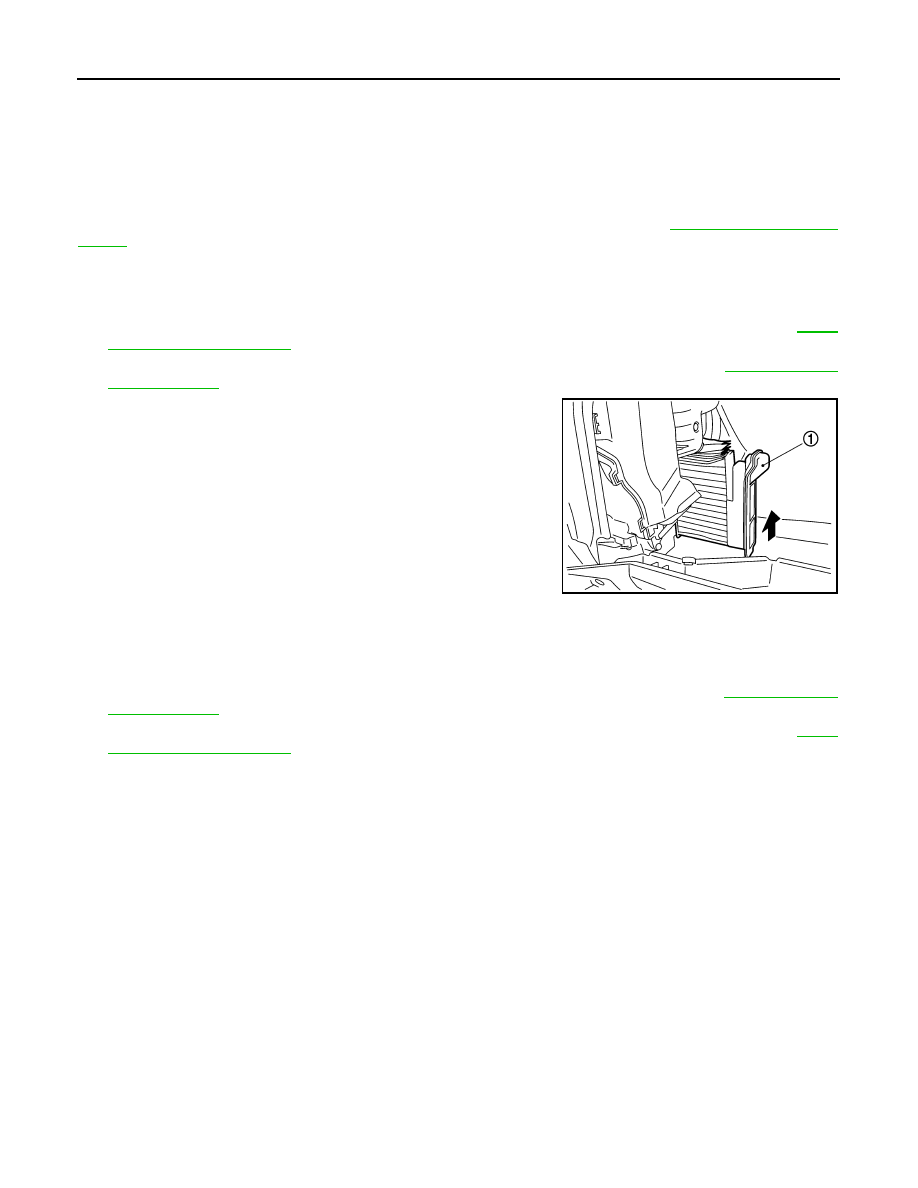

Compress the air conditioner filter (1) downward while sliding it
to the RH side of the vehicle to release the upper pawl.

4.

Move the bottom of air conditioner filter (1) upward as shown to
release the bottom tab, then remove it.

5.

Replace the air conditioner filter with new one and install the new filter in the A/C unit assembly.

CAUTION:

Make sure that the air conditioner filter lower tab is fully seated, and that the air conditioner upper
pawl is locked into place securing the new filter into the A/C unit assembly.

6.

Install the glove box assembly and instrument lower cover (RH) for RHD only. Refer to

IP-11, "Removal

and Installation"

.

7.

Install the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to

IP-11,

"Removal and Installation"

.

SJIA0652E

CONTROLLER

VTL-7

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

ON-VEHICLE REPAIR

CONTROLLER

Removal and Installation

INFOID:0000000001696279

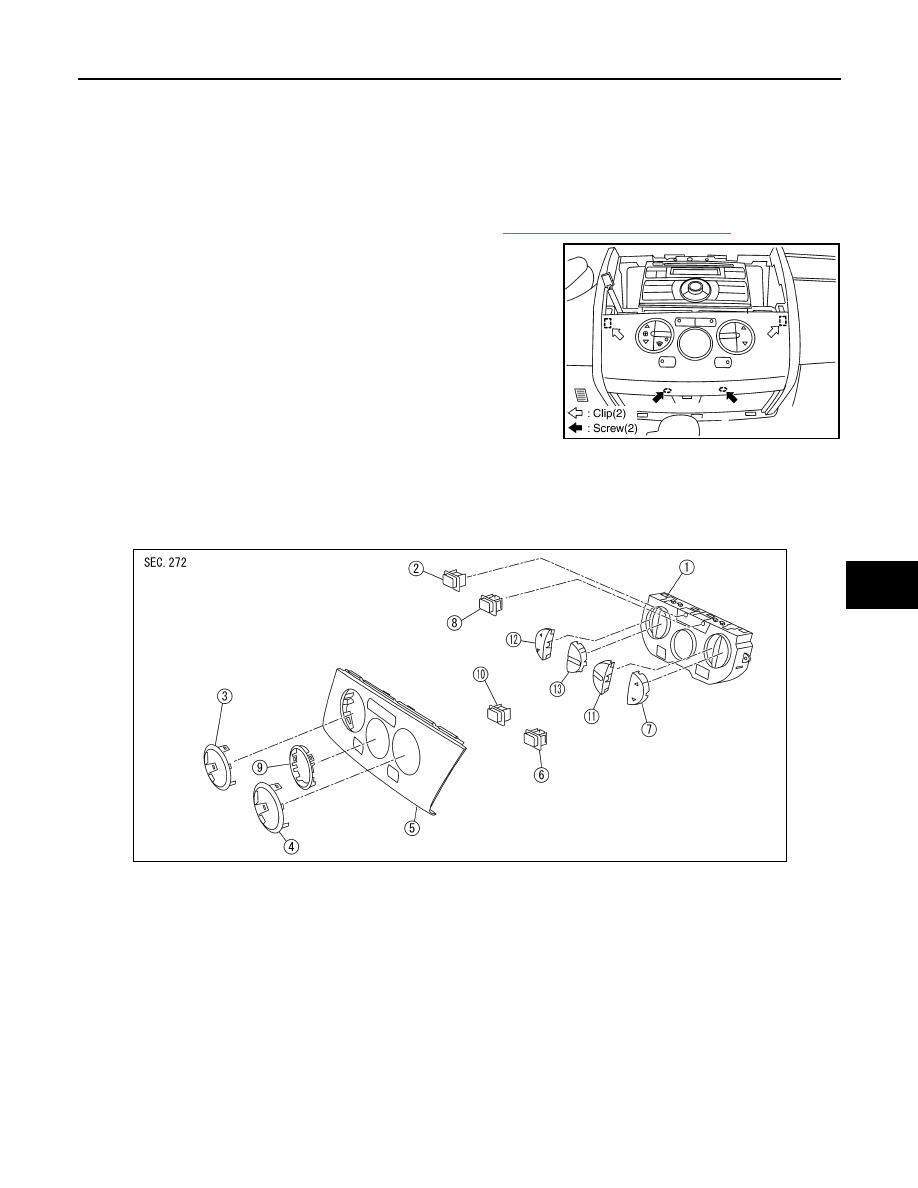

REMOVAL

1.

Remove cluster lid C and instrument finisher D. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the front air control screws and release the front air
control clips, and then remove the front air control.

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000001696280

DISASSEMBLY

SJIA0687E

1.

Front air control

2.

FRE button

3.

MODE ring

4.

TEMP ring

5.

A/C finisher

6.

A/C button

7.

TEMP button

8.

REC button

9.

LCD ring

10. Rear DEF button

11.

AUTO button

12. FAN button

13. MODE button

ZJIA0641J
