TRANSAXLE ASSEMBLY

TM-691

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

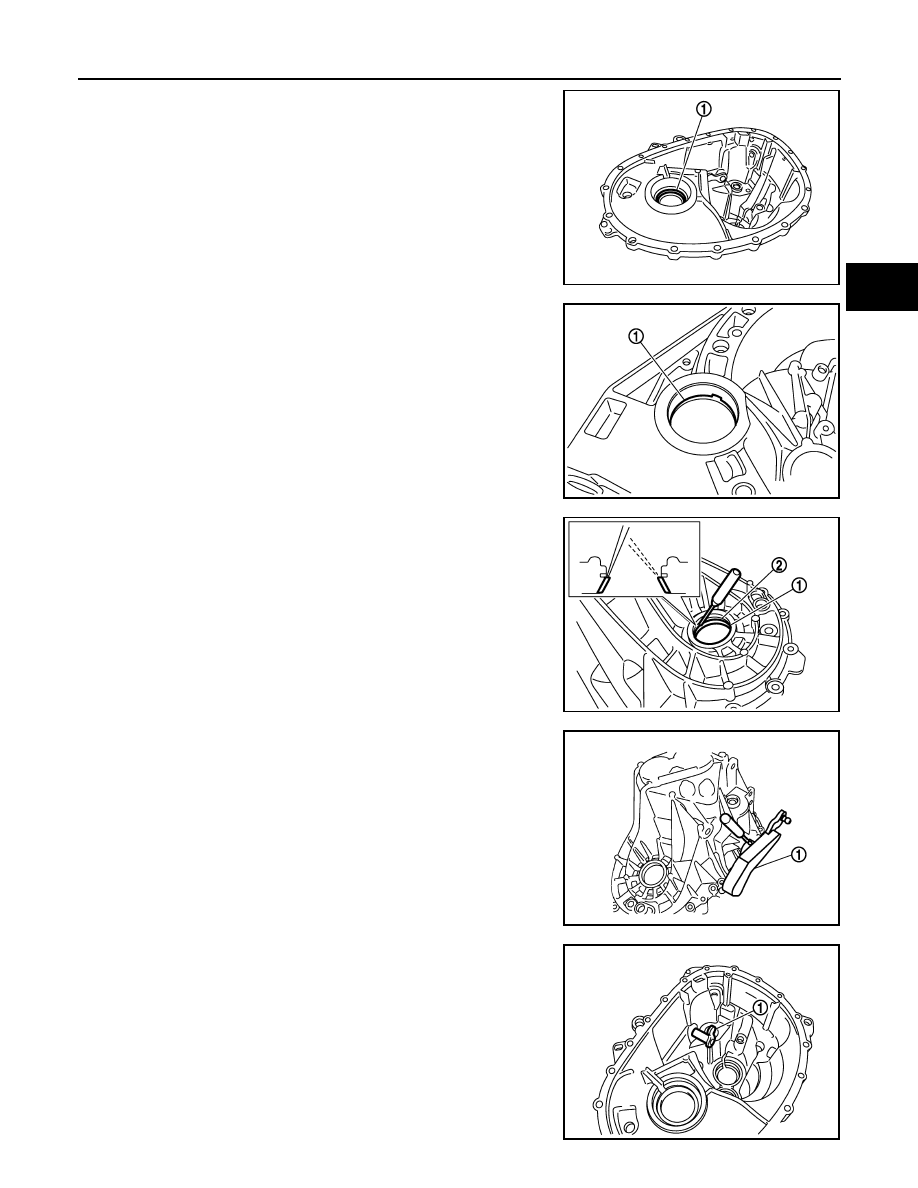

18. Remove differential side oil seals (1) from clutch housing and

transaxle case using suitable tool.

CAUTION:

Do not damage clutch housing and transaxle case.

19. Remove differential side bearing outer race (1) from clutch hous-

ing using a brass bar.

CAUTION:

Do not damage clutch housing.

20. Remove differential side bearing outer race (1) and shim (2)

from transaxle case using a brass bar as shown.

CAUTION:

Do not damage transaxle case.

21. Remove retaining pin from selector lever (1) using suitable tool.

22. Remove selector lever.

23. Remove shift finger (1) from transaxle case.

PCIB1704E

PCIB1716E

PCIB1705E

JPDIC0106ZZ

PCIB1712E

TM-692

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

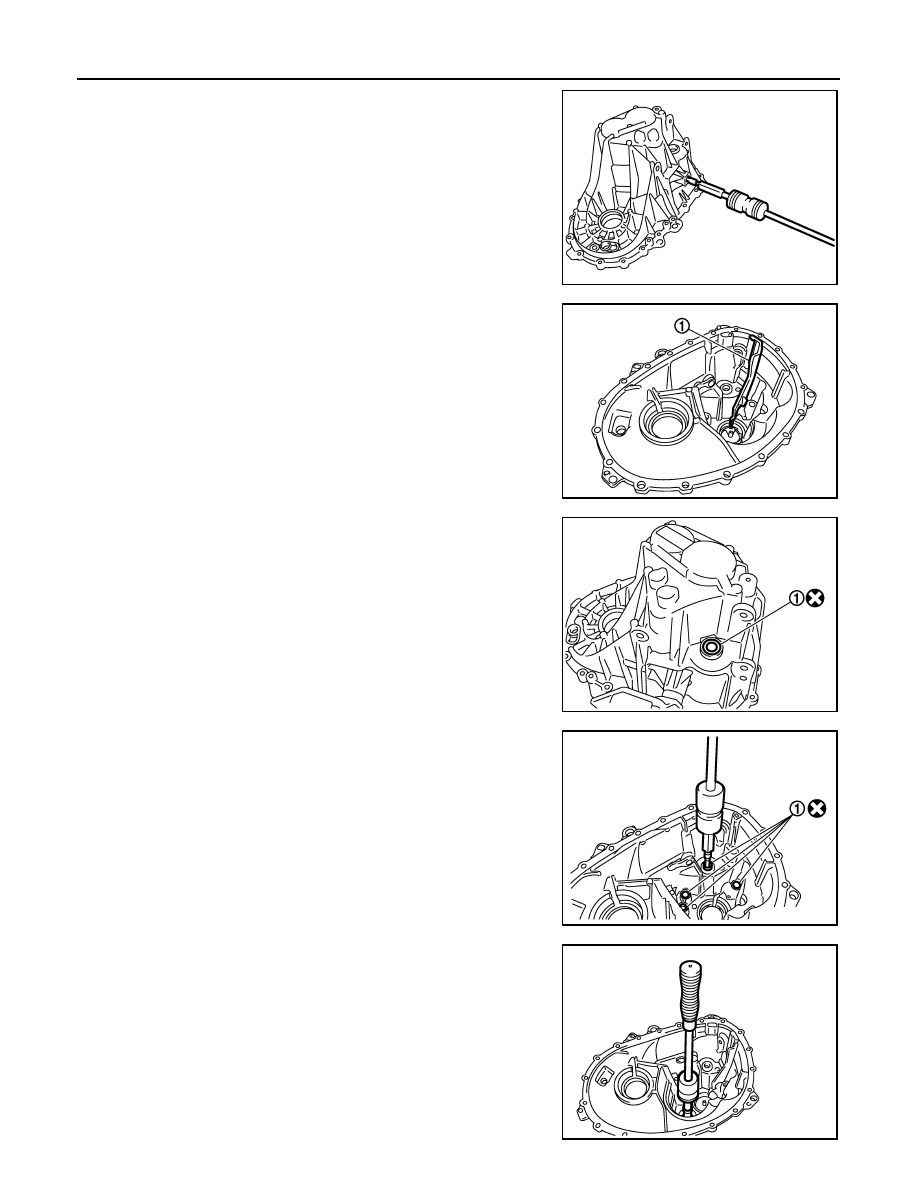

24. Remove selector lever oil seal and bushings from transaxle

case using suitable tool.

25. Remove oil gutter (1) from transaxle case.

26. Remove shifter lever oil seal (1) from transaxle case.

27. Remove bushings (1) from transaxle case using suitable tool.

28. Remove mainshaft rear bearing outer race from transaxle case

using suitable tool and then remove bearing preloading shim.

CAUTION:

Do not damage transaxle case.

PCIB1713E

PCIB1707E

PCIB1709E

PCIB1710E

PCIB1706E

TRANSAXLE ASSEMBLY

TM-693

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

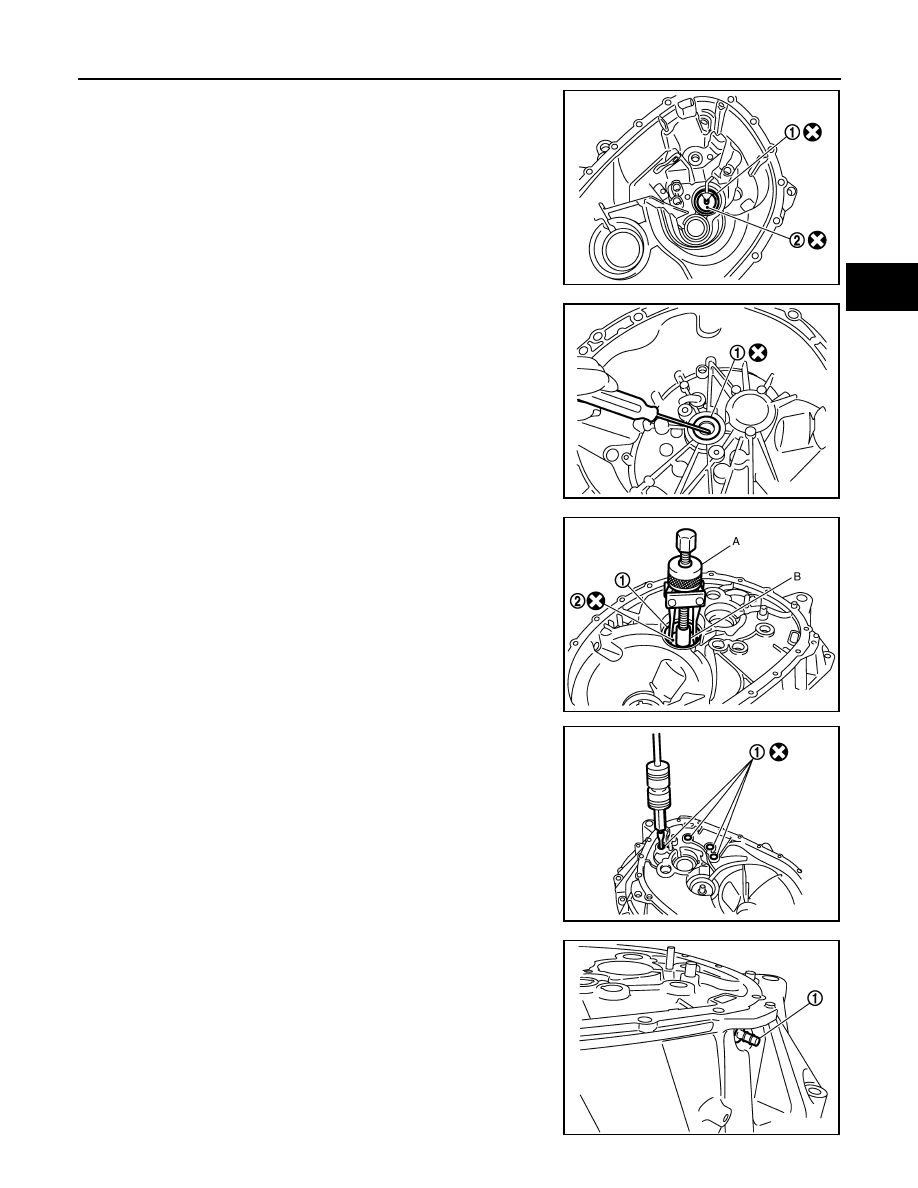

29. Remove snap ring (1) and oil channel (2) from transaxle case.

30. Remove input shaft oil seal (1) from clutch housing using suit-

able tool.

31. Remove mainshaft front bearing outer race (1) and oil channel

(2) from clutch housing using Tool (A) and suitable tool (B).

32. Remove bushings (1) from clutch housing using suitable tool.

33. Remove two way connector (1) from clutch housing.

PCIB1708E

PCIB1714E

Tool number

A: KV381054S0 (

—

)

JPDIC0107ZZ

PCIB1717E

PCIB1720E

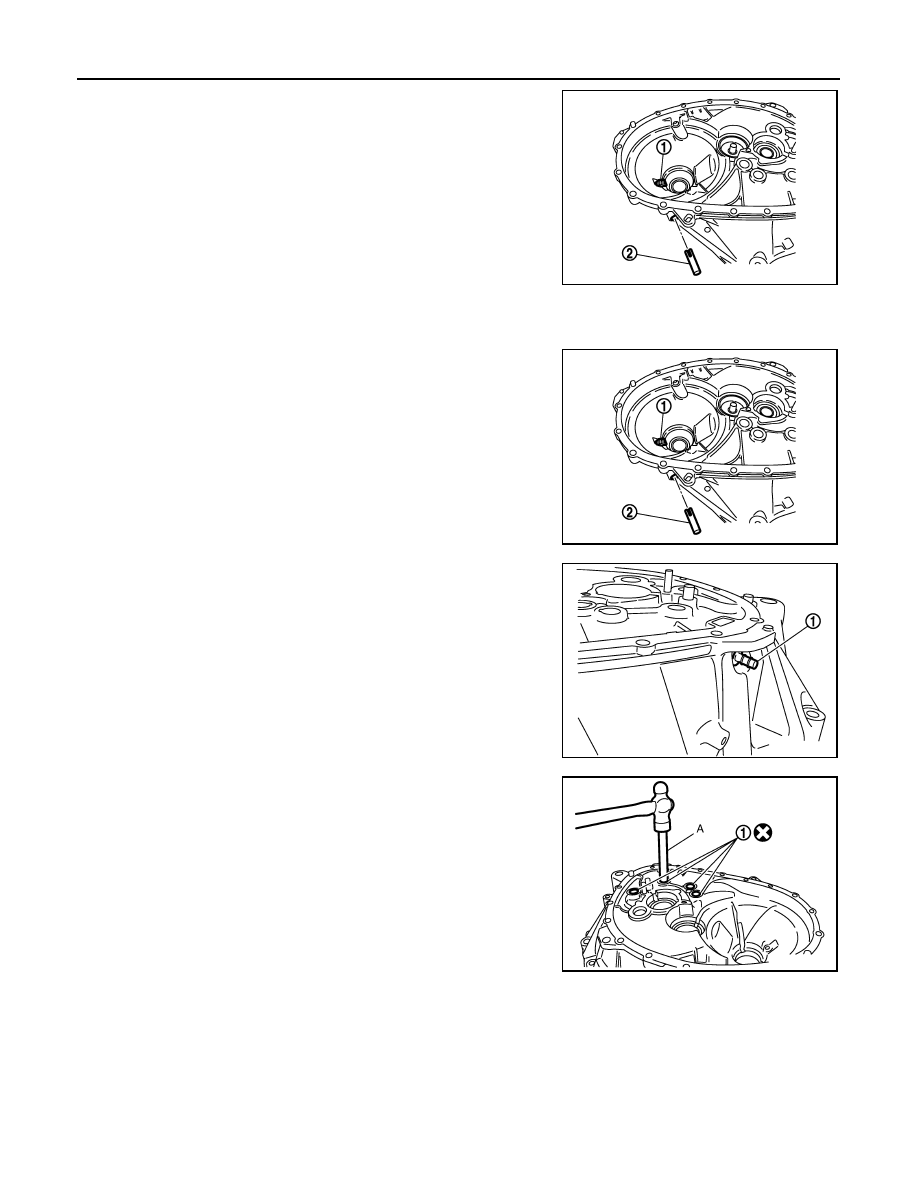

TM-694

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

34. Remove pinion gear (1) and pinion shaft (2) from clutch housing.

Assembly

INFOID:0000000001381647

1.

Install pinion gear (1) and pinion shaft (2) into clutch housing.

2.

Install two way connector (1) into clutch housing.

3.

Install bushings (1) until they are flush with end face of clutch
housing using suitable tool (A).

CAUTION:

Do not reuse bushings

PCIB1719E

PCIB1719E

PCIB1720E

JPDIC0108ZZ
