FINAL DRIVE

TM-659

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL DRIVE

Exploded View

INFOID:0000000001381708

Refer to

TM-635, "Exploded View"

.

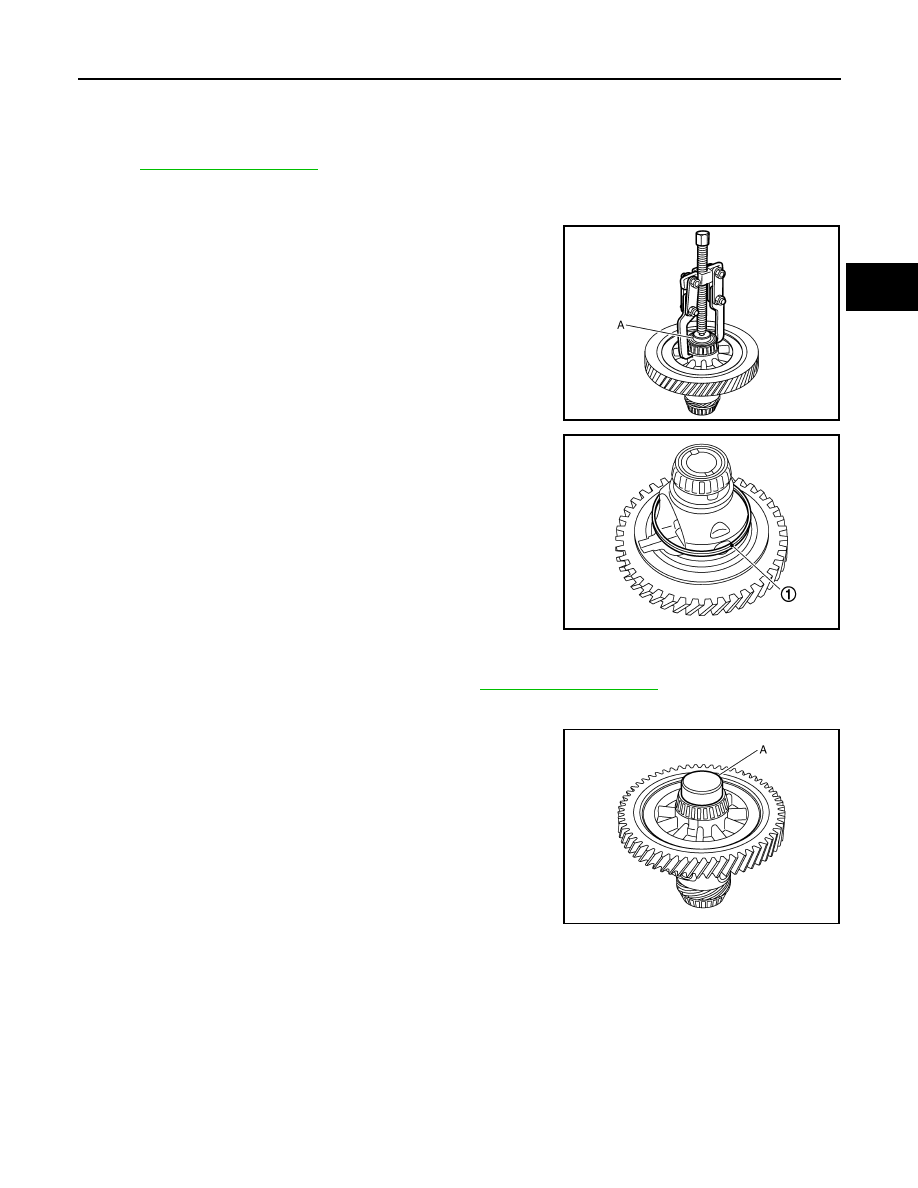

Disassembly

INFOID:0000000001381709

1.

Remove differential side bearing using Tool (A) and suitable
puller.

2.

Remove lock ring (1) to differential case.

3.

Remove pinion mate shaft, pinion mate gear, side gear and
thrust washer to differential case.

Assembly

INFOID:0000000001381710

Assembly is in the reverse order of disassembly. Refer to

TM-635, "Exploded View"

.

CAUTION:

Make sure that lock ring is securely installed to the groove.
• Install differential side bearing using Tool (A).

Inspection

INFOID:0000000001381711

GEAR, WASHER SHAFT AND CASE

Tool number

: ST33052000

—

)

PCIB1568E

PCIB1569E

Tool number

: KV40104920

—

)

PCIB1570E

TM-660

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

FINAL DRIVE

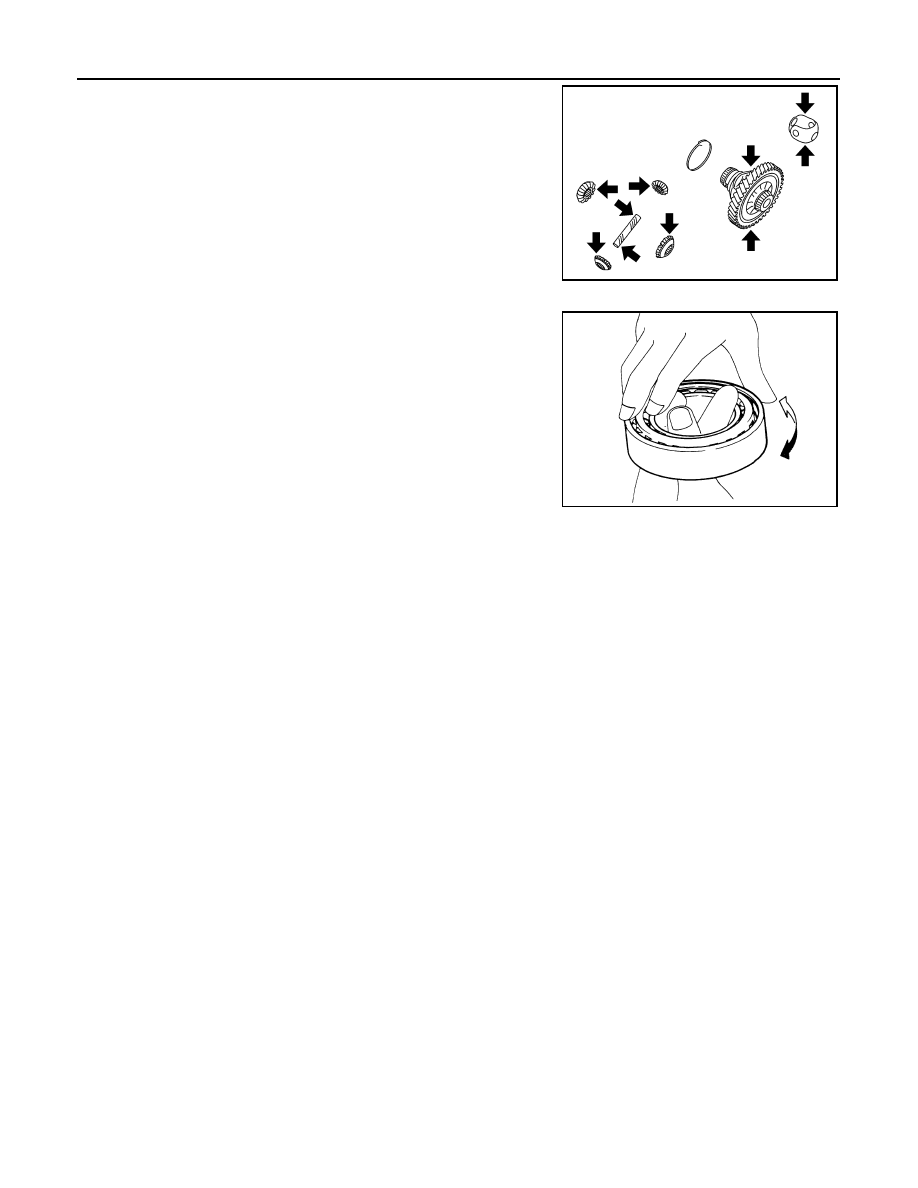

• Check side gears, thrust washers, pinion mate shaft, pinion mate

gears, lock ring and differential case. If necessary, replace with a
new one.

BEARING

• Check for bearing damage and rough rotation. If necessary,

replace with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

PCIB0977J

SPD715

SHIFT CONTROL

TM-661

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT CONTROL

Exploded View

INFOID:0000000001381712

Refer to

TM-635, "Exploded View"

.

Disassembly

INFOID:0000000001381713

Refer to

TM-639, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000001381714

Refer to

TM-645, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000001381715

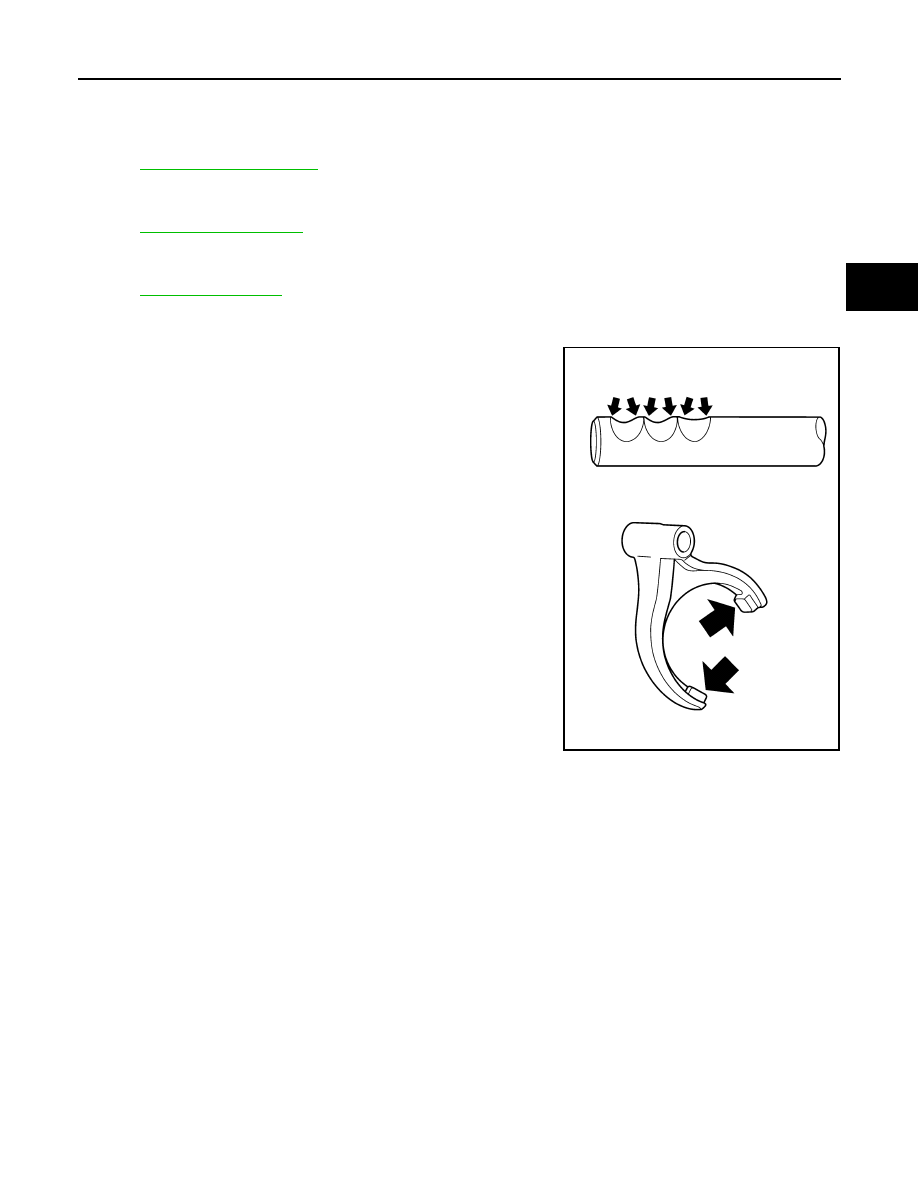

• Check contact surface and sliding surface of fork rod and shift fork

for wear, damage, and bend. Replace if necessary.

PCIB1571E

TM-662

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5MT: RS5F91R]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001381716

TRANSAXLE

Engine type

HR16DE

Transaxle model

RS5F91R

Number of speed

5

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.7273

2nd

2.0476

3rd

1.3929

4th

1.0968

5th

0.8919

Reverse

3.5455

Final gear

4.0667

Number of teeth

Input gear

1st

11

2nd

21

3rd

28

4th

31

5th

37

Reverse

11

Main gear

1st

41

2nd

43

3rd

39

4th

34

5th

33

Reverse

39

Reverse idler gear

26

Final gear

Final gear/Pinion

61/15

Side gear/Pinion
mate gear

13/9

Oil capacity

 (US pt, Imp pt)

Approx. 2.6 (5-1/2, 4-5/8)

Remarks

Reverse synchronizer

Installed

Double-cone synchronizer

1st and 2nd
