ASSEMBLY

TM-599

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

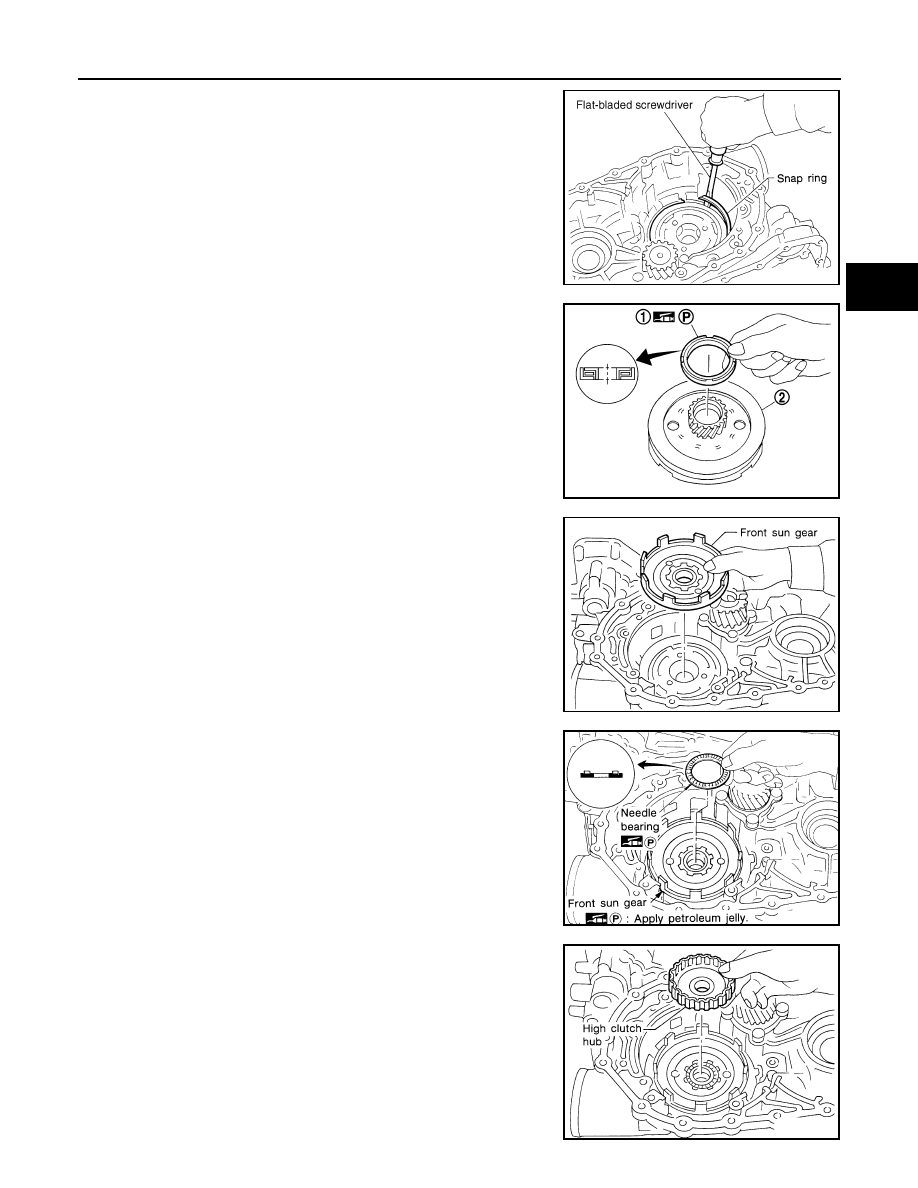

17. Install snap ring into transaxle case using suitable tool.

18. Install needle bearing (1) on front sun gear (2).

CAUTION:

Be careful with the direction of needle bearing (1).

19. Install front sun gear on front planetary carrier.

20. Install needle bearing on front sun gear.

CAUTION:

Be careful with the direction of needle bearing.

21. Install high clutch hub on front sun gear.

SCIA3633E

SCIA6960E

SAT368D

SAT369D

SAT370D

TM-600

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

ASSEMBLY

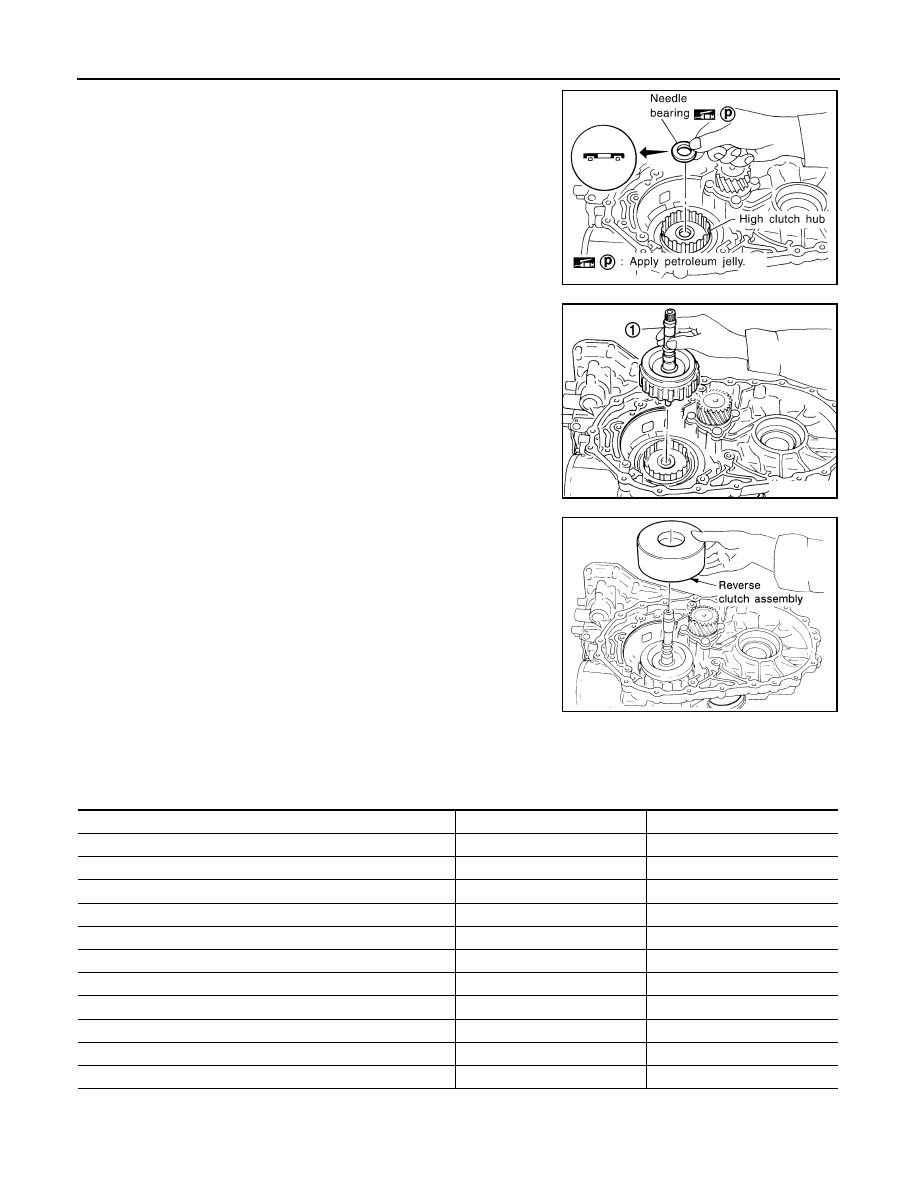

22. Install needle bearing on high clutch hub.

CAUTION:

Be careful with the direction of needle bearing.

23. Remove paper rolled around input shaft assembly (high clutch

drum).

24. Install input shaft assembly (high clutch assembly) (1).

CAUTION:

Align teeth of high clutch drive plates before installing.

25. Install reverse clutch assembly.

CAUTION:

Align teeth of reverse clutch drive plates before installing.

Adjustment (2)

INFOID:0000000001731451

When any parts listed below are replaced, adjust total end play and reverse clutch end play.

TOTAL END PLAY

SAT371D

SCIA7079E

SAT373D

Part name

Total end play

Reverse clutch end play

Transaxle case

●

●

Overrun clutch hub

●

●

Rear internal gear

●

●

Rear planetary carrier

●

●

Rear sun gear

●

●

Front planetary carrier

●

●

Front sun gear

●

●

High clutch hub

●

●

Input shaft assembly (high clutch drum)

●

●

Oil pump cover

●

●

Reverse clutch drum

—

●

ASSEMBLY

TM-601

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

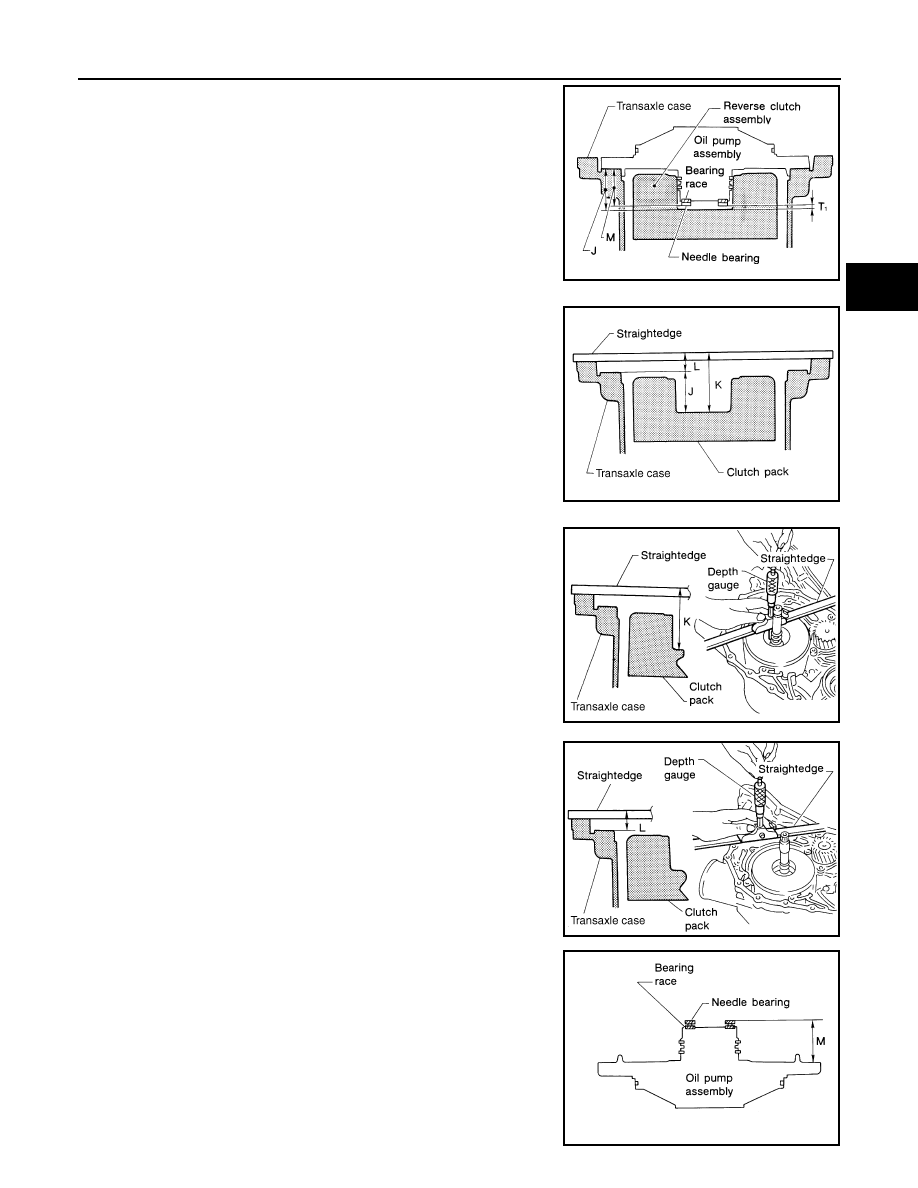

• Measure clearance between reverse clutch drum and needle bear-

ing for oil pump cover.

• Select proper thickness of bearing race so that end play is within

specifications.

1.

Measure dimensions “K” and “L”, and then calculate dimension
“J”.

a.

Measure dimension “K”.

b.

Measure dimension “L”.

c.

Calculate dimension “J”.

2.

Measure dimension “M”.

a.

Place bearing race and needle bearing on oil pump assembly.

SCIA3661E

SCIA3662E

SCIA3663E

“J”:

Distance between oil pump fitting surface of
transaxle case and needle bearing mating sur-
face of input shaft assembly (high clutch drum).

J = K – L

SCIA3664E

SAT378D

TM-602

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

ASSEMBLY

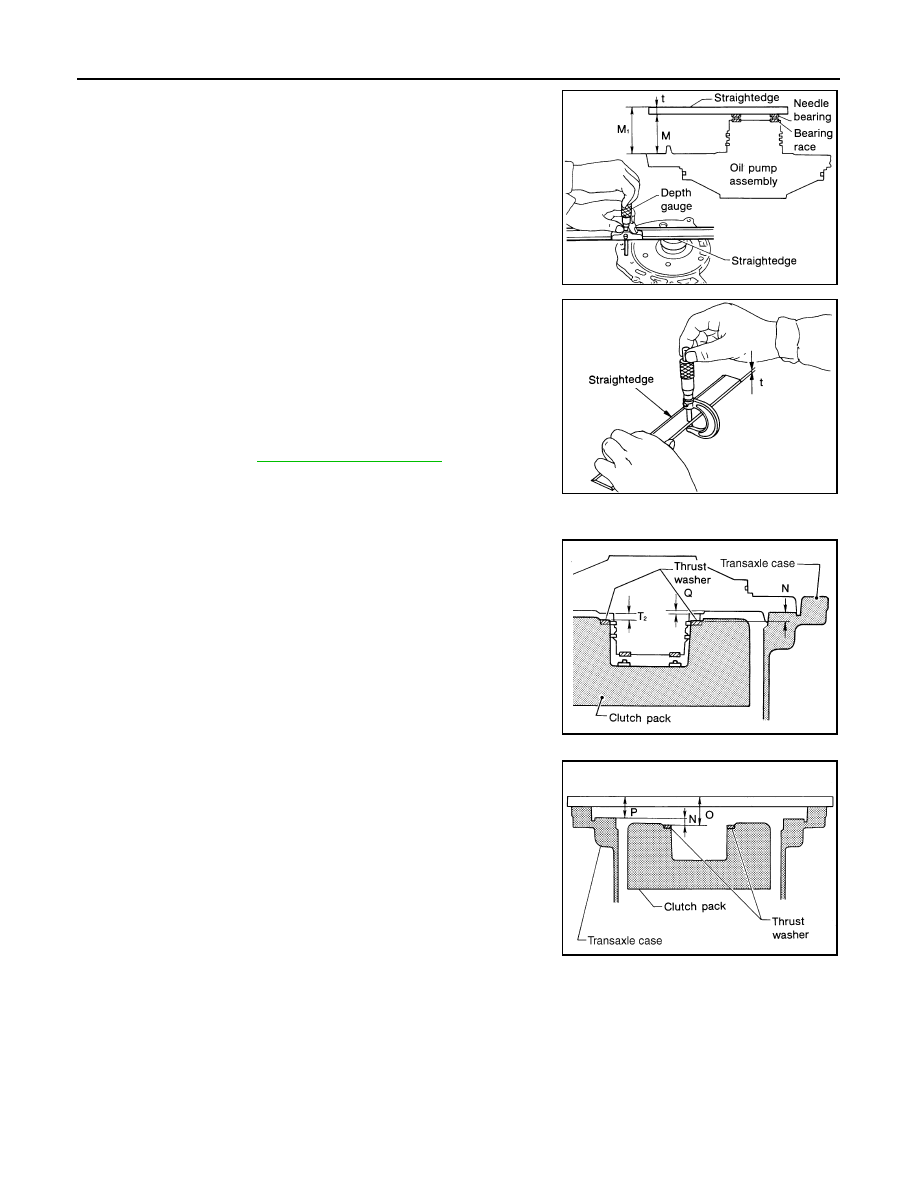

b.

Measure dimension “M”.

c.

Measure thickness of straightedge “t”.

3.

Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

REVERSE CLUTCH END PLAY

• Measure clearance between oil pump cover and thrust washer for

reverse clutch drum.

• Select proper thickness of thrust washer so that end play is within

specification.

1.

Measure dimensions “O” and “P”, and then calculate dimension
“N”.

“M”:

Distance between transaxle case fitting surface
of oil pump cover and needle bearing on oil
pump cover.

“M

1

”:

Indication of gauge

SAT379D

M = M

1

– t

T

1

 = J – M

Total end play “T

1

”:

Refer to

TM-324, "Total End Play"

.

SAT443D

SCIA3665E
