REPAIR FOR COMPONENT PARTS

TM-571

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

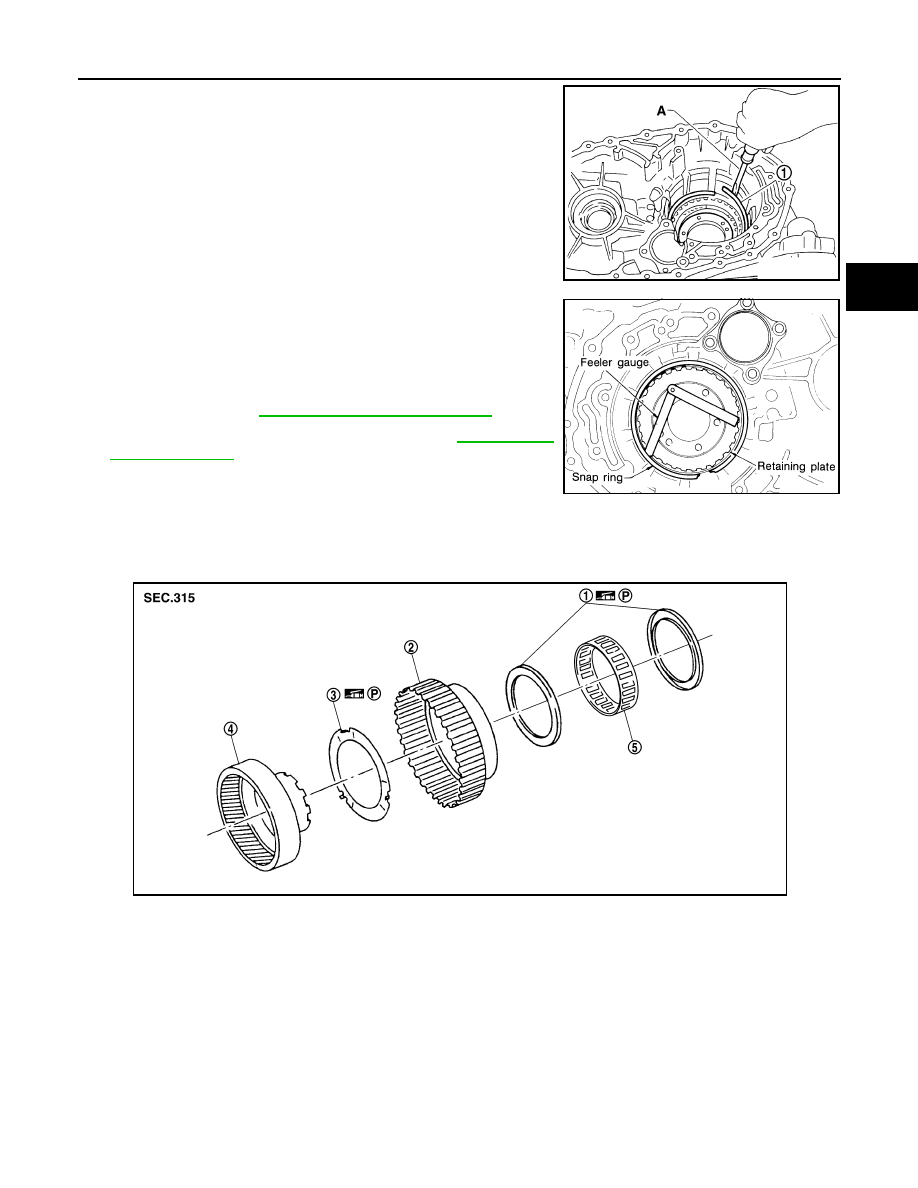

6.

Install snap ring (1) using suitable tool (A).

7.

Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate (front side).

8.

Check operation of low & reverse brake. Refer to

TM-273, "Low

& Reverse Brake"

.

Rear Internal Gear and Forward Clutch Hub

INFOID:0000000001731444

COMPONENTS

DISASSEMBLY

SCIA7039E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT246D

1.

End bearing

2.

Forward clutch hub

3.

Thrust washer

4.

Rear internal gear

5.

Forward one-way clutch

SCIA5880J

TM-572

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

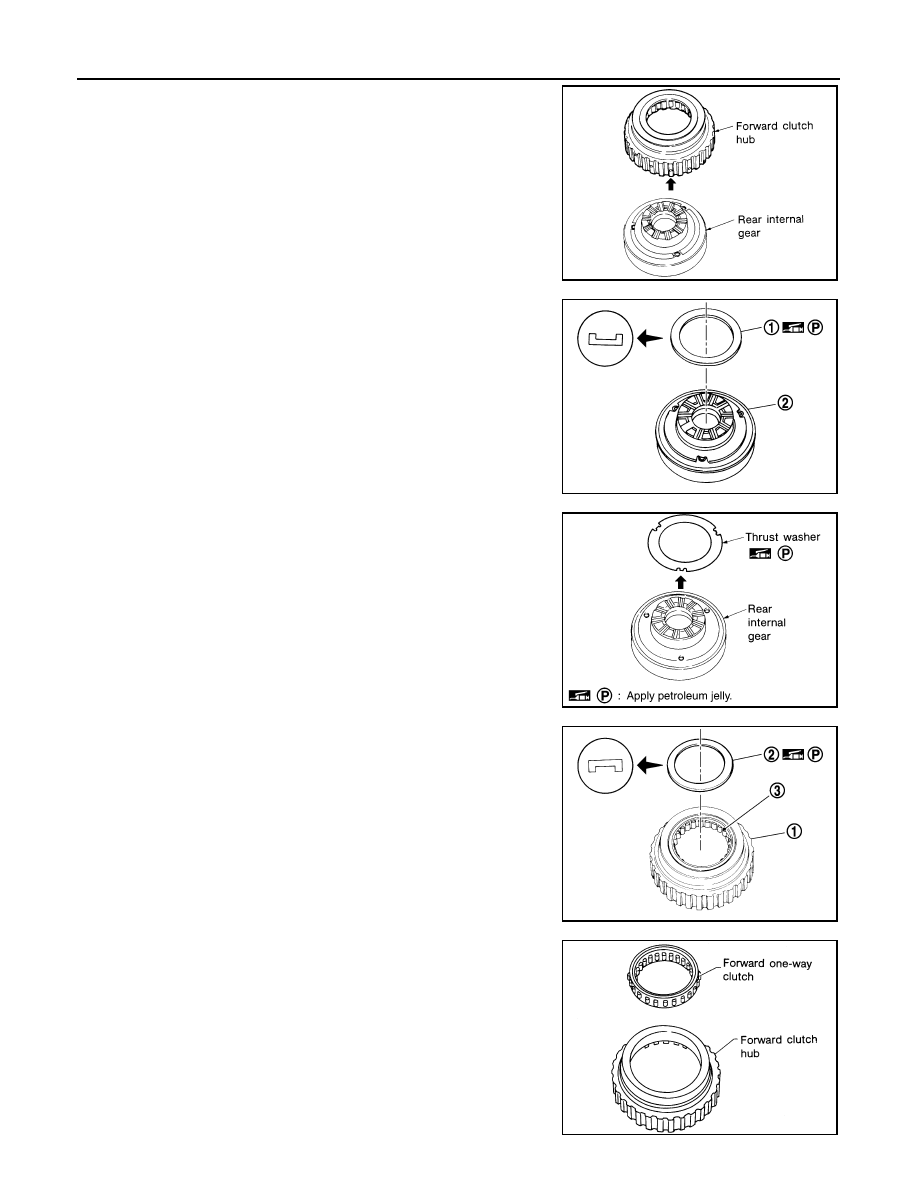

1.

Remove forward clutch hub from rear internal gear.

2.

Remove end bearing (1) from rear internal gear (2).

3.

Remove thrust washer from rear internal gear.

4.

Remove end bearing (2) from forward one-way clutch (3).
(1): Forward clutch hub

5.

Remove forward one-way clutch from forward clutch hub.

SAT251D

SCIA7028E

SCIA3691E

SCIA7026E

SAT255D

REPAIR FOR COMPONENT PARTS

TM-573

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

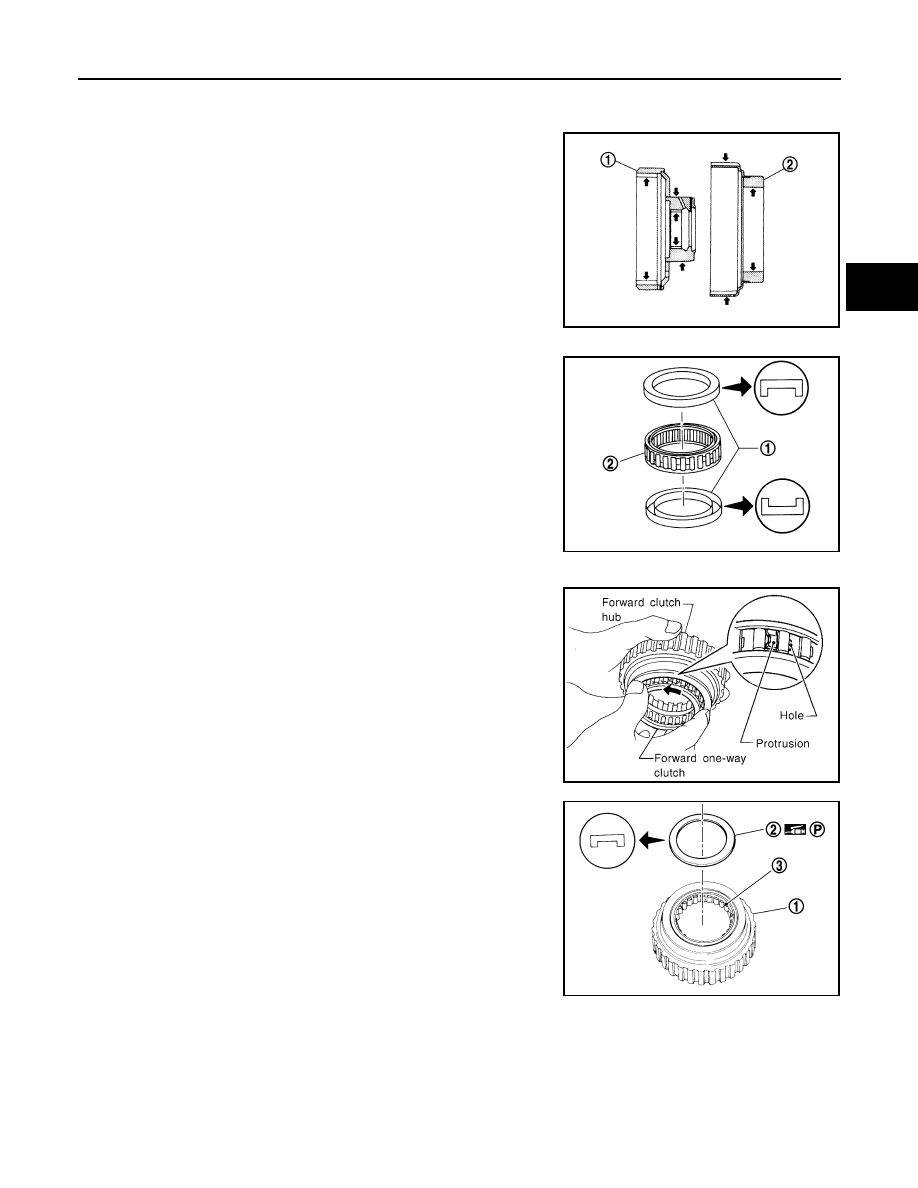

INSPECTION

Rear Internal Gear and Forward Clutch Hub

Check rubbing surfaces for wear or damage. Replace if necessary.
(1): Rear internal gear
(2): Forward clutch hub

End Bearings and Forward One-way Clutch

• Check end bearings (1) for deformation and damage. Replace if

necessary.

• Check forward one-way clutch (2) for wear and damage. Replace if

necessary.

ASSEMBLY

1.

Install forward one-way clutch on forward clutch hub.

CAUTION:

Be careful with the direction of forward one-way clutch.

2.

Install end bearing (2) on forward one-way clutch (3).
(1): Forward clutch hub

SCIA5881J

SCIA7027E

SAT976H

SCIA7026E

TM-574

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

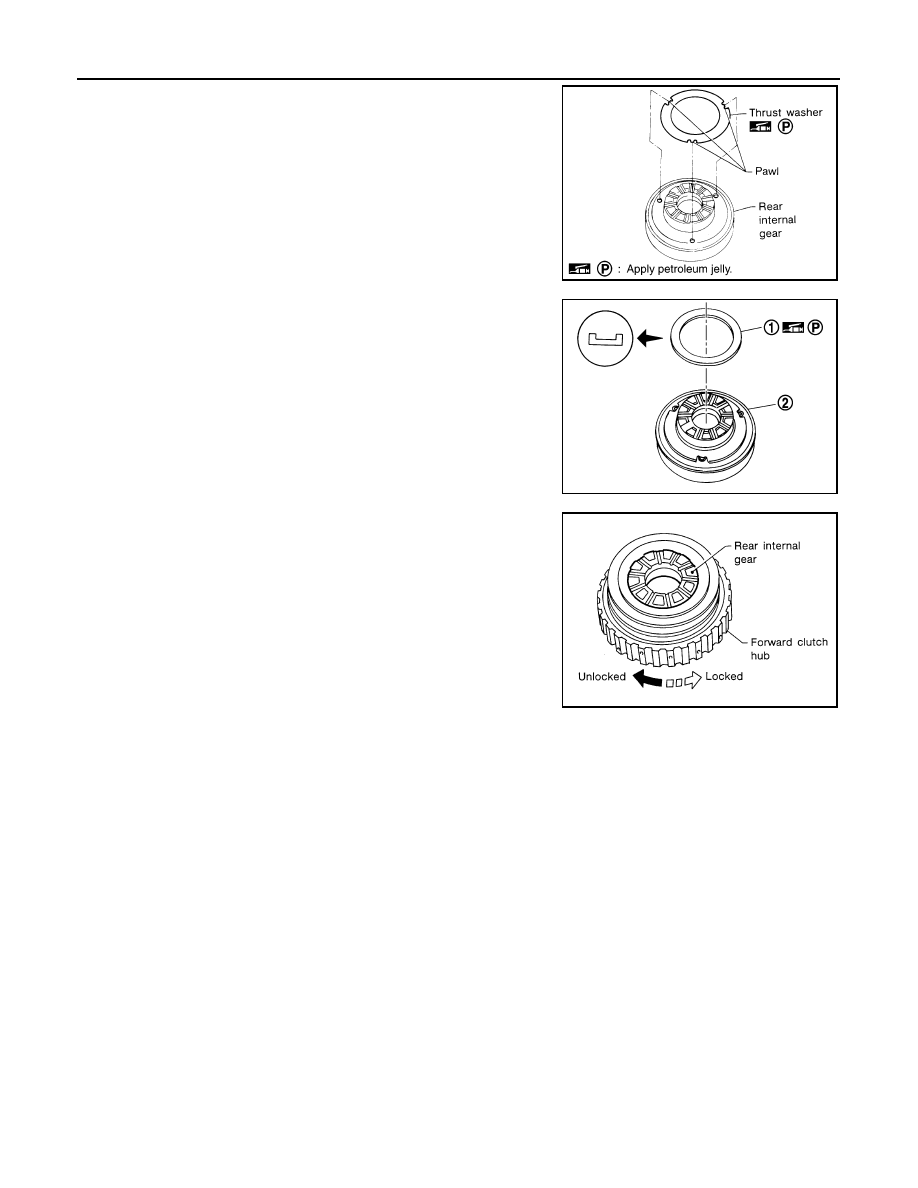

3.

Install thrust washer on rear internal gear.

CAUTION:

Align pawls of thrust washer with holes of rear internal
gear.

4.

Install end bearing (1) on rear internal gear (2).

5.

Install forward clutch hub on rear internal gear.

CAUTION:

• Check operation of forward one-way clutch.

Hold rear internal gear and turn forward clutch hub.
Check forward clutch hub for correct locking and unlock-
ing directions.

• If not as shown, check the installation direction of forward

one-way clutch.

Output Shaft, Output Gear, Idler Gear, Reduction Pinion Gear and Bearing Retainer

INFOID:0000000001731445

COMPONENTS

SCIA3690E

SCIA7028E

AAT426
