WATER PUMP

WATER PUMP

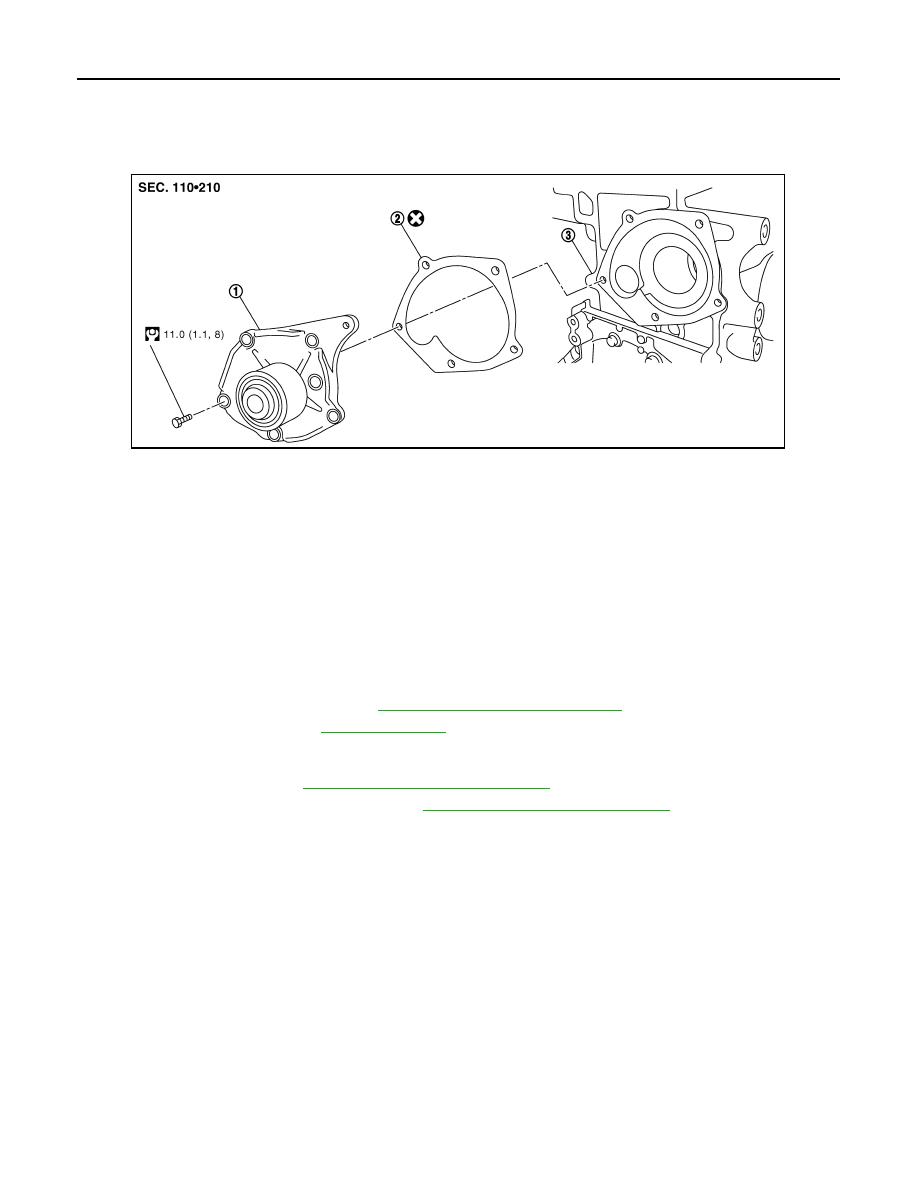

Exploded View

INFOID:0000000001381598

Removal and Installation

INFOID:0000000001381599

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator.

REMOVAL

1.

Remove the following parts.
• Battery ground cable
• Engine undercover
• RH front wheel

2.

Remove fender protector RH. Refer to

EXT-22, "Removal and Installation"

.

3.

Drain engine coolant. Refer to

CO-58, "Draining"

.

CAUTION:

Perform when engine is cold.

4.

Remove drive belt. Refer to

EM-263, "Removal and Installation"

.

5.

Remove timing belt and inner cover. Refer to

EM-291, "Removal and Installation"

.

6.

Remove the water pump.
• Coolant will leak from the cylinder block, so have a receptacle ready below.

CAUTION:

• Handle the water pump vane so that it does not contact any other parts.
• Water pump cannot be disassembled and should be replaced as a unit.

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INFOID:0000000001381600

INSPECTION AFTER REMOVAL

1.

Water pump

2.

Gasket

3.

Cylinder block

E1BIA0026GB

WATER PUMP

CO-67

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

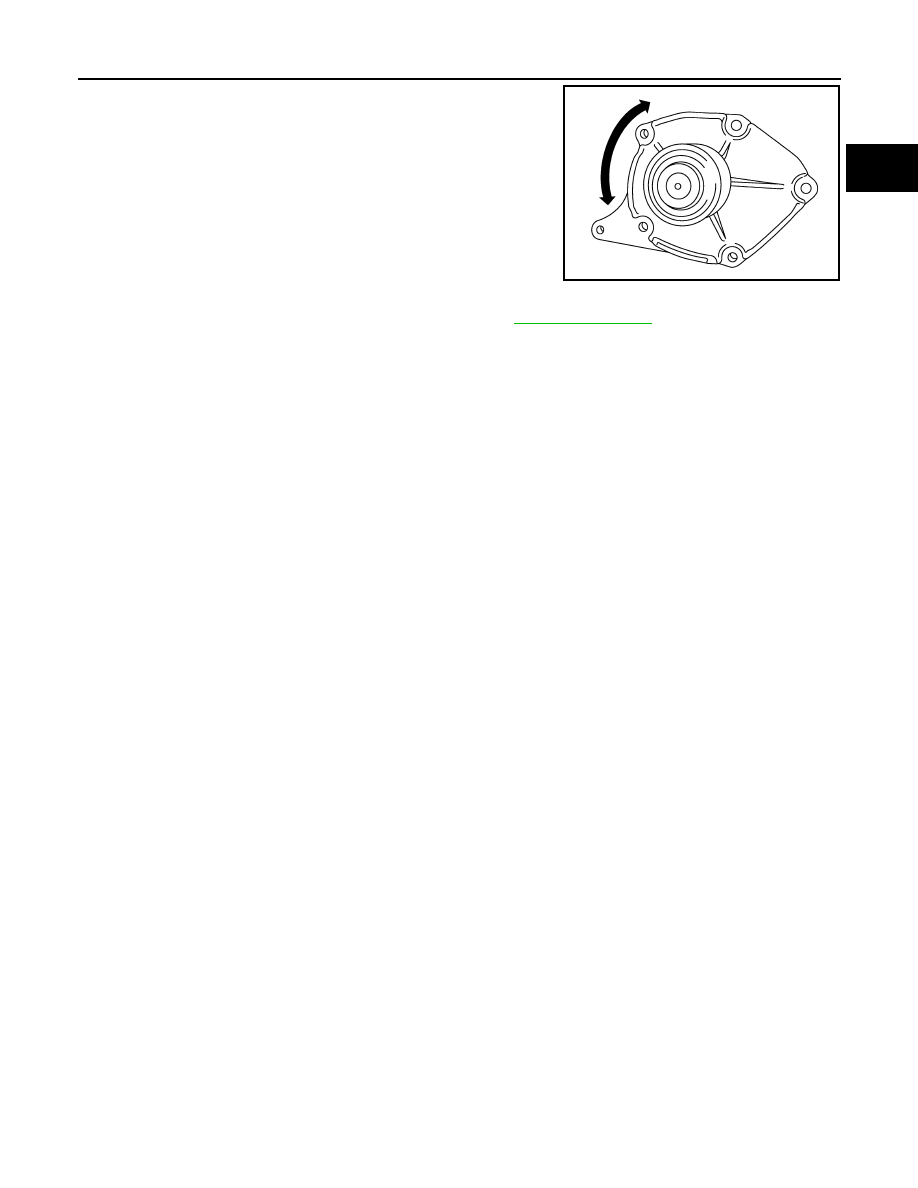

• Visually make sure there is no significant dirt or rusting on the

water pump body and vane.

• Make sure there is no looseness in the vane shaft, and that it turns

smoothly when rotated by hand.

• If there are any defects, replace the water pump assembly.

INSPECTION AFTER INSTALLATION

• Check for engine coolant leaks using suitable tools. Refer to

CO-58, "Inspection"

.

MBIB0546E

CO-68

< ON-VEHICLE REPAIR >

[K9K]

WATER OUTLET AND THERMOSTAT ASSEMBLY

WATER OUTLET AND THERMOSTAT ASSEMBLY

Exploded View

INFOID:0000000001381601

Removal and Installation

INFOID:0000000001381602

REMOVAL

1.

Remove battery.

2.

Remove engine undercover using power tool.

3.

Drain engine coolant. Refer to

CO-58, "Draining"

.

CAUTION:

Perform when engine is cold.

4.

Remove engine cover.

5.

Remove air cleaner and air duct assembly. Refer to

EM-269, "Removal and Installation"

.

6.

Remove rear engine slinger. Refer to

EM-314, "Exploded View"

.

7.

Remove vacuum hose.

8.

Remove vacuum pump. Refer to

EM-280, "Removal and Installation"

.

9.

Remove radiator upper hose. Refer to

CO-62, "Exploded View"

.

10. Remove heater hose.
11. Disconnect reservoir tank hose.

12. Remove water outlet.

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INFOID:0000000001381603

INSPECTION AFTER REMOVAL

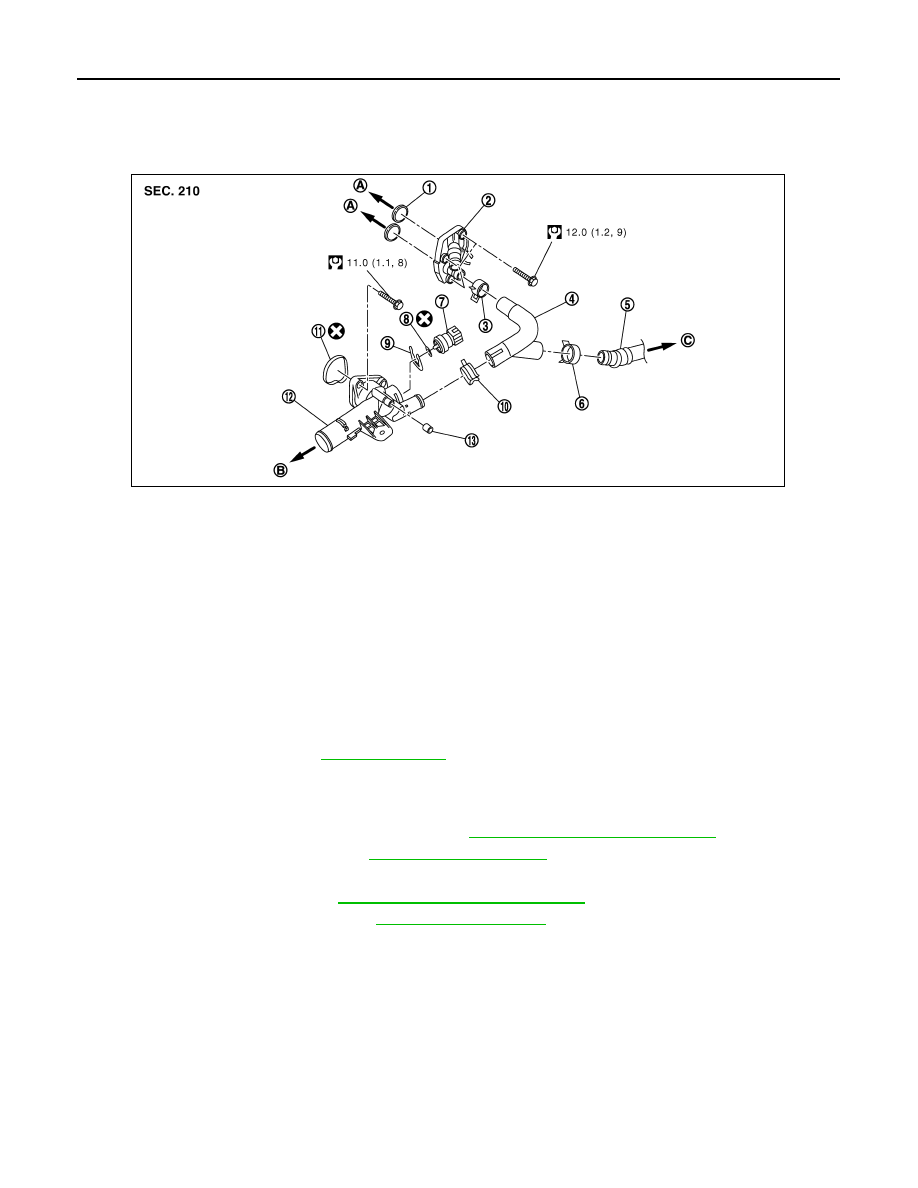

1.

O-ring

2.

EGR cooler cover

3.

Clamp

4.

Water pipe

5.

Heater hose

6.

Clamp

7.

Engine coolant temperature sensor

8.

O-ring

9.

Lock plate

10. Clamp

11.

Gasket

12. Water outlet and thermostat assembly

13. Air relief plug

A.

To EGR volume control valve housing B.

To radiator hose (upper)

C.

To heater core

E1BIA0027GB

WATER OUTLET AND THERMOSTAT ASSEMBLY

CO-69

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

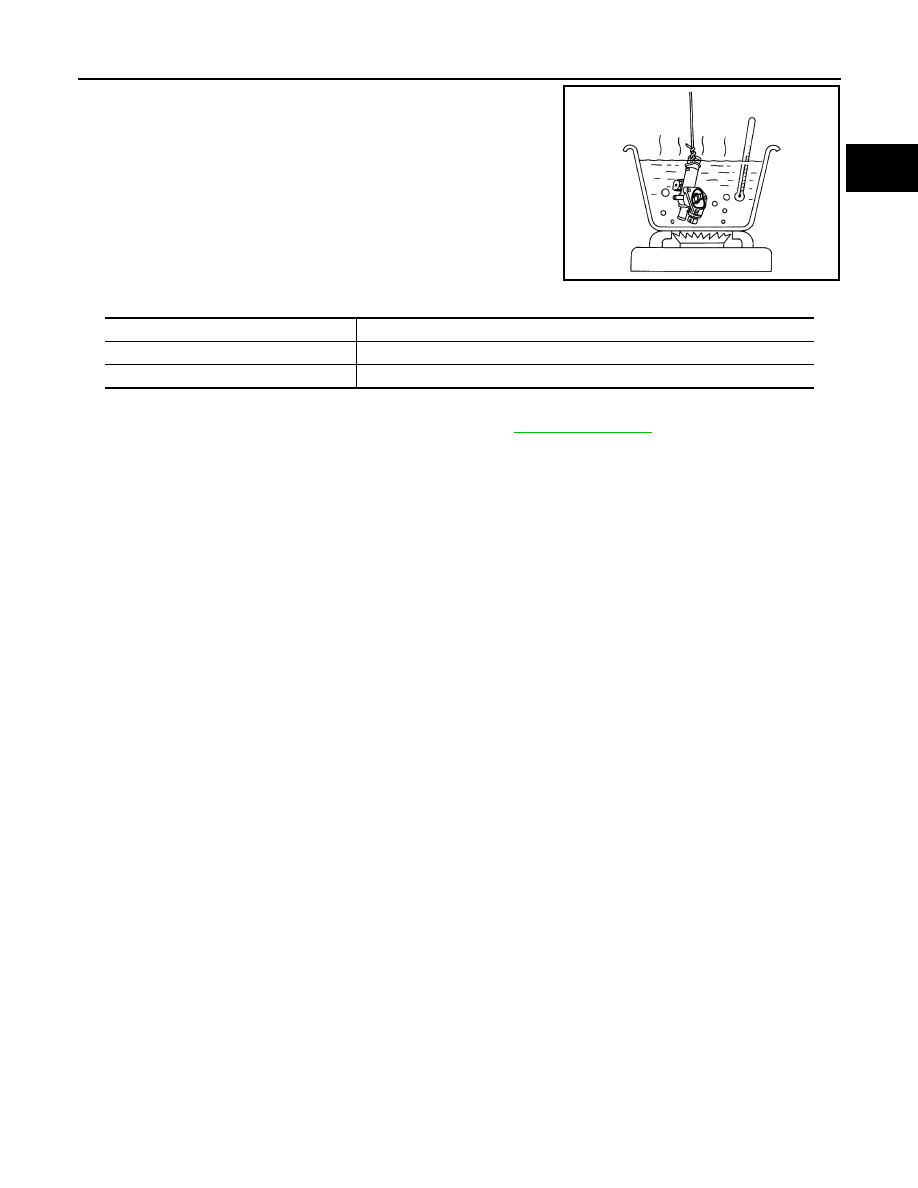

• Place a thread so that it is caught in the valves of the thermostat.

Immerse fully in a container filled with water. Heat while stirring.
(The example shows the thermostat.)

• The valve opening temperature is the temperature at which the

valve opens and falls from the thread.

• Continue heating. Check the full-open lift amount.
• After checking the full-open lift amount, lower the water tempera-

ture and check the valve closing temperature.

• If the measured value is out of the standard value or unusual valve

seating condition is found, replace water inlet and thermostat
assembly.

INSPECTION AFTER INSTALLATION

• Check for engine coolant leaks using suitable tools. Refer to

CO-58, "Inspection"

.

E1BIA0038ZZ

Temperature

°

C (

°

F)

Start of opening

89 (192)

End of opening

97 - 101 (207 - 214)
