TURBINE REVOLUTION SENSOR

TM-383

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

TURBINE REVOLUTION SENSOR

Description

INFOID:0000000001713049

The turbine revolution sensor (power train revolution sensor) detects forward clutch drum rpm (revolutions per
minute). It is located on the input side of the automatic transaxle. The vehicle speed sensor A/T (Revolution
sensor) is located on the output side of the automatic transaxle. With the two sensors, input and output rpms
are accurately detected. As a result, optimal shift timing during deceleration and shift quality can be improved.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001713050

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001713051

Diagnostic trouble code “TURBINE SENSOR” with CONSULT-III or 10st judgement flicker without CONSULT-
III is detected when TCM does not receive the proper voltage signal from the sensor.

Possible Cause

INFOID:0000000001713052

• Harness or connector

(Sensor circuit is open or shorted.)

• Turbine revolution sensor (power train revolution sensor)

DTC Confirmation Procedure

INFOID:0000000001713053

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Start engine.

2.

Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Touch “START”.

4.

Drive vehicle under the following conditions for more than 5 seconds.
SLCT LVR POSI: “D” position
VEHICLE SPEED: Higher than 40 km/h (25 MPH)
ENGINE SPEED: Higher than 1,500 rpm
THROTTLE POSI: Greater than 1.0/8 of the full throttle position

5.

If the check result is NG, go to

TM-383, "Diagnosis Procedure"

.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle under the following conditions for more than 5 seconds.
Selector lever position: “D” position
Vehicle speed: Higher than 40 km/h (25 MPH)
Engine speed: Higher than 1,500 rpm
Throttle position: 1.0/8 of the full throttle position

3.

Perform self-diagnosis. Refer to

TM-350, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-383, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001713055

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

Item name

Condition

Display value

TURBINE REV

During driving (lock-up ON)

Approximately matches the engine speed.

TM-384

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

TURBINE REVOLUTION SENSOR

3.

Read out the value of “TURBINE REV” while driving. Check the value changes according to driving
speed.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 2.

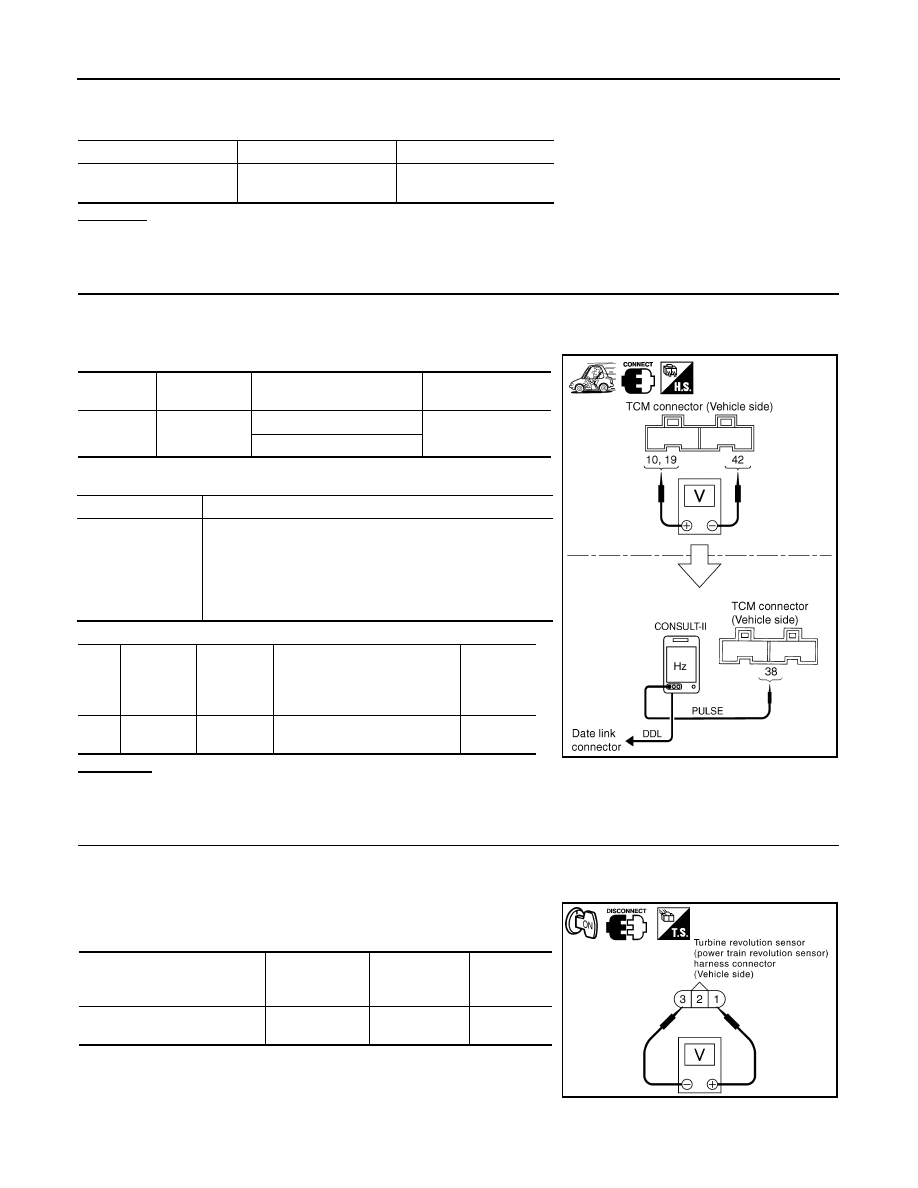

2.

 CHECK TURBINE REVOLUTION SENSOR

1.

Start engine.

2.

Check power supply to turbine revolution sensor (power train revolution sensor) by voltage between TCM
connector terminals.

3.

 If OK, check the pulse when vehicle cruises.

 OK or NG

 OK

>> GO TO 8.

 NG

>> GO TO 3.

3.

 CHECK POWER AND SENSOR GROUND

1.

Turn ignition switch OFF.

2.

Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminals.

Item name

Condition

Display value

TURBINE REV

During driving (lock-up
ON)

Approximately matches
the engine speed.

Item

Connector

Terminal

Judgement standard

(Approx.)

TCM

E31, E32

10 - 42

Battery voltage

19 - 42

Name

Condition

Turbine revolution
sensor (power train
revolution sensor)

When driving at 20 km/h (12 MPH), use the CONSULT-II
pulse frequency measuring function.*1

CAUTION:

Connect the diagnosis data link cable to the vehicle diag-
nosis connector.
*1: A circuit tester cannot be used to test this item.

Item

Connector

Terminal

Name

Judge-

ment stan-

dard

(Approx.)

TCM

E32

38

Turbine revolution sensor
(power train revolution sensor)

360 Hz

SCIA4949E

Item

Connector

Terminal

Judgement

standard

(Approx.)

Turbine revolution sensor
(power train revolution sensor)

F47

1 - 3

Battery volt-

age

SCIA2770E

TURBINE REVOLUTION SENSOR

TM-385

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

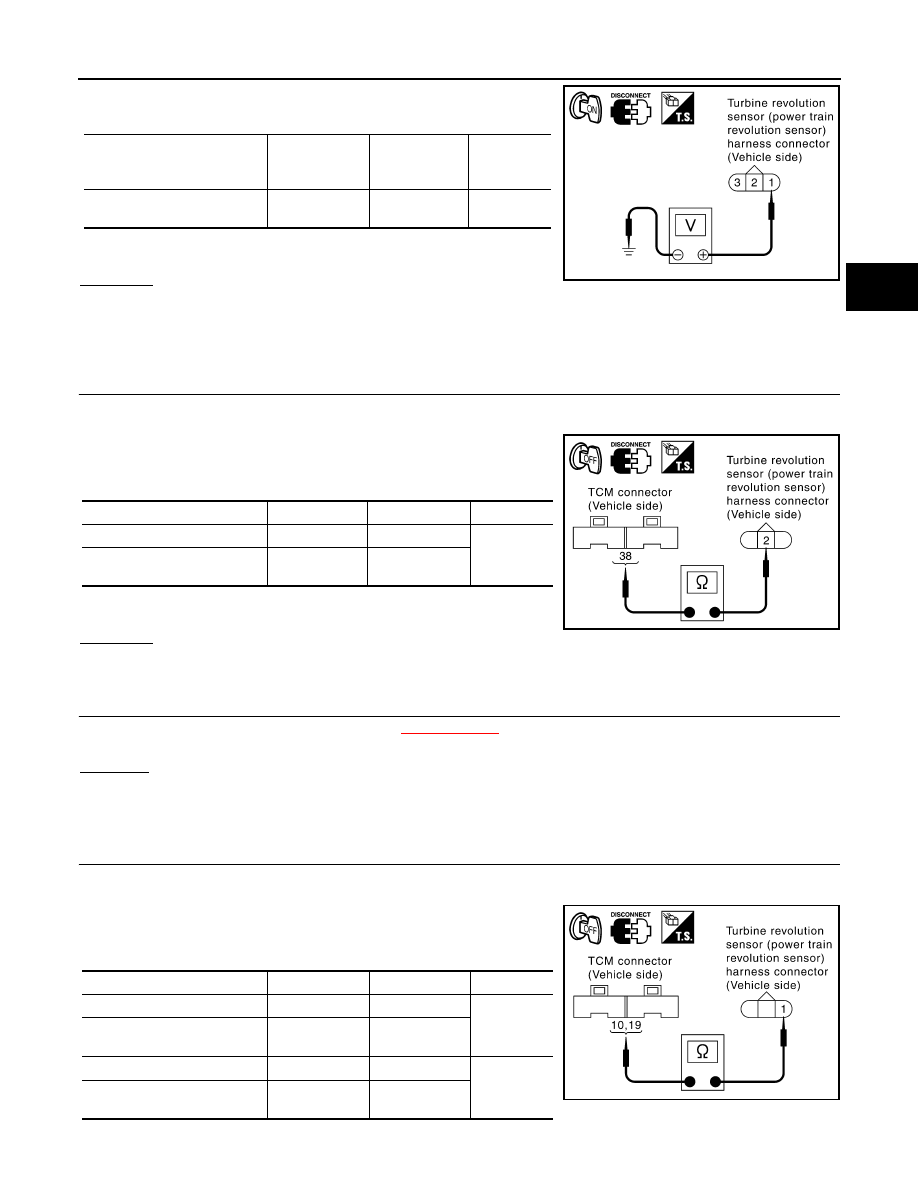

5.

Check voltage between turbine revolution sensor (power train
revolution sensor) harness connector terminal and ground.

6.

If OK, check harness for short to ground and short to power.

7.

Reinstall any part removed.

 OK or NG

 OK

>> GO TO 4.

 NG - 1 >> Battery voltage is not supplied between terminals 1 and 3, terminals 1 and ground.: GO TO 6.
 NG - 2 >> Battery voltage is not supplied between terminals 1 and 3 only.: GO TO 7.

4.

 CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR (POWER TRAIN REVOLU-

TION SENSOR)

1.

Turn ignition switch OFF.

2.

Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.

3.

Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.

4.

If OK, check harness for short to ground and short to power.

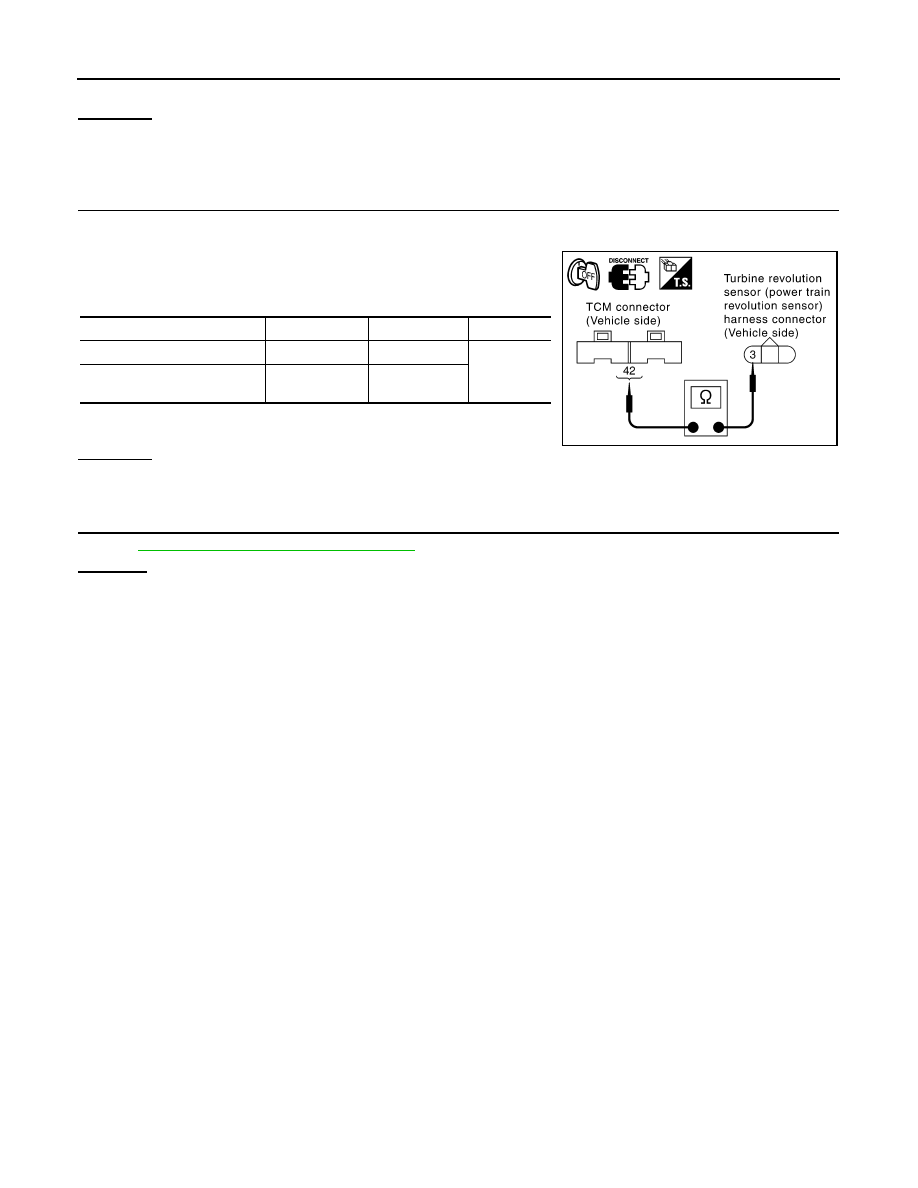

5.

Reinstall any part removed.

 OK or NG

 OK

>> GO TO 5.

 NG

>>  Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK TCM

1.

Check TCM input/output signals. Refer to

XX-XX, "*****"

.

2.

If NG, re-check TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace damaged parts.

6.

 CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR [(POWER TRAIN REVOLU-

TION SENSOR) POWER]

1.

Turn ignition switch OFF.

2.

Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.

3.

Check continuity between TCM connector terminals and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.

4.

If OK, check harness for short to ground and short to power.

Item

Connector

Terminal

 Judgement

standard

(Approx.)

Turbine revolution sensor
(power train revolution sensor)

F47

1 - ground

Battery volt-

age

SCIA2771E

Item

Connector

Terminal

Continuity

TCM

E32

38

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

2

SCIA2772E

Item

Connector

Terminal

Continuity

TCM

E31

10

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

1

TCM

E31

19

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

1

SCIA2773E

TM-386

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

TURBINE REVOLUTION SENSOR

5.

Reinstall any part removed.

 OK or NG

 OK

>>  10A fuse (No.49, located in the IPDM E/R) or ignition switch are malfunctioning.

 NG

>>  Repair open circuit or short to ground or short to power in harness or connectors.

7.

 CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION SENSOR [(POWER TRAIN REVOLU-

TION SENSOR) SENSOR GROUND]

1.

Turn ignition switch OFF.

2.

Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.

3.

Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

 OK or NG

 OK

>> GO TO 5.

 NG

>>  Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK DTC

Perform

TM-383, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

Item

Connector

Terminal

Continuity

TCM

E32

42

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

3

SCIA2774E
