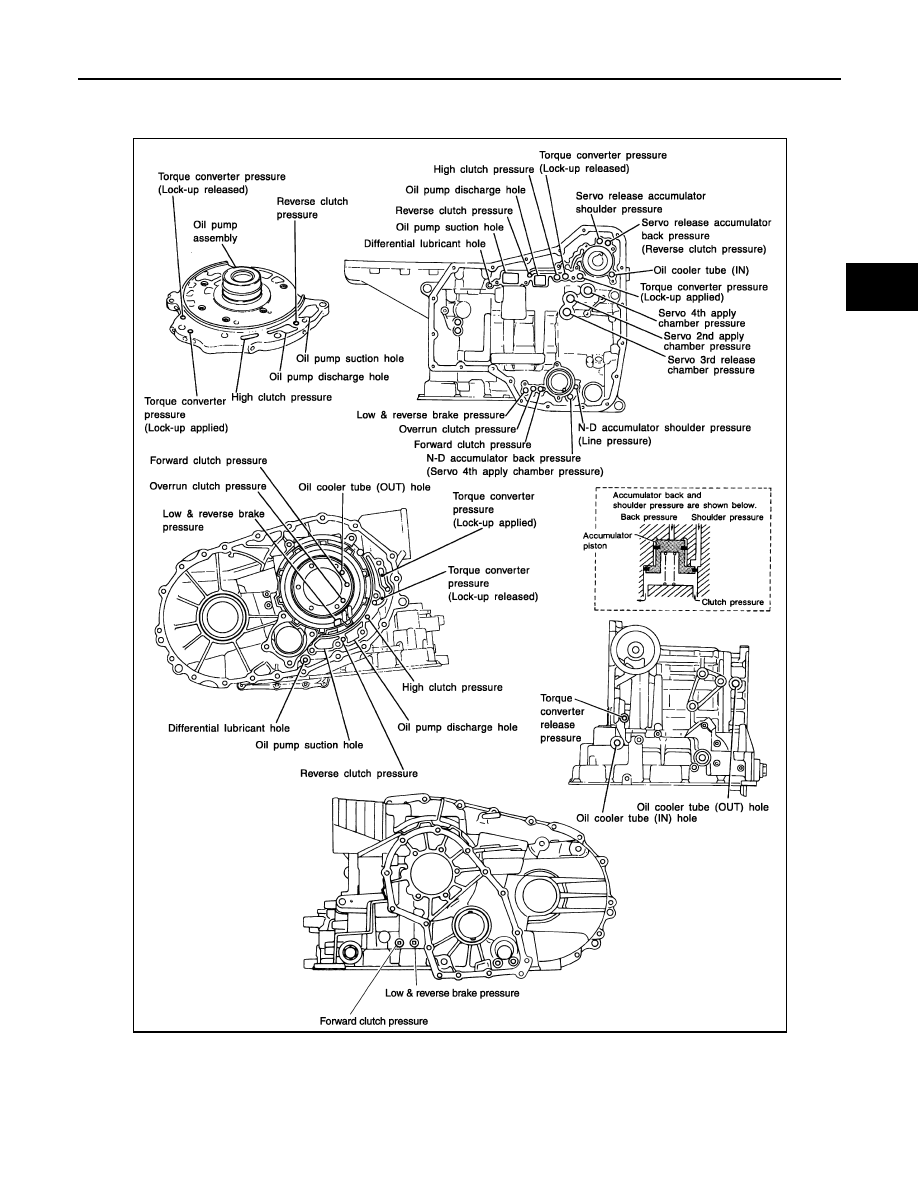

Oil Channel

INFOID:0000000001730979

SCIA5925E

TM-220

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

OVERHAUL

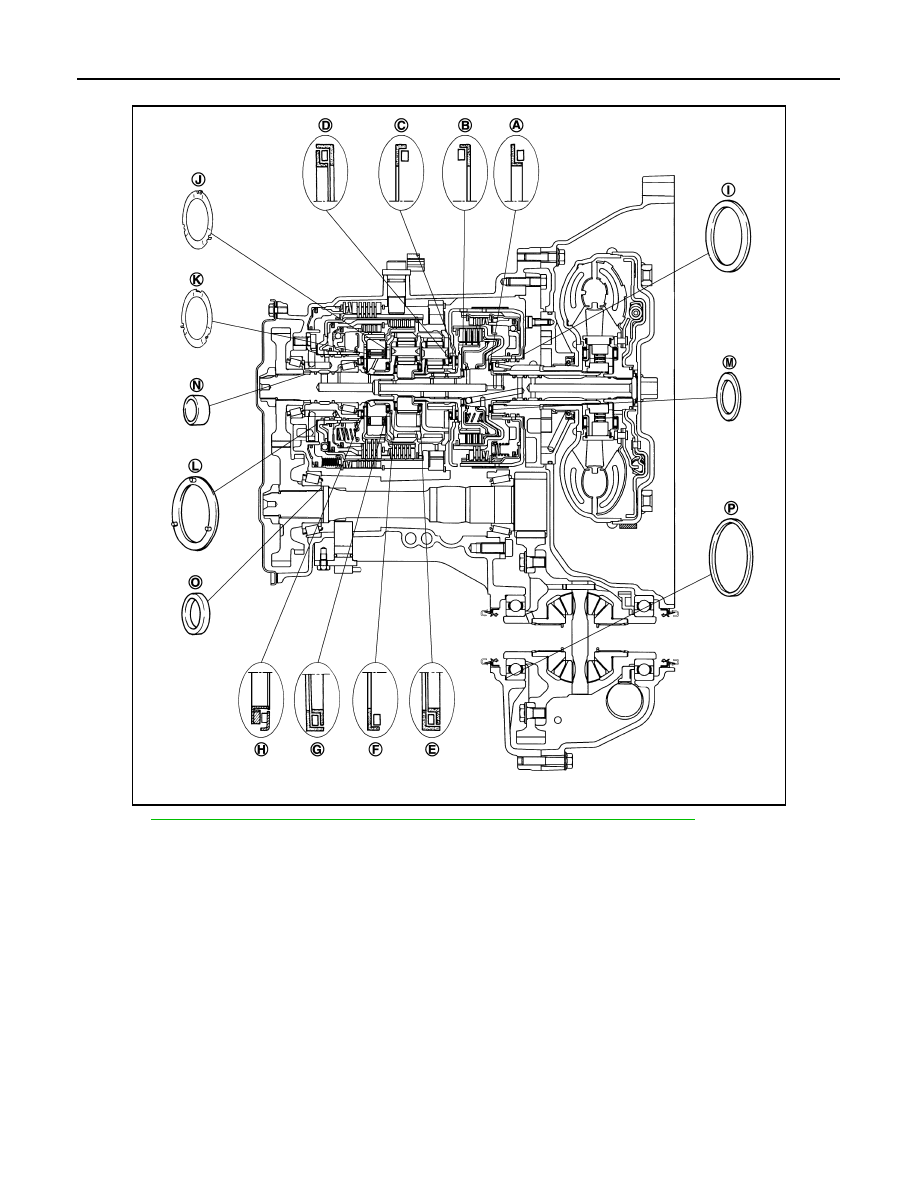

Location of Adjusting Shims, Needle Bearings and Thrust Washers

INFOID:0000000001730980

• Refer to

TM-320, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings"

.

SCIA6051J

OVERHAUL

TM-221

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

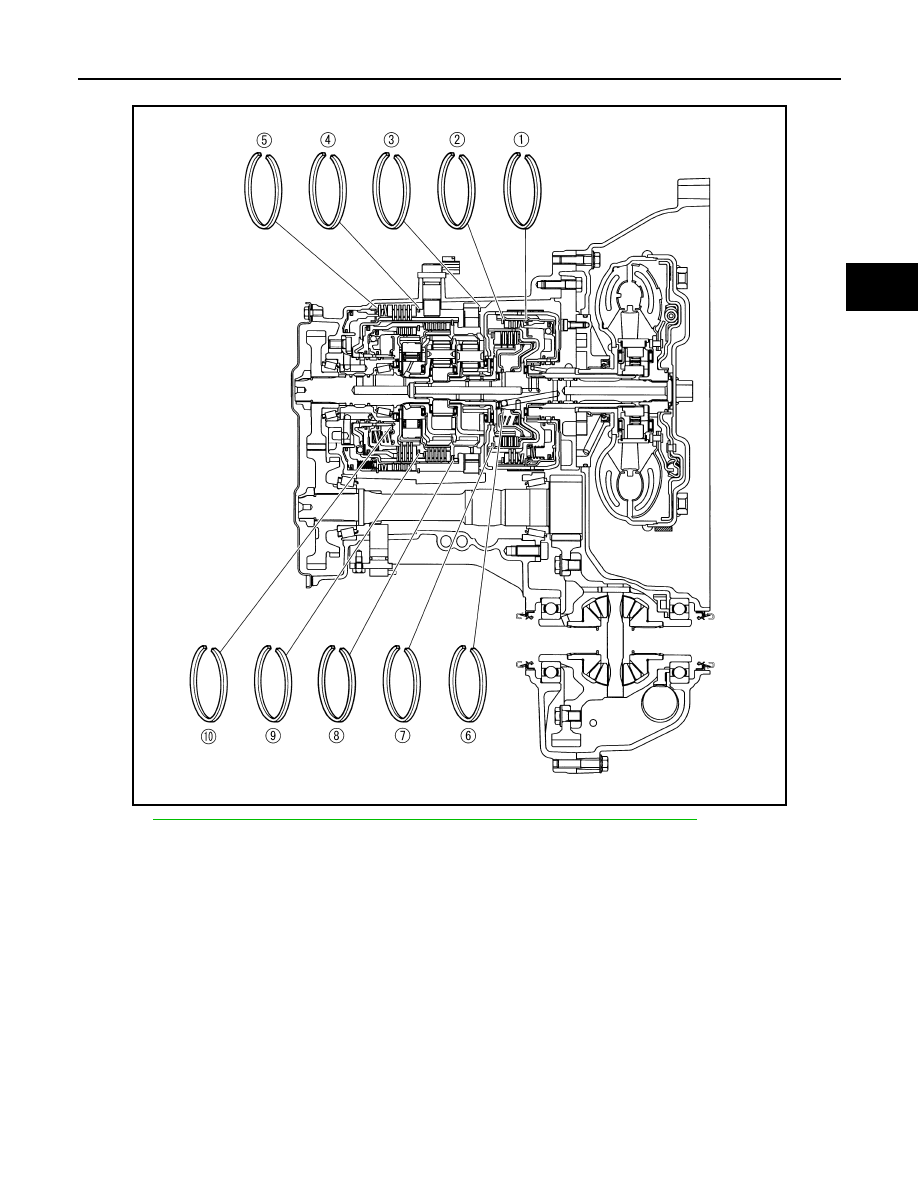

Location of Snap Rings

INFOID:0000000001730981

• Refer to

TM-320, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings"

.

SCIA6170J

TM-222

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

DISASSEMBLY

DISASSEMBLY

Disassembly

INFOID:0000000001730982

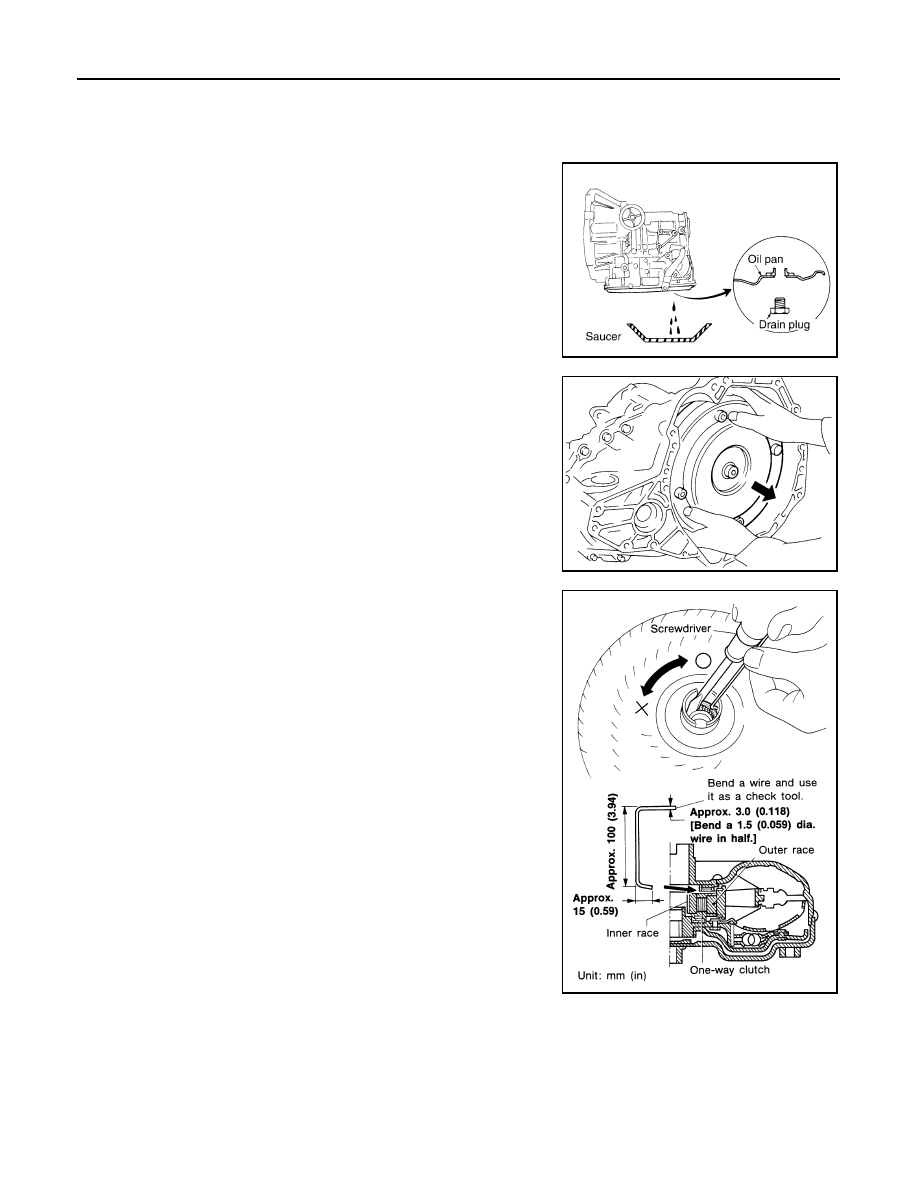

1.

Drain ATF through drain hole.

2.

Remove drain plug gasket from drain plug.

3.

Remove torque converter.

4.

Check torque converter one-way clutch using check tool as
shown.

a.

Insert check tool into groove of bearing support built into one-
way clutch outer race.

b.

When secring bearing support with check tool, rotate one-way
clutch spline using suitable tool.

c.

Check that inner race rotates clockwise only. If not, replace
torque converter assembly.

SCIA0003E

SAT008D

SAT009D
