SYSTEM SYMPTOM

TM-139

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

.

3.

Turn ignition switch OFF.

4.

Check voltage between TCM connector terminals and ground.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between ignition switch and TCM connector terminals 10, 19
• Harness for short or open between battery and TCM connector terminal 28
• 10A fuse (No.13, located in the fuse block) and 10A fuse (No.49, located in the IPDM E/R)
• Ignition switch.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

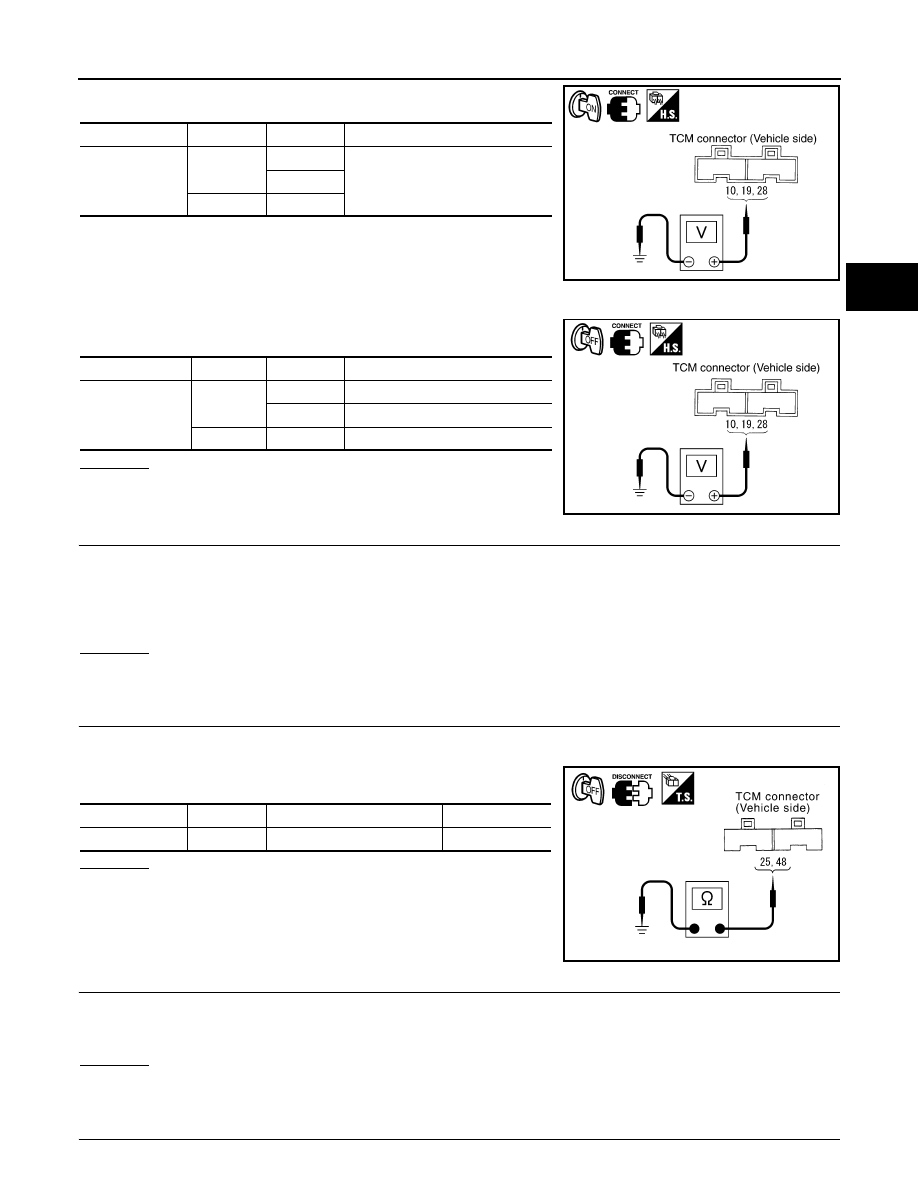

4.

CHECK TCM GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check continuity between TCM connector terminals and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

5.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between ignition switch and combination meter
• Combination meter.
OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

CHECK SYMPTOM

Item

Connector

Terminal

Judgement standard (Approx.)

TCM connector

E31

10

Battery voltage

19

E32

28

SCIA2656E

Item

Connector

Terminal

Judgement standard (Approx.)

TCM connector

E31

10

0V

19

0V

E32

28

Battery voltage

SCIA2657E

Item

Connector

Terminal

Continuity

TCM connector

E32

25, 48 - Ground

Yes

SCIA2671E

TM-140

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

SYSTEM SYMPTOM

Check again. Refer to

TM-180, "Check Before Engine Is Started"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 7.

7.

CHECK TCM

1.

Check TCM input/output. Refer to

TM-119, "Reference Value"

 (Type 1) or

TM-422, "Reference Value"

(Type 2).

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Engine Cannot Be Started in "P" and "N" Position

INFOID:0000000001696243

SYMPTOM:
• Engine cannot be started with selector lever in “P” or “N” position.
• Engine can be started with selector lever in “D”, “2”, “1” or “R” position.

1.

CHECK SELF-DIAGNOSIS RESULTS

Perform self-diagnosis. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

 or

TM-38, "Diagnosis

Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

 or

TM-38, "Diagnosis Procedure without CONSULT-III"

.

NO

>> GO TO 2.

2.

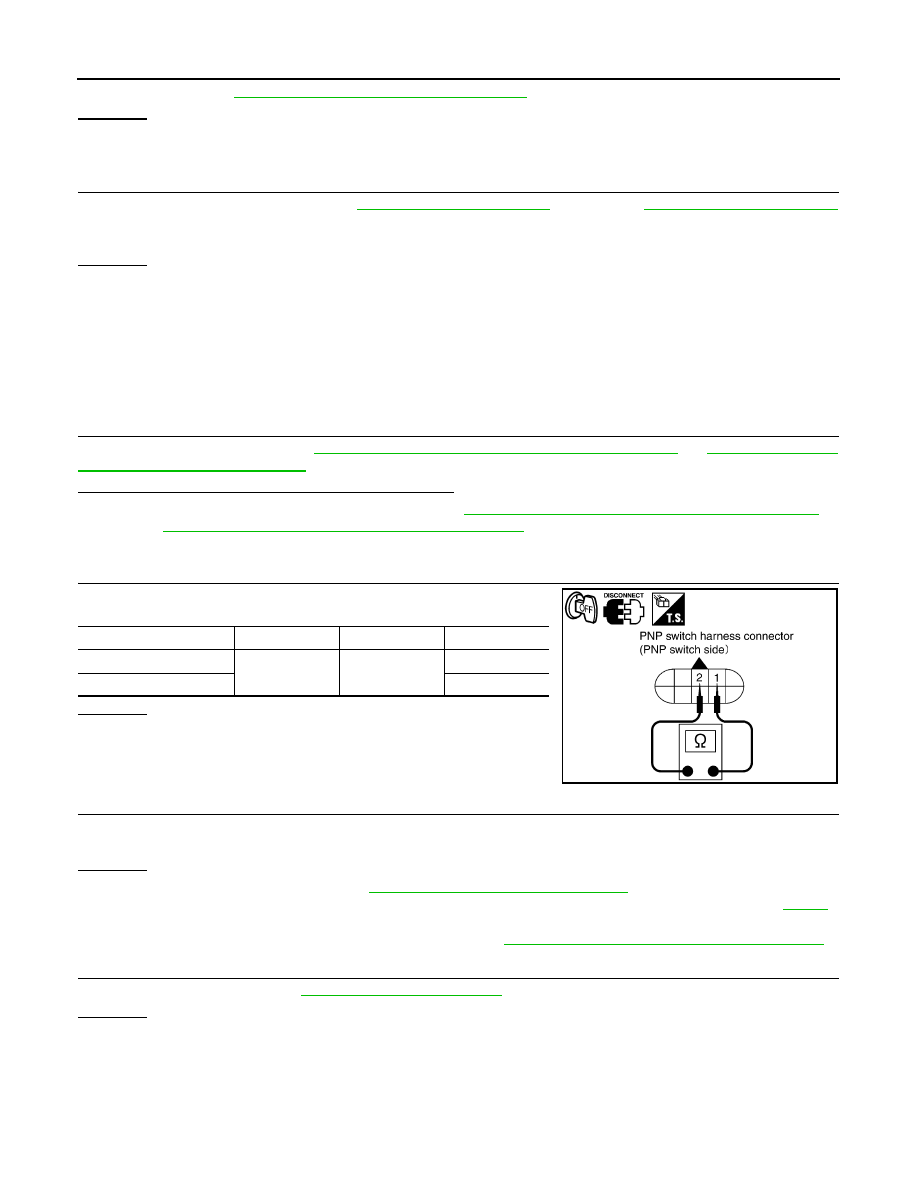

CHECK PNP SWITCH

Check continuity between PNP switch harness connector terminals.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK CONTROL CABLE ADJUSTMENT

Check PNP switch again with control cable disconnected from manual shaft of A/T assembly. Refer to test
group 2.

OK or NG

OK

>> Adjust control cable. Refer to

TM-204, "Adjustment of A/T Position"

.

NG

>> 1.

Check PNP switch (Refer to test group 2.) again after adjusting PNP switch (Refer to

TM-46

).

-

If OK, INSPECTION END

-

If NG, repair or replace PNP switch. Refer to

TM-195, "Park/Neutral Position (PNP) Switch"

.

4.

CHECK STARTING SYSTEM

Check starting system. Refer to

STR-6, "System Description"

.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

In "P" Position, Vehicle Moves Forward or Backward When Pushed

INFOID:0000000001696244

SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.

Selector lever position

Connector

terminal

Continuity

“P”, “N”

F25

1 - 2

Yes

Other positions

No

SCIA5606E

SYSTEM SYMPTOM

TM-141

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

CHECK A/T POSITION

Check A/T position. Refer to

TM-204, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 2.

NG

>> Adjust A/T position. Refer to

TM-204, "Adjustment of A/T Position"

.

2.

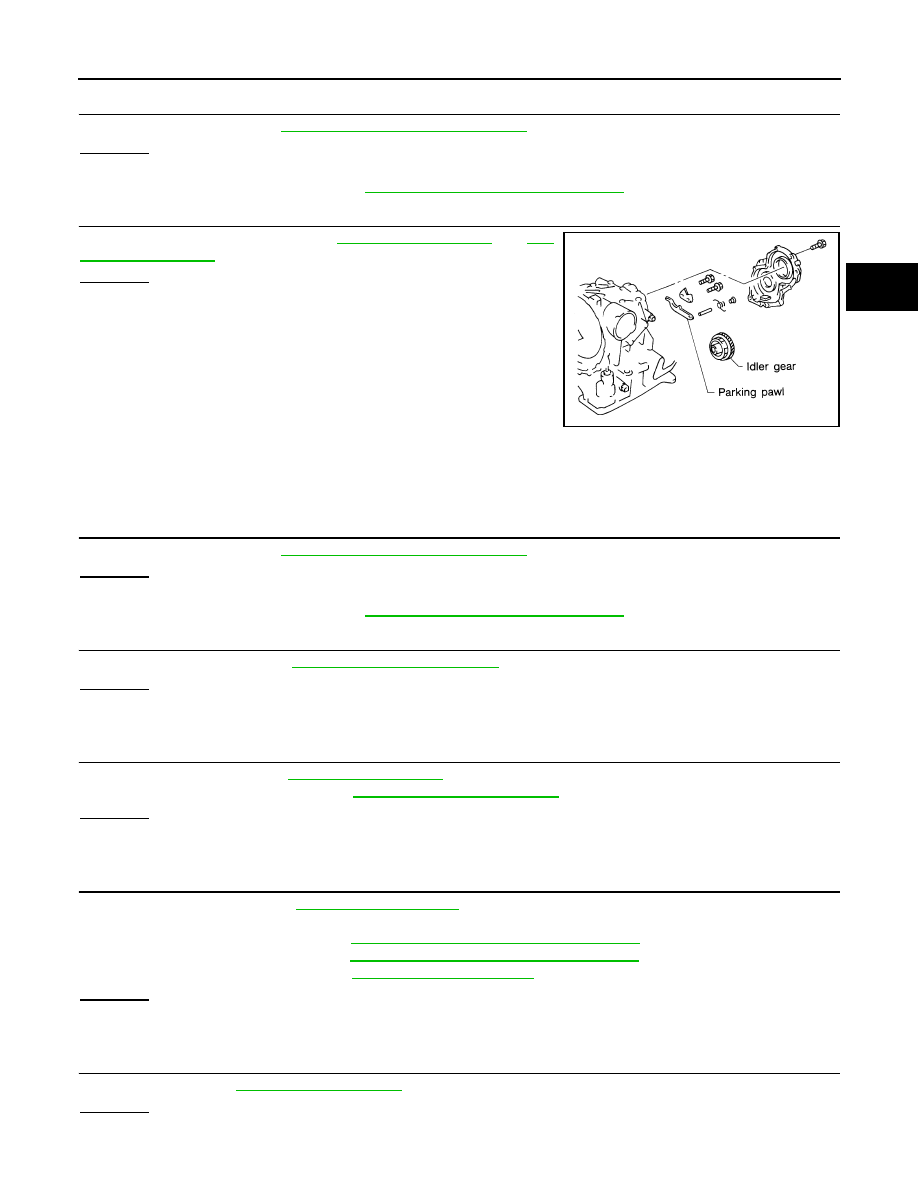

CHECK PARKING COMPONENTS

Check parking components. Refer to

TM-213, "Component"

 and

TM-

222, "Disassembly"

.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

In "N" Position, Vehicle Moves

INFOID:0000000001696245

SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.

1.

CHECK A/T POSITION

Check A/T position. Refer to

TM-204, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 2.

NG

>> Adjust A/T position. Refer to

TM-204, "Adjustment of A/T Position"

.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

TM-213, "Component"

.

2.

Check A/T fluid condition. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING ITEM

1.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

2.

Check the following items:

-

Forward clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Overrun clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Reverse clutch assembly. Refer to

TM-258, "Reverse Clutch"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK SYMPTOM

Check again. Refer to

TM-181, "Check at Idle"

.

OK or NG

OK

>> INSPECTION END

SAT282F

TM-142

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

SYSTEM SYMPTOM

NG

>> GO TO 6.

6.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Large Shock "N"

→

 "R" Position

INFOID:0000000001696246

SYMPTOM:
There is a large shock when changing from “N” to “R” position.

1.

CHECK SELF-DIAGNOSTIC RESULTS

Perform self-diagnosis. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

 or

TM-38, "Diagnosis

Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

NO

>> GO TO 2.

2.

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “D” position. Refer to

TM-178, "Inspection and Judgment"

.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEM

1.

Remove control valve assembly. Refer to

TM-191, "Control Valve Assembly and Accumulators"

.

2.

Check the following items:

-

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)

-

Line pressure solenoid valve

-

Oil pump assembly. Refer to

TM-240, "Oil Pump"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK SYMPTOM

Check again. Refer to

TM-181, "Check at Idle"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Vehicle Does Not Creep Backward in "R" Position

INFOID:0000000001696247

SYMPTOM:
Vehicle does not creep backward when selecting “R” position.

1.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG
