CO-26

< DISASSEMBLY AND ASSEMBLY >

[HR16DE]

COOLING FAN

DISASSEMBLY AND ASSEMBLY

COOLING FAN

DISASSEMBLY AND ASSEMBLY

INFOID:0000000001534610

Disassembly

1.

Remove cooling fan from fan motor.

2.

Remove fan motor from fan shroud.

Inspection After Disassembly

Inspect cooling fan for crack or unusual bend.
• If anything is found, replace cooling fan.

Assembly

Assembly is the reverse order of disassembly.

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-27

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000001381577

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (Imp qt)

Radiator

INFOID:0000000001381578

RESERVOIR TANK CAP

Unit: kPa (bar, kg/cm

2

, psi)

RADIATOR

Unit: kPa (bar, kg/cm

2

, psi)

Thermostat

INFOID:0000000001381579

Engine coolant capacity [With reservoir tank (“MAX” level)]

6.3 (5-3/8)

Cap relief pressure

Standard

140 (1.4, 1.43, 20.3)

Limit

150 (1.5, 1.53, 21.75)

Leakage testing pressure

150 (1.5, 1.53, 21.75)

Thermostat

Standard

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

8.0 mm/95

°

C (0.315 in/203

°

F)

Valve closing temperature

77

°

C (171

°

F)

CO-28

< FUNCTION DIAGNOSIS >

[MR18DE]

COOLING SYSTEM

FUNCTION DIAGNOSIS

COOLING SYSTEM

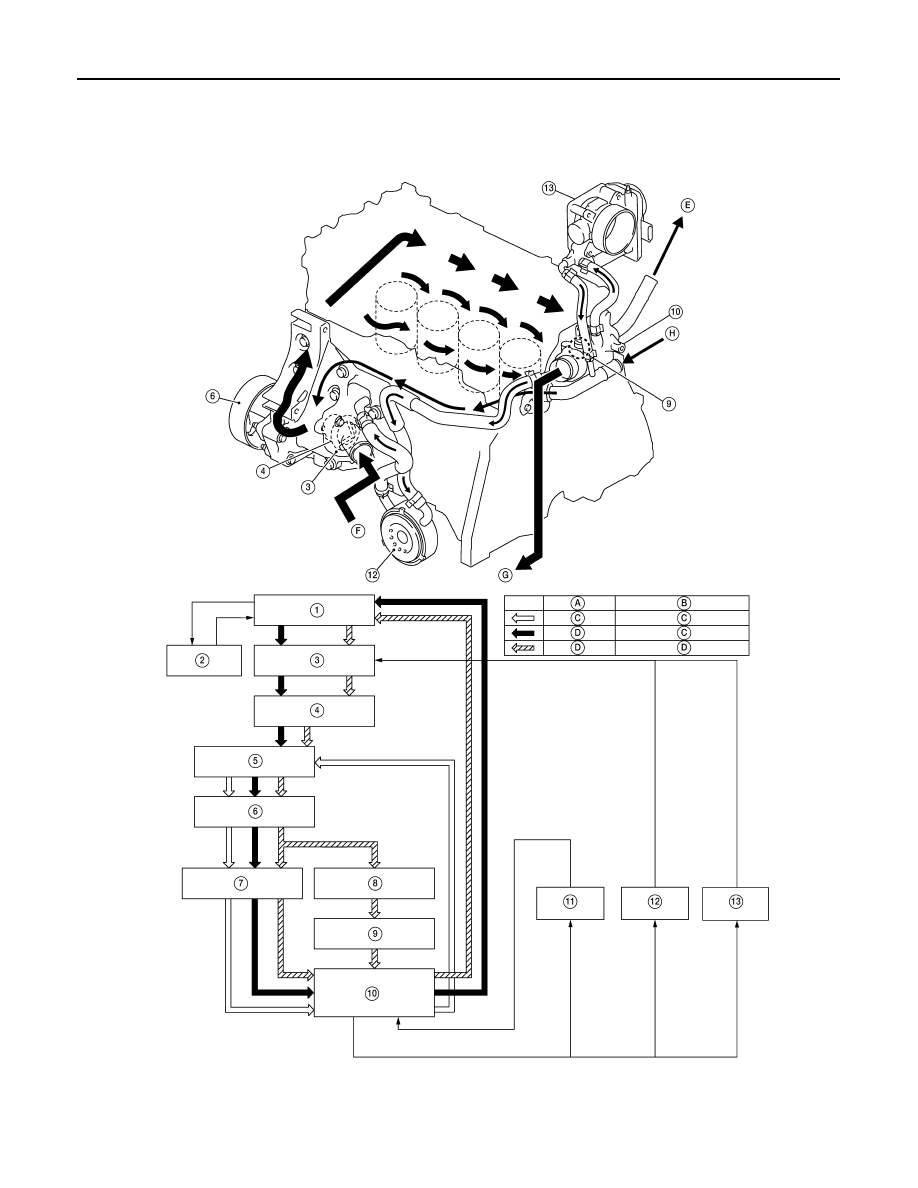

Cooling Circuit

INFOID:0000000001337837

AWBIA0132ZZ

1.

Radiator

2.

Reservoir tank

3.

Water inlet

4.

Thermostat

5.

Thermostat housing

6.

Water pump

7.

Cylinder head

8.

Cylinder block

9.

Water control valve

COOLING SYSTEM

CO-29

< FUNCTION DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

10. Water outlet

11.

Heater

12. Oil cooler

13. Electronic throttle control actuator

A.

Thermostat

B.

Water control valve

C.

Closed

D.

Open

E.

To heater

F.

From radiator

G.

To radiator

H.

From heater
