DIAGNOSIS AND REPAIR WORKFLOW

NOTE:
If any malfunction is found, immediately disconnect the battery cable from the negative terminal.

1.

CHECK ENGINE START

Crank the engine and check that the engine starts.

Does the engine start?

YES

>> GO TO 2

NO

>> GO TO 3

2.

CHECK THAT THE STARTER MOTOR STOPS

Check that the starter motor stops after starting the engine.

Does the starter motor stop?

YES

>> INSPECTION END.

NO

>> Replace starter motor.

3.

CHECK THE ENGINE SPEED WITH CRANKING

Check that the engine runs at cranking.
Does engine turn by cranking?

YES

>> GO TO 4

NO

>> GO TO 5

4.

CHECK THE ENGINE SPEED WITH CRANKING

Check that the engine speed is not low at cranking.

Does engine turn normally?

YES

>> Check ignition/fuel system.

NO

>> Check charge condition, corrosion and connection condition of the battery. Refer to

STR-25,

"Work Flow"

.

5.

CHECK STARTER MOTOR ACTIVATION

Check that the starter motor runs at cranking.

Does starter motor turn?

YES

>> GO TO 6

NO

>> GO TO 7

6.

ENGINE ROTATION STATUS

Check that the engine can be rotated by hand.

Does engine turn freely by hand?

YES

>> Replace starter motor.

NO

>> Perform further diagnosis of engine mechanical or powertrain mechanism. Refer to EM, TM or CL

sections.

7.

CHECK POWER SUPPLY CIRCUIT

Check the following conditions.
• Fuse and fusible link
• Charge condition, corrosion and connection condition of the battery. Refer to

STR-25, "Work Flow"

.

Are these inspection results normal?

YES

>> GO TO 8

NO

>> Repair as needed.

8.

CHECK STARTING SYSTEM WIRING

Check the following.
• “B” terminal circuit. Refer to

STR-30, "Description"

• “S” terminal circuit. Refer to

STR-31, "Description"

Are these inspection results normal?

YES

>> GO TO 9

NO

>> Repair as needed.

DIAGNOSIS AND REPAIR WORKFLOW

STR-27

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

9.

CHECK MAGNETIC SWITCH OPERATION SOUND

Check that a magnetic switch operation sound can be heard when the ignition switch is set at the starting posi-
tion.

Does magnetic switch operation sound occur?

YES

>> GO TO 10

NO

>> Replace starter motor.

10.

PINION AND RING GEAR ENGAGEMENT CHECK

Check condition of pinion and ring gear mesh.
Is the inspection result normal?

YES

>> Replace starter motor.

NO

>> GO TO 11

11.

CHECK STARTER MOTOR UNIT

Check the following.
• Check pinion moving mechanism.
• Check ring gear.

Are these inspection results normal?

YES

>> INSPECTION END.

NO

>> Repair or replace, if necessary.

STR-28

< FUNCTION DIAGNOSIS >

[K9K]

STARTING SYSTEM

FUNCTION DIAGNOSIS

STARTING SYSTEM

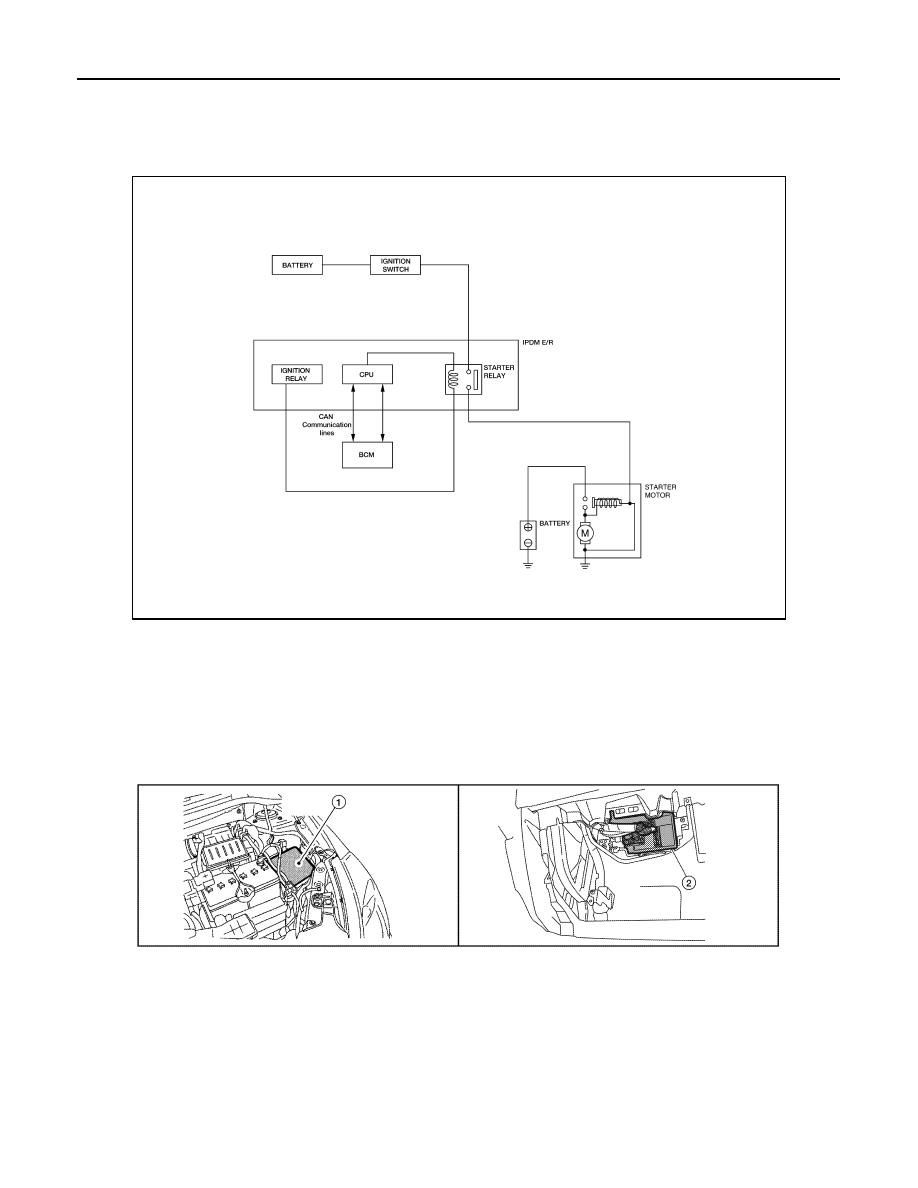

System Diagram

INFOID:0000000001728574

System Description

INFOID:0000000001728575

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor.  The
starter motor is grounded to the cylinder block.  With power and ground supplied, the starter motor operates.

Component Parts Location

INFOID:0000000001728576

ALBIA0473GB

1.

IPDM E/R E44, E45, E46

2.

BCM M18 (view with glove box re-
moved)

ALBIA0475GB

STARTING SYSTEM

STR-29

< FUNCTION DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Component Description

INFOID:0000000001728577

Component part

Description

BCM

BCM sends a starter request signal to the CPU of the IPDM E/R
over the CAN communication lines.

IPDM E/R

CPU inside IPDM E/R operates the starter relay at the request of
the BCM over the CAN communication lines.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.
