STR-22

< SYMPTOM DIAGNOSIS >

[MR18DE]

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000001728572

Symptom

Reference

No normal cranking

Refer to

STR-14, "Work Flow"

.

Starter motor does not rotate

PRECAUTIONS

STR-23

< PRECAUTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001689455

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

STR-24

< ON-VEHICLE REPAIR >

[MR18DE]

STARTER MOTOR

ON-VEHICLE REPAIR

STARTER MOTOR

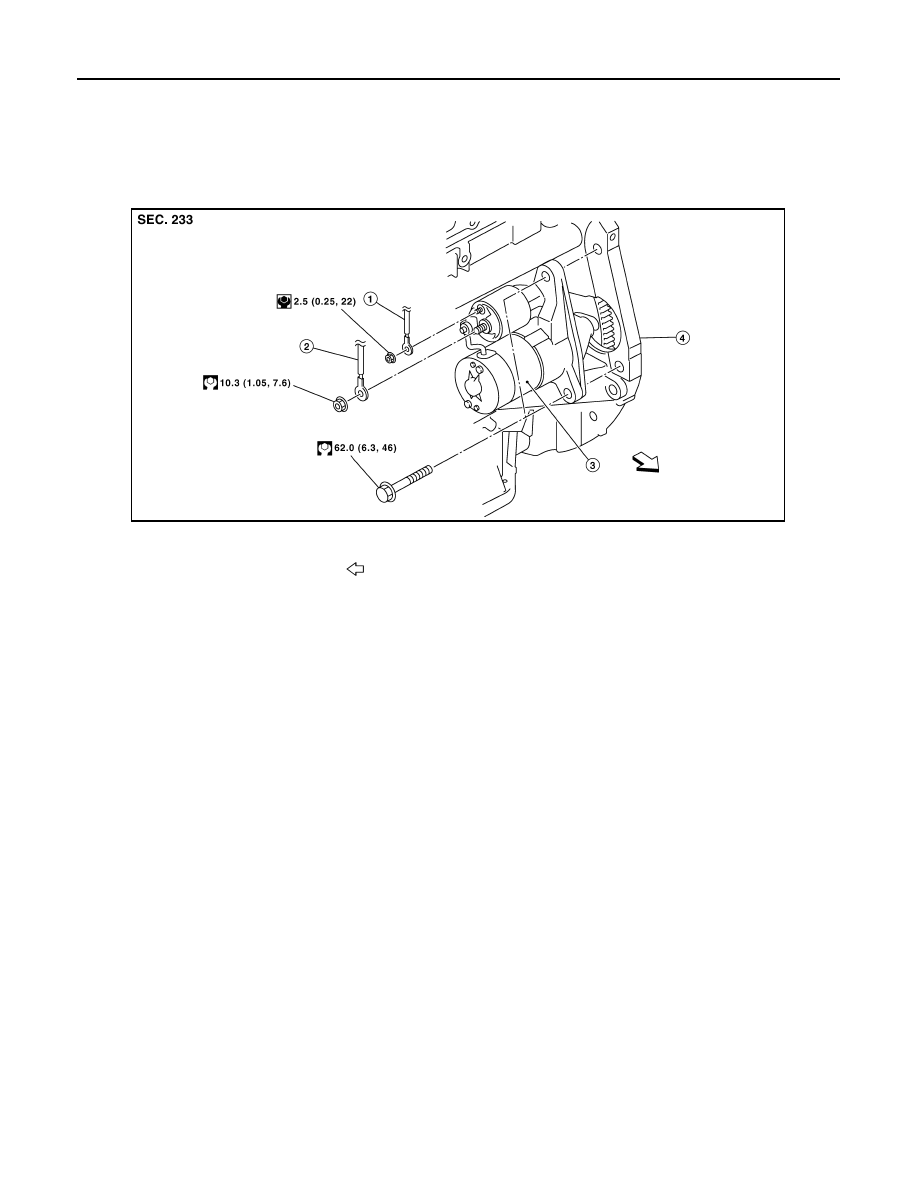

Removal and Installation

INFOID:0000000001689442

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Disconnect the oil pressure switch connector.

3.

Remove “B” terminal nut and “B” terminal harness.

4.

Remove “S” terminal nut and “S” terminal harness.

5.

Remove starter motor bolts.

6.

Remove starter motor upward from the vehicle.

CAUTION:

Never damage oil pressure switch when removing starter motor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

1.

"S" terminal harness

2.

"B" terminal harness

3.

Starter motor

4.

Cylinder block

Engine front

WKIA5611E

DIAGNOSIS AND REPAIR WORKFLOW

STR-25

< BASIC INSPECTION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

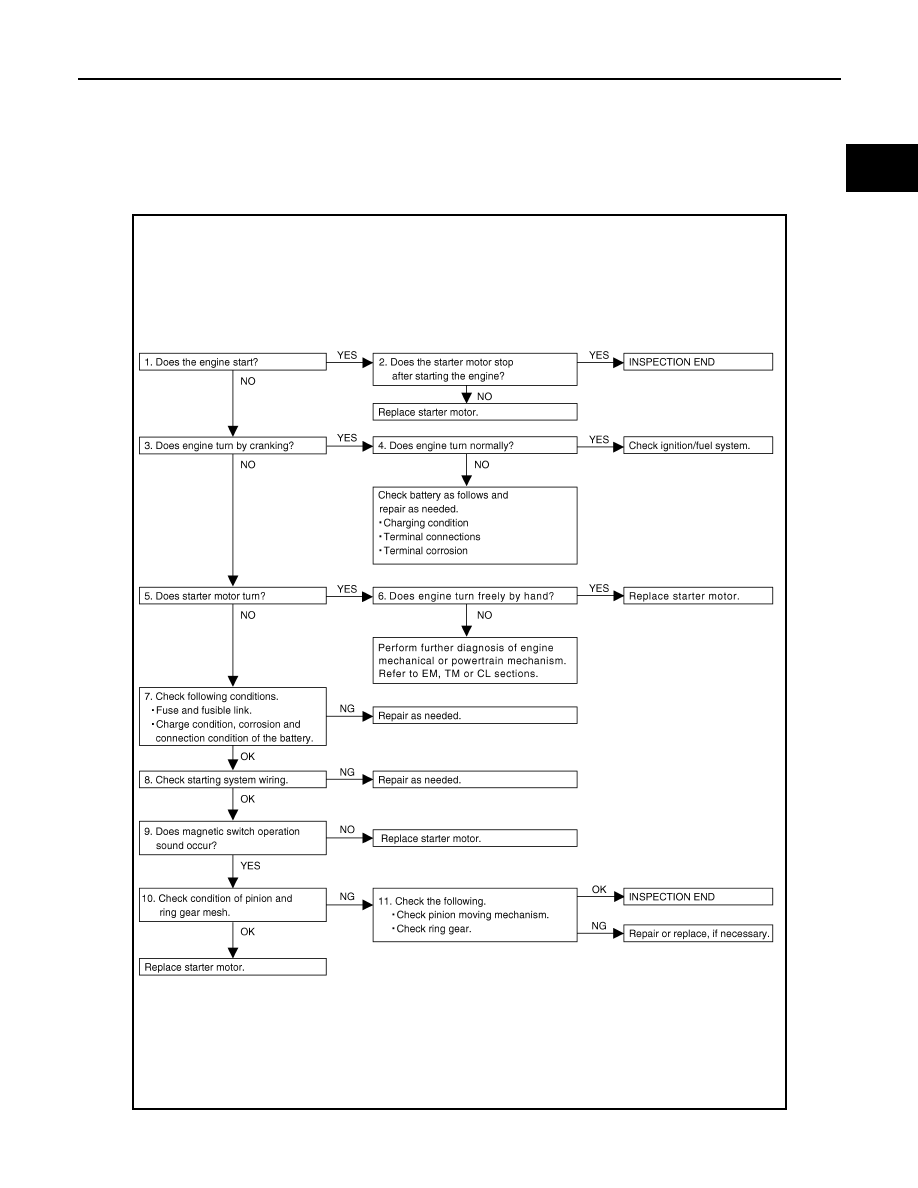

Work Flow

INFOID:0000000001728601

OVERALL SEQUENCE

DETAILED FLOW

JSBIA0008GB
