STR-10

< COMPONENT DIAGNOSIS >

[HR16DE]

STARTING SYSTEM

STARTING SYSTEM

Wiring Diagram

INFOID:0000000001712886

AWBWA0019GB

STARTING SYSTEM

STR-11

< SYMPTOM DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000001712887

Symptom

Reference

No normal cranking

Refer to

XX-XX, "*****"

.

Starter motor does not rotate

STR-12

< PRECAUTION >

[HR16DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001689454

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

STARTER MOTOR

STR-13

< ON-VEHICLE REPAIR >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ON-VEHICLE REPAIR

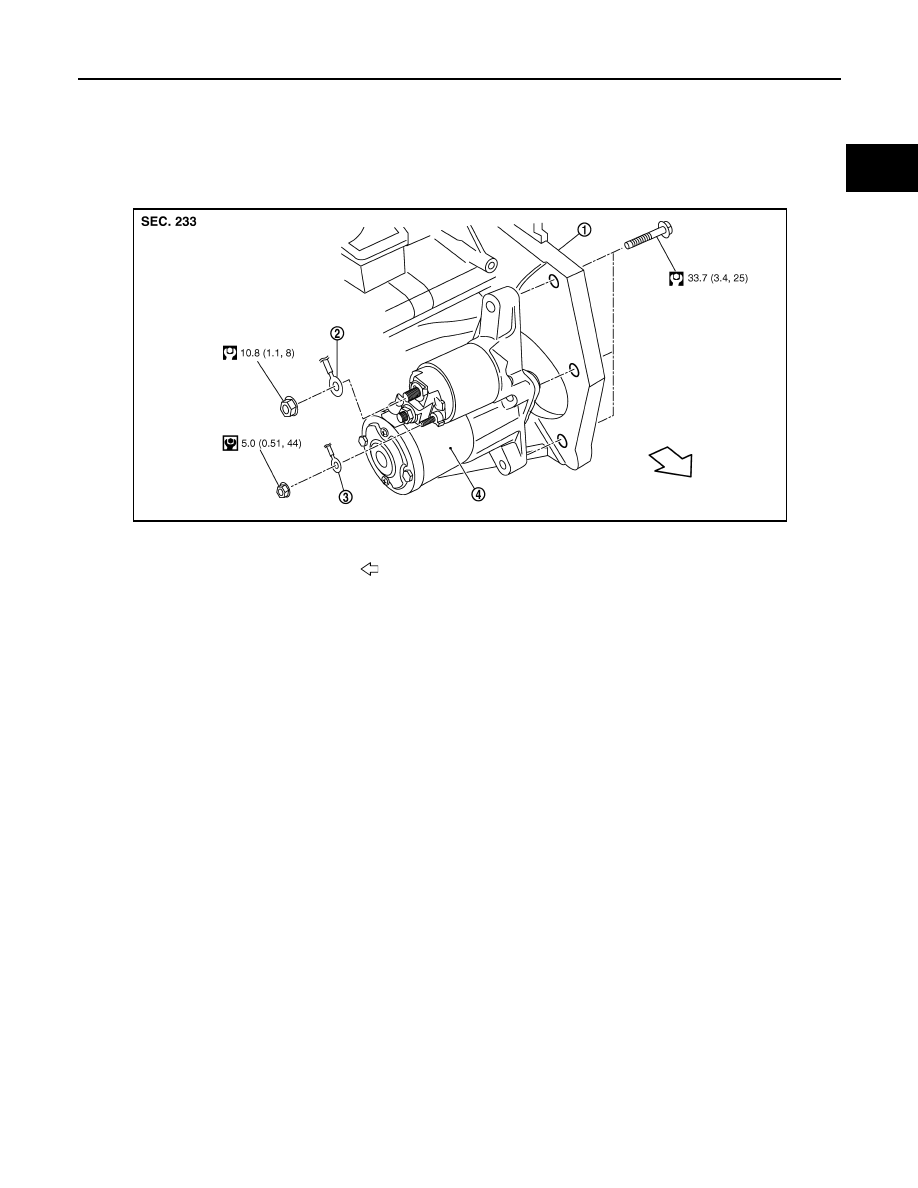

STARTER MOTOR

Removal and Installation

INFOID:0000000001689433

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove “B” terminal nut and “B” terminal harness.

3.

Remove “S” terminal nut and “S” terminal harness.

4.

Remove starter motor bolts.

5.

Remove starter motor upward from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

1.

Cylinder block

2.

“B” terminal harness

3.

“S” terminal harness

4.

Starter motor

Vehicle front

PKIC0987E
