SRC-28

< COMPONENT DIAGNOSIS >

B1150 – B1153 SIDE CURTAIN AIR BAG MODULE LH

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-13, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001396379

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?

YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

LH SIDE CURTAIN AIR BAG MODULE

Replace the LH side curtain air bag module.  Refer to

SR-10, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT

B1150 – B1153 SIDE CURTAIN AIR BAG MODULE LH

SRC-29

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

Replace the air bag diagnosis sensor unit.

SR-15, "Removal and Installation"

.

>> GO TO 5

5.

RELATED HARNESS

Replace the related harness.

>> END

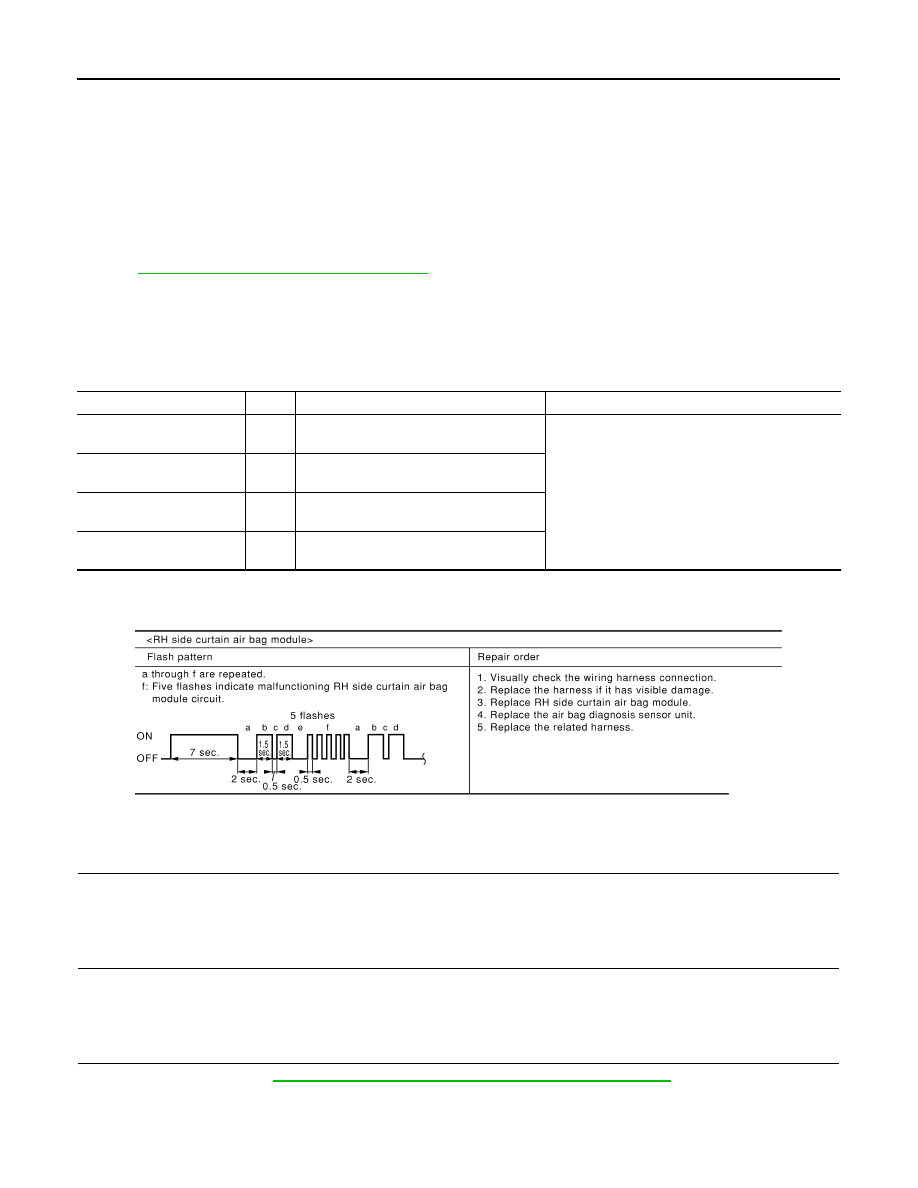

SRC-30

< COMPONENT DIAGNOSIS >

B1145 – B1148 SIDE CURTAIN AIR BAG MODULE RH

B1145 – B1148 SIDE CURTAIN AIR BAG MODULE RH

Description

INFOID:0000000001396380

DTC B1145 – B1148 RH SIDE CURTAIN AIR BAG MODULE

The RH side curtain air bag module is wired to the air bag diagnosis sensor unit.  The air bag diagnosis sensor
unit will monitor for opens and shorts in detected lines to the RH side curtain air bag module.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000001396381

DTC DETECTION LOGIC

With CONSULT-lll

Without CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

CONSULT-III

Select "DIAG MODE".

>> GO TO 3

3.

DTC

If DTC is detected. Refer to

SRC-31, "Diagnosis Procedure (Component diagnosis)"

.

>> END

CONSULT-III name

DTC

DTC detecting condition

Repair order

CURTAIN MODULE RH

[OPEN]

B1145

RH side curtain air bag module circuit is
open.

1.

Visually check the wiring harness connection.

2.

Replace the harness if it has visible damage.

3.

Replace the RH side curtain air bag module.

4.

Replace the air bag diagnosis sensor unit.

5.

Replace the related harness.

CURTAIN MODULE RH

[VB-SHORT]

B1146

RH side curtain air bag module circuit is
shorted to a power supply circuit.

CURTAIN MODULE RH

[GND-SHORT]

B1147

RH side curtain air bag module circuit is
shorted to ground.

CURTAIN MODULE RH

[SHORT]

B1148

RH side curtain air bag module circuits are
shorted to each other.

WHIA0266E

B1145 – B1148 SIDE CURTAIN AIR BAG MODULE RH

SRC-31

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

DTC CONFIRMATION PROCEDURE (Without CONSULT-lll)

NOTE:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 2

2.

IGNITION SWITCH

After air bag warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

>> GO TO 3

3.

WAIT TIME

Wait more than 3 seconds.

>> GO TO 4

4.

REPEAT STEPS

Repeat steps 1 to 3 twice.

>> GO TO 5

5.

IGNITION SWITCH

Turn ignition switch ON.

>> GO TO 6

6.

DIAGNOSTIC MODE

SRS system is now in diagnostic mode and AIR BAG warning lamp flashes. Refer to

SRC-13, "Trouble Diag-

nosis without CONSULT-III"

.

>> END

Diagnosis Procedure (Component diagnosis)

INFOID:0000000001396382

Recheck SRS after each replacement.

1.

HARNESS CONNECTOR

Is there any visible damage to the connector?
YES or NO

YES

>> Replace the harness.

NO

>> GO TO 2

2.

WIRING HARNESS

Is there any visible damage to the harness?

YES or NO

YES

>> Replace the harness.

NO

>> GO TO 3

3.

RH SIDE CURTAIN AIR BAG MODULE

Replace the RH side curtain air bag module.  Refer to

SR-10, "Removal and Installation"

.

>> GO TO 4

4.

AIR BAG DIAGNOSIS SENSOR UNIT
