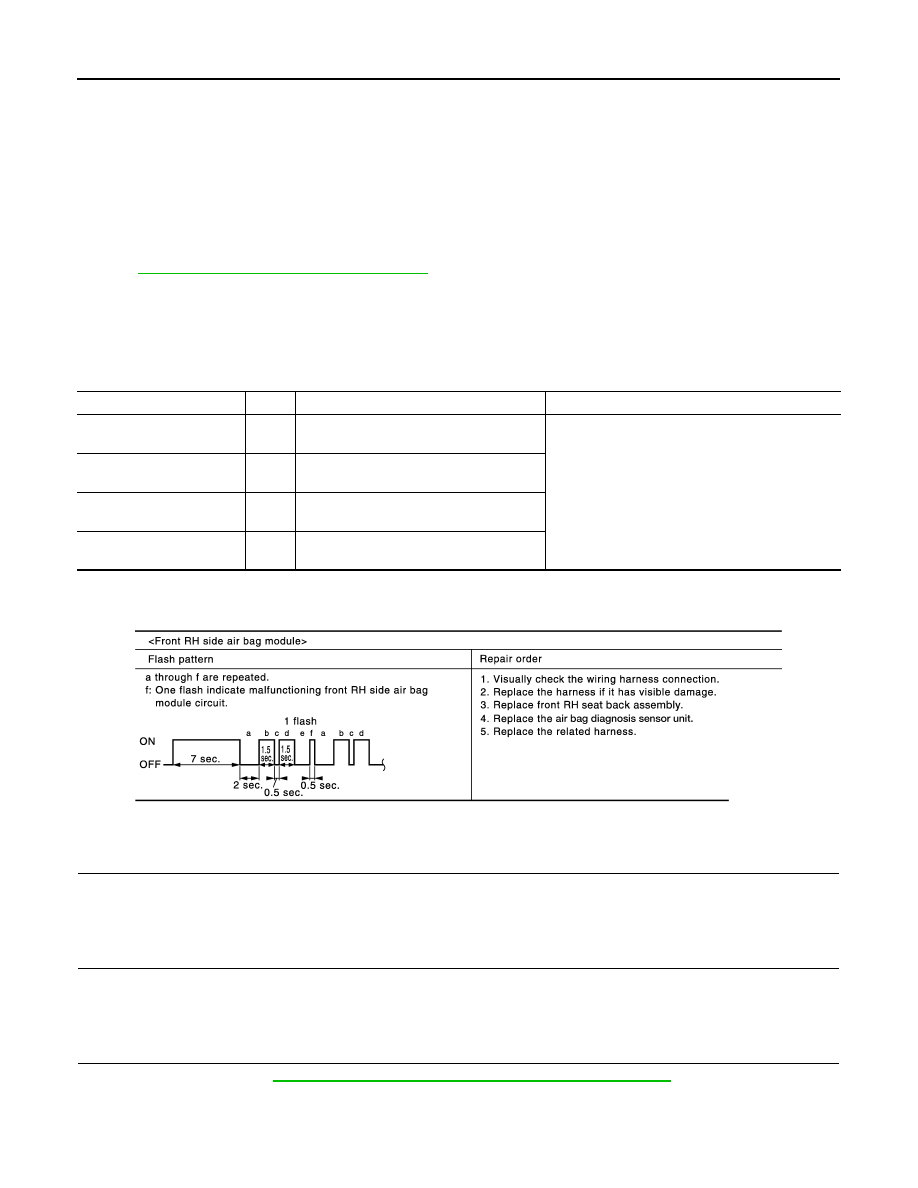

SRC-24 < COMPONENT DIAGNOSIS > B1129 – B1132 SIDE AIRBAG MODULE RH B1129 – B1132 SIDE AIRBAG MODULE RH Description INFOID:0000000001396374 DTC B1129 – B1132 FRONT RH SIDE AIR BAG MODULE The front RH side air bag module is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000001396375 DTC DETECTION LOGIC With CONSULT-lll Without CONSULT-lll DTC CONFIRMATION PROCEDURE (With CONSULT-lll) 1. IGNITION SWITCH Turn ignition switch ON. >> GO TO 2 2. CONSULT-III Select "DIAG MODE". >> GO TO 3 3. DTC If DTC is detected. Refer to SRC-25, "Diagnosis Procedure (Component diagnosis)" . >> END CONSULT-III name DTC DTC detecting condition Repair order SIDE MODULE RH [OPEN] B1129 Front RH side air bag module circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front RH seat back assembly. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. SIDE MODULE RH [VB-SHORT] B1130 Front RH side air bag module circuit is SIDE MODULE RH [GND-SHORT] B1131 Front RH side air bag module circuit is SIDE MODULE RH [SHORT] B1132 Front RH side air bag module circuits are WHIA0264E |
