CL-14

< SERVICE INFORMATION >

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

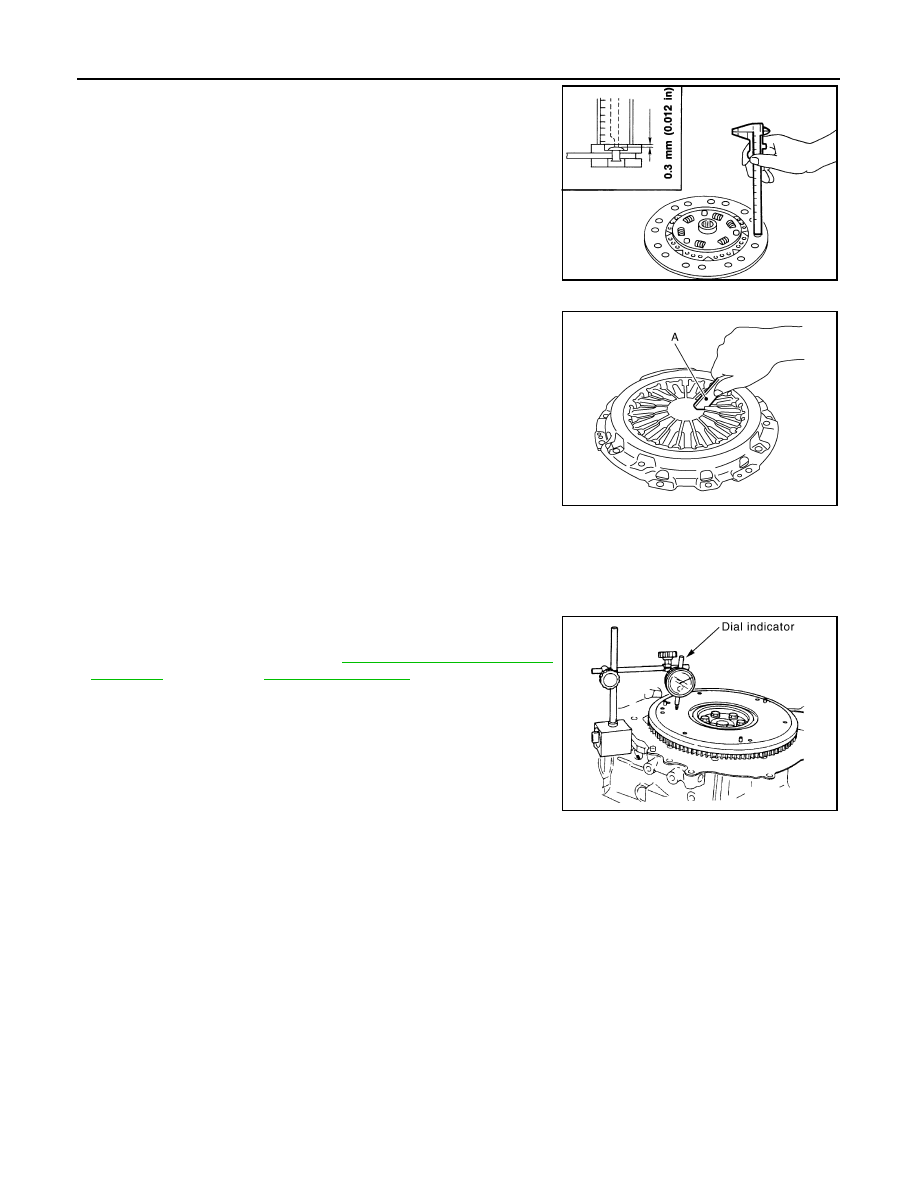

• Use a suitable tool to measure the depth to clutch disc facing rivet

heads. If it exceeds the allowable wear limit, replace clutch disc.

Clutch Cover

Check clutch cover installed on vehicle for unevenness of diaphragm
spring toe height.

• If out of limit, adjust the height using Tool (A).
• Check clutch cover thrust ring for wear or breakage. If wear or

breakage is found, replace clutch cover assembly.
NOTE:
• Worn thrust ring will generate a beating noise when tapped at the

rivet with a suitable tool.

• Broken thrust ring will make a clinking sound when cover is shaken up and down.

• If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,

repair the surface with sandpaper. If surface is damaged or distorted, replace the assembly.

Flywheel Runout

• Check contact surface of flywheel for slight burns or discoloration.

Repair flywheel with emery paper.

• Check the flywheel runout. Refer to

EM-219, "Inspection After Dis-

assembly"

 (MR18DE) or

EM-330, "Inspection"

 (K9K).

CAUTION:

Measure flywheel outer face (not on knock pin and clutch cover
mounting hole).

INSTALLATION

1.

Clean clutch disc and input shaft splines to remove grease and dust caused by abrasion.

2.

Apply recommended grease to clutch disc and input shaft splines.

CAUTION:

Be sure to apply grease to the points specified. Otherwise, noise, poor disengagement, or damage
to the clutch may result. Excessive grease may cause slip or shudder. If it adheres to CSC seal, it
will cause clutch fluid leakage. Wipe off excess grease.

3.

Install clutch disc using tool.

4.

Install clutch cover. Pre-tighten clutch cover bolts.

Wear limit of facing
surface to rivet head

: 0.3 mm (0.012 in)

SCL229

Uneven limit

: 0.7 mm (0.028 in) or less

Tool number A

: ST20050240 (    —    )

PCIB1502E

PBIC2646E

Tool number

: KV30101000 (    —    )

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

CL-15

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

5.

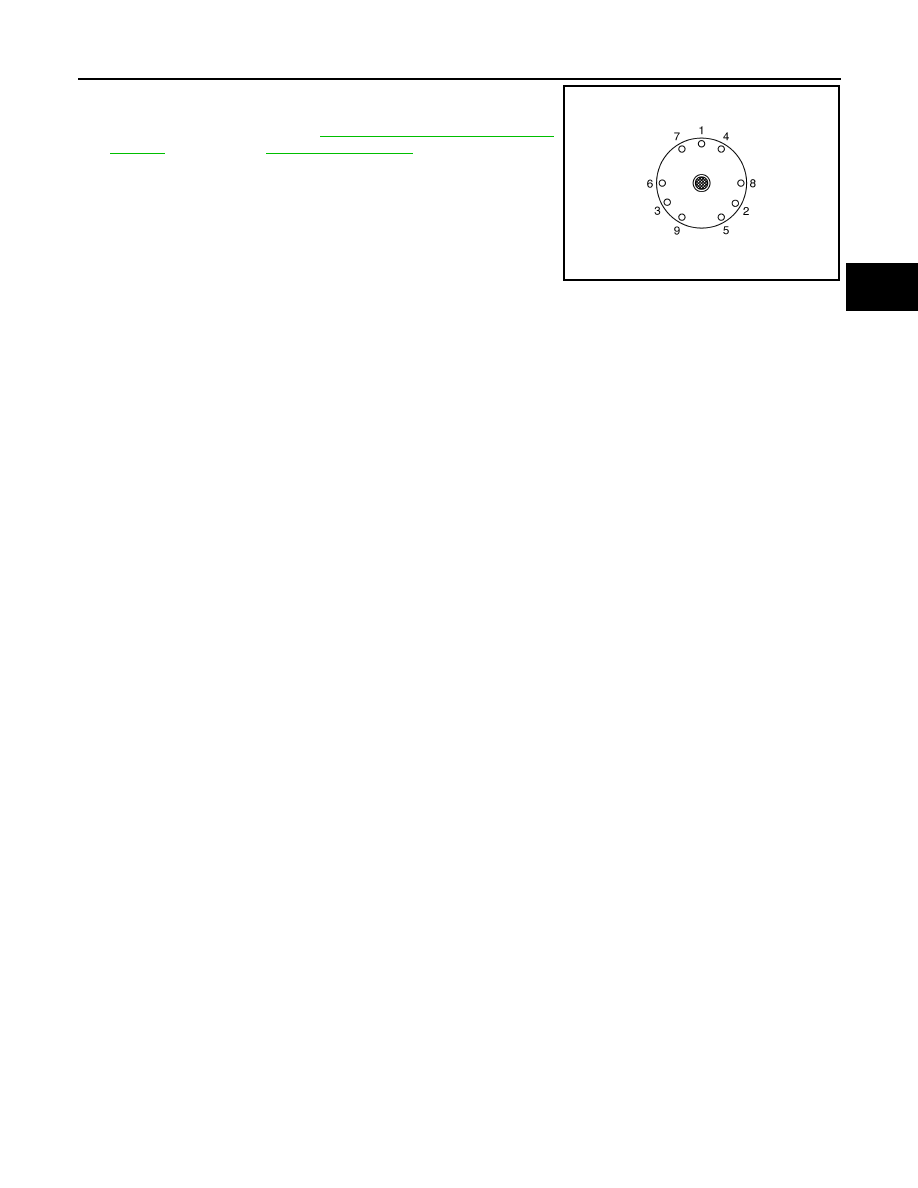

Tighten clutch cover bolts evenly in two steps in the order
shown.

6.

Install the transaxle, refer to

EM-219, "Inspection After Disas-

sembly"

 (MR18DE) or

EM-330, "Inspection"

 (K9K).

PCIB1772E

CL-16

< SERVICE INFORMATION >

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Clutch Control System

INFOID:0000000001375300

Clutch Pedal

INFOID:0000000001375301

Clutch Disc

INFOID:0000000001375302

Clutch Cover

INFOID:0000000001375303

Type of clutch control

Hydraulic

Clearance

A

 between clutch pedal and ASCD switch threaded

end while clutch pedal is fully released (if equipped).

0.74 - 1.96 mm (0.0291 - 0.0772 in)

Clearance

C

 between clutch pedal and clutch interlock switch

threaded end while clutch pedal is fully depressed.

0.74 - 1.96 mm (0.0291 - 0.0772 in)

Model

225

Facing size (outer dia.

×

 inner dia.

×

 thickness)

225 mm

×

 160 mm

×

 3.2 mm (8.86 in

×

 6.30 in

×

 0.126 in)

Thickness of disc assembly with load

7.2 - 7.6 mm (0.283 - 0.299 in) with 5,394 N (550 kg, 1,213 lb)

Runout limit/diameter of the area to be measured

1.0 mm (0.039 in) / 215 mm (8.46 in) dia.

Maximum spline backlash (at outer edge of disc)

1.0 mm (0.039 in)

Wear limit of facing surface to rivet head

0.3 mm (0.012 in)

Set-load

5,394 N (550 kg, 1,213 lb)

Diaphragm spring lever height

20 - 22 mm (0.79 - 0.87 in)

Uneven limit diaphragm spring toe height

0.7 mm (0.028 in) or less

CO-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

CO

A

CO

N

O

P

CONTENTS

ENGINE COOLING SYSTEM

HR16DE

FUNCTION DIAGNOSIS ...............................

4

DESCRIPTION ....................................................

4

Engine Cooling System .............................................

4

Engine Cooling System Schematic  ...........................

5

SYMPTOM DIAGNOSIS  ...............................

6

OVERHEATING CAUSE ANALYSIS  ..................

6

Troubleshooting Chart ...............................................

6

PRECAUTION ...............................................

8

PRECAUTIONS ...................................................

8

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

8

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

8

Precaution for Liquid Gasket .....................................

8

PREPARATION ...........................................

10

PREPARATION ..................................................

10

Special Service Tool  ...............................................

10

Commercial Service Tool  ........................................

10

ON-VEHICLE MAINTENANCE ....................

11

ENGINE COOLANT  ...........................................

11

Inspection ................................................................

11

Changing Engine Coolant  .......................................

11

RADIATOR .........................................................

14

Checking Radiator Cap  ...........................................

14

Checking Radiator ...................................................

14

ON-VEHICLE REPAIR .................................

16

RADIATOR .........................................................

16

Component ..............................................................

16

Removal and Installation  .........................................

16

COOLING FAN ..................................................

18

Component (Models with A/C) .................................

18

Component (Models without A/C) ............................

18

Removal and Installation  .........................................

19

WATER PUMP  ..................................................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

Inspection ................................................................

21

THERMOSTAT ..................................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

22

Inspection ................................................................

23

WATER OUTLET  ..............................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

Inspection ................................................................

25

DISASSEMBLY AND ASSEMBLY ..............

26

COOLING FAN ..................................................

26

DISASSEMBLY AND ASSEMBLY ..........................

26

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

27

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

27

Periodical Maintenance Specification ......................

27

Radiator ...................................................................

27

Thermostat ..............................................................

27

MR18DE

FUNCTION DIAGNOSIS ..............................

28

COOLING SYSTEM  ..........................................

28

Cooling Circuit  .........................................................

28
