CL-10

< SERVICE INFORMATION >

CLUTCH MASTER CYLINDER

3.

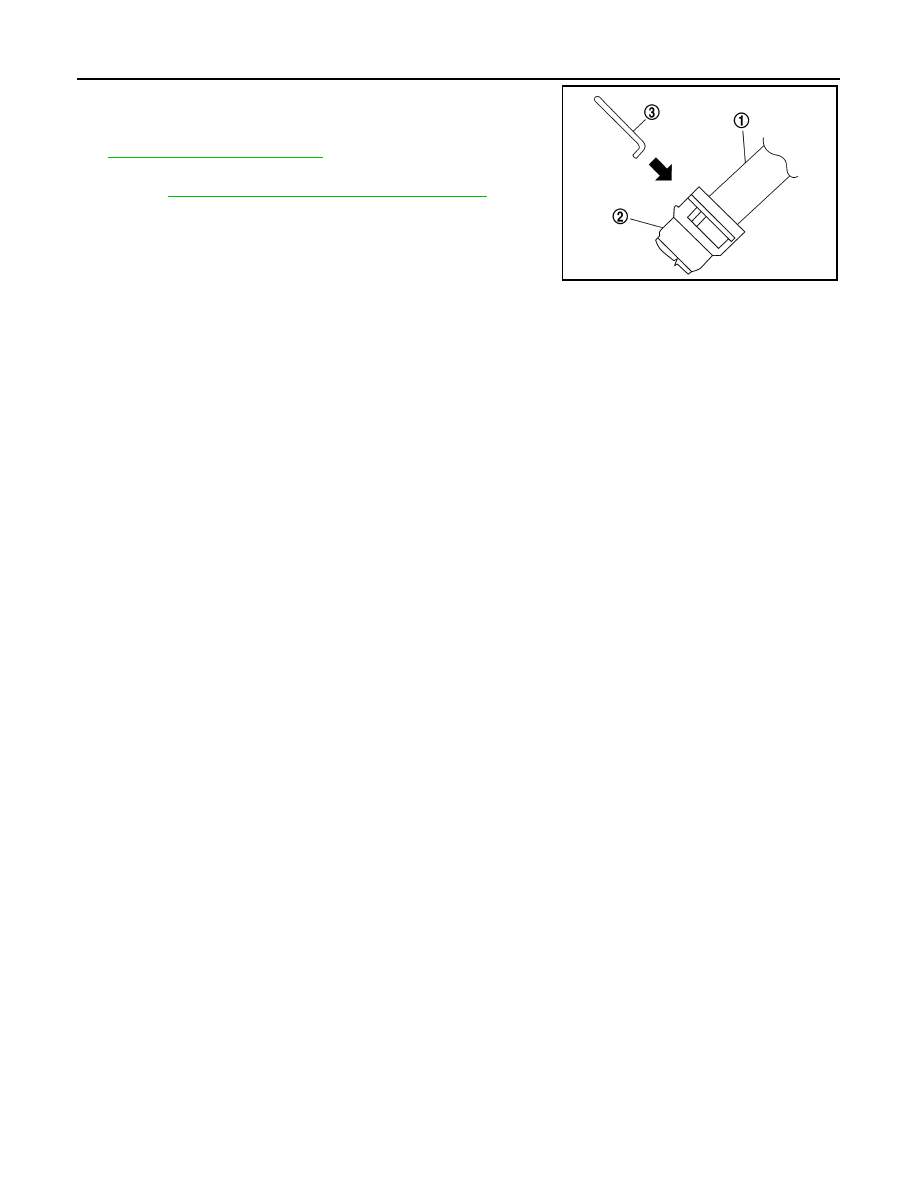

Install clutch tube (1) fully into connector of master cylinder (2).

4.

Install lock pin (3) fully into connector of master cylinder (2).

5.

Fill with new clutch fluid and bleed air from the system. Refer to

CL-8, "Air Bleeding Procedure"

.

6.

After completing this procedure, inspect clutch pedal operation.
Refer to

CL-5, "On-vehicle Inspection and Adjustment"

.

7.

Installation of the remaining componients is in the reverse order
of removal.

PCIB1500E

CSC (CONCENTRIC SLAVE CYLINDER)

CL-11

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CSC (CONCENTRIC SLAVE CYLINDER)

Removal and Installation

INFOID:0000000001375297

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric slave cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage CSC seal and may cause clutch fluid leakage.

• Keep painted surface of the body and other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

REMOVAL

1.

Remove transaxle assembly. Refer to

TM-633, "Removal and Installation"

 (5MT) or

TM-681, "Removal

and Installation"

 (6MT).

2.

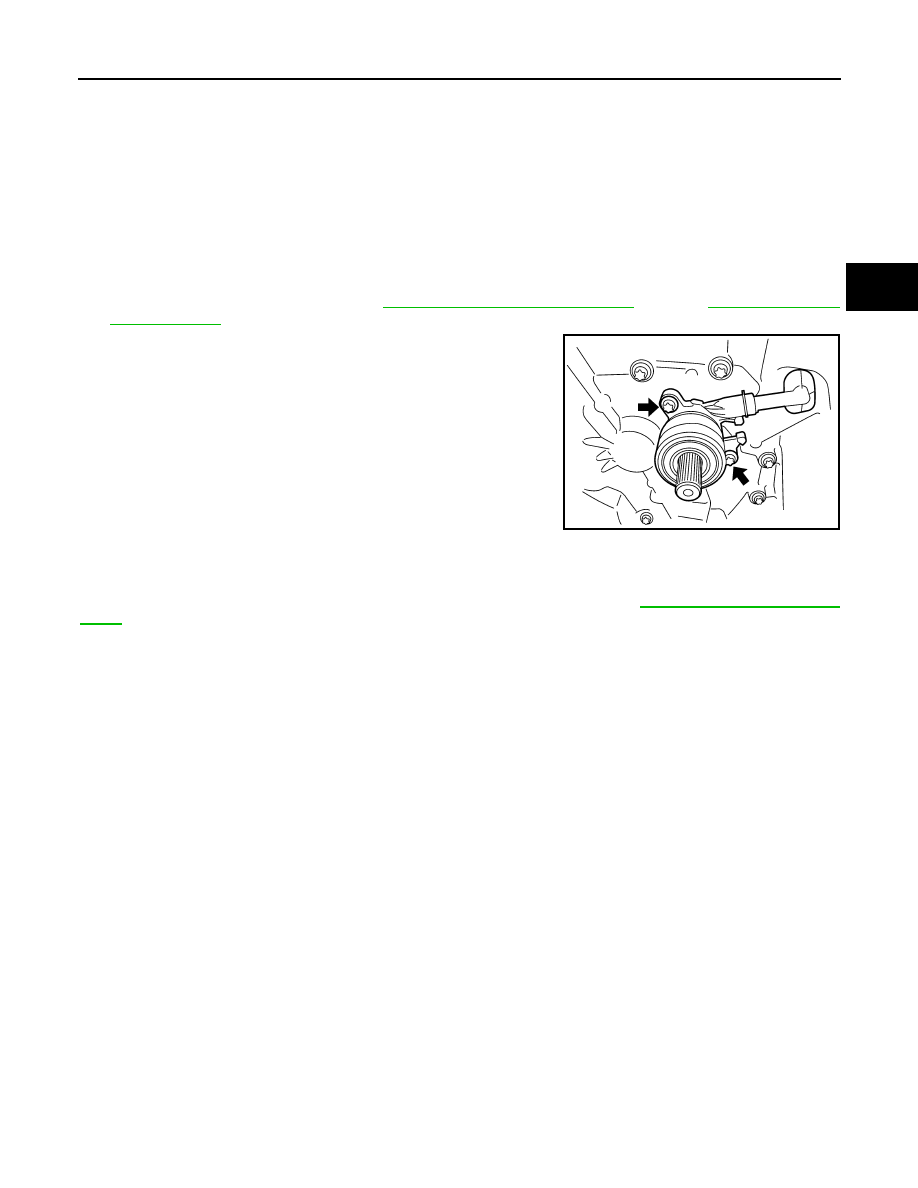

Remove CSC bolts and the CSC from clutch housing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Proce-

dure"

.

PCIB1498E

CL-12

< SERVICE INFORMATION >

CLUTCH PIPING

CLUTCH PIPING

Removal and Installation

INFOID:0000000001375298

Carefully observe the following steps during clutch tube removal and installation.

CAUTION:

Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected
area with water.

REMOVAL

1.

Remove the battery, battery tray and brackets. Refer to

PG-6, "Removal and Installation"

.

2.

Remove the air cleaner and air duct. Refer to

EM-154, "Removal and Installation"

 (MR18DE) or

EM-269,

"Removal and Installation"

 (K9K).

3.

Use one of the following methods to remove hose from clutch master cylinder.
• Drain clutch fluid from reservoir tank and remove hose.
• Remove hose from clutch master cylinder. Immediately plug hose and reservoir tank to prevent clutch

fluid from dripping.

CAUTION:

Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the
affected area with water.

4.

Remove clutch tube lock pin from clutch master cylinder.

5.

Remove clutch tube lock pin at clutch housing.

6.

Remove clutch tube lock pins (2) from clutch damper (3).

7.

Remove clutch tube (1) from clutch damper (3).

8.

Remove clutch damper (3) from bracket (4).

INSTALLATION

Installation is in the reverse order of removal.
• Make sure that all tubes are fully installed into connectors.
• Make sure that all connector lock pins are fully installed.
• After installation, bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

.

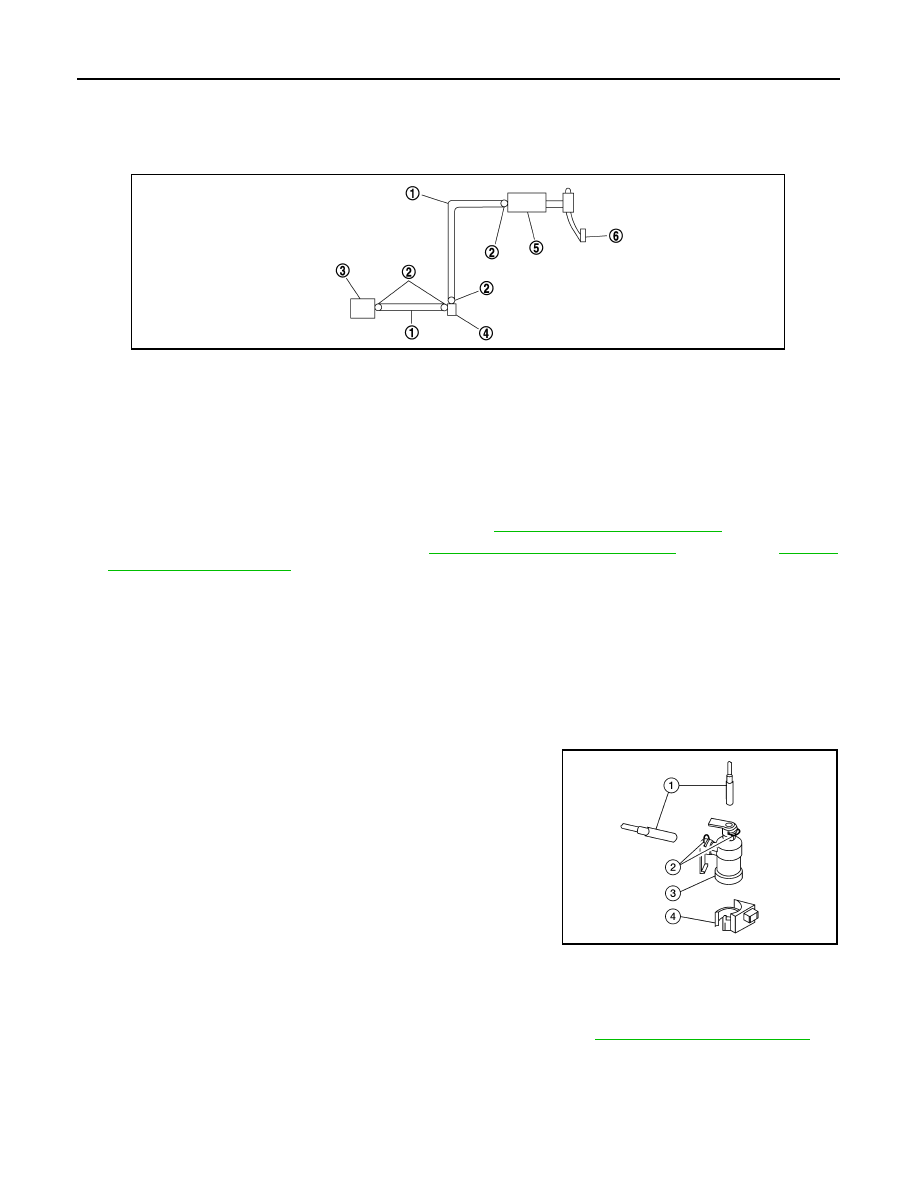

1.

Clutch tube

2.

Clutch tube lock pin

3.

CSC

4.

Clutch damper

5.

Clutch master cylinder

6.

Clutch pedal

PCIB1499E

WCIA0597E

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

CL-13

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

Removal and Installation

INFOID:0000000001375299

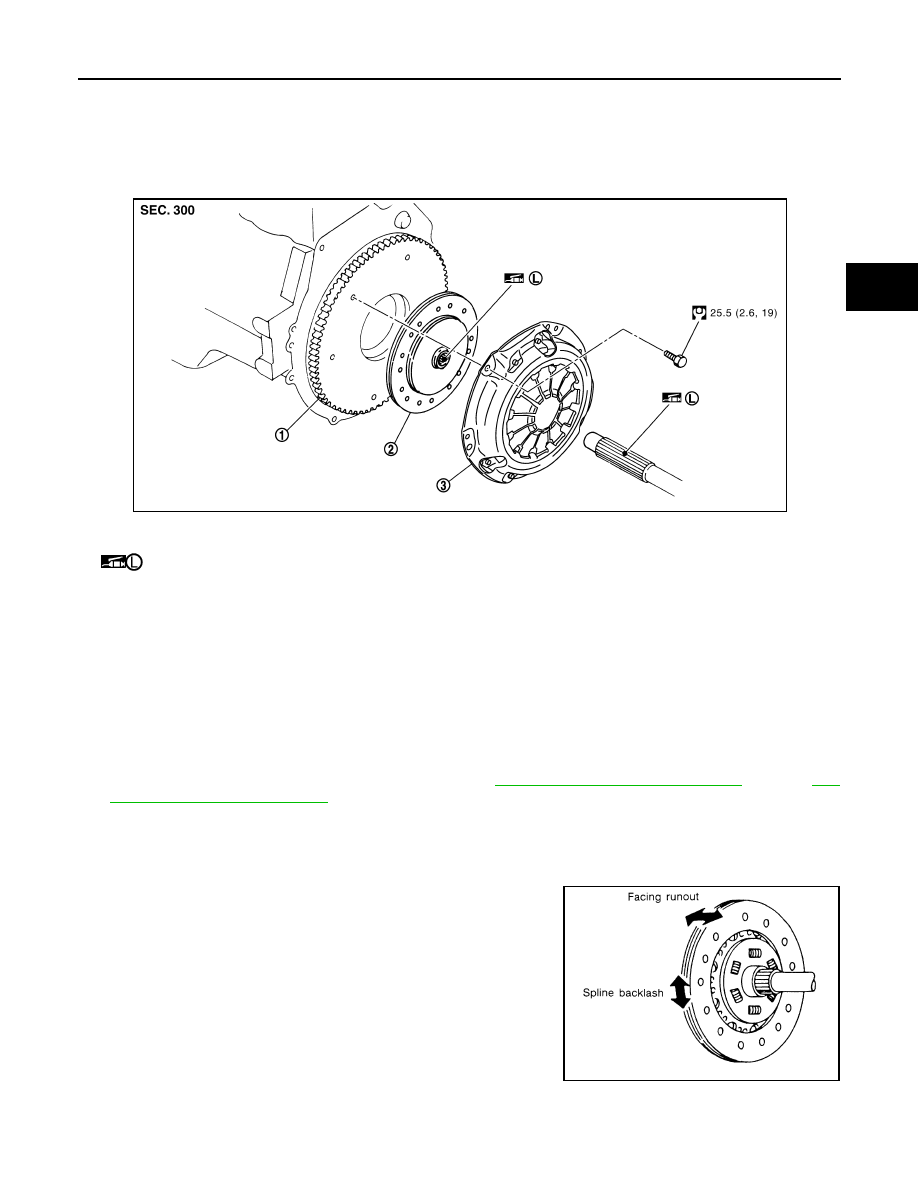

COMPONENTS

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric slave cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage CSC seal and may cause clutch fluid leakage.

• Be careful not to apply any grease to the clutch disc facing, pressure plate surface and flywheel sur-

face.

REMOVAL

1.

Remove transaxle assembly from the vehicle. Refer to

TM-633, "Removal and Installation"

 (5MT) or

TM-

681, "Removal and Installation"

 (6MT).

2.

Loosen clutch cover bolts evenly. Then remove clutch cover and clutch disc.

INSPECTION AND ADJUSTMENT AFTER REMOVAL

Clutch Disc

• Check clutch disc for backlash of spline and runout of facing.

• Check clutch disc for burns, discoloration or oil or grease leakage.

Replace if necessary.

• Measure backlash to clutch disc spline and input shaft spline at the

circumference of clutch disc. If outside the specification, replace
clutch disc.

1.

Flywheel

2.

Clutch disc *1, *2

3.

Clutch cover

 Apply lithium-based grease including molybdenum disulphide.

*1.

Do not clean in solvent.

*2.

When installing, be careful that grease applied to input shaft does not adhere to
clutch disc.

WCIA0637E

Maximum backlash of spline
(at outer edge of disc)

: 1.0 mm (0.039 in)

Distance of runout check point
(from hub center)

: 215 mm (8.46 in)

Maximum allowable spline backlash

: 1.0 mm (0.039 in)

SCL221
