DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 4

4.

USER MODE

Perform self-diagnosis using the "AIR BAG" warning lamp in User mode.  Refer to

SRC-11, "SRS Operation

Check"

.

>> GO TO 5

5.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS.  Refer to

SRC-5, "Trouble Diagnosis with CONSULT-III"

 (w/CONSULT-III) or

SRC-13, "Self-Diagnosis Function (Without CONSULT-III)"

 (w/o CONSULT- III).

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.

Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection end.

NO

>> GO TO 5

INTERMITTENT INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENT INCIDENT

Inspection Procedure

INFOID:0000000001396345

INTERMITTENT TROUBLE

An intermittent incident may have occured in the past but is not being detected currently.  This DTC will not be
detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT-III.

Trouble Diagnosis with CONSULT-III

INFOID:0000000001396346

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.

Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Proceed to "DIAGNOSTIC PROCEDURE 3".  Refer to

SRC-13, "Self-Diagnosis Func-

tion (Without CONSULT-III)"

.

No

>> Proceed to "DIAGNOSTIC PROCEDURE 2".  Refer to

SRC-11, "SRS Operation Check"

.

SRC-6

< FUNCTION DIAGNOSIS >

SRS AIR BAG SYSTEM

FUNCTION DIAGNOSIS

SRS AIR BAG SYSTEM

SRS Configuration

INFOID:0000000001396347

The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or
START position.
The collision modes for which supplemental restraint systems are activated are different among the SRS sys-
tems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tension-
ers are activated in a frontal collision but not in a side collision.
SRS configurations for some collision modes are as follows:

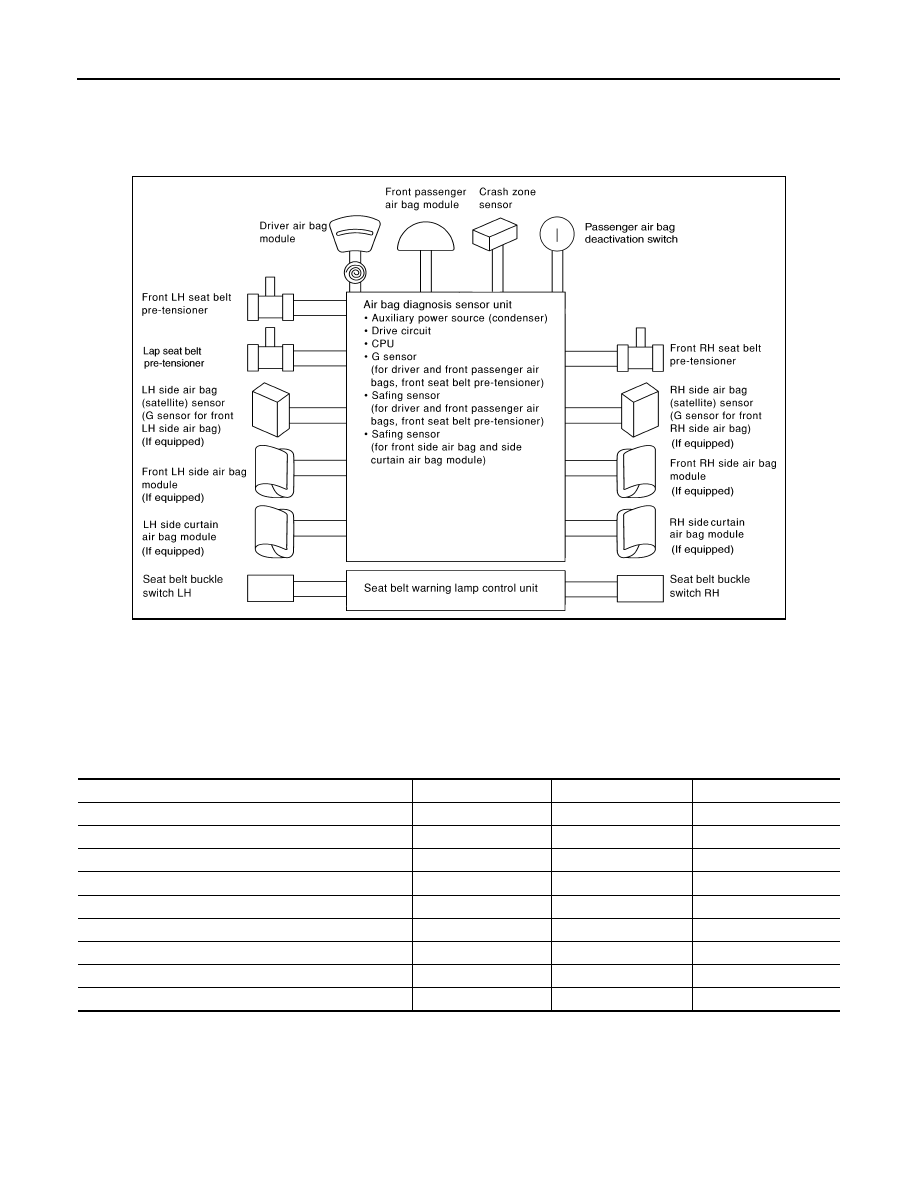

AWHIA0001GB

SRS configuration

Frontal collision

Left side collision

Right side collision

Driver air bag module

×

—

—

Front passenger air bag module

×

—

—

Front LH seat belt pre-tensioner

×

—

—

Lap seat belt pre-tensioner

×

—

—

Front RH seat belt pre-tensioner

×

—

—

Front LH side air bag module

—

×

—

Front RH side air bag module

—

—

×

LH side curtain air bag module

—

×

—

RH side curtain air bag module

—

—

×

SRS AIR BAG SYSTEM

SRC-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

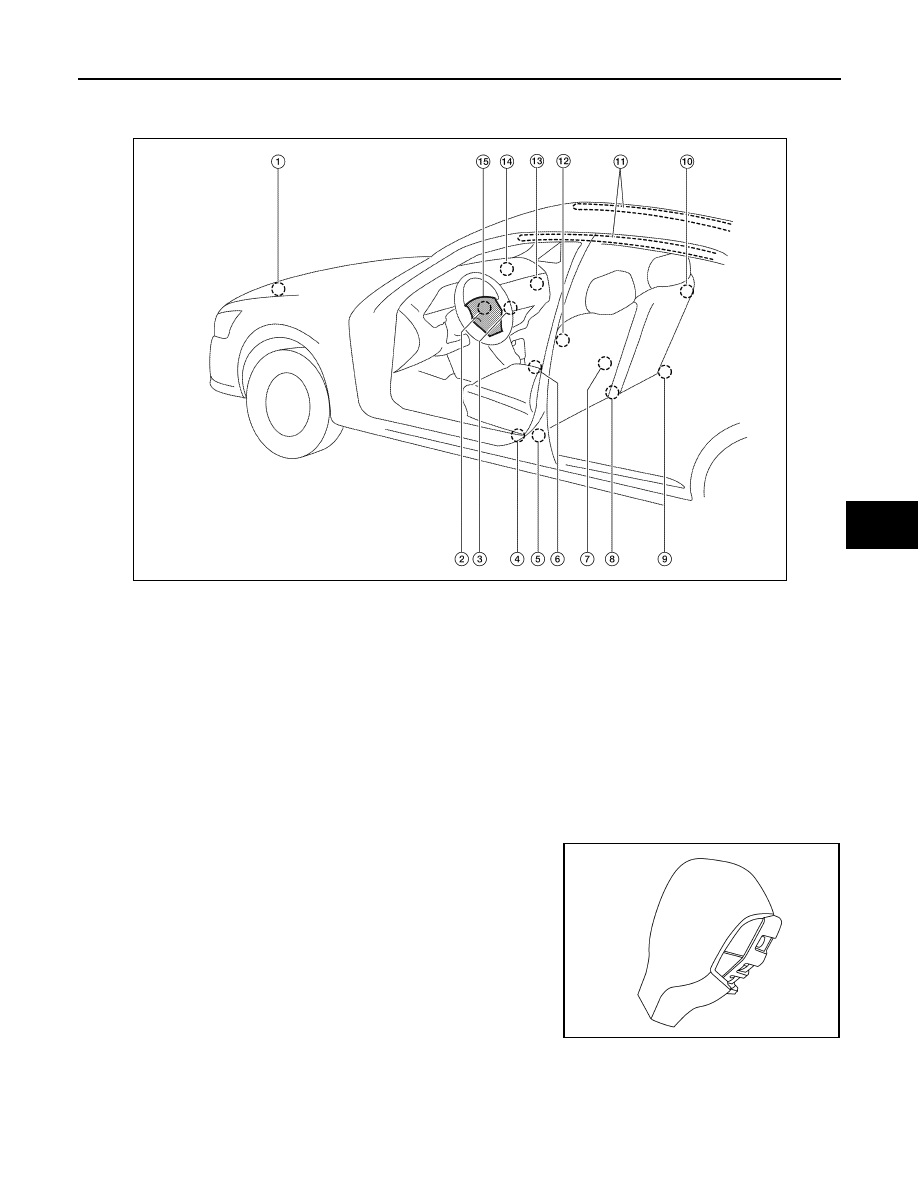

SRS Component Parts Location

INFOID:0000000001396420

Driver Air Bag Module

INFOID:0000000001396421

The driver air bag module is single stage and located in the steering
wheel assembly.  It operates with the SRS system in a frontal colli-
sion exceeding a specified level.

1.

Crash zone sensor

2.

Spiral cable

3.

Front passenger air bag off indicator

4.

Lap seat belt pre-tensioner

5.

Front LH seat belt pre-tensioner
LH side air bag satellite sensor
(if equipped)

6.

Air bag diagnosis sensor unit

7.

Seat belt warning lamp control unit

8.

Seat belt buckle switch LH
Seat belt buckle switch RH

9.

Front RH seat belt pre-tensioner
RH side air bag satellite sensor
(if equipped)

10. Front RH side air bag module

(if equipped)

11.

Side curtain air bag modules
(if equipped)

12. Front LH side air bag module

(if equipped)

13. Passenger air bag deactivation

switch

14. Front passenger air bag module

15. Driver air bag module

AWHIA0002ZZ

WHIA0325E
