SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Component

INFOID:0000000001350507

Hatchback Models

Sedan Models

Removal and Installation

INFOID:0000000001350508

REMOVAL

WARNING:

WHIA0319E

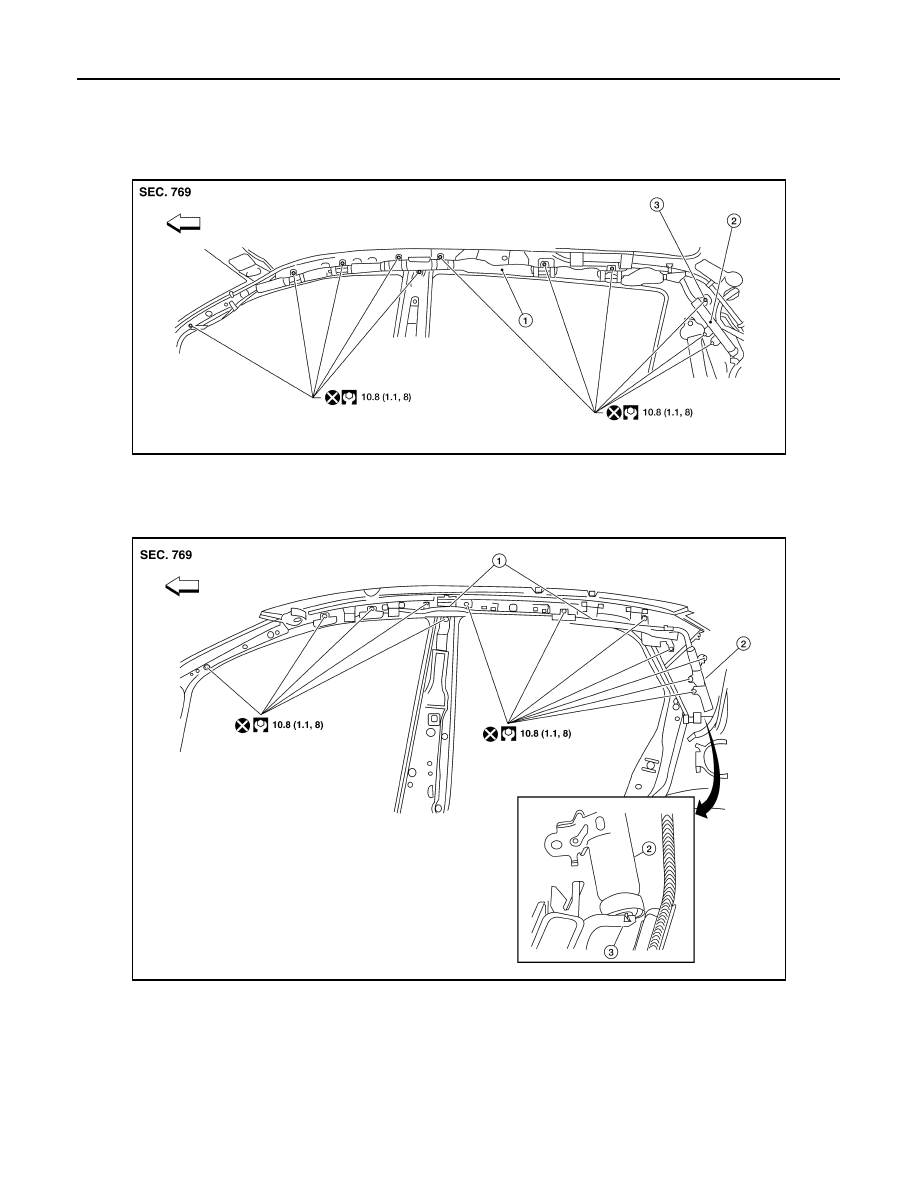

1. Side curtain air bag module

2. Inflator

3. Ground bolt

⇐

Vehicle front

LHIA0135E

1. Side curtain air bag module

2. Inflator

3. Side air bag module connector

⇐

Vehicle front

SIDE CURTAIN AIR BAG MODULE

SR-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

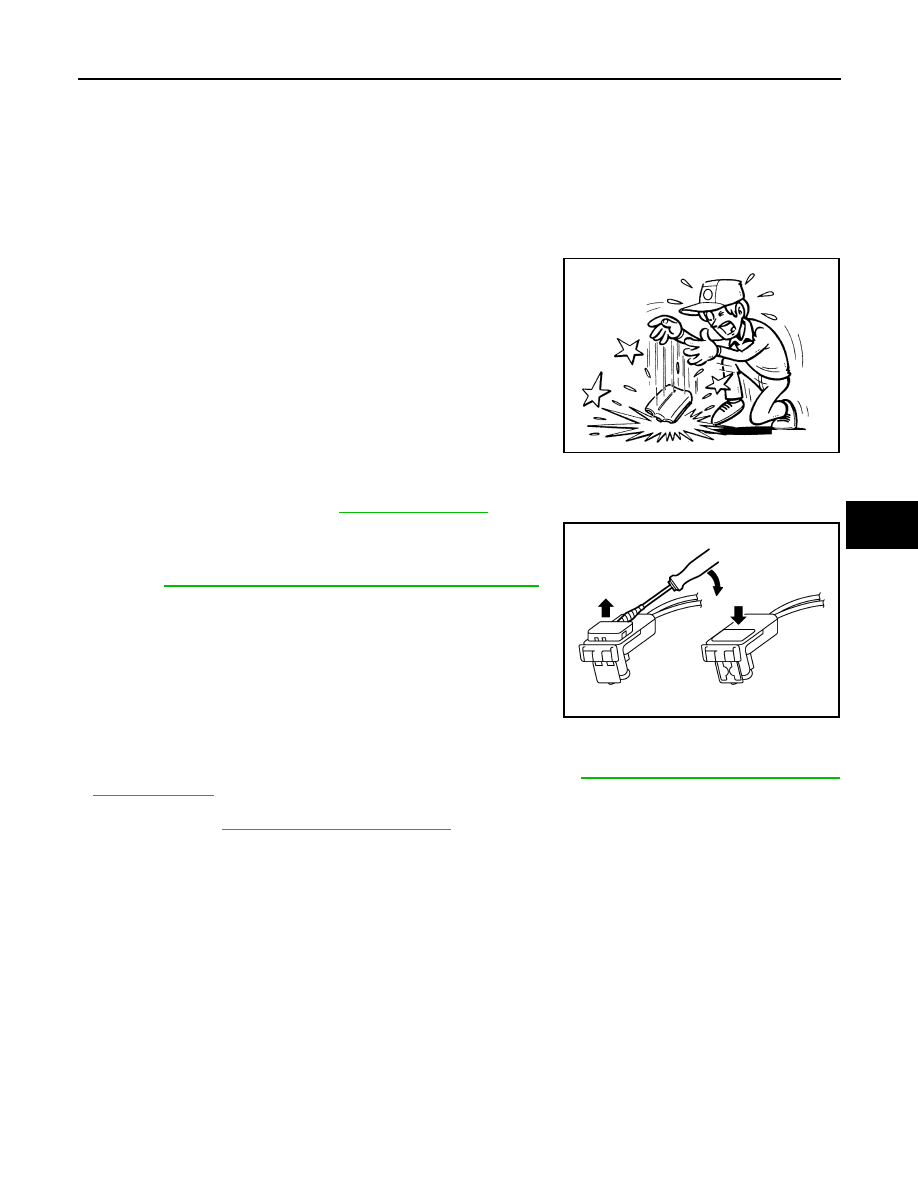

• When servicing the SRS, do not work from directly in front of air bag module.
• Always place the curtain air bag module with deployment side facing upward.
• Do not reuse center pillar upper garnish if removed.

CAUTION:

• Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least

3 minutes.

• Do not use old bolts after removal; replace with new bolts.
• Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
• Do not disassemble air bag module.
• Do not expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Do not allow oil, grease or water to come in contact with the

side curtain air bag module.

• Do not attempt to repair or replace damaged direct-connect

SRS component connectors. If a direct-connect harness con-
nector is damaged, the harness must be replaced.

1.

Disconnect both the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove the headlining. Refer to

INT-29, "Component"

.

3.

Disconnect side curtain air bag module connector.
NOTE:
For removal/installation of the direct-connect SRS connectors,
refer to

SRC-9, "Direct-connect SRS Component Connectors"

.

4.

Remove the bolts in order starting at the rear, then remove the
side curtain air bag module.

INSTALLATION

Installation is in the reverse order of removal.
• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is

detected. Refer to

SRC-11, "SRS Operation Check"

.

WHIA0321E

PHIA0953J

SR-12

< ON-VEHICLE REPAIR >

SIDE AIR BAG (SATELLITE) SENSOR

SIDE AIR BAG (SATELLITE) SENSOR

Removal and Installation

INFOID:0000000001350510

REMOVAL

WARNING:

Do not reuse center pillar upper garnish if removed.

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least

3 minutes.

• Do not disassemble the side air bag (satellite) sensor.
• Do not use old nuts after removal; replace with new nuts.
• Replace the side air bag (satellite) sensor if it has been

dropped or sustained an impact.

• Check side air bag (satellite) sensor to make sure it is free of

deformities, dents, cracks or rust. If it shows any visible signs
of damage, replace it with a new one.

1.

Disconnect both the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove the front seat belt retractor. Refer to

SB-6, "Removal and Installation of Front Seat Belt"

.

3.

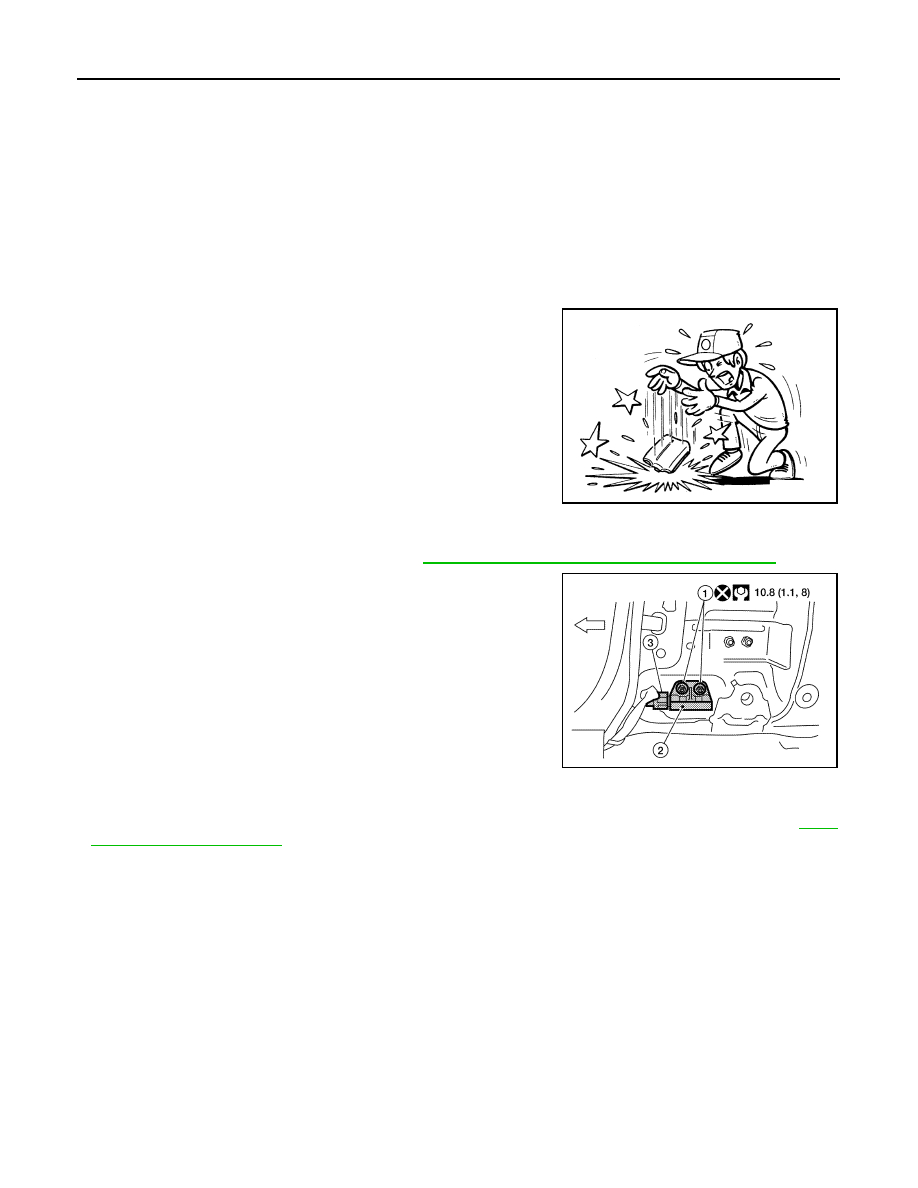

Remove the nuts (1) and remove side air bag (satellite) sensor
(2).

⇐

: Vehicle front

4.

Disconnect the side air bag (satellite) sensor harness connector
(3).

INSTALLATION

Installation is in the reverse order of removal.
• After the work is completed, perform self-diagnosis to make sure no malfunction is detected. Refer to

SRC-

11, "SRS Operation Check"

.

WHIA0321E

WHIA0322E

PASSENGER AIR BAG DEACTIVATION SWITCH

SR-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PASSENGER AIR BAG DEACTIVATION SWITCH

Passenger Air Bag Deactivation Switch

INFOID:0000000001404301

REMOVAL

CAUTION:

Before servicing SRS, turn ingition switch OFF, disconnect both battery cables, then wait at least 3
minutes.

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

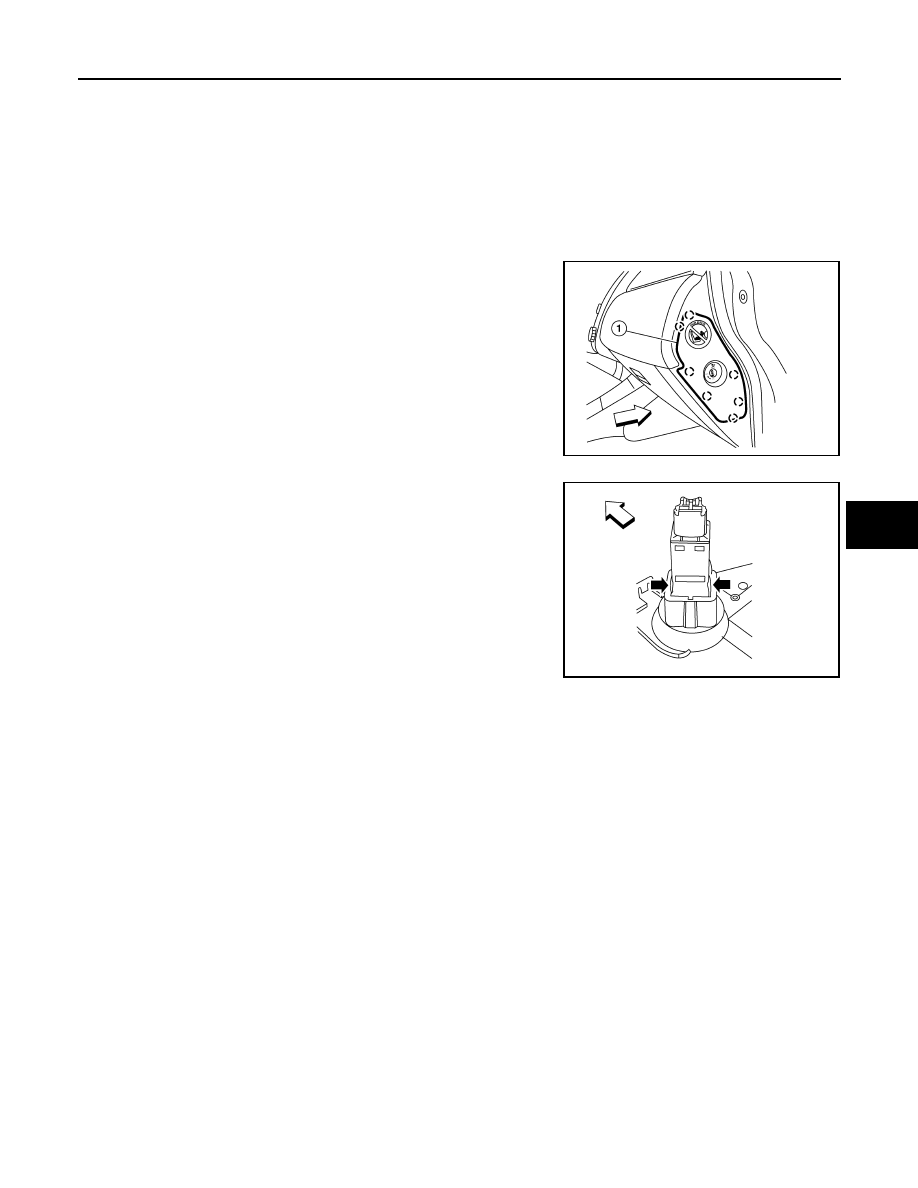

Using a suitable tool, release the instrument panel side cover (1)
pawls.
NOTE:
LHD shown, RHD similar.

3.

Lift the instrument panel side cover upward and away from the
instrument panel to remove.

4.

Disconnect the passenger air bag deactivation switch harness
connector.

5.

Pinch the side tabs and release switch from the instrument
panel side cover to remove.

INSTALLATION

CAUTION:

Passenger air bag deactivation switch is keyed for proper installation. Improper positioning or exces-
sive force of the switch will result in damage.
Installation is in the reverse order of removal.
NOTE:
After replacement, perform self-diagnosis for SRS. Refer to ....XXX.

ALHIA0045ZZ

ALHIA0046ZZ
