SR-6

< ON-VEHICLE REPAIR >

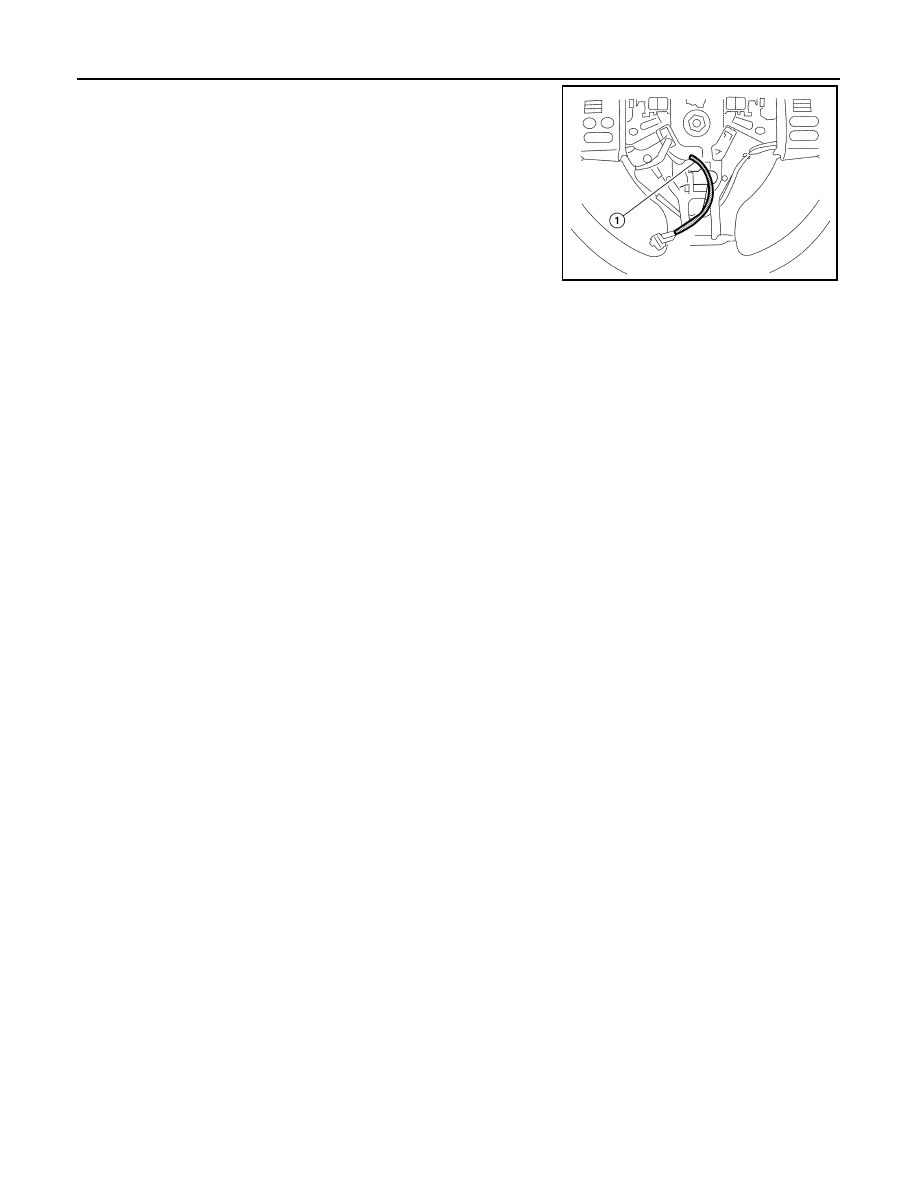

DRIVER AIR BAG MODULE

• Make sure driver air bag module harness (1) is routed prop-

erly to avoid SRS component damage during installation.

WHIA0338E

SPIRAL CABLE

SR-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

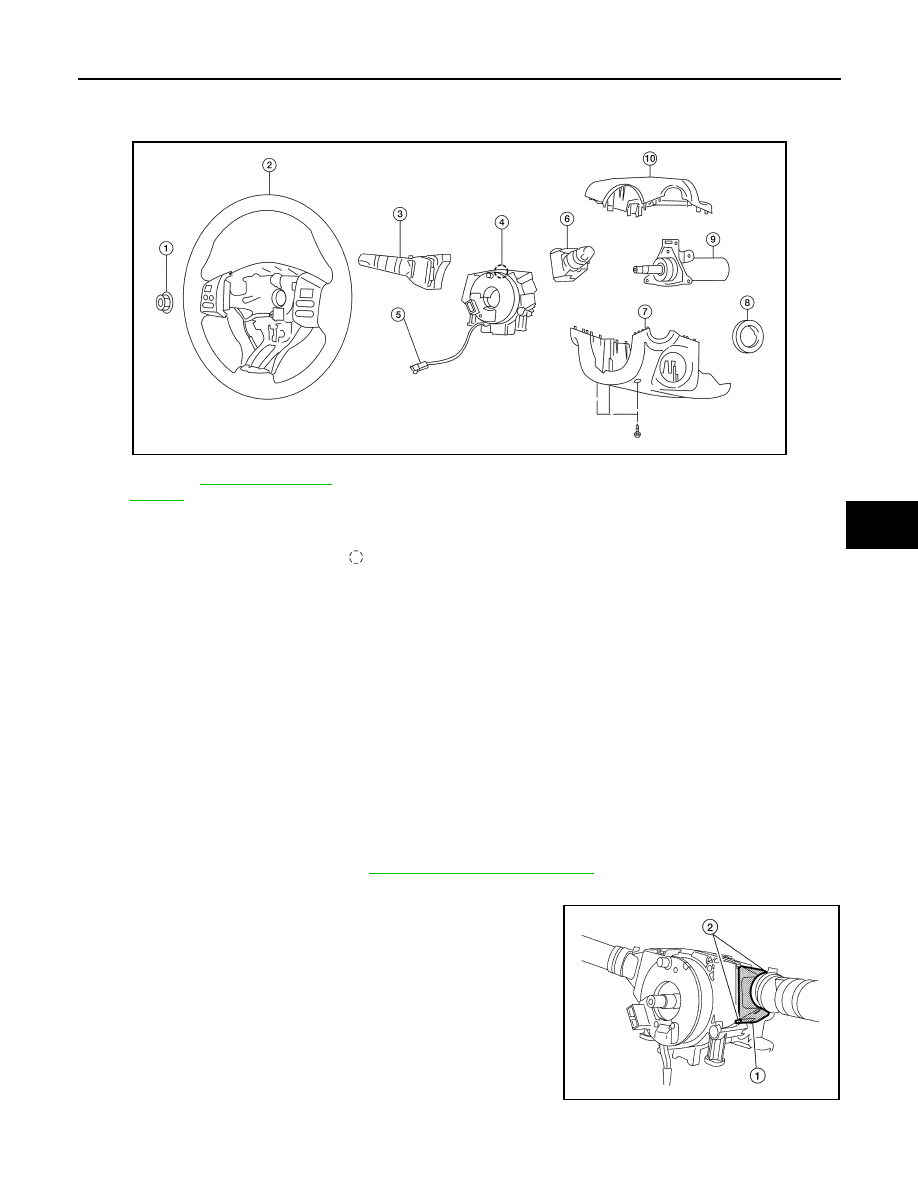

SPIRAL CABLE

Removal and Installation

INFOID:0000000001404300

REMOVAL

WARNING:

When servicing the SRS, do not work from directly in front of air bag module.

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least

3 minutes.

• Do not tap or bump the steering wheel.
• Do not disassemble the spiral cable.
• Do not allow oil, grease or water to come in contact with the spiral cable.
• Replace the spiral cable if it has been dropped or sustained an impact.
• With the steering linkage disconnected, the spiral cable may snap by turning the steering wheel

beyond the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns
from the neutral position.

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

Set the front wheels to the straight-ahead/neutral position.

3.

Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

4.

Remove the column cover upper and lower.

5.

Disconnect wiper and washer switch connector (1). Then while
pressing tabs (2), pull wiper and washer switch away from spiral
cable to remove.

WHIA0339E

1. Nut, refer to

ST-8, "Removal and In-

stallation"

2. Steering wheel

3. Lighting and turn signal switch

4. Spiral cable

5. Driver air bag module connectors

6. Wiper and washer switch

7. Column cover lower

8. Steering lock escutcheon

9. Steering column assembly

10. Column cover upper

Pawl

WHIA0315E

SR-8

< ON-VEHICLE REPAIR >

SPIRAL CABLE

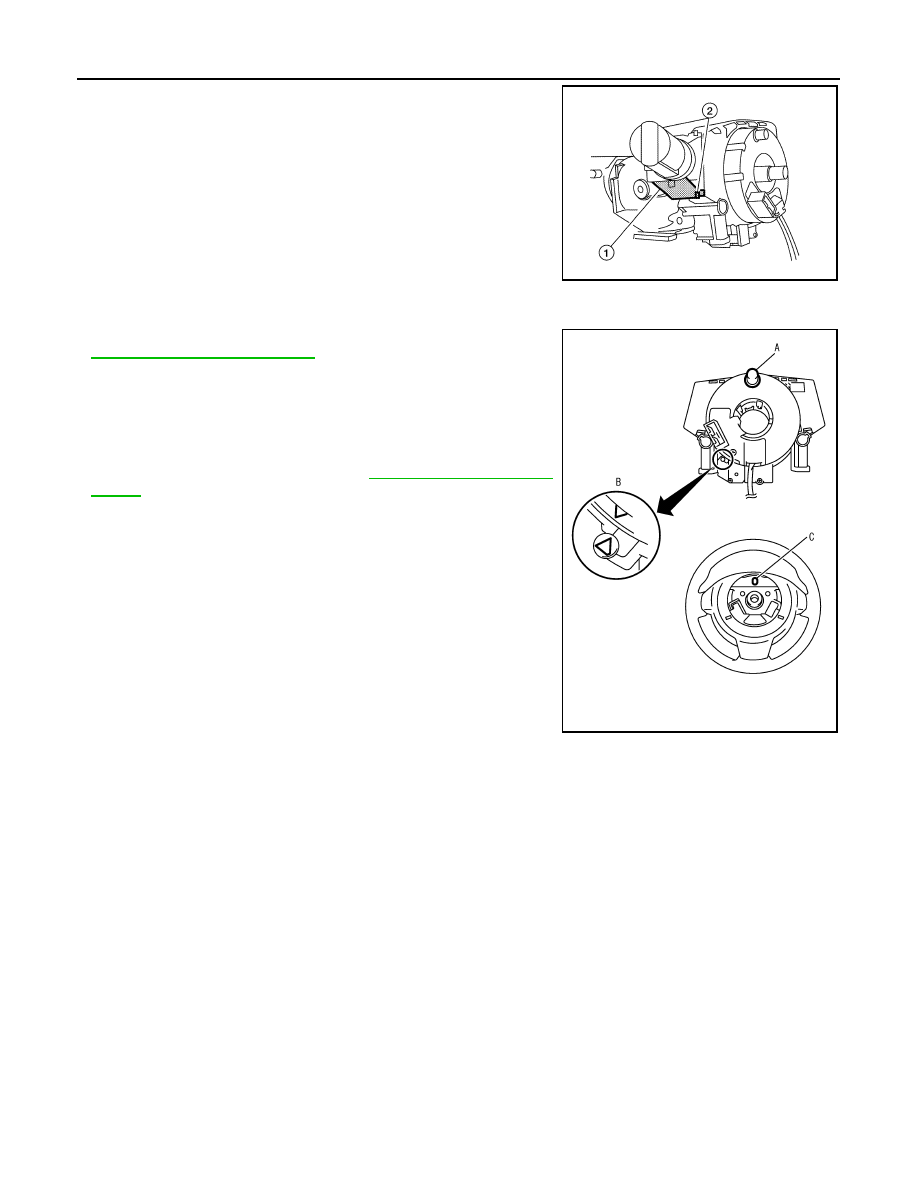

6.

Disconnect lighting and turn signal switch connector (1). Then
while pressing tabs (2), pull lighting and turn signal switch
toward driver door to remove.

7.

Remove the screws, then release the tab at the top and pull the
spiral cable away from the steering column assembly.

8.

Disconnect spiral cable connectors.

INSTALLATION

Installation is in the reverse order of removal.
• Align spiral cable correctly when installing steering wheel, refer to

ST-8, "Removal and Installation"

. Make sure spiral cable alignment

and centering marks (B) are matched and in the neutral position.
The neutral position is detected by turning left 2.6 revolutions from
the right end position, ending with the locating pin (A) at the top.
Place steering wheel in straight ahead position, then install it with
the locating pin hole (C) directly over spiral cable locating pin.

• After the work is completed, perform self-diagnosis to make sure

no malfunction is detected. Refer to

SRC-11, "SRS Operation

Check"

.

WHIA0316E

PHIA1024J

FRONT PASSENGER AIR BAG MODULE

SR-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

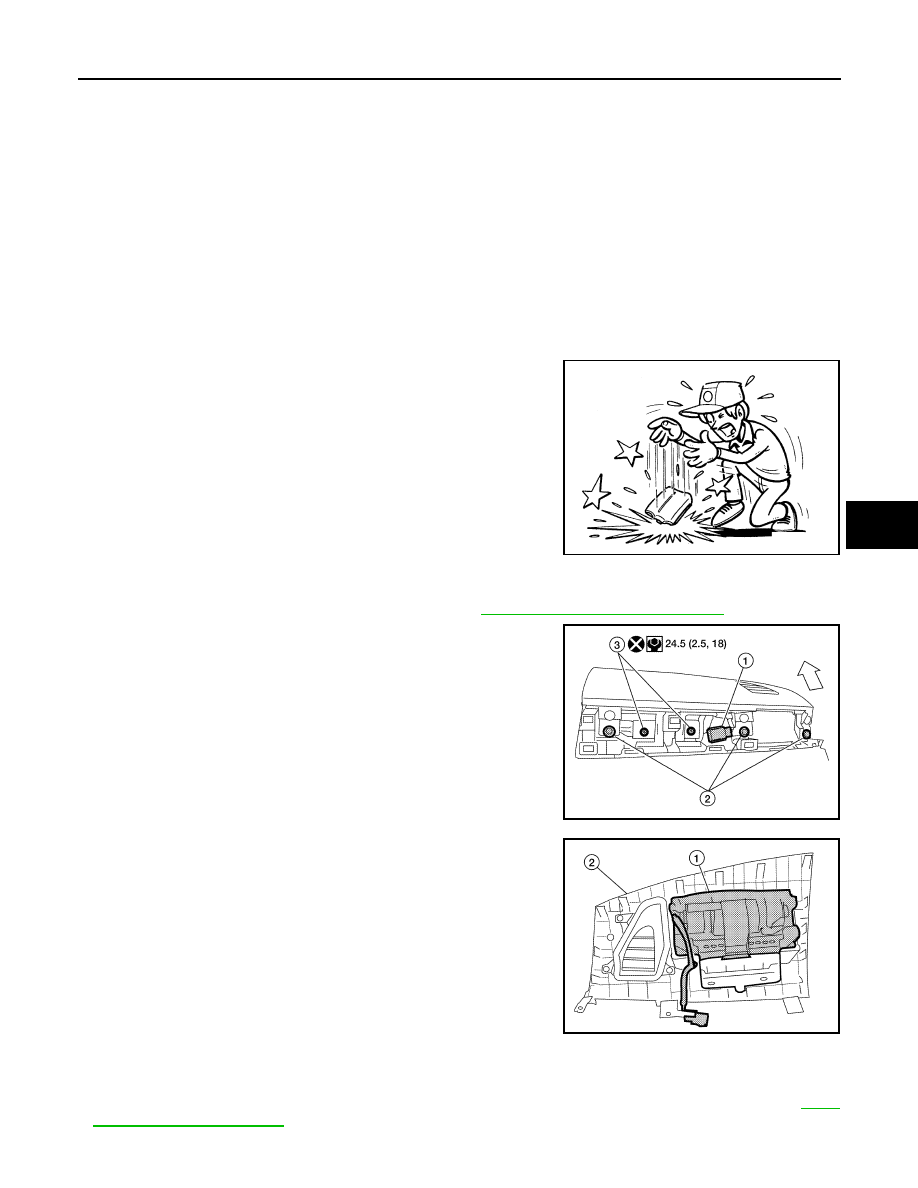

FRONT PASSENGER AIR BAG MODULE

Removal and Installation

INFOID:0000000001350506

REMOVAL

WARNING:

• When servicing the SRS, do not work from directly in front of air bag module.
• Always place front passenger air bag module with pad side facing upward.

CAUTION:

• Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least

3 minutes.

• Do not use old bolts after removal; replace with new bolts.
• Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
• Do not disassemble air bag module.
• Do not expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Do not allow oil, grease or water to come in contact with the

front passenger air bag module.

1.

Disconnect the negative and positive battery cables, then wait at least 3 minutes.

2.

Remove the side ventilator assembly (right). Refer to

VTL-23, "Removal and Installation"

.

3.

Disconnect front passenger air bag module connector (1) and
remove the upper instrument panel assembly bolts (2).

⇐

: Vehicle front

NOTE:
LHD shown, RHD similar

4.

Remove the front passenger air bag module bolts (3) from the
steering member.

5.

Release the pawls and remove the front passenger air bag mod-
ule (1) from the upper instrument panel assembly (2).
NOTE:
LHD shown, RHD similar

INSALLATION

Installation is in the reverse order of removal.
• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

11, "SRS Operation Check"

.

WHIA0321E

WHIA0317E

WHIA0318E
